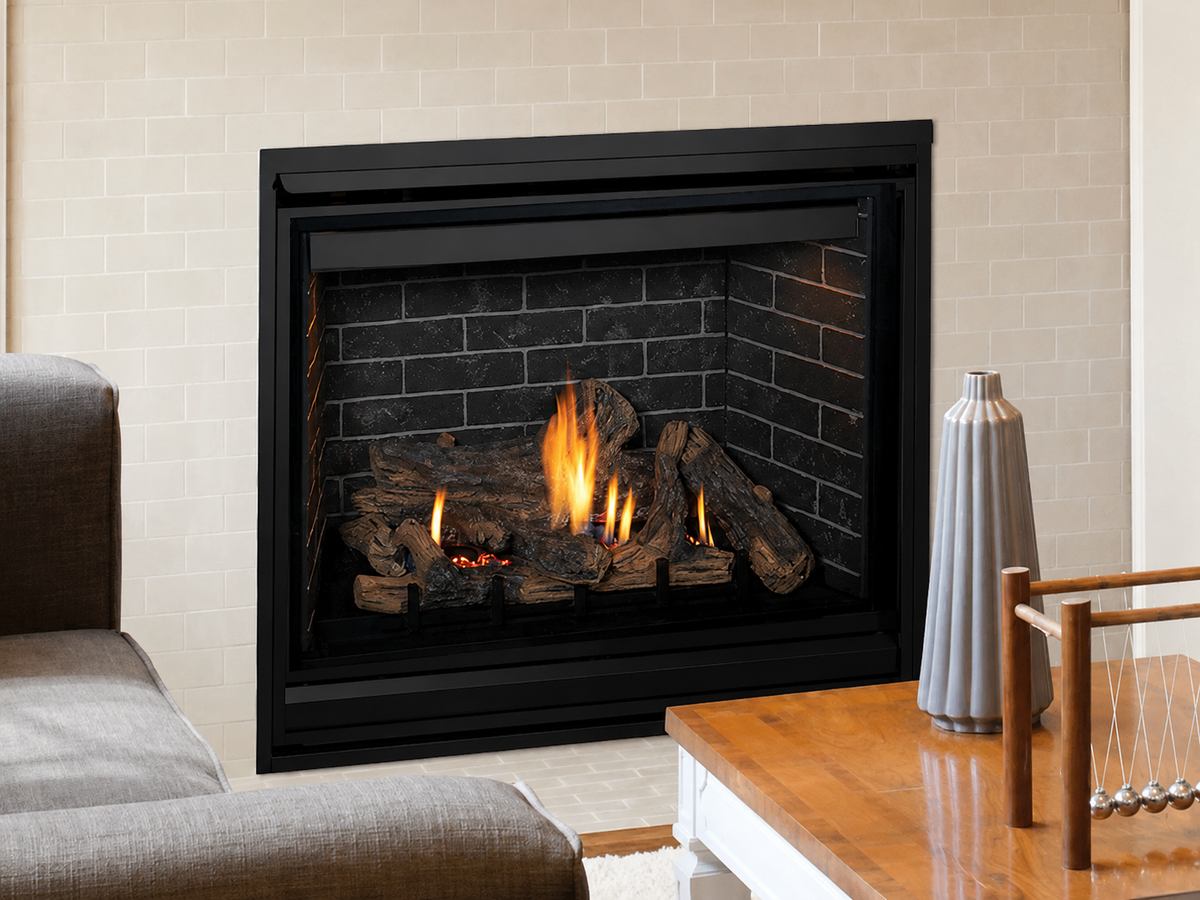

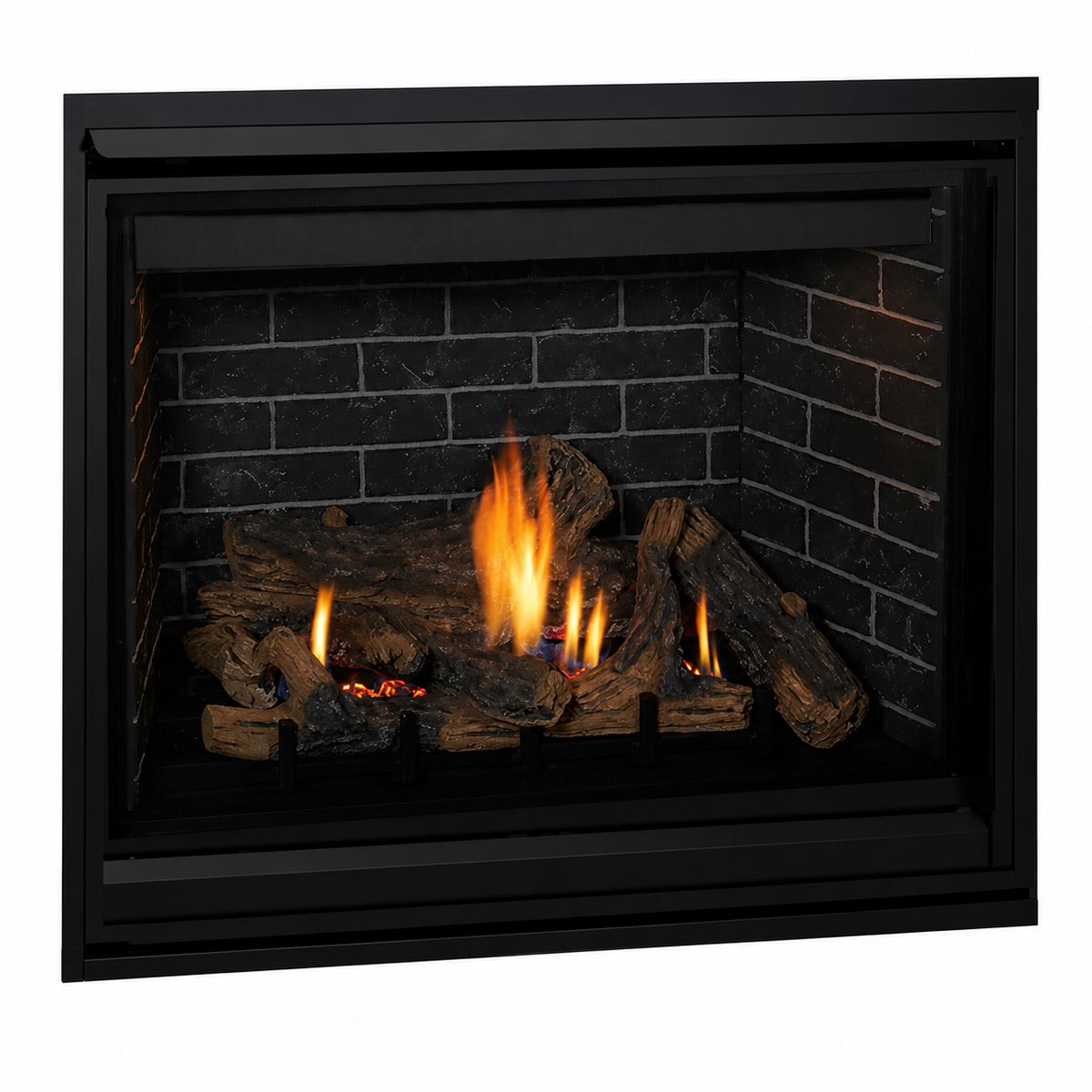

Superior DRT3540 40" Traditional Top/Rear Direct Vent Gas Fireplace With Electronic Ignition

The Superior DRT3540 40 Inch Traditional Top/Rear Direct Vent Gas Fireplace With Electronic Ignition delivers impressive heating performance and advanced fireplace features in a traditional design. Part of the Superior DRT3500 Pro Series, this 40-inch direct vent gas fireplace showcases a realistic high-definition log set, ceramic glass for enhanced heat transfer, and customizable interior options including black porcelain and decorative ceramic fiber liners. Its compact 17-inch depth helps maximize living space, while the combination top and rear vent configuration provides flexibility for a wide range of installation applications.

Equipped with electronic ignition and seamless battery backup, the Superior DRT3540 continues operating during power outages for added peace of mind. With heating capacities of up to 33,000 BTUs for natural gas and 23,000 BTUs for propane, this fireplace is designed to provide dependable warmth and comfort. A factory-installed blower with six speed settings helps distribute heat efficiently throughout the room, while the included full-function remote control allows convenient adjustment of flame height, thermostat settings, blower speed, lighting, and ignition functions.

To create a more inviting atmosphere, the DRT3540 features integrated interior illumination with six customizable lighting settings that enhance the fireplace’s visual appeal. Built to recognized ANSI and CSA standards, it includes a durable textured powder coat finish, protective screen, and ceramic glass for long-lasting performance. Compatible with Secure Vent rigid and flex direct vent components and backed by a 20-year limited warranty, the Superior DRT3540 offers an ideal blend of efficiency, customization, and traditional fireplace elegance.

Included

• Fireplace Unit

• Literature Kit (Installation and Operation Instructions, Hot Glass Safety Flyer, and
• Safety-In-Operation Warning Labels)

• 2 Vent Restrictors

• Remote Control and Receiver

• 1 Non-Combustible Board, 2 Side Brackets and 1 Center Bracket

• 1 Header Shield

• 1 Wall Heatshield

• 1 Oak Log Set

• 1 Bag of Glowing Embers

• 1 Bag of Platinum Embers

• Elbow shield (2 x Shields and 4 Screws)

• 2 Vent Cover Plates

Required Accessories

• Facade

• Liner Kit


Optional Accessories

• Decorative Face Surround

• Common Accessories

Features

• Available in 35”, 40” and 45” models

• Mid-size 17” depth saves installed floor space

• Combination top/rear flue configuration

• Electronic ignition with seamless battery backup and provides continued operation in the event of a power outage (IPI/CPI switch standard)

• Outstanding heating efficiency for increased comfort and lower operating costs

• Ceramic glass for optimum heat transfer and a protective screen*

• Beautifully crafted high-definition log set

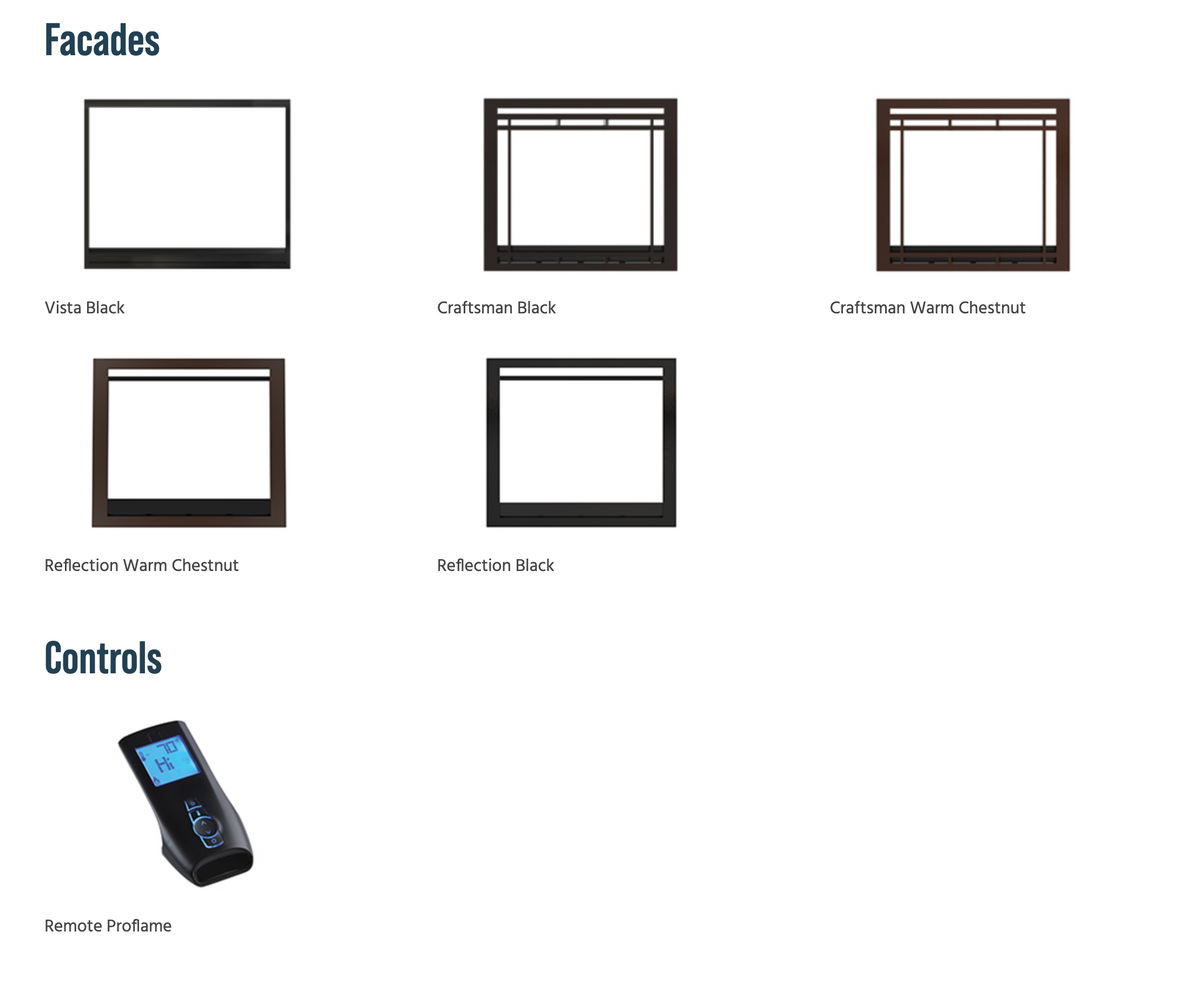

• Face selections include a Vista inside fit façade or one of several Designer overlap fit facades (required)

• Interior selections consist of black porcelain and a variety of ceramic fiber liners (required)

• Mood enhancing interior illumination with six distinctive settings

• Factory installed blower with six speed settings to fine tune your heating needs

• Full-function remote control included (IPI/CPI, thermostat, flame height, blower, lighting)

• Durable textured powder coat finish

• Built to ANSI Z21.88 and CSA 2.33 CAN/CGA 2.17-M91 standards. PFS report F13-094

• 20 year limited warranty

*All applicable models comply with ANSI Z21.50/88 barrier requirements.

Venting Notes

• Uses 4.5" / 7.5" Secure Vent Rigid and Secure Flex Direct-Vent Components

Specifications

Technical Dimensions

Warranty

ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895

Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture.

Documents & Files

• Mid-Size Fireplace Brochure
• DRT3500 Smart Sheet

• DRT3500 Installation and Operation Manual

• DRT3500 Specification Sheet
