Description

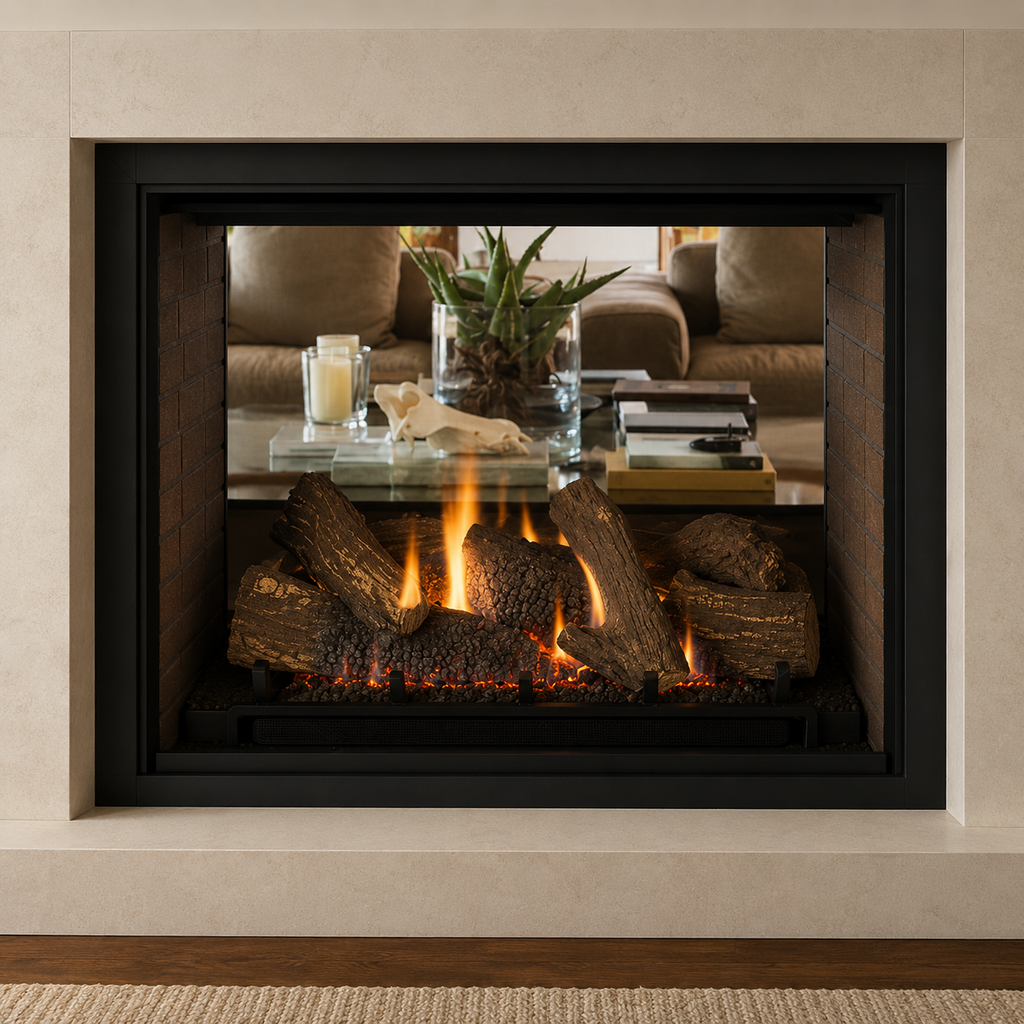

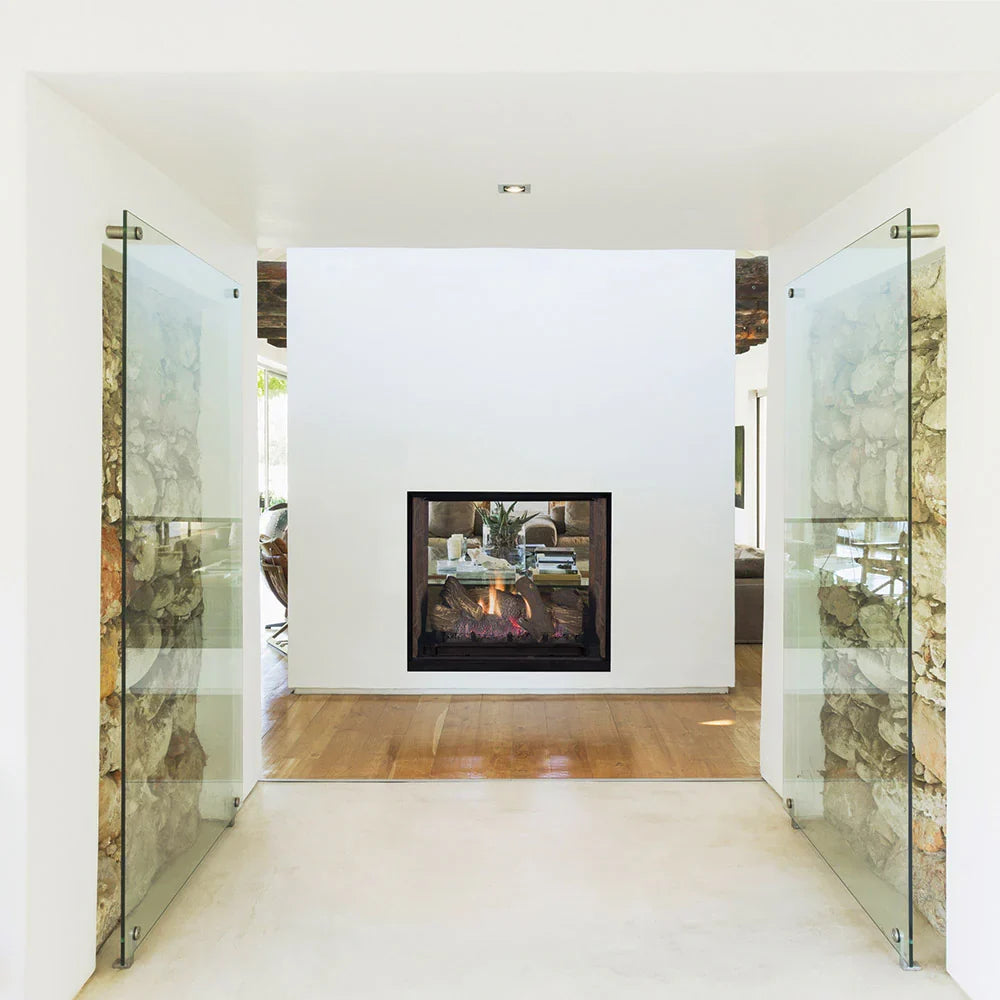

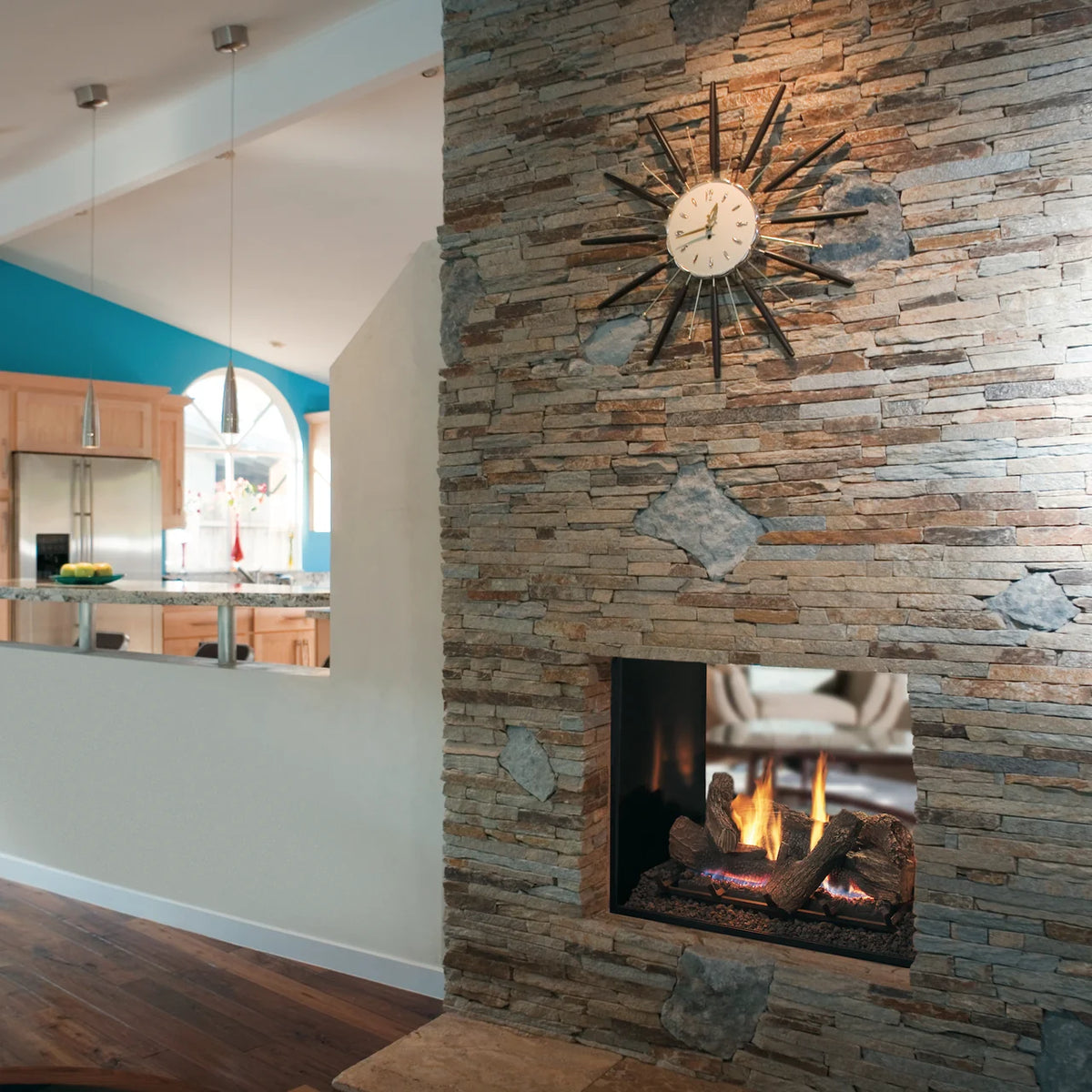

The Superior DRT63ST 40 Inch Traditional Multi View See-Through Direct Vent Gas Fireplace is a versatile fireplace designed to create a dramatic focal point while connecting multiple living spaces with a stunning view of the flames. Available as a 40-inch see-through model, it can be configured for indoor-to-indoor or indoor-to-outdoor applications, offering exceptional design flexibility for custom residential projects. The beautifully crafted aged oak high-density fiber log set, heavy-duty grate, and smooth-face design create an authentic fireplace appearance while providing an expansive viewing experience from both sides.
Engineered for convenience and reliable performance, the Superior DRT63ST features electronic ignition with battery backup, allowing continued operation during power outages. With heat output up to 57,000 BTUs on natural gas and 50,000 BTUs on propane, this fireplace delivers substantial warmth while maintaining efficient operation. Six adjustable flame settings with up to a 33% turn-down capability allow precise control over heat and flame presentation. The included full-function remote control provides convenient access to thermostat and flame adjustments, helping homeowners customize comfort with ease.
Designed for both durability and customization, the DRT63ST offers a choice of black reflective porcelain or ceramic fiber interior liners to complement a variety of décor styles. Optional outdoor window kits further expand installation possibilities by supporting indoor-to-outdoor applications. Built with ceramic glass for enhanced heat transfer, hidden side-mounted controls for easier finishing, and a protective screen for added safety, this fireplace is backed by a 20-year limited warranty and delivers a premium combination of performance, flexibility, and traditional fireplace appeal.
Included
- Assembled Vented Gas Fireplace
- (1) Literature Kit
- (1) Remote Control Kit
- (3) AAA Batteries
- (1) Log Set
- (1) Vent Restrictor Assembly
- (1) Bag of Platinum Glowing Embers
- (4) Bags Volcanic Stone
- (1) Door Modesty Shield
Required Accessories
- Liner Kits
- Outdoor Window Kit
Optional Accessories
- Volcanic Stone
- Touch Up Paint
- Glowing Embers
- Gas Conversion Kit
Features

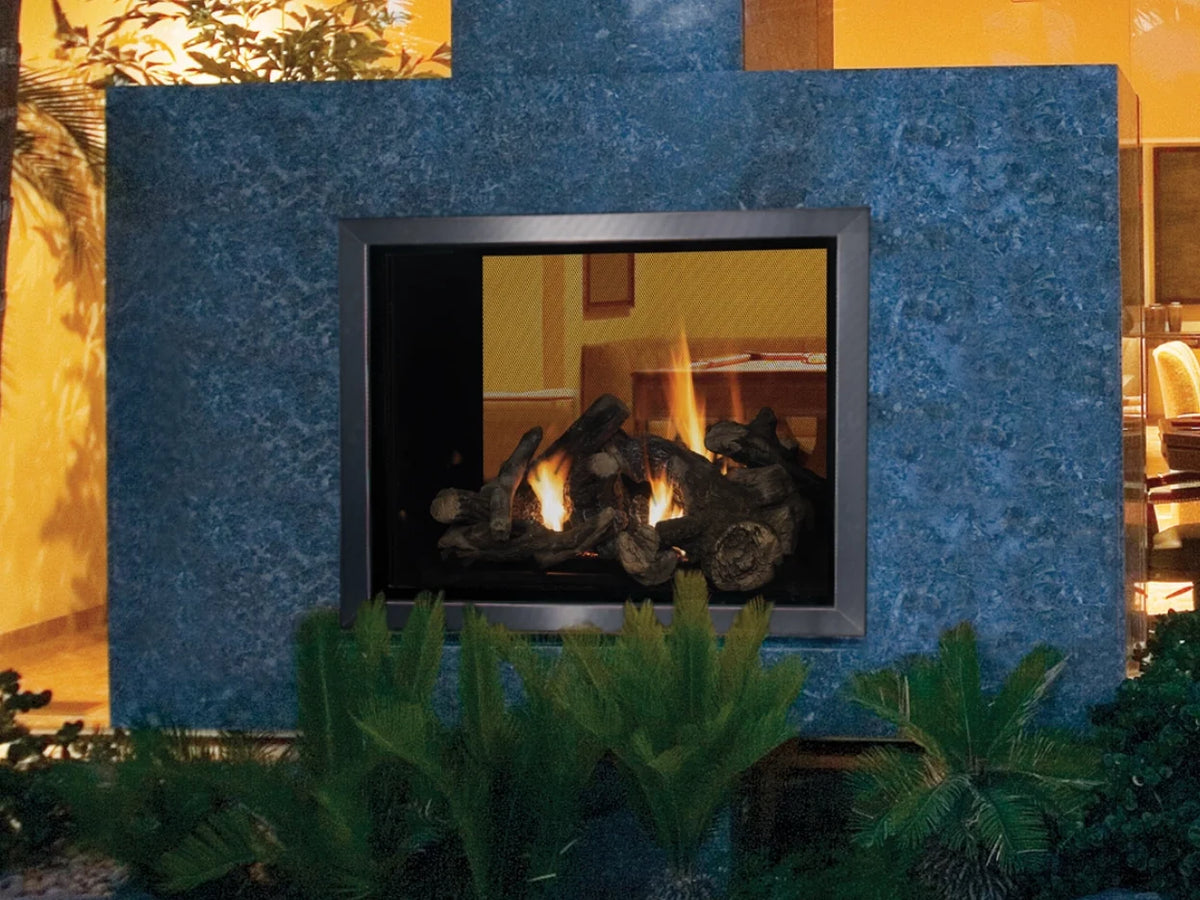

- Available in a 40” See Through model. Configurable as indoor/indoor or indoor/outdoor applications
- Gas controls are conveniently hidden to the side of the fireplace opening for easy installation and finishing
- Electronic ignition with battery backup to provide continued operation in the event of a power outage
- Six flame settings with up to a 33% turn-down for precise heat control
- Smooth-face design features ceramic glass for optimum heat transfer and a protective screen*
- Beautifully crafted aged oak high density fiber log set with heavy duty grate
- Interior liner selections consists of two-piece black reflective porcelain or ceramic fiber
- Full function remote control (T-stat, flame)
- Also available in dedicated power-vent models (Natural Gas only)
- Optional outdoor window kit, tested and listed to ASTM commercial window standard for air infiltration, water resistance, structural integrity and thermal resistance (U-Value/CRF)
- 20 year Limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
Specifications
| Brand |
Superior |
| Catalog Number | F4692 |
| Model Number | DRT63STTEN-B |
| Fuel Type | Natural Gas Liquid Propane using Gas Conversion Kit |
| Product Type |
Direct Vent Gas Fireplace |
| Framing Width |
52-1/16" |
| Framing Height | 47-5/16" |
| Framing Depth |
26-5/16" |
| BTU | 57,000 BTU (NG) 50,000 BTU (LP) |
| Design Style | Traditional |
| View Style | Multi-View |
| Controls | Remote Control |
| AFUE** | 60.9% (NG) 59.8% (LP) |
| Energuide* | 59.9% (NG) 55.1% (LP) |
*Intermittent ignition systems.
**Annual Fuel Utilization Efficiency (AFUE) is the recognized U.S. rating system for the total efficiency of heating products.
Product Specifications
|
E |
25-9/32" |
| F | 13-3/32" |
| G | 50-1/2" |
| H | 12-5/16" |
| I | 46-19/32" |
| J | 34-3/4" |
| K | 29-19/32" |
| L | 33-3/4" |
| M | 27-7/16" |
| N | 7" |
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
