Description

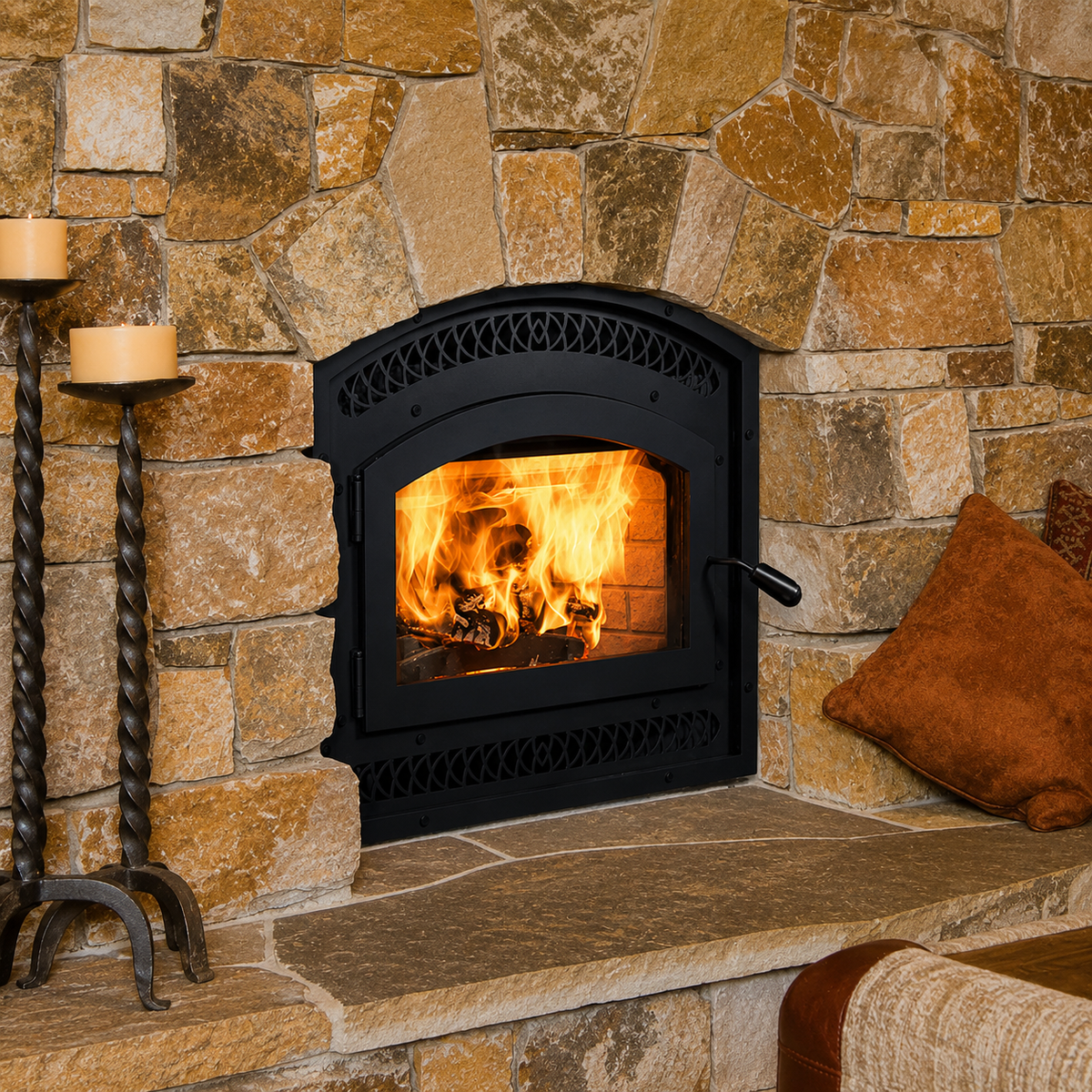

The Superior WCT6920 22 Inch EPA Certified High-Efficiency Wood Fireplace with White Stacked Refractory Panels is designed to deliver exceptional heating performance while maintaining the timeless appeal of a traditional wood-burning fireplace. Featuring a circulating heat design, ceramic glass viewing area, and elegant arch door styling, this fireplace maximizes heat transfer into the room while providing a beautiful view of the fire. The stacked textured refractory panels, integrated ash lip, and decorative cast iron log retainer create a classic masonry-inspired appearance that enhances the overall fireplace presentation.
EPA variable-rate certified for clean and efficient operation, the WCT6920 features a 2.0 cubic foot insulated firebox capable of accommodating logs up to 19 inches long. Producing up to 55,000 BTUs and heating areas up to 1,500 square feet, this high-efficiency fireplace delivers dependable supplemental warmth for a variety of home environments. Adjustable air combustion controls allow for precise heat management, while the air boost feature promotes faster wood ignition during startup. An advanced air wash system helps keep the ceramic glass cleaner, maintaining a clear view of the flames throughout operation.
The Superior WCT6920 includes an insulated outside air kit and a heat-activated 200 CFM variable-speed blower for improved heat circulation and comfort. Optional HeatFlo and thermostatically controlled forced-air kits allow heat to be distributed to additional areas of the home for enhanced versatility. Built with a durable high-temperature paint finish and approved for use with a 6-inch IHP Snap-Pak chimney system, this fireplace delivers an impressive 72% thermal efficiency rating while maintaining low emissions of only 1.9 grams per hour. Backed by a 20-year limited warranty, the WCT6920 combines classic styling, EPA-certified efficiency, and dependable heating performance.
Included
- Firebox
- Literature Kit (Manuals and Guides)
- Wall Plate
- Damper Rod and Handle
- Strain Relief
- Juction Box
- Rheostat
- Intake Vent
- 4" Insulation Sleeve
- 4" Outside Air Intake Pipe
- (4) 10-16 x 3/4 Tek Screws
- Ember Strip
- Top standoff assembly (loose on top of unit)
Required Accessories
- Facade
- Door
Optional Accessories
- HeatFlo Kit
- Forced Air Heating Kit
Features
- Circulating design features facade, arch doors and ceramic glass for optimum heat transfer
- EPA variable-rate certified high-efficiency wood heater
- 2.0 cubic foot insulated firebox that accepts up to 19” log size for increased performance
- Stacked textured refractory panels with integrated ash lip and decorative cast iron log retainer
- Air combustion control for variable heat output with air boost for faster wood ignition during startup
- Includes insulated outside air kit (required for use)
- 55,000 BTUs and heats up to 1,500 square feet*
- Efficient air wash system that keeps glass clean
- Cast or steel door available with heat resistant door handle that stays cool to the touch
- Includes heat activated 200 CFM variable-speed blower for time-delayed heat distribution
- HeatFlo air kit and/or thermostatically controlled forced air kit available (three maximum outlets)
- Durable high temperature paint finish
- 20 Year Limited Warranty
*Square-feet heating capacities are approximations only. Actual performance may vary depending upon home design and insulation, ceiling heights, climate, condition and type of wood used, appliance location, burn rate, accessories chosen, chimney installation and how the appliance is operated.
Venting Notes
- Approved for use with 6" Chimney - IHP Brand Model Snap-Pak
Specifications
| Brand |
Superior Fireplaces |
| Catalog Number |
F4482 |
| Model Number |
WCT6920WS |
| Product Type | Wood-Burning Fireplace |
| Glass Viewing Area | 22-1/2" x 12-1/4" |
| Firebox Interior Width | 22" |
| Firebox Interior Height | 11-3/4" |
| Firebox Interior Depth* | 12" |
| Interior Cubic Feet | 2.0 |
| Framing Width | 37-1/4" |
| Framing Height | 56" |
| Framing Depth | 25-1/8" |
| Design Style | High-Efficiency |
| EPA | EPA Certified |
| View Style | Front-View |
| Maximum Log Size | 19" |
| Chimney Size | 6" |
| EPA Rating | 1.9 grams/hr |
| Max BTUs | 55,000 |
| Heating Capacity (up to) | 1,500 sq. ft. |
| Thermal Efficiency | 72% |
| Blower | 200 CFM |
| Weight | 330 lbs. |
Product Dimensions
Warranty
 ttps://cdn.shopify.com/s/files/1/0686/3156/0499/files/20-Years-Warranty.jpg?v=1681616895 |
Innovative Hearth Products ("IHP") 20-Year Limited Warranty warrants your Superior® Brand gas fireplace, Stove, or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. |
Documents & Files
-
Product Brochure
-
Smart Sheet
-
Snap-Pak Smart Sheet
-
Installation and Operation Manual
-
Specifications Sheet
- Forced Air Duct Installation Sheet
