Description

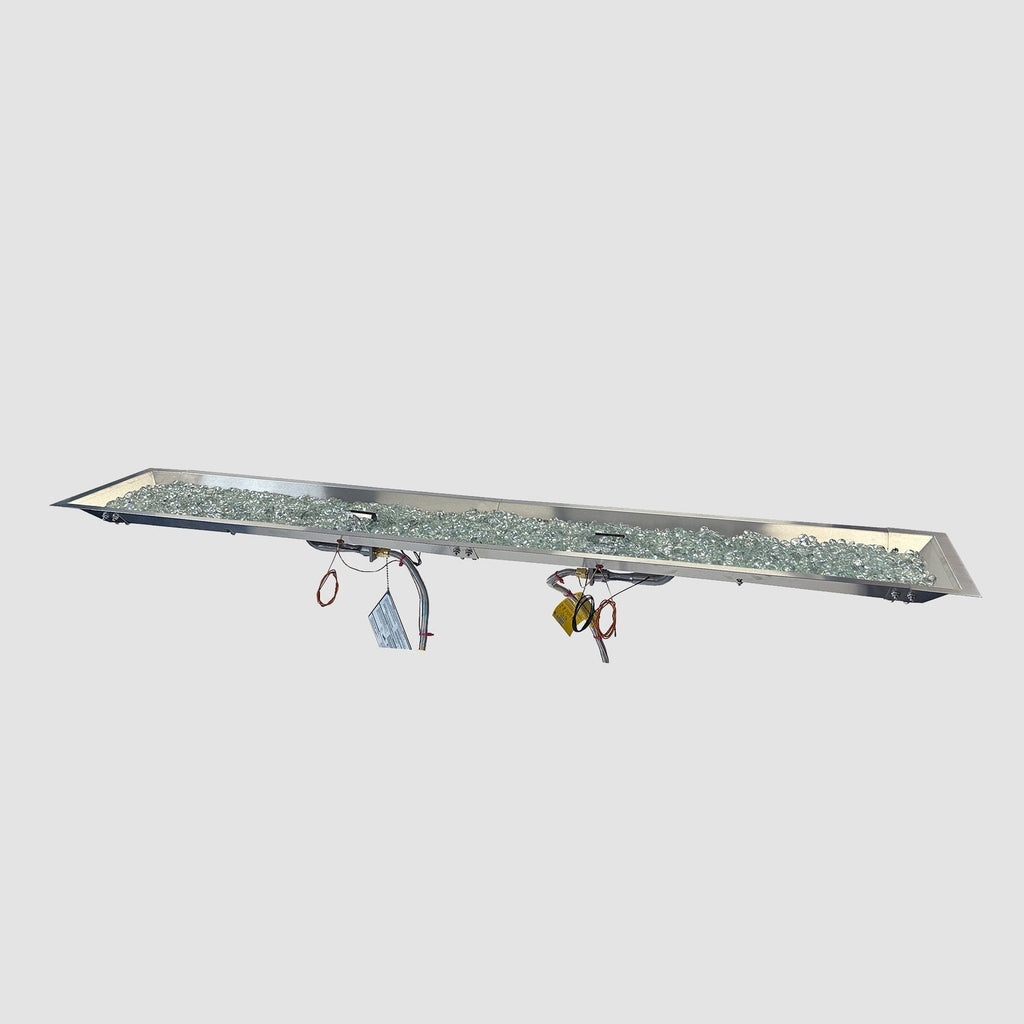

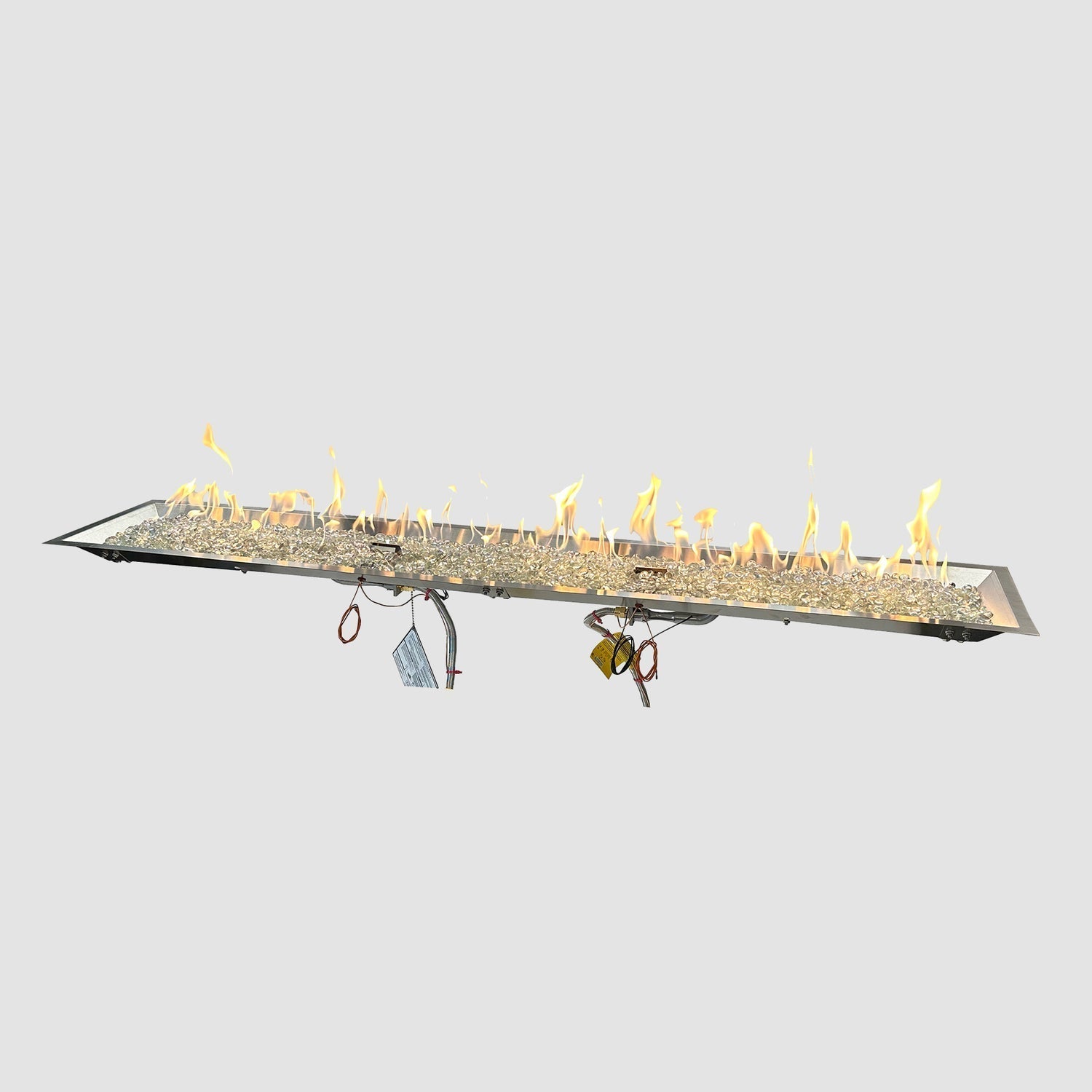

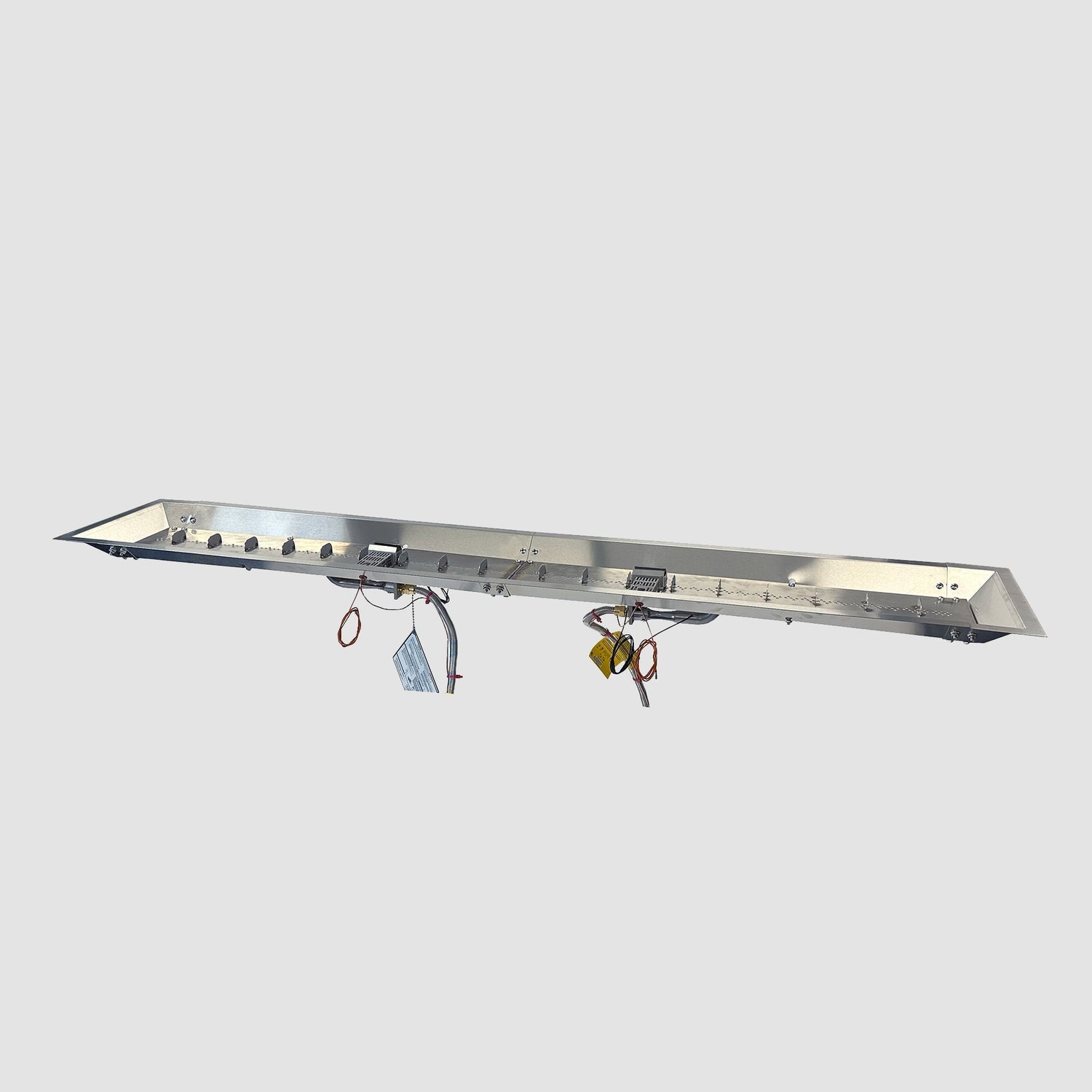

Experience unmatched performance and flexibility with The Outdoor GreatRoom Company’s 12" x 84" Crystal Fire Linear Gas Burner. Built from commercial-grade #304 stainless steel, this burner delivers durability for even the most demanding outdoor installations. With an impressive 140,000 BTUs, it creates a large, captivating flame that transforms any backyard or commercial setting into a luxury fire feature.
The Positive Connect system ensures quicker installation by minimizing gas line connections—most of the setup is handled at the factory, saving time on-site. And with built-in safety features like auto gas shut-off if the flame goes out, this burner is designed with peace of mind in mind. Certified to UL and ULC standards, it’s built for reliability in both residential and commercial environments.
Whether you’re upgrading an existing fire pit or designing a new linear fire feature, this burner kit offers flexible installation and includes dual valves and control panels for burners over 64". It’s compatible with both LP and NG setups, and with the right media and enclosure, you'll have a professional-grade flame effect tailored to your space.

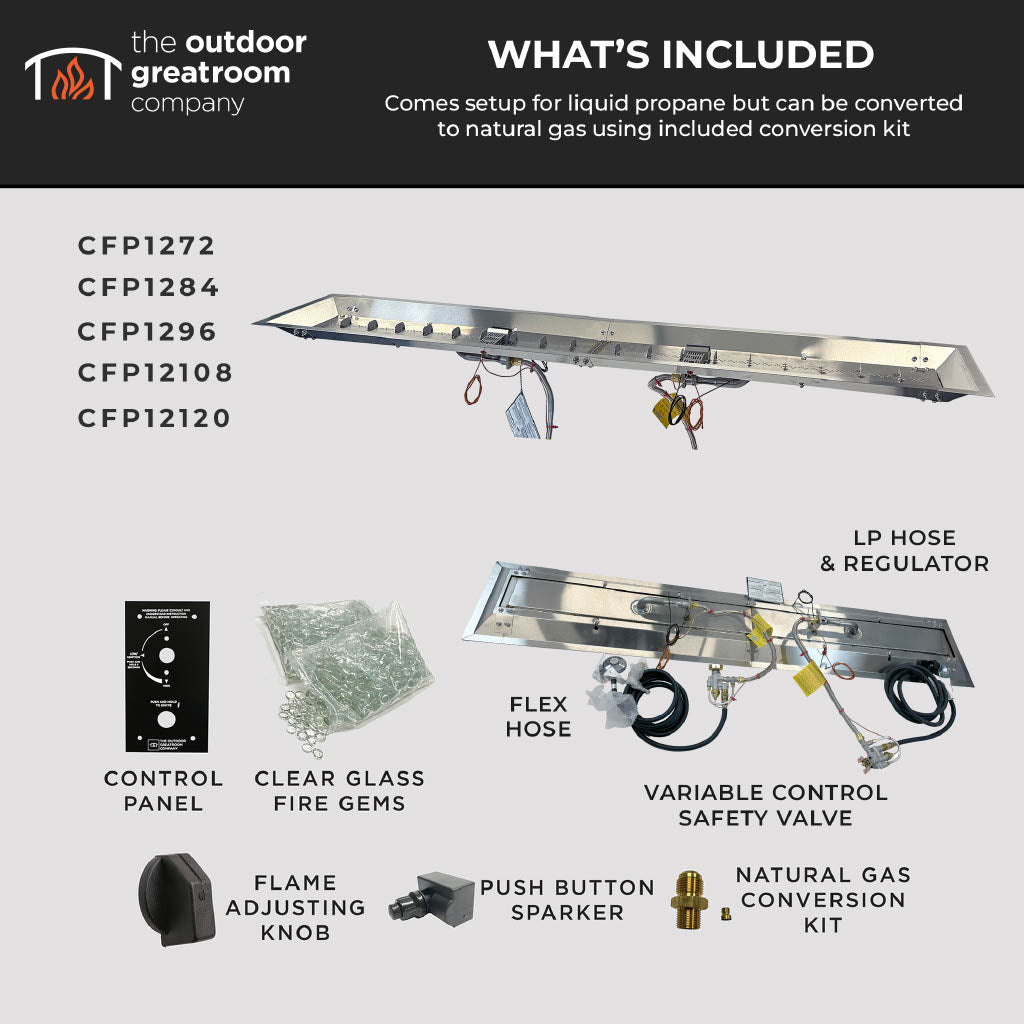

What's Included:
- LP Hose and regulator
- Control Panel
- Clear Glass Fire Gems
- Flex Hose
- Variable Control Safety Valve
- Flame Adjusting Knob
- Push Button Sparker
- Natural Gas Conversion Kit
Features:
- Commercial-grade #304 stainless steel
- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Kits above 12" x 64” include two valves and two control panels
- Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.
Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height
- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

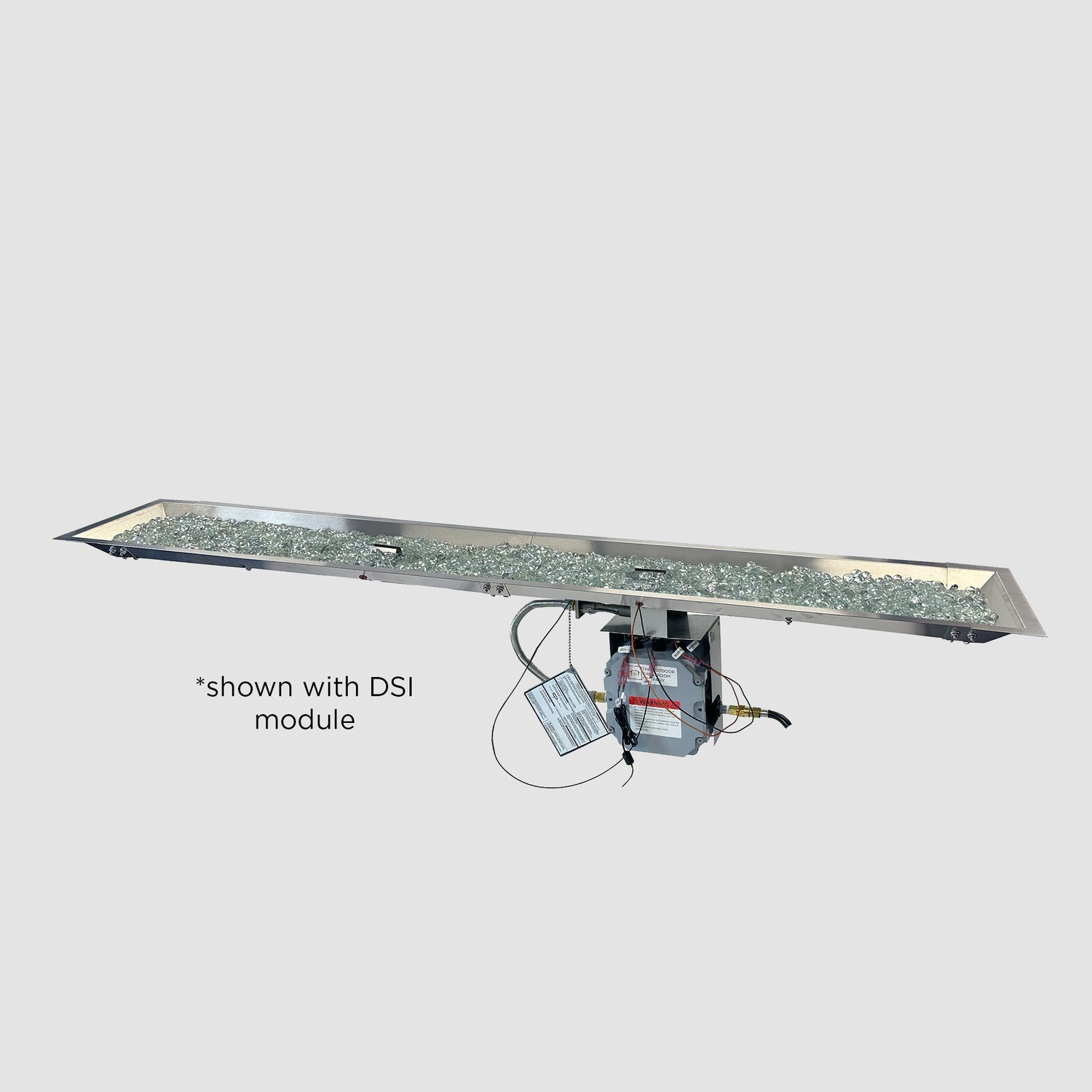

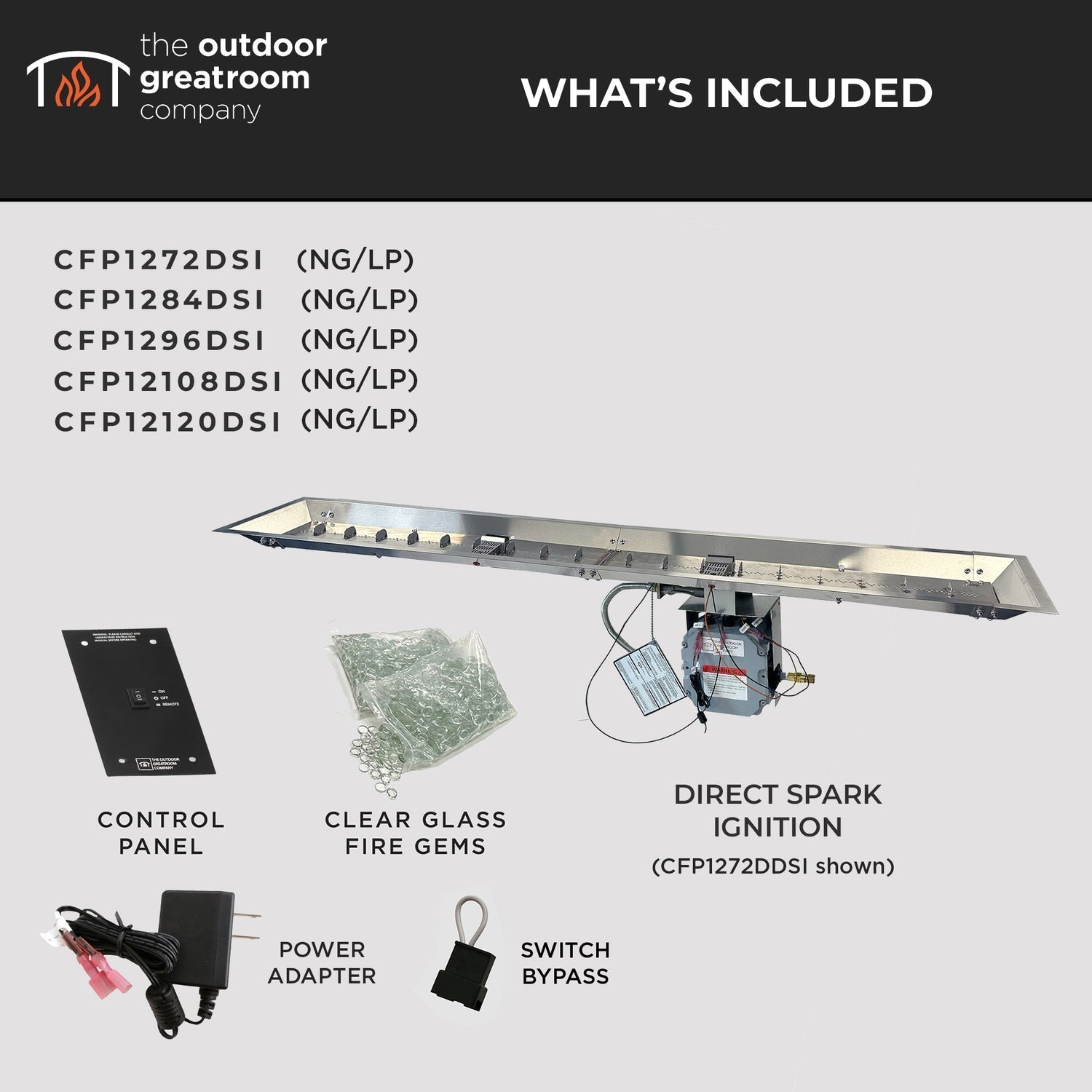

Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible
- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 25.7lbs. |
| BTUs (LP/NG) | 140K |
| Fire Media | 25 lbs. |
Warranty:
Documents & Files:
- Specifications Sheet
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Stonefire Fire Pit Table Manual
- Stonefire Collection Info Sheet
- Gas Fire Pit Table Brochure
