Description

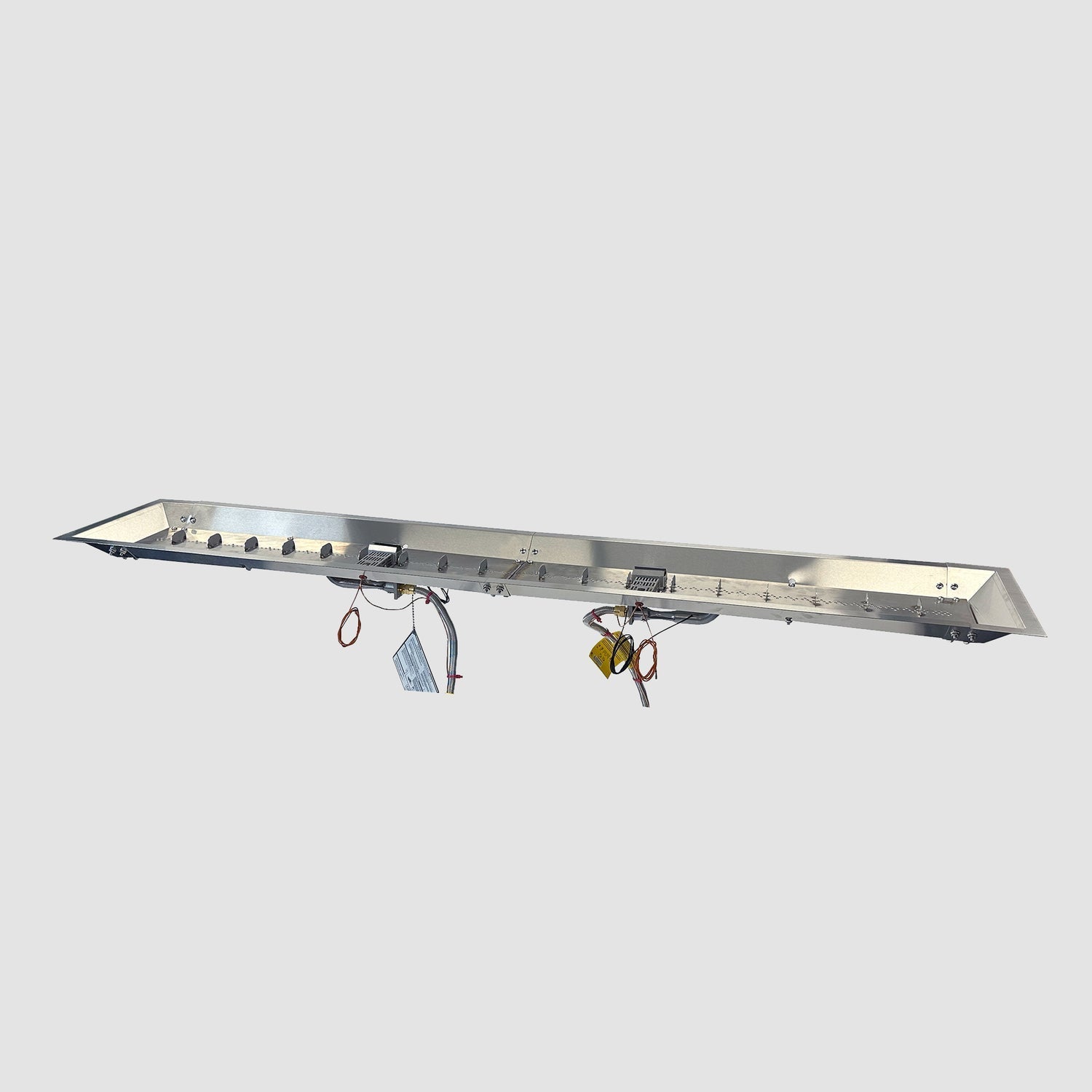

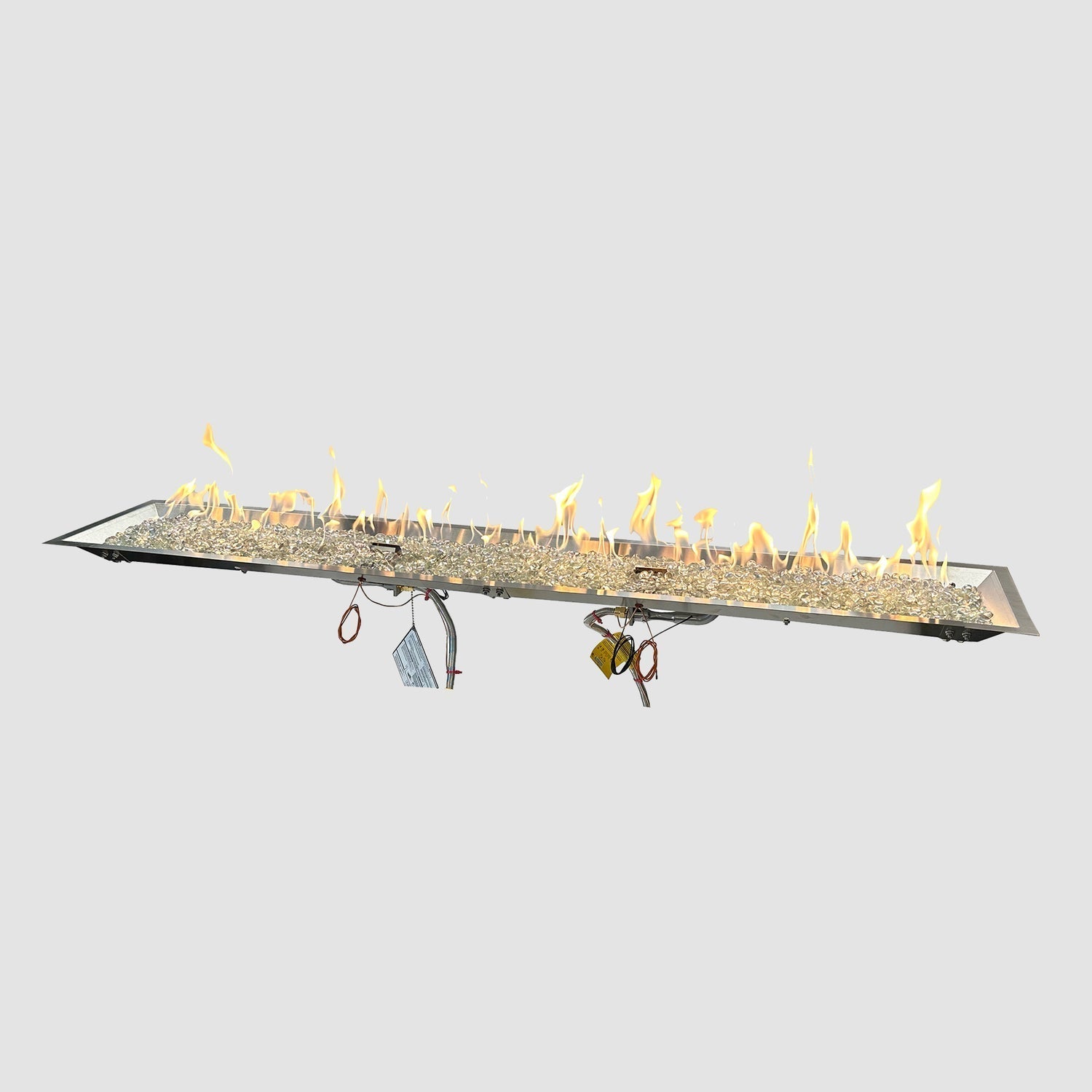

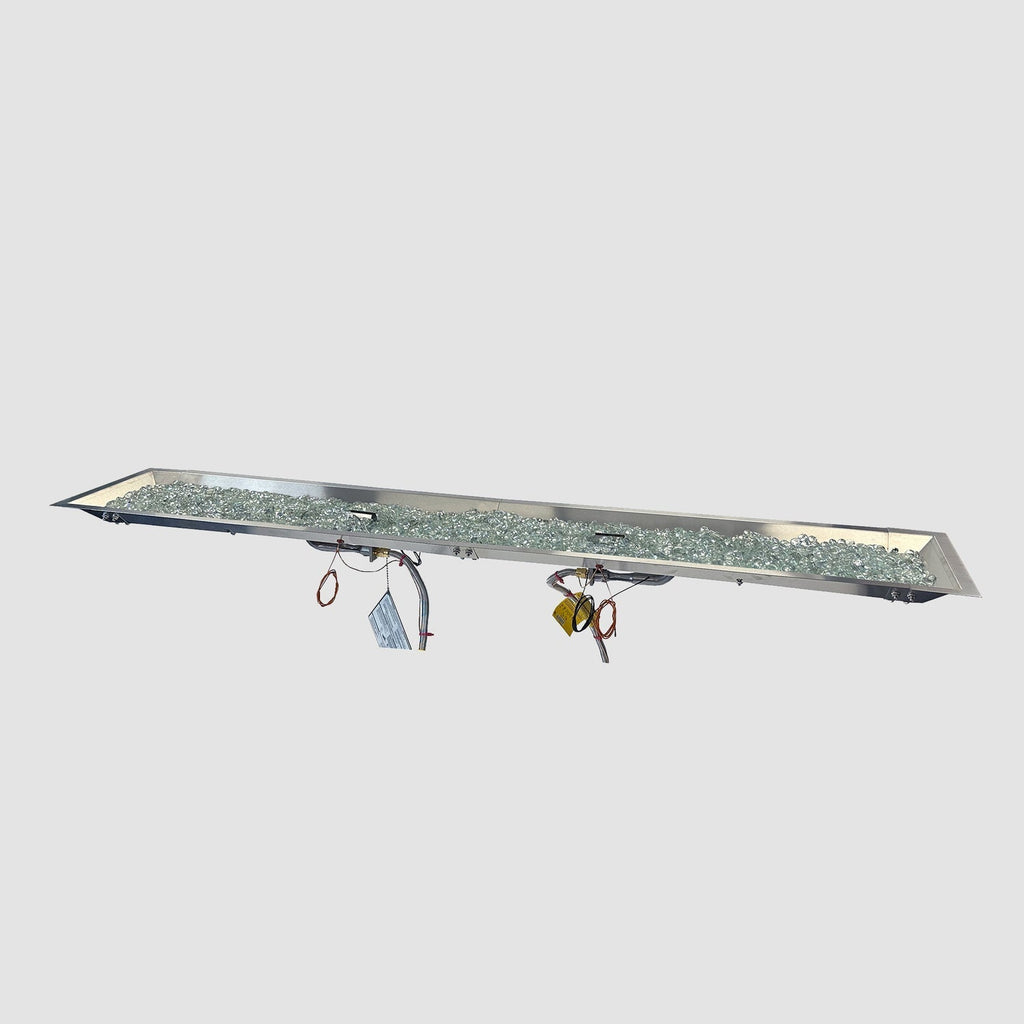

Upgrade your custom fire feature with The Outdoor GreatRoom Company 12" x 96" Crystal Fire® Linear Gas Burner. Crafted from commercial-grade #304 stainless steel, this high-performance burner is designed to deliver both durability and sleek modern appeal. With a remarkable output of 165,000 BTUs for LP or NG, it's built to impress in large residential or commercial outdoor settings.
For added peace of mind, the Crystal Fire burner includes an advanced safety ignition system that automatically shuts off the gas source if the flame is extinguished. This burner also features the patented “Positive Connect” technology, ensuring factory-made gas connections for easier installation and safer performance. Kits above 64 inches, like this 96" model, include dual valves and two control panels for balanced flame distribution and increased user control.
UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017 standards, this linear gas burner must be installed by a certified gas technician. Whether you're designing a premium outdoor fire pit or an upscale patio centerpiece, the 12" x 96" Crystal Fire Linear Burner offers unmatched quality and flame performance. Fire media included (30 lbs) may vary depending on your specific application—reach out to The Outdoor GreatRoom Company for guidance.

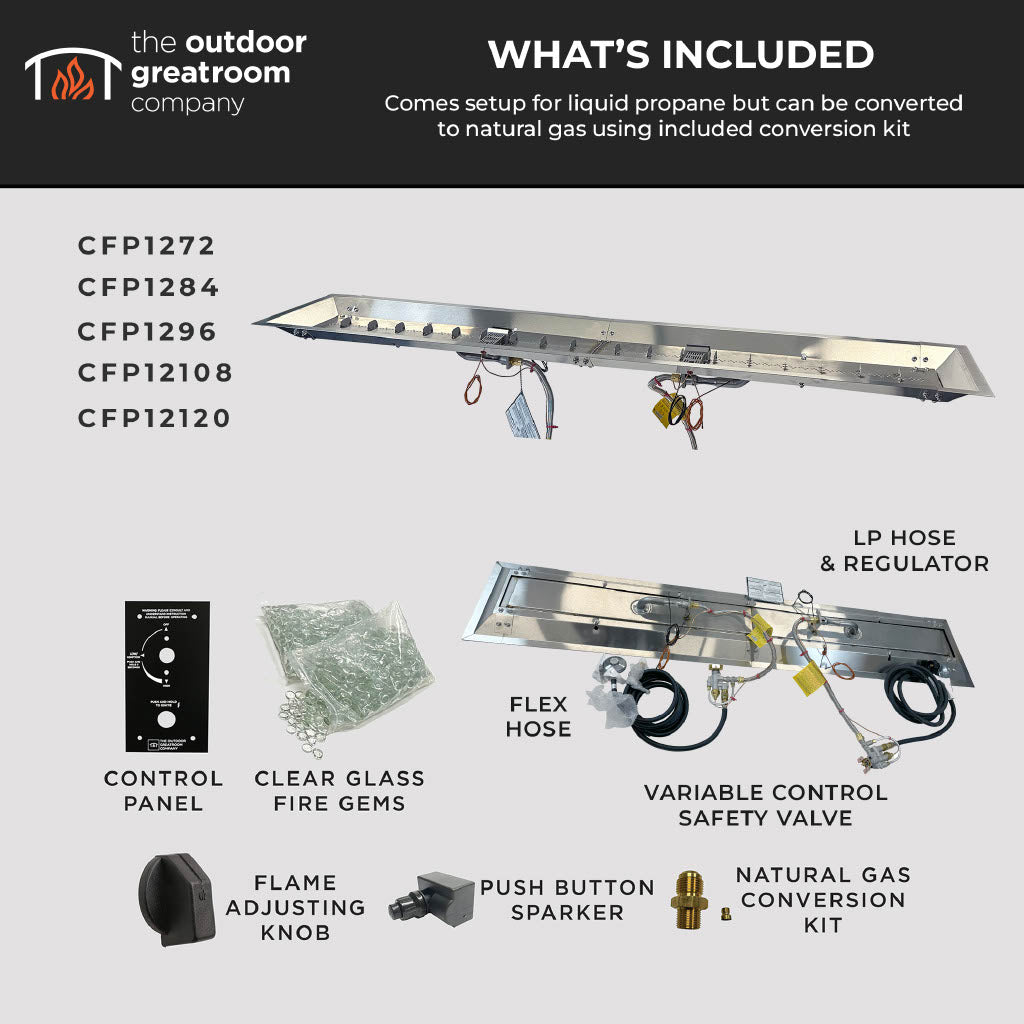

What's Included:
- LP Hose and regulator
- Control Panel
- Clear Glass Fire Gems
- Flex Hose
- Variable Control Safety Valve
- Flame Adjusting Knob
- Push Button Sparker
- Natural Gas Conversion Kit
Features:
- Commercial-grade #304 stainless steel
- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Kits above 12" x 64” include two valves and two control panels
- Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.
Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height
- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

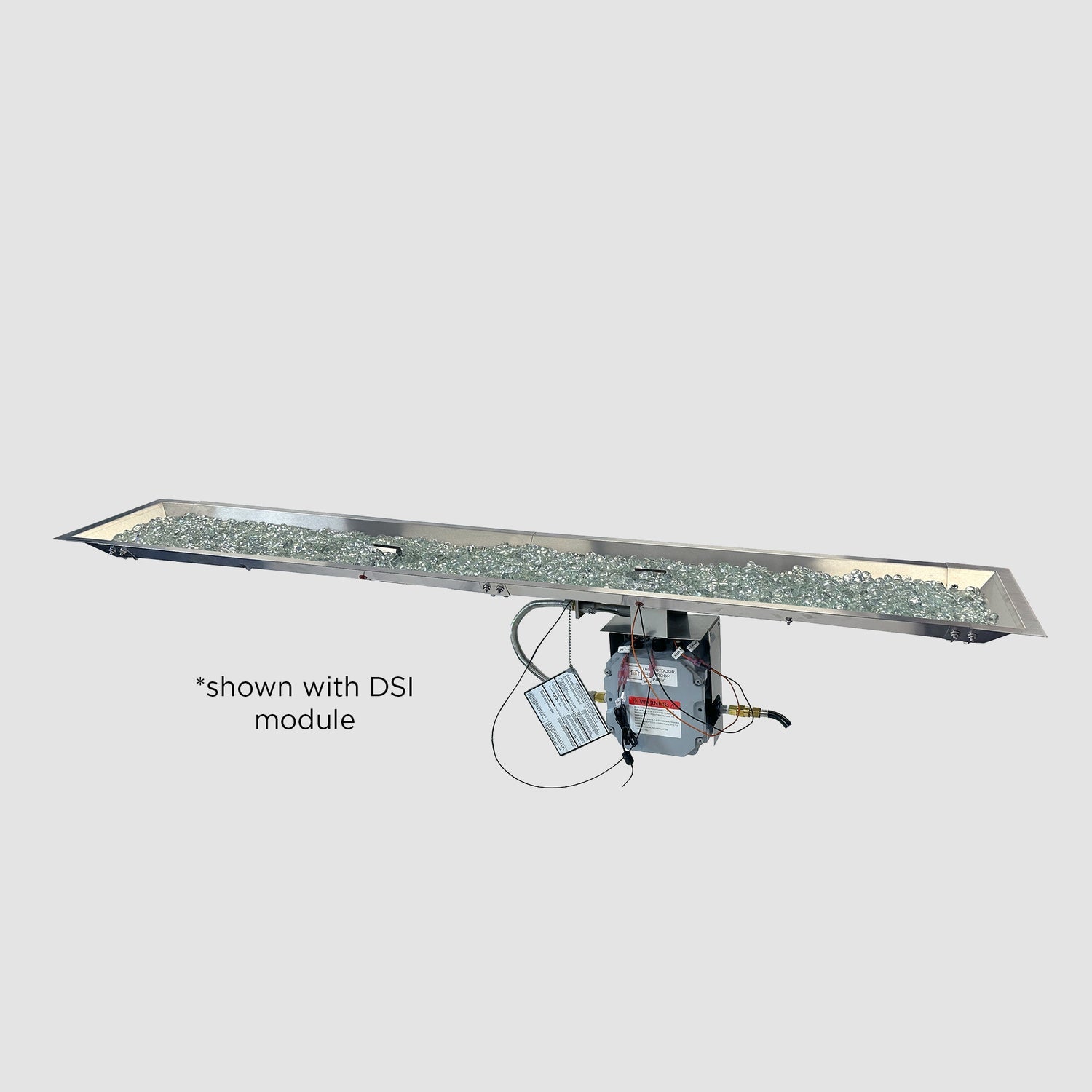

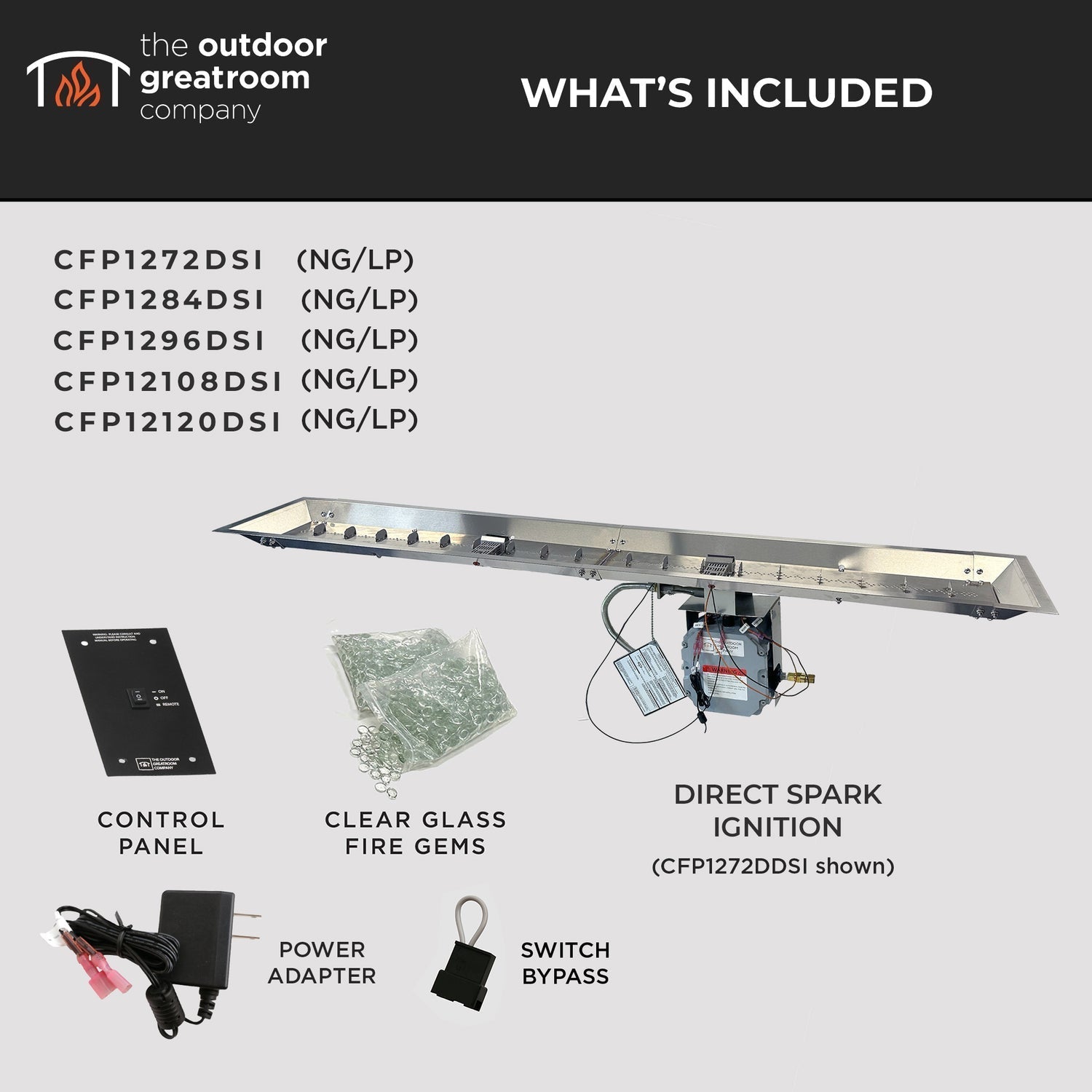

Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible
- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 29.1 lbs. |
| BTUs (LP/NG) | 165K |
| Fire Media | 30 lbs. |
Warranty:
Documents & Files:
- Specifications Sheet
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Stonefire Fire Pit Table Manual
- Stonefire Collection Info Sheet
- Gas Fire Pit Table Brochure
