The Outdoor GreatRoom Company 13.5" x 108" Crystal Fire Plus Manual Gas Burner Kit with Stainless Steel Plate Insert

The Outdoor GreatRoom Company 13.5" x 108" Crystal Fire Plus Manual Gas Burner Kit with Stainless Steel Plate Insert is engineered for grand outdoor fire pit designs. Offering the longest linear size in the series, it delivers powerful flame performance for expansive residential or commercial spaces.

Made from durable #304 stainless steel, this burner is built to last in tough weather conditions while providing up to 180,000 BTUs of heating power. Its manual ignition system gives users direct flame control, and the integrated safety shutdown will stop gas flow if the flame is lost. With the “Positive Connect” system, most gas fittings are pre-assembled at the factory for quicker field installation.

Certified to ANSI and CSA safety standards and equipped with two control panels and gas valves, this burner kit ensures safe and reliable performance. Whether you're designing a luxurious backyard centerpiece or a high-capacity patio feature, this kit delivers high-output flames with rugged, long-lasting construction.

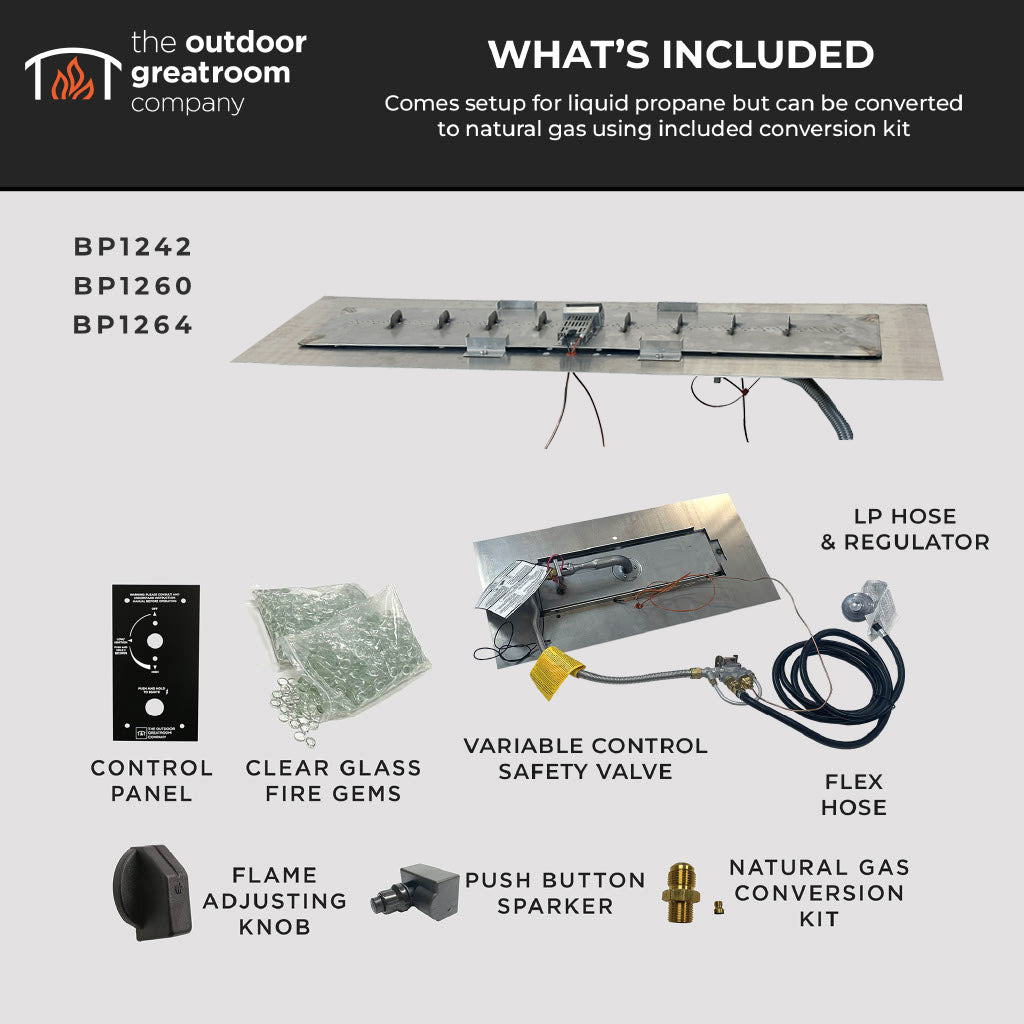

What's Included:

• Linear Gas Burner Insert and Plate Kit
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible

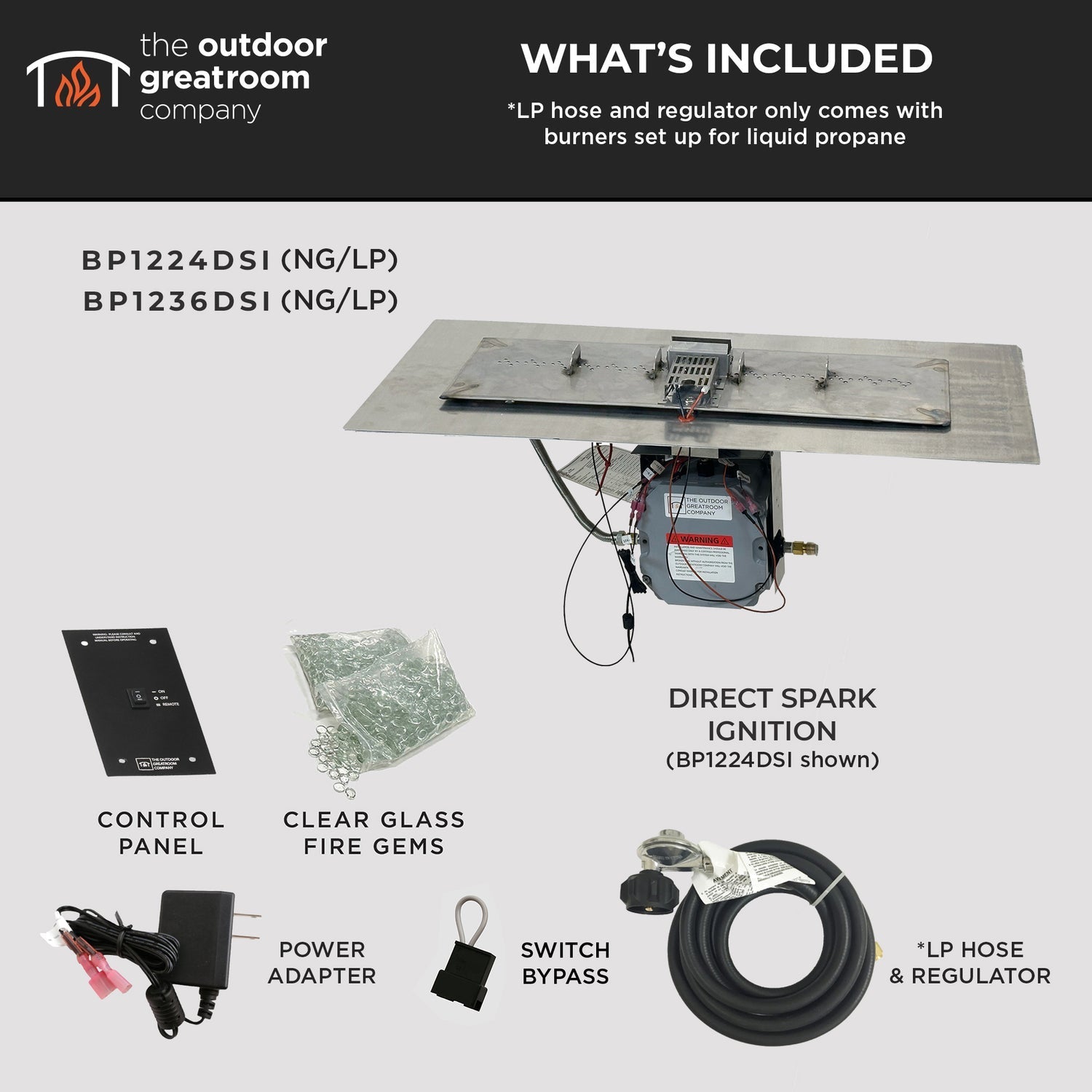

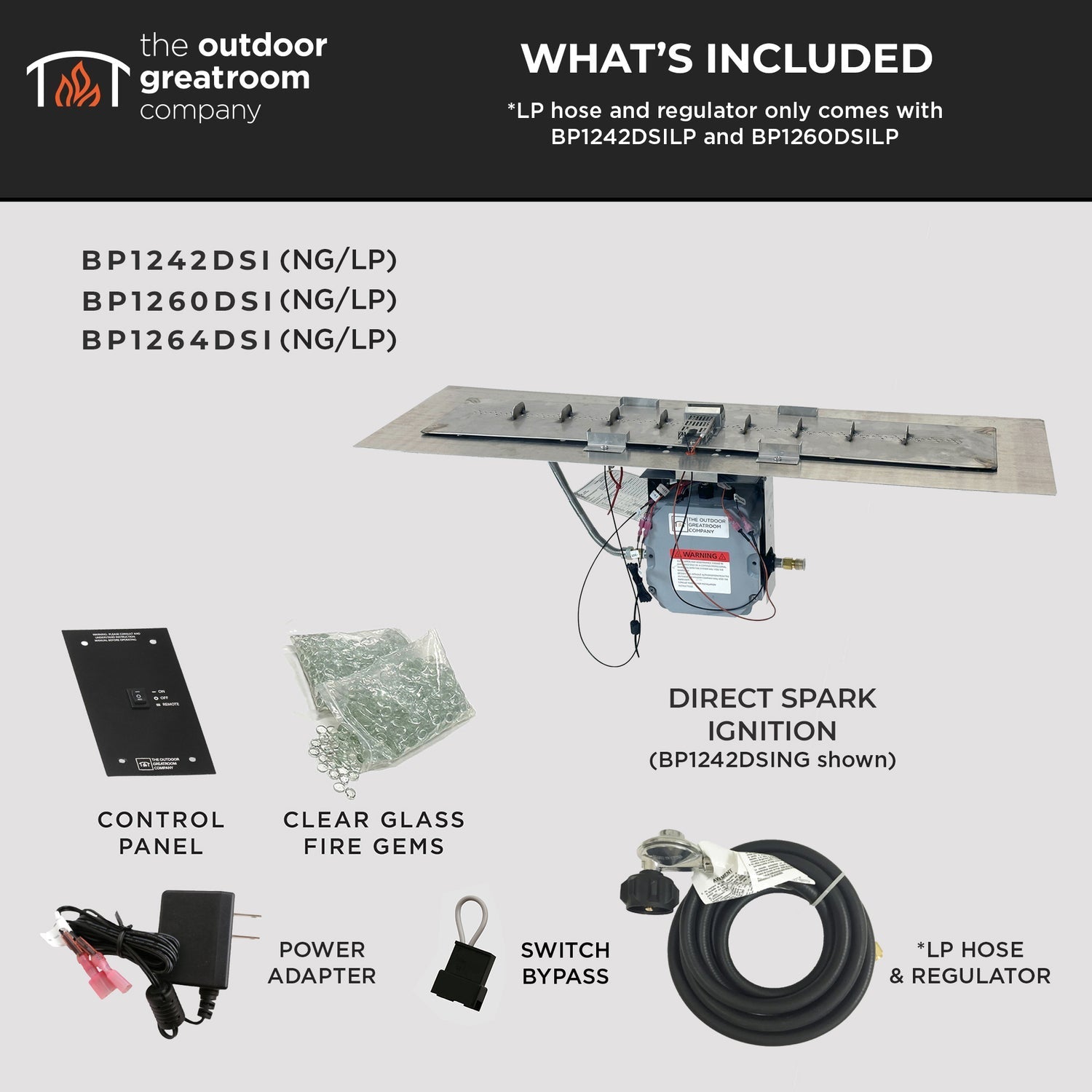

• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
