The Outdoor GreatRoom Company 13.5" x 120" Natural Gas Crystal Fire Plus Burner Kit with Direct Spark Ignition and Plate

The Outdoor GreatRoom Company 13.5" x 120" Natural Gas Crystal Fire Plus Burner Kit with Direct Spark Ignition and Plate brings exceptional flame presence and performance to large custom fire pit installations. With an impressive 10-foot span, it’s built to make an impact in both residential and commercial outdoor settings.

Constructed from #304 stainless steel, this heavy-duty burner resists corrosion and is made to endure the elements. Its direct spark ignition system allows for quick and reliable startup, while the automatic safety shutoff cuts gas flow if the flame goes out. Designed for convenience, the “Positive Connect” system reduces installation time by minimizing on-site gas connections.

Producing 140,000 BTUs, this UL and ULC listed burner kit includes two valves and control panels for effective multi-point control. Whether you're crafting a sprawling fire feature or enhancing a hospitality venue, this burner delivers professional-grade results with safety, scale, and ease.

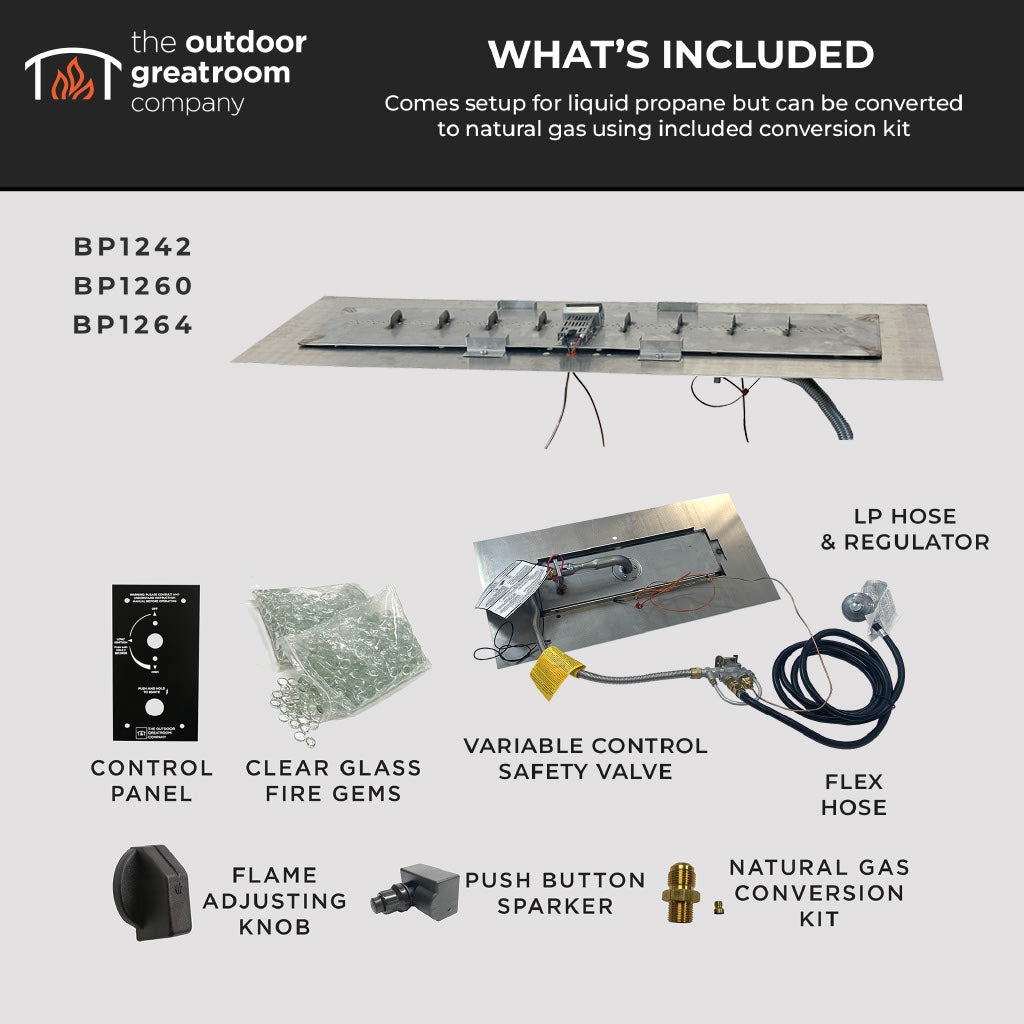

What's Included:

• Linear Gas Burner Insert and Plate Kit
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

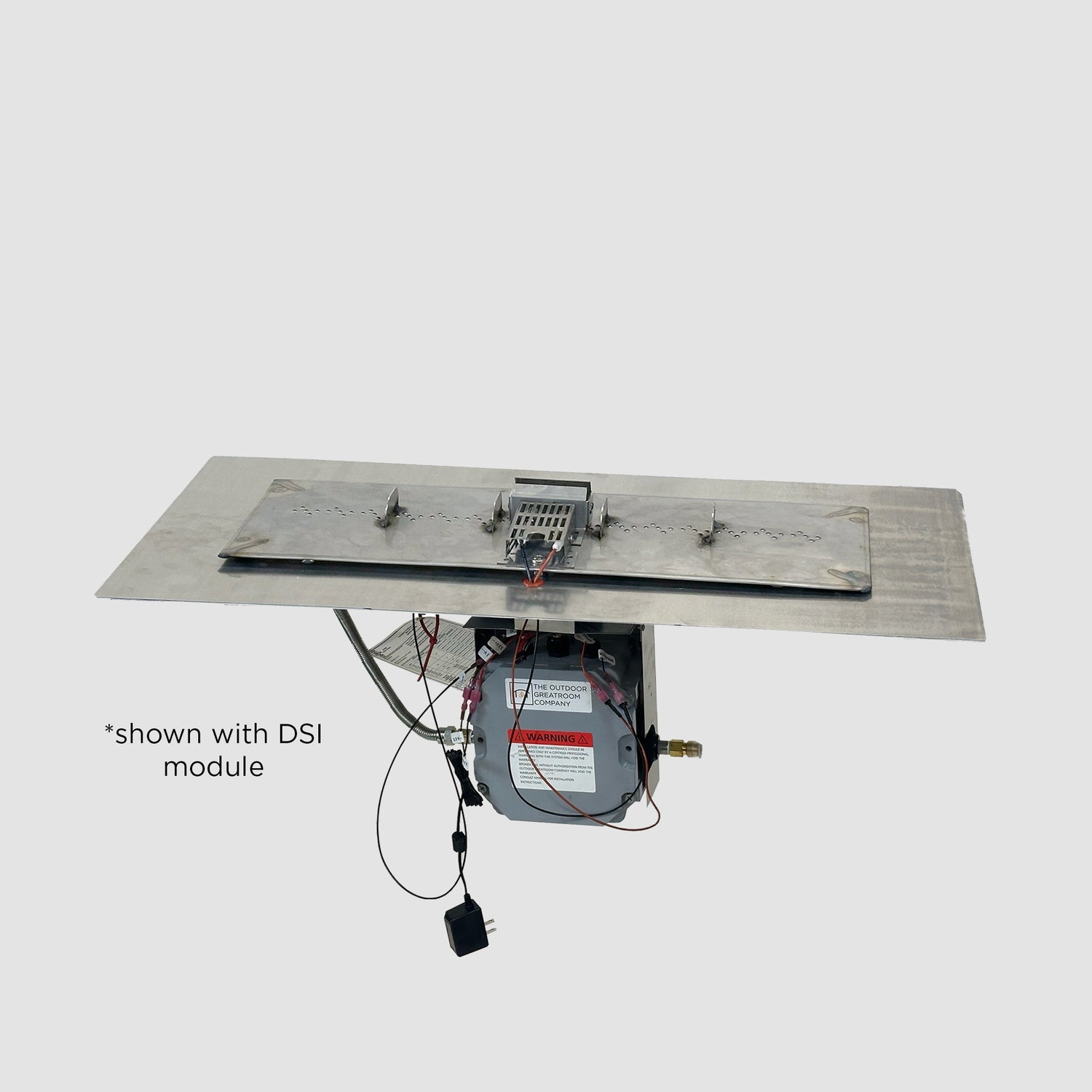

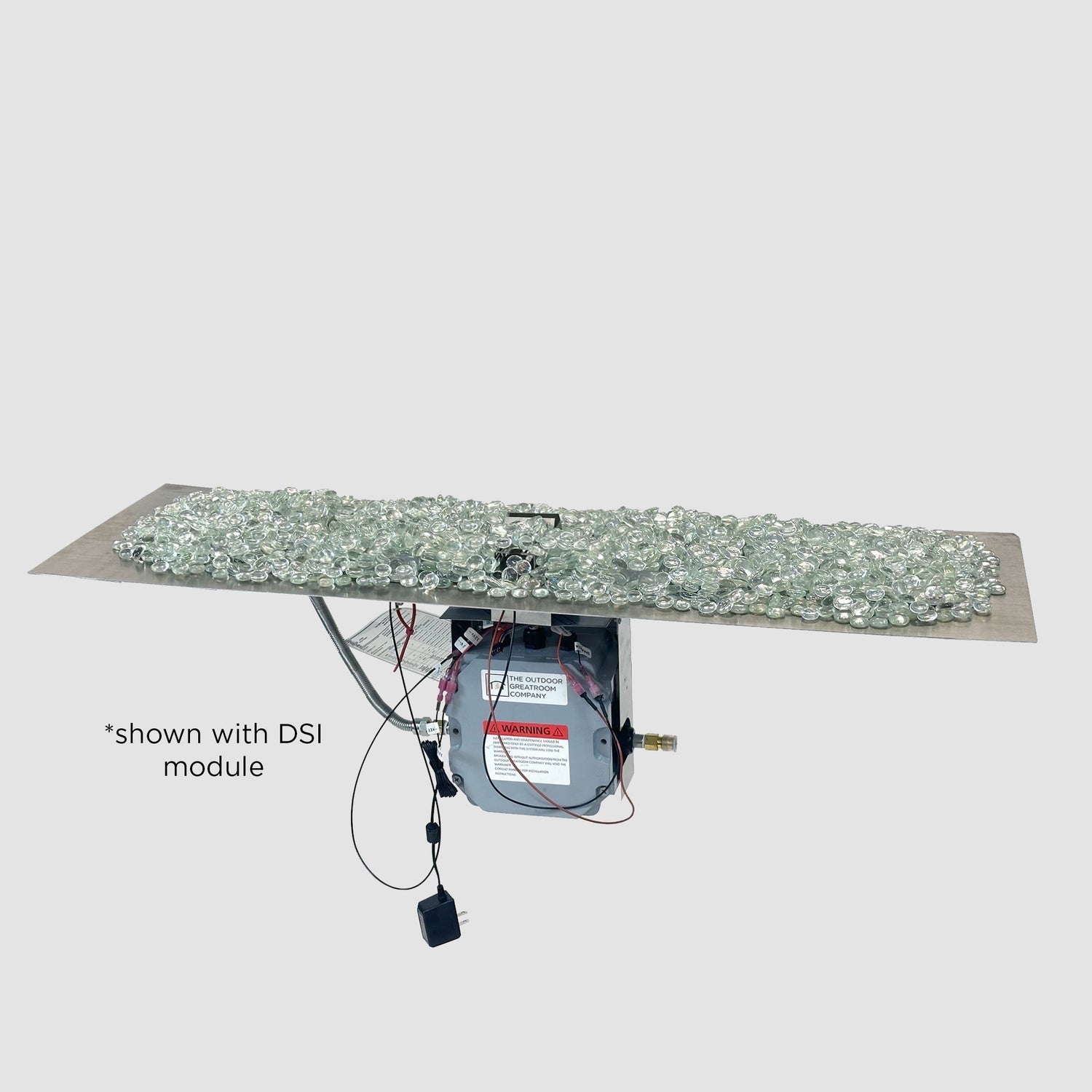

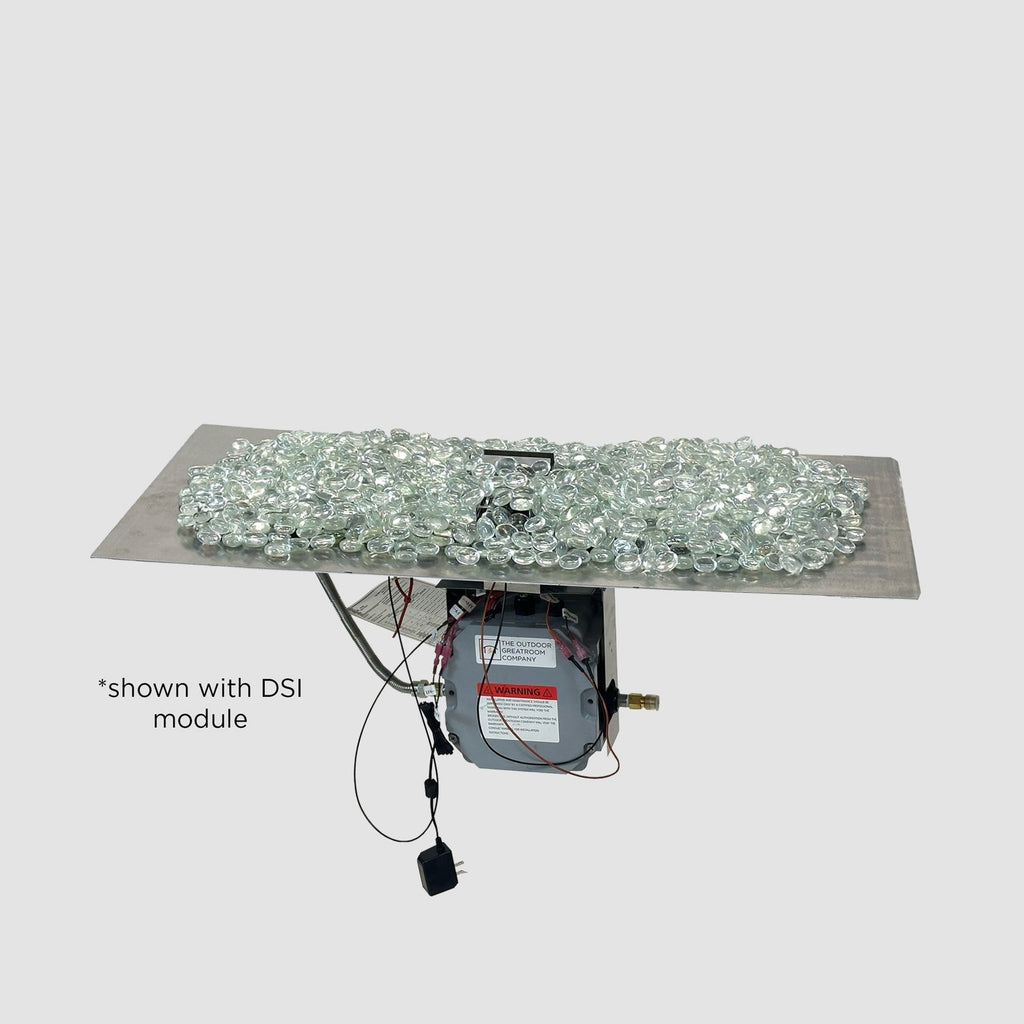

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible

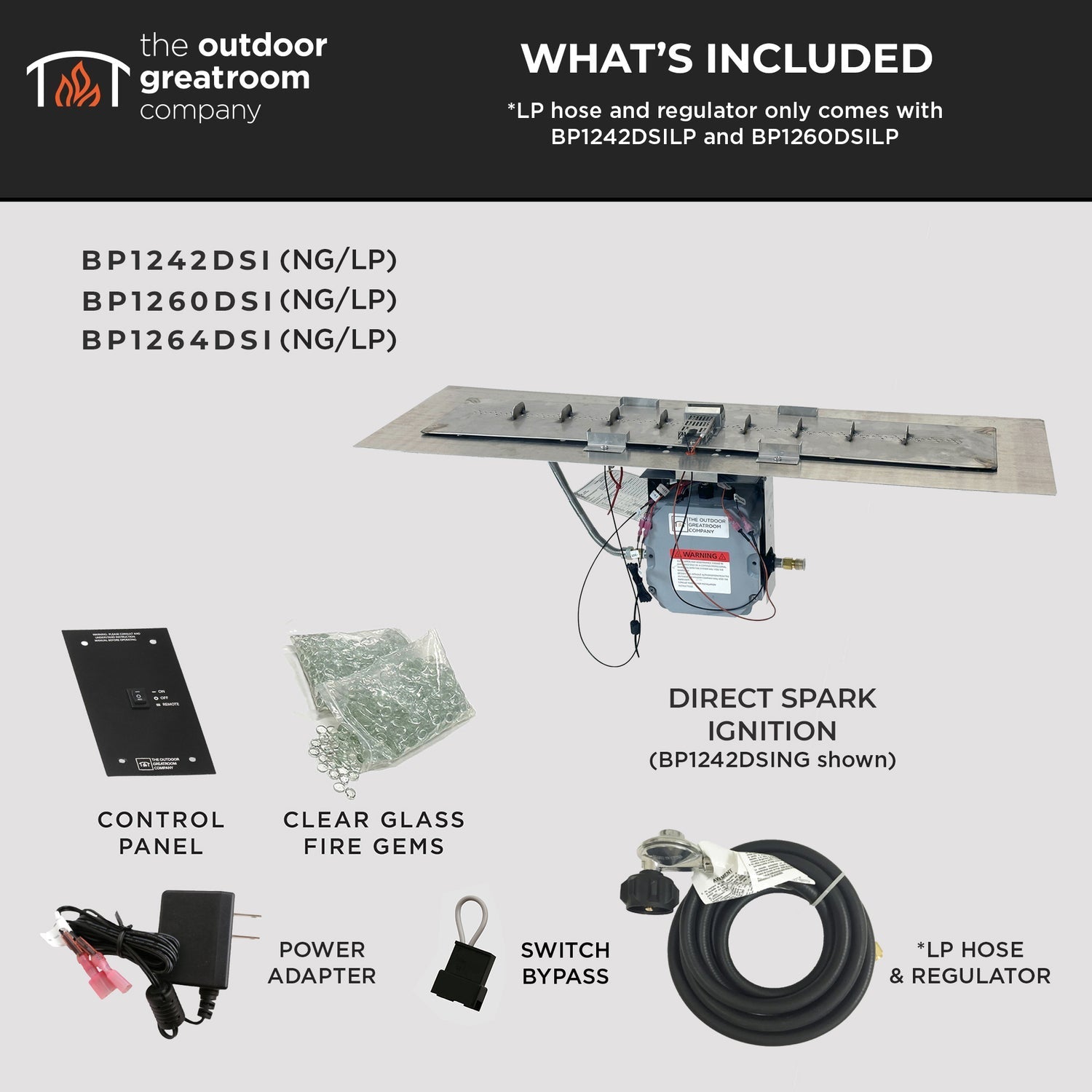

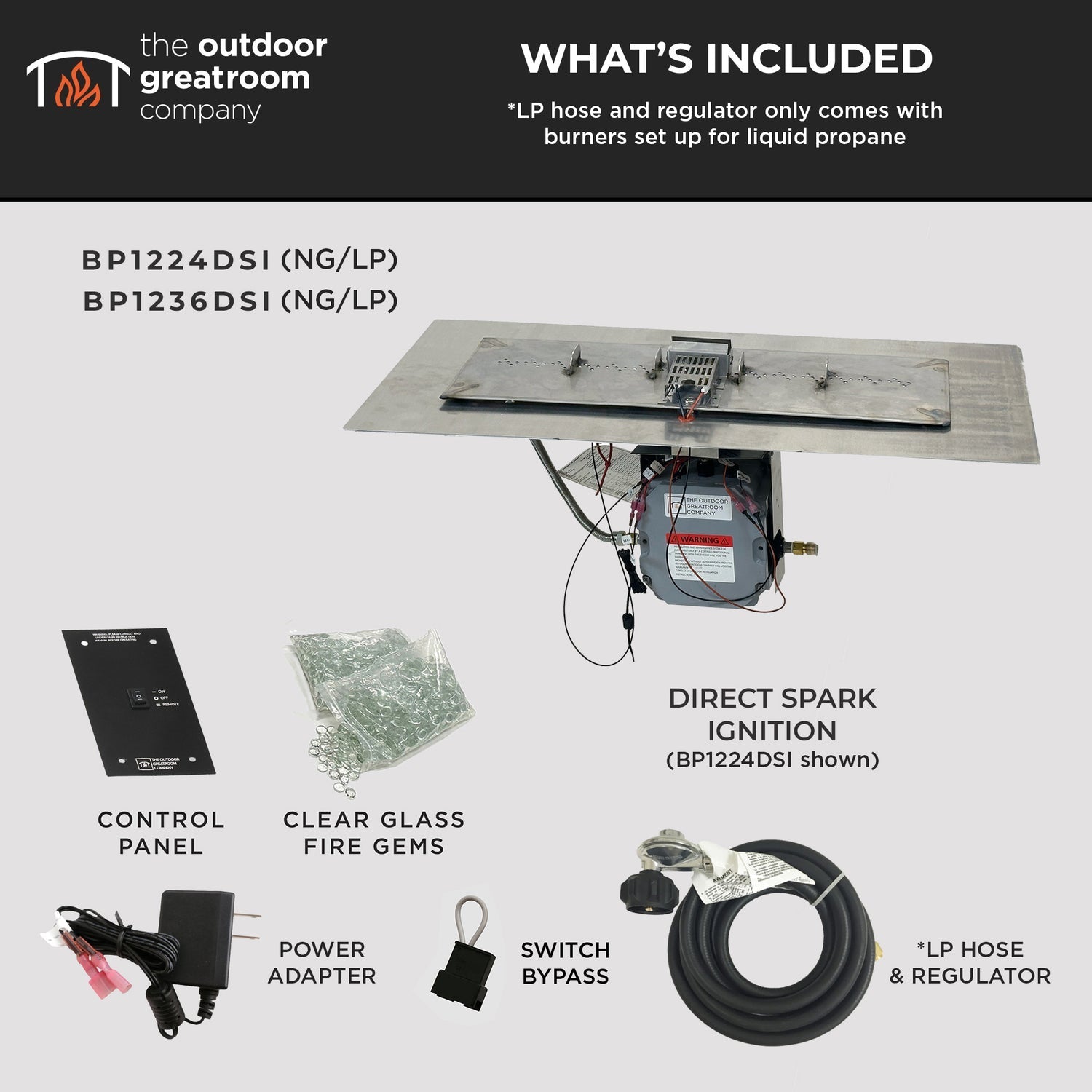

• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
