The Outdoor GreatRoom Company 13.5" x 84" Crystal Fire Plus Natural Gas Burner Kit with Plate and Direct Spark Ignition

The Outdoor GreatRoom Company 13.5" x 84" Crystal Fire Plus Natural Gas Burner Kit with Plate and Direct Spark Ignition brings modern convenience and superior craftsmanship to custom fire pit designs. Its long, linear profile adds visual impact while delivering consistent and efficient flame performance.

Built from durable #304 stainless steel, the burner is designed to withstand outdoor elements and heavy use. The integrated direct spark ignition system ensures reliable starts every time, while the built-in safety shutdown stops gas flow if the flame is accidentally extinguished. With most gas connections handled at the factory through the “Positive Connect” system, installation is faster and easier for professionals.

This UL and ULC-listed burner kit includes dual valves and control panels, required for configurations over 64 inches. Offering 120,000 BTUs of heat, it’s an ideal solution for both residential and commercial applications where a sleek, safe, and high-performance fire feature is desired.

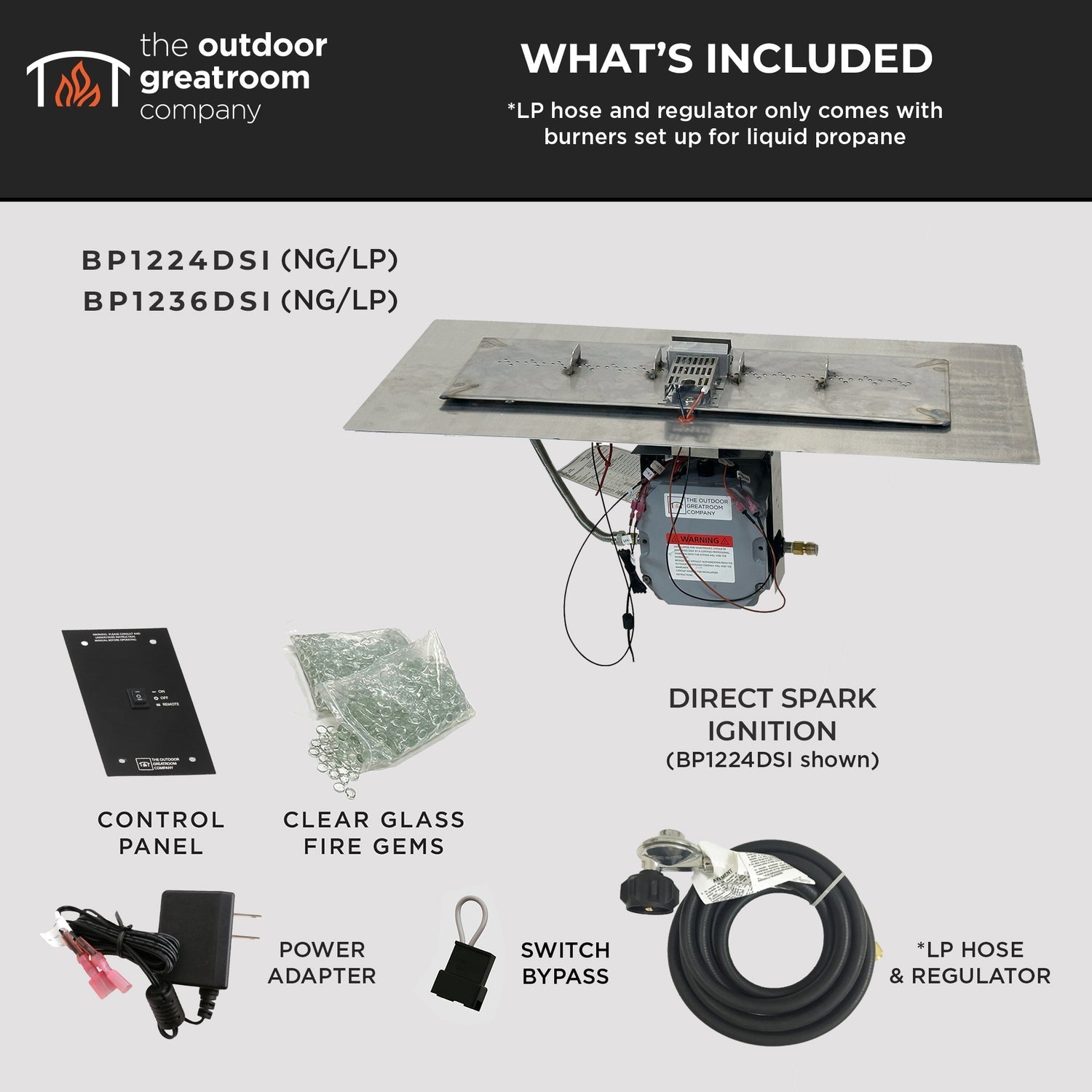

What's Included:

• Linear Gas Burner Insert and Plate Kit
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

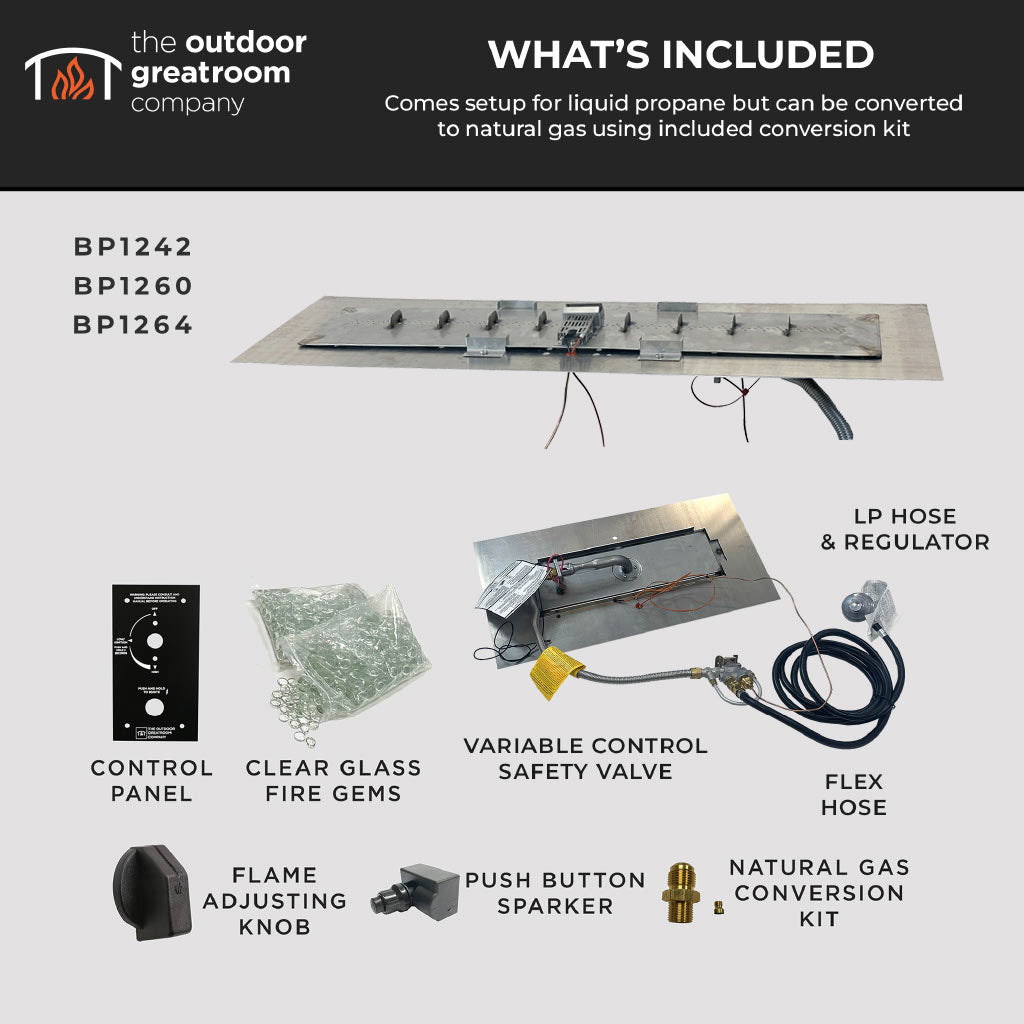

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

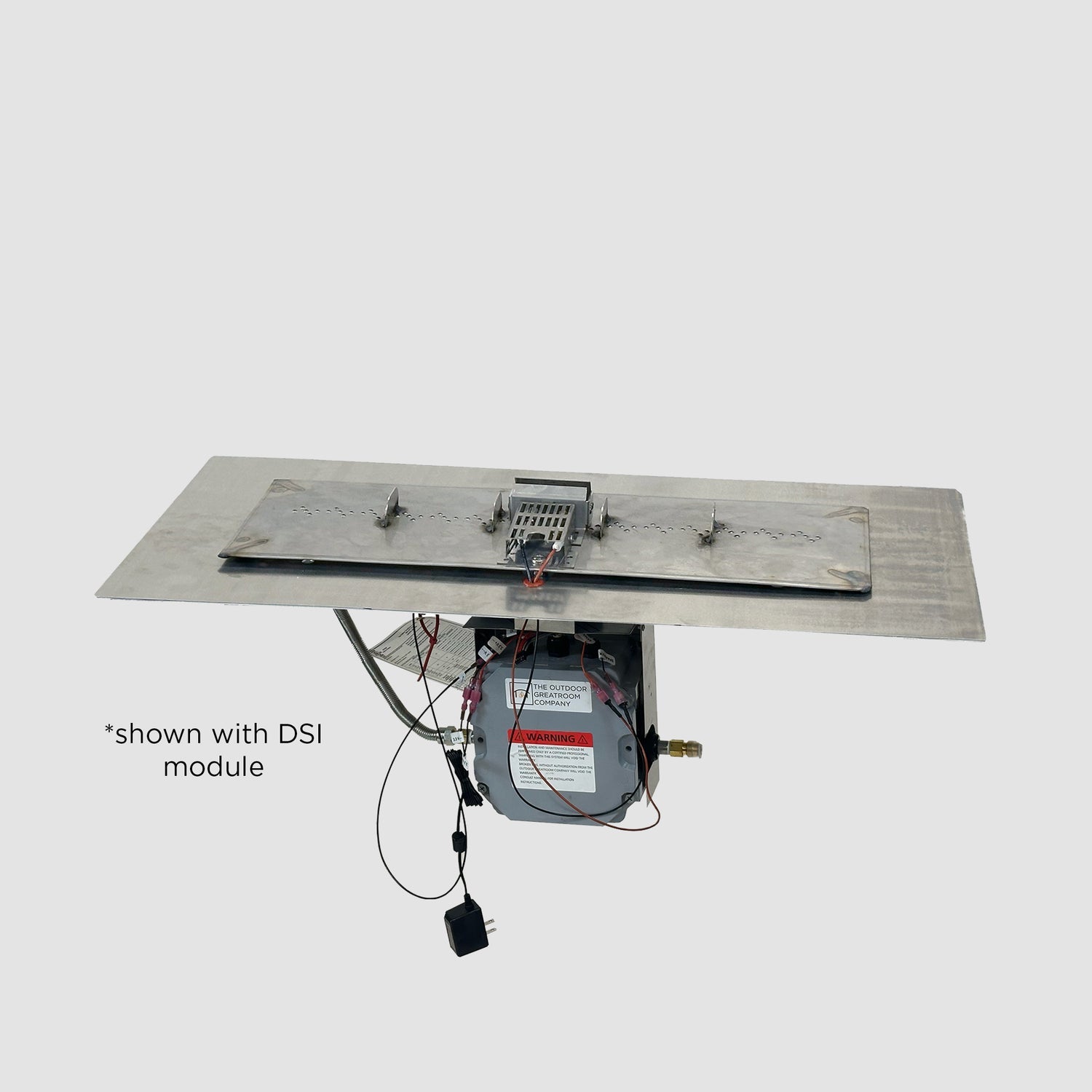

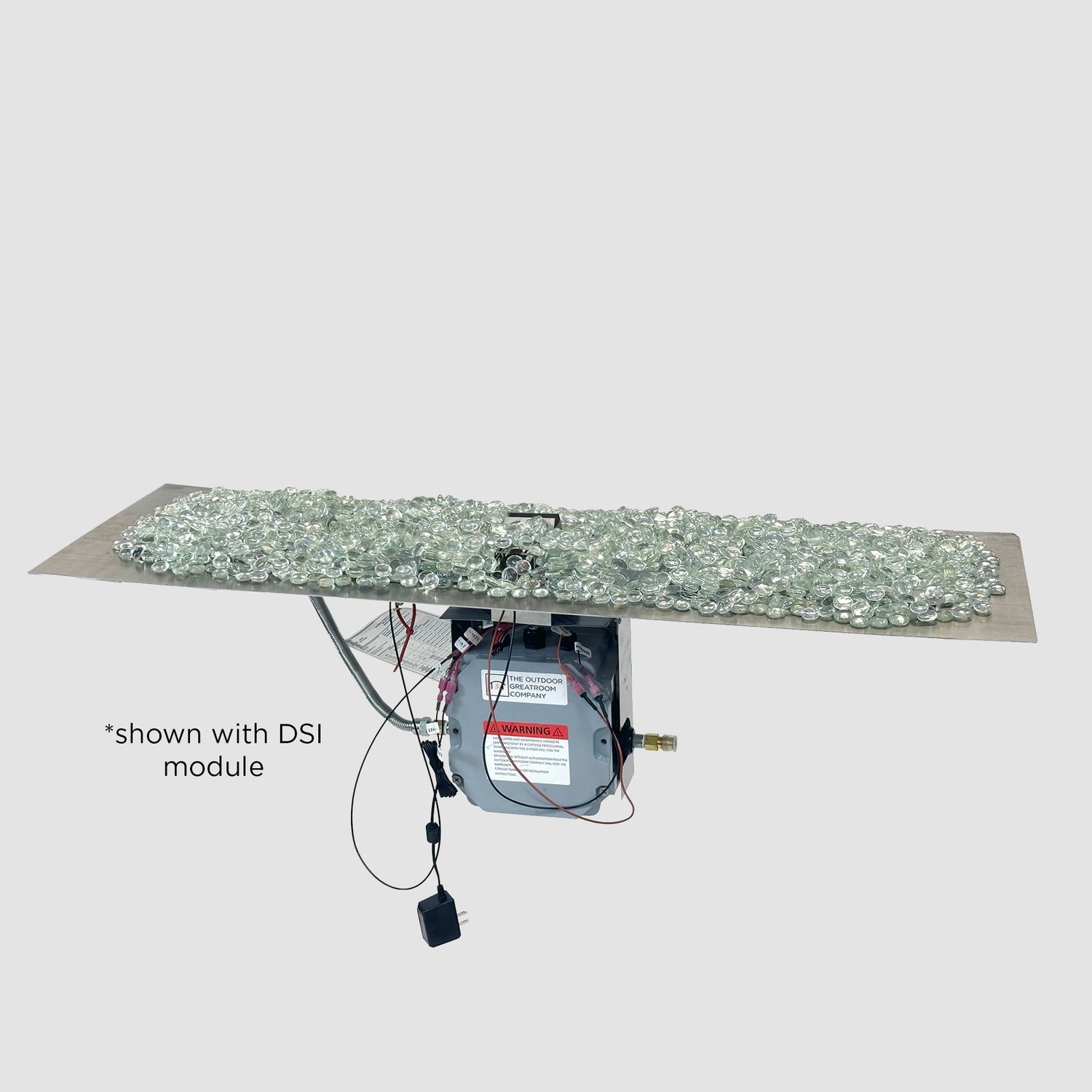

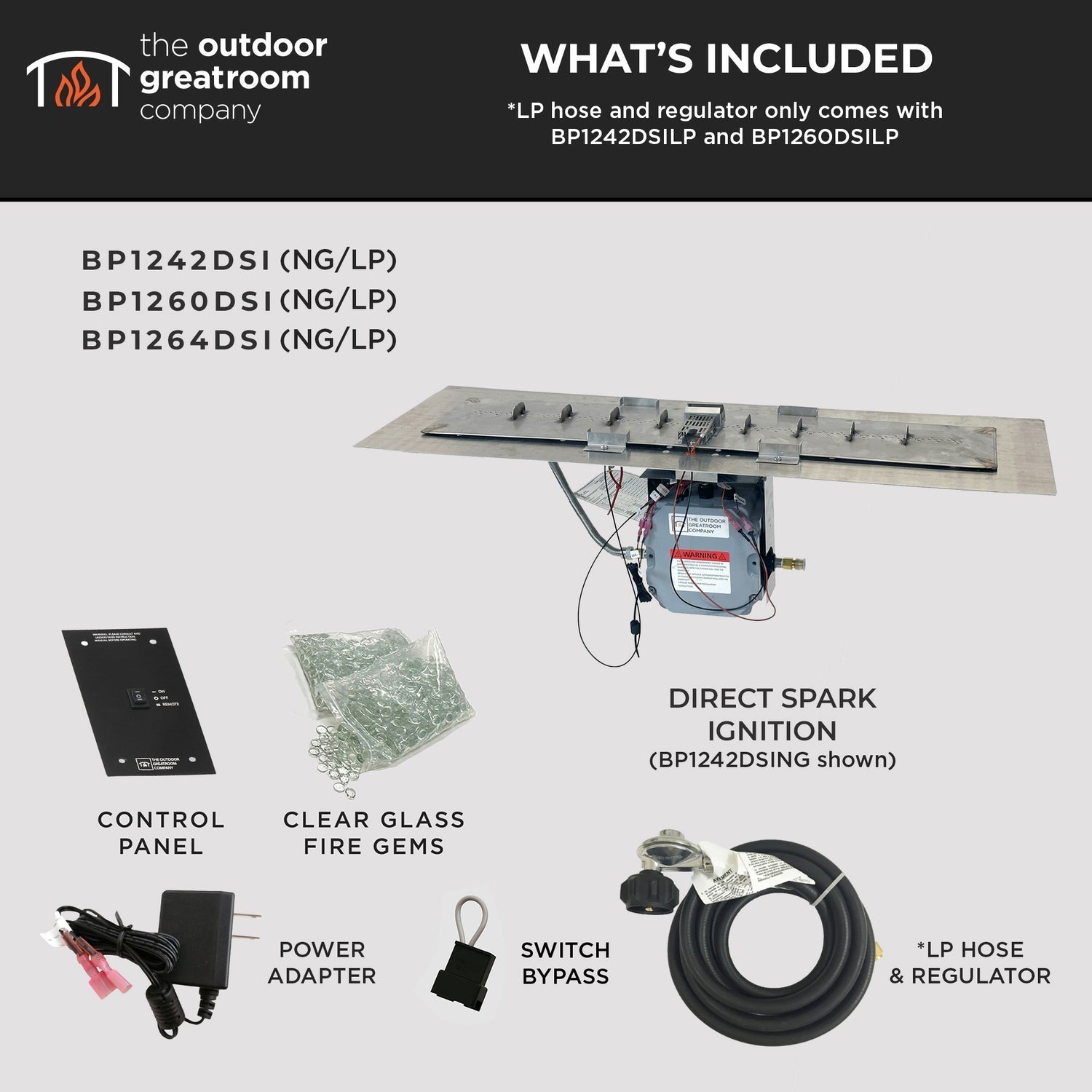

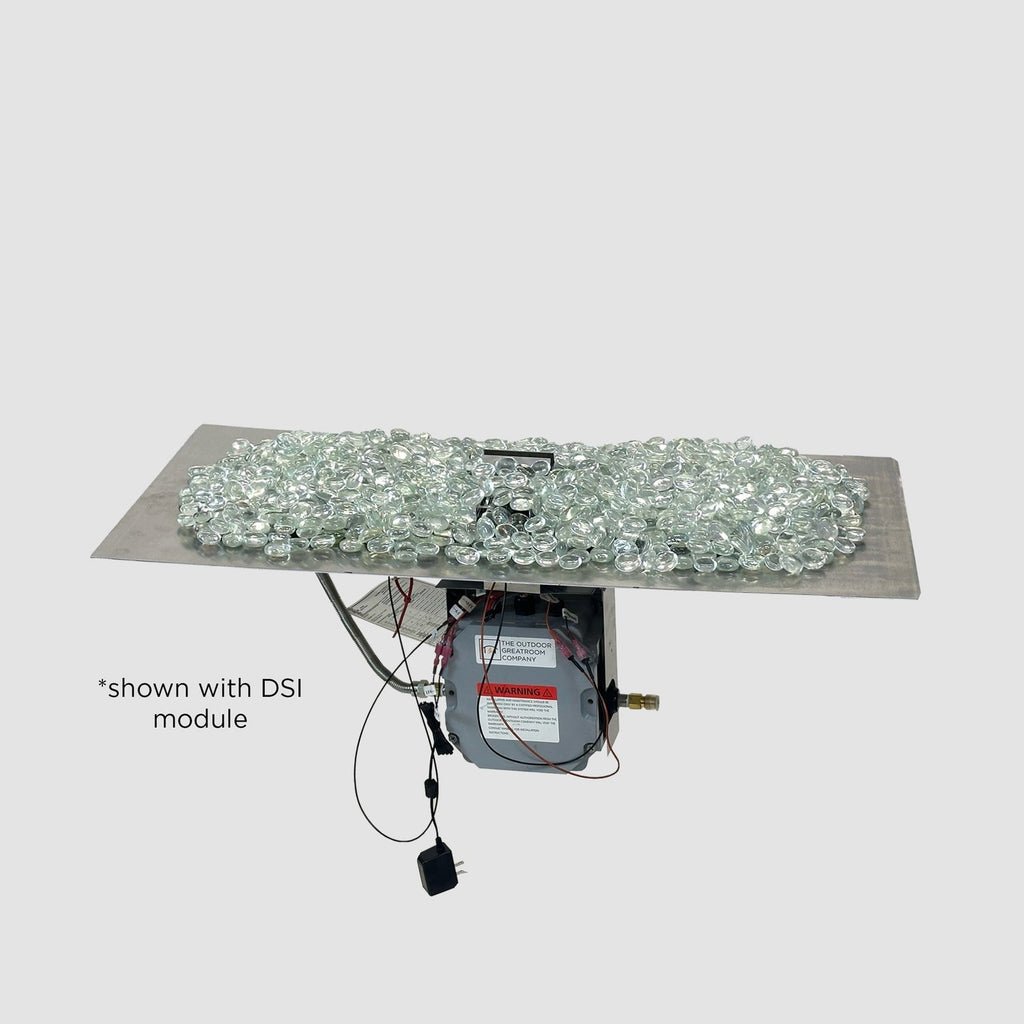

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
