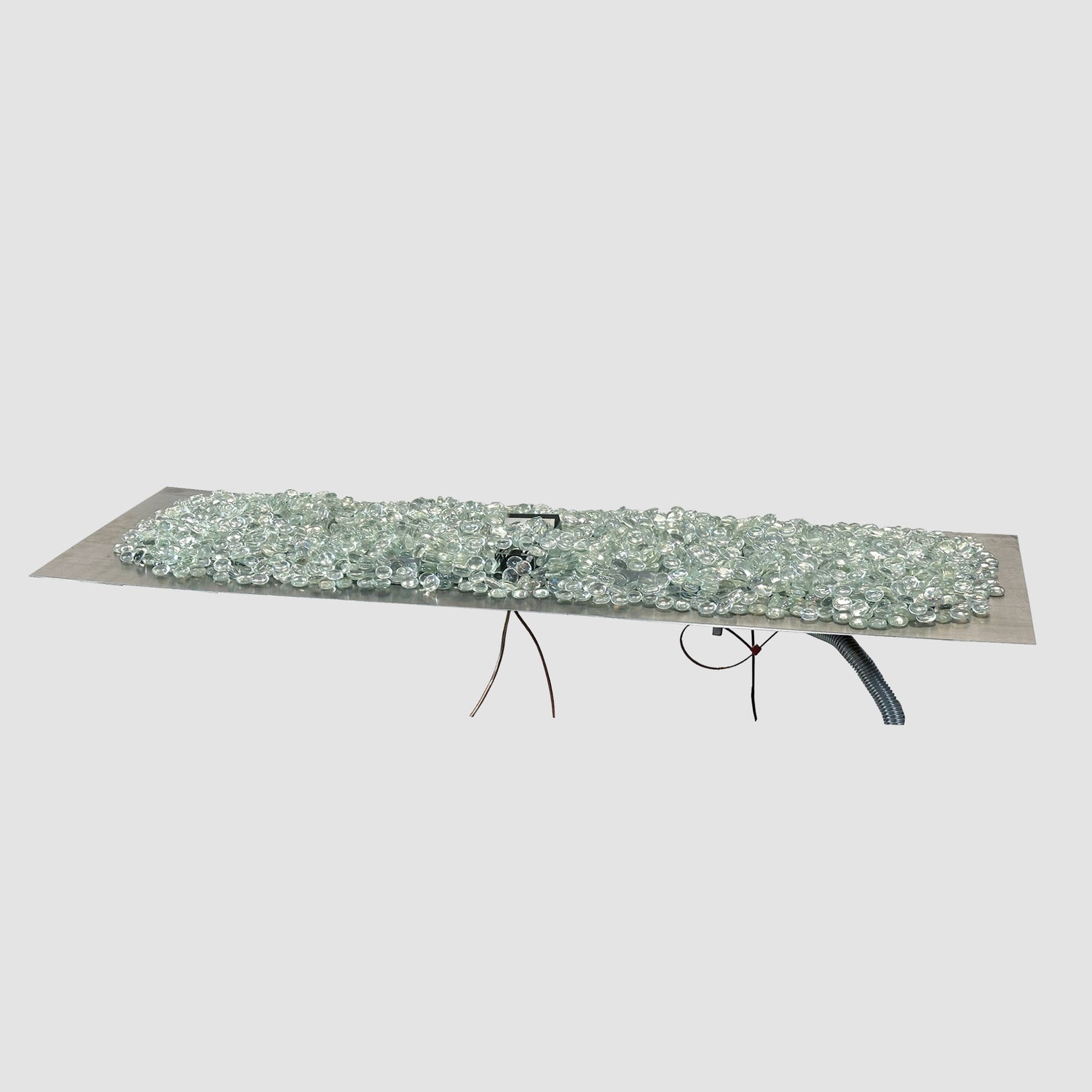

The Outdoor GreatRoom Company 13.5" x 84" Manual Ignition Crystal Fire Plus Gas Burner and Plate Insert Kit

The Outdoor GreatRoom Company 13.5" x 84" Manual Ignition Crystal Fire Plus Gas Burner and Plate Insert Kit is designed to deliver bold, beautiful flames across a large linear space. Perfect for custom outdoor fire pit builds, this kit combines high heat output with proven reliability.

Crafted from commercial-grade #304 stainless steel, the burner resists corrosion and performs well in all weather conditions. Its manual ignition system gives users direct control over flame operation, while the “Positive Connect” feature streamlines setup by reducing the number of gas connections required during installation.

Certified to ANSI and CSA safety standards, this kit includes two control panels and gas valves to support its expanded 84" length. Whether you're designing a residential fire feature or enhancing a hospitality setting, this burner kit offers long-lasting performance, efficient installation, and dependable manual ignition control.

What's Included:

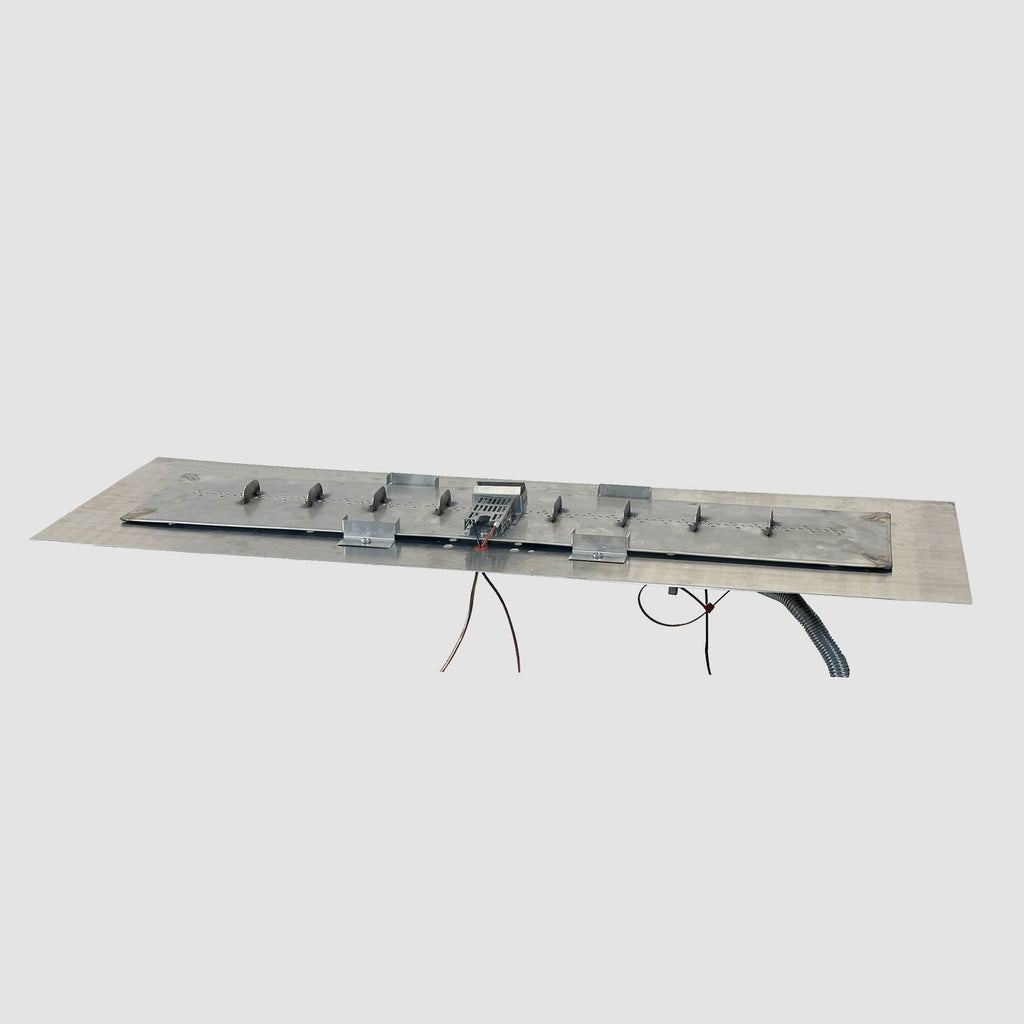

• Linear Gas Burner Insert and Plate Kit
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

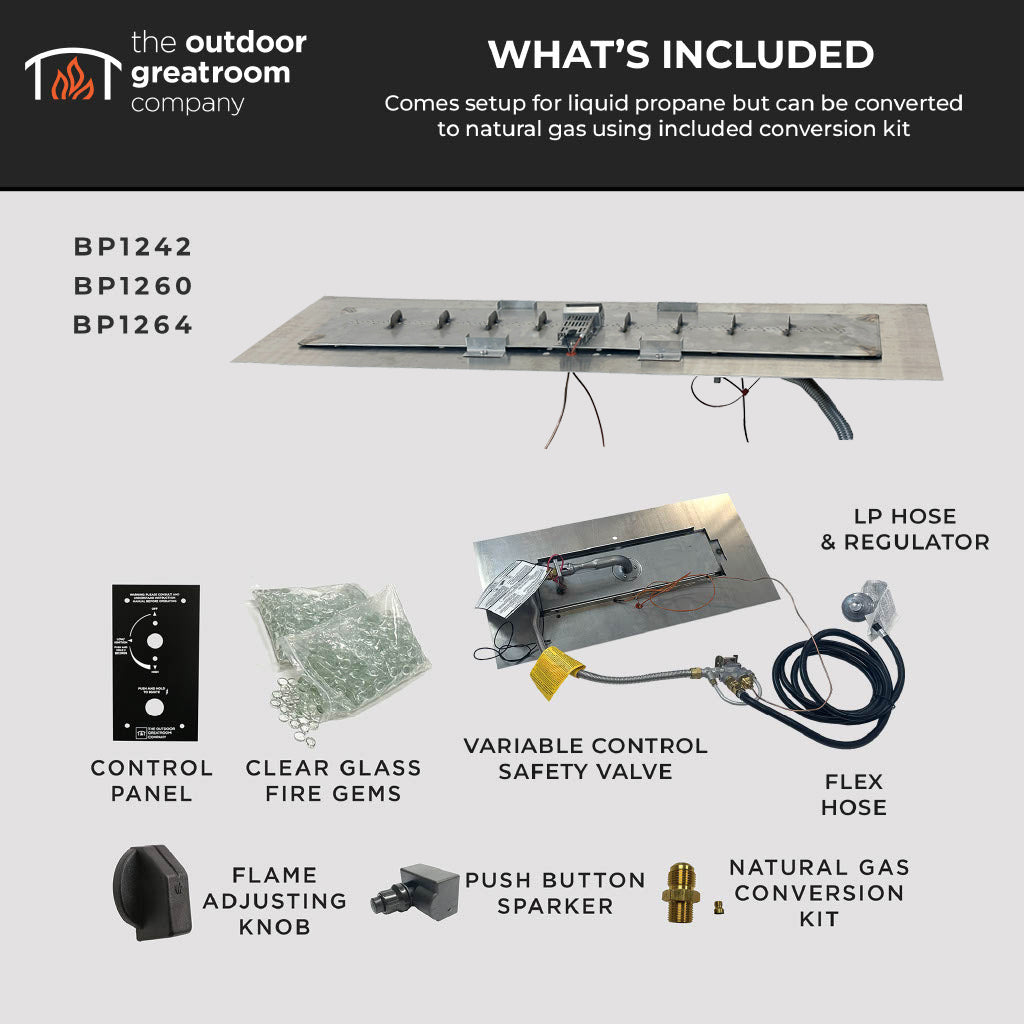

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

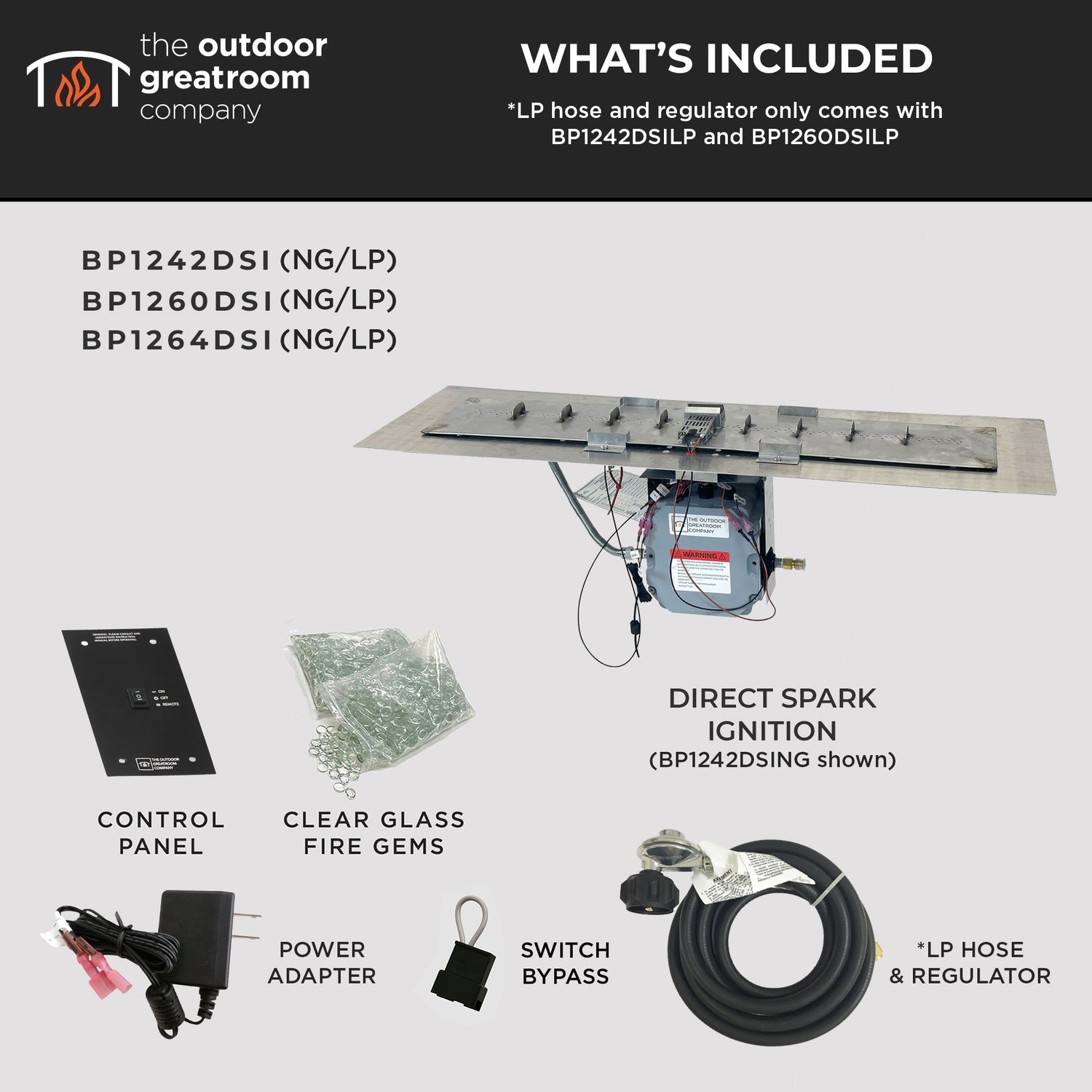

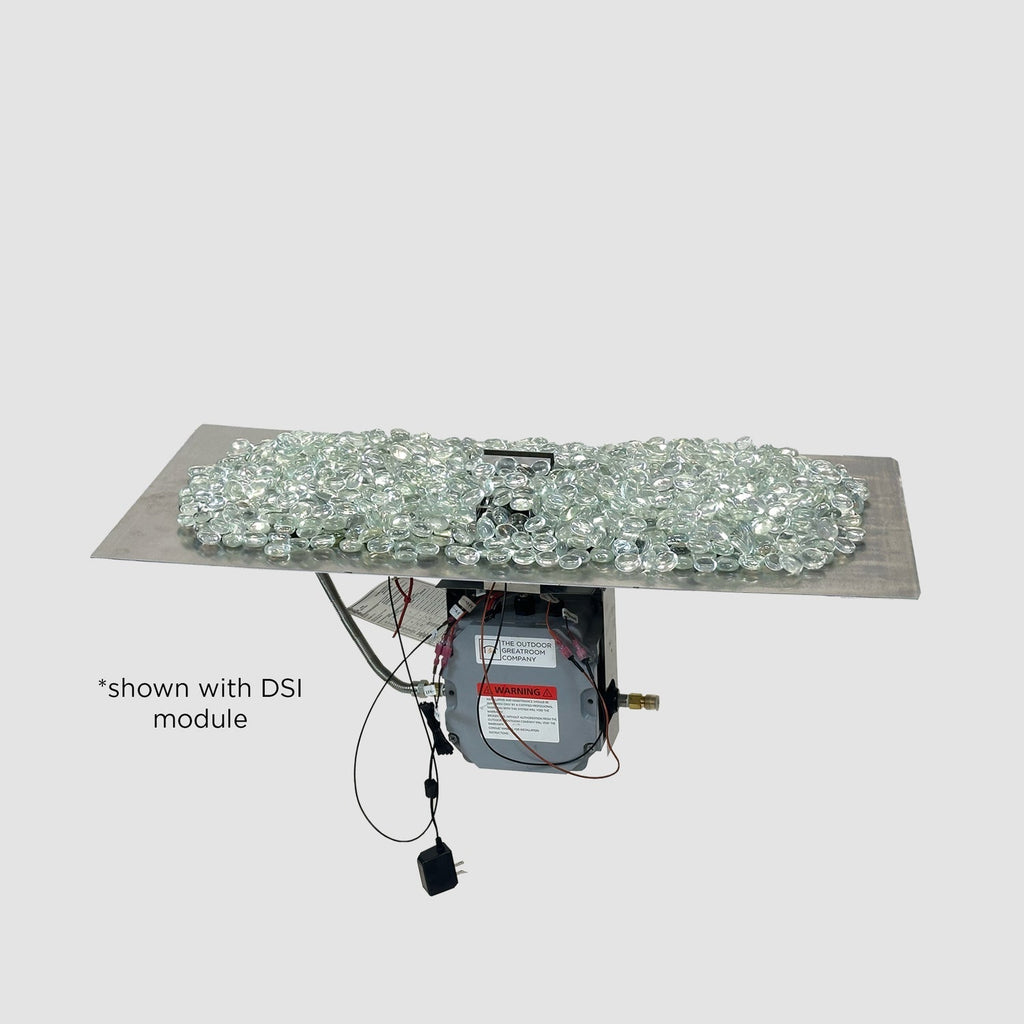

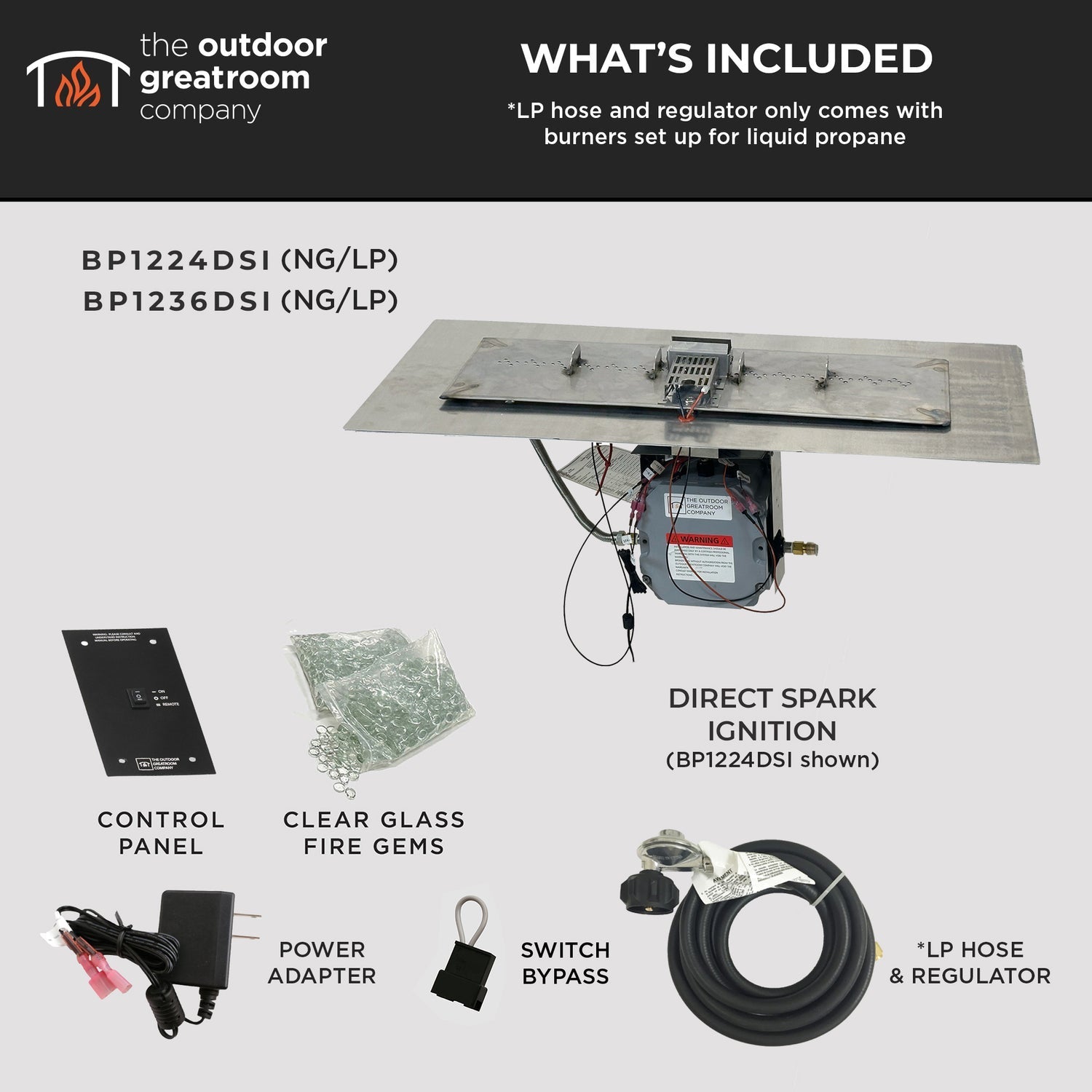

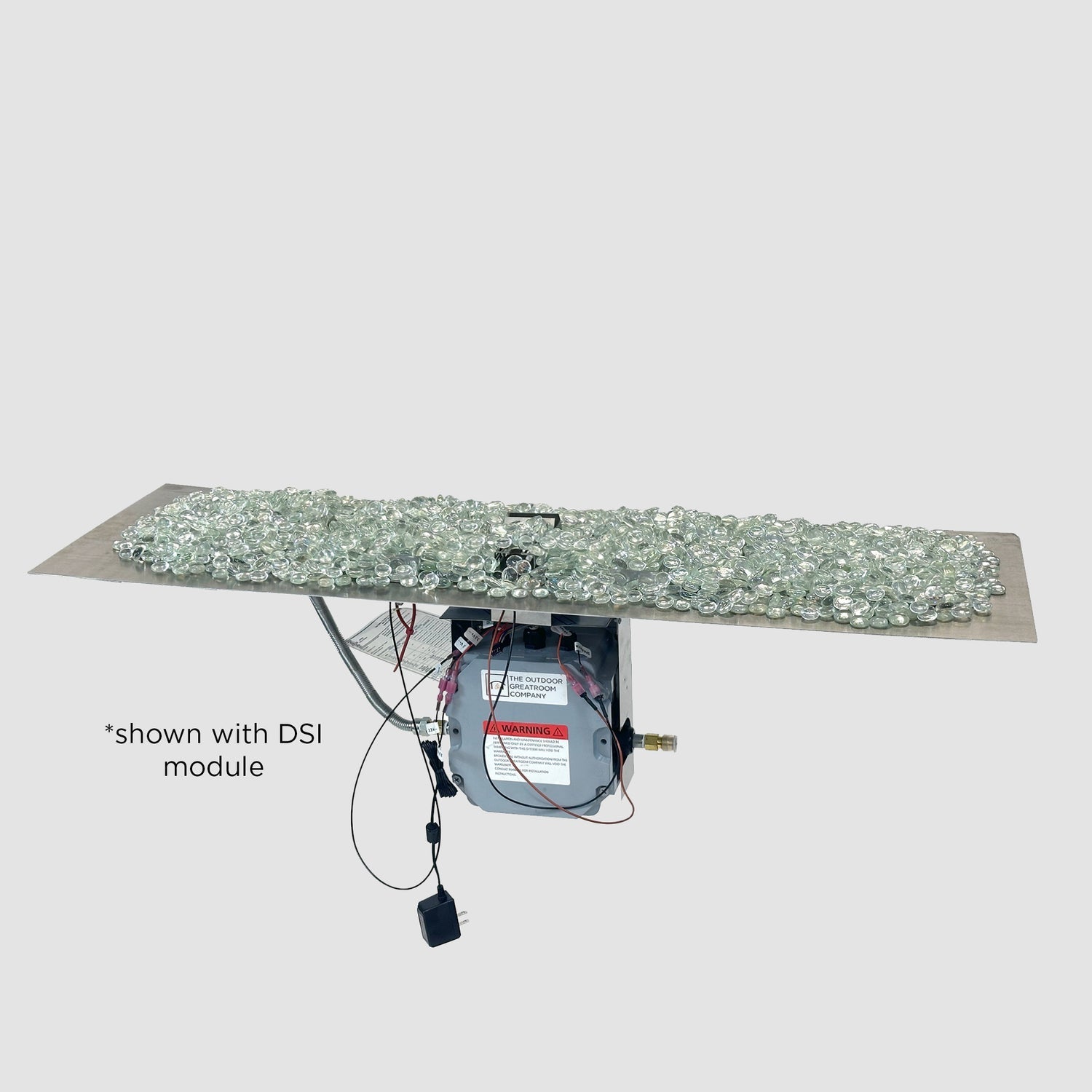

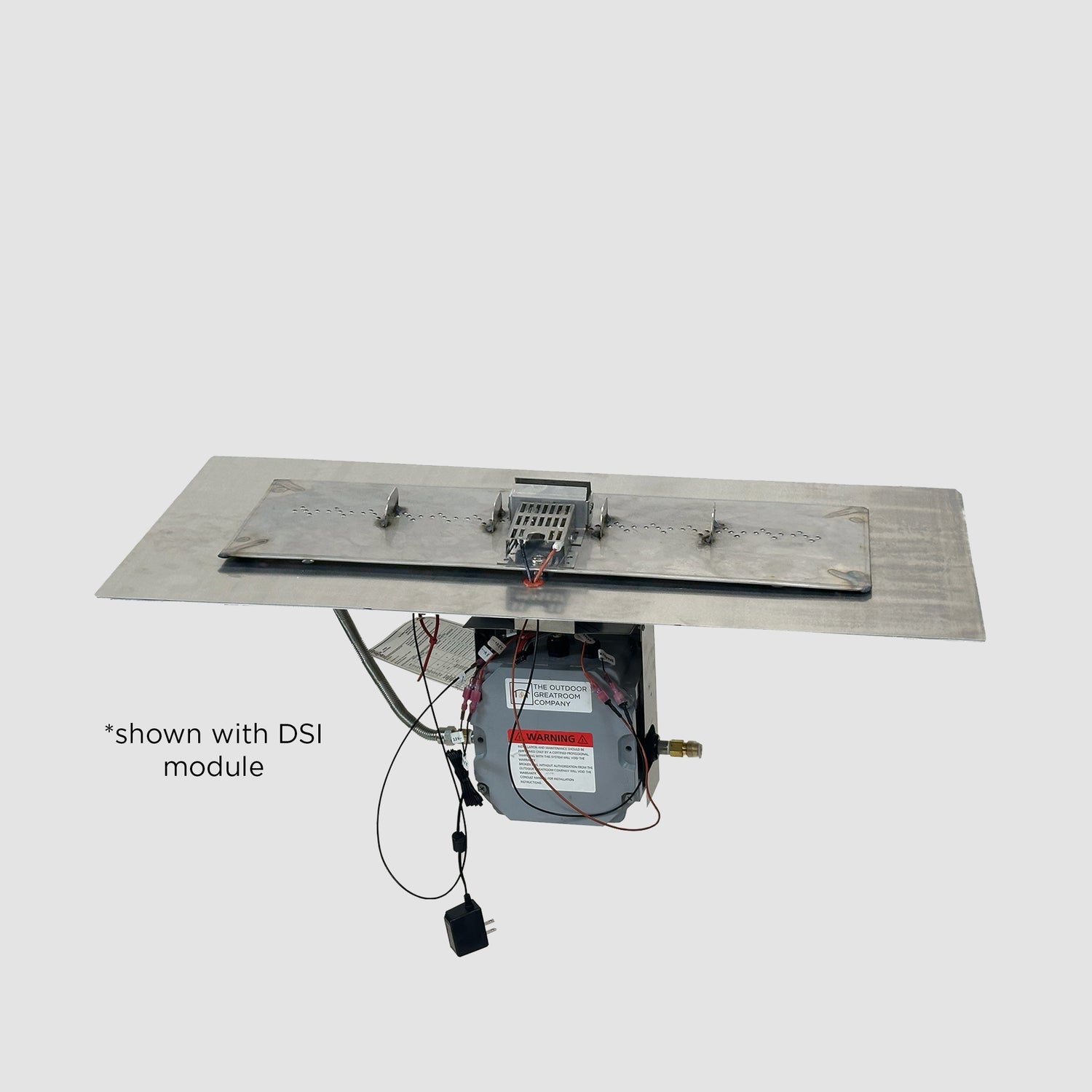

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

=

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
