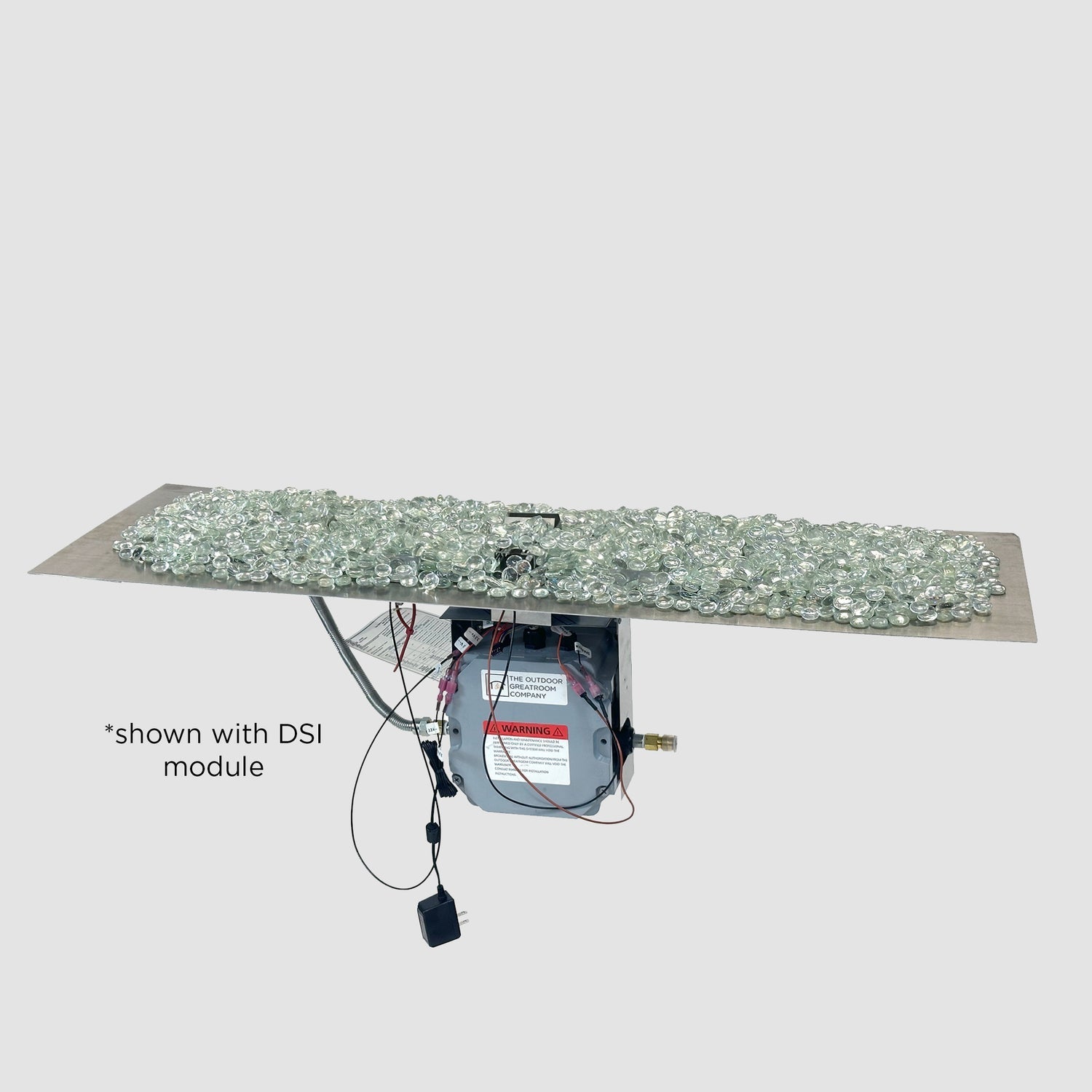

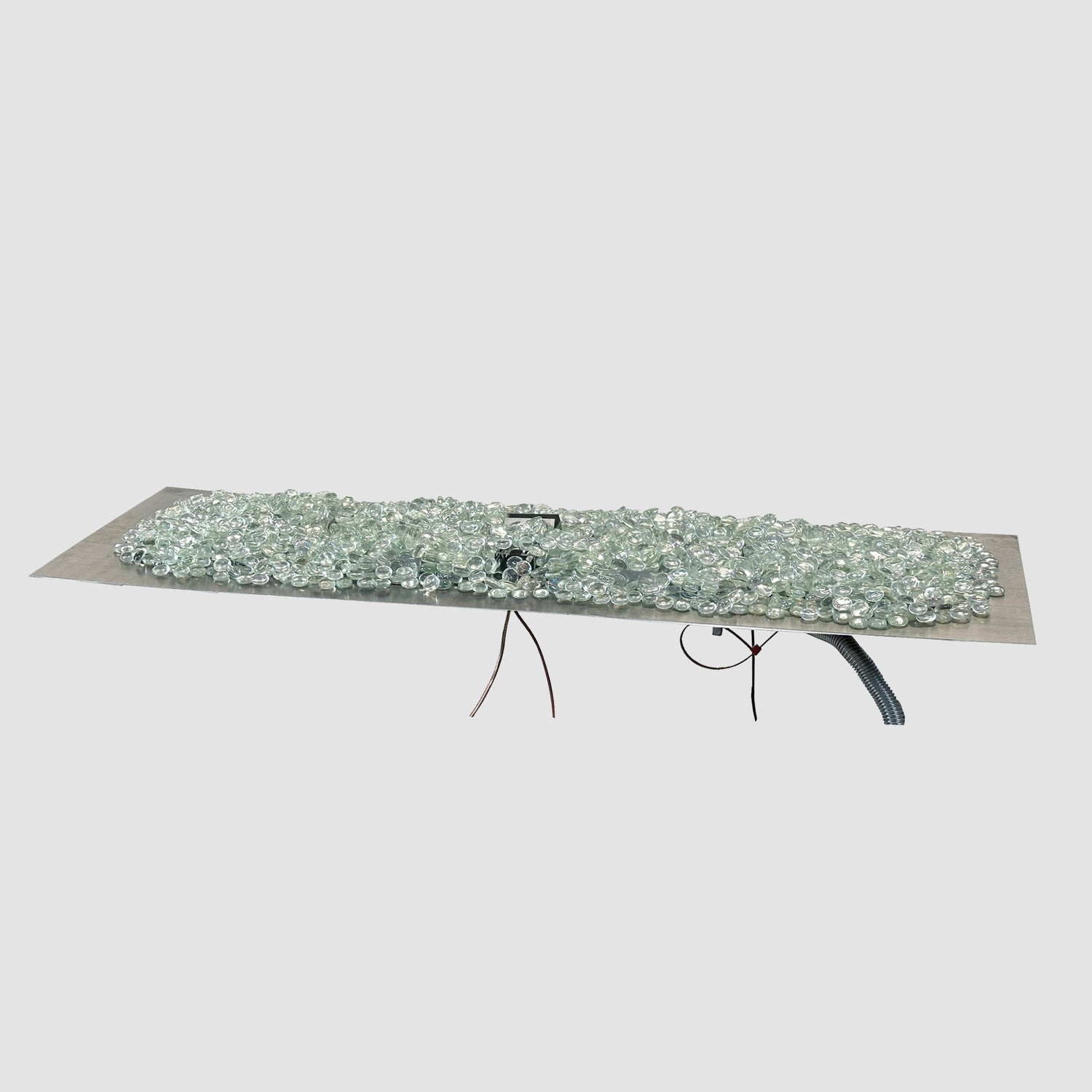

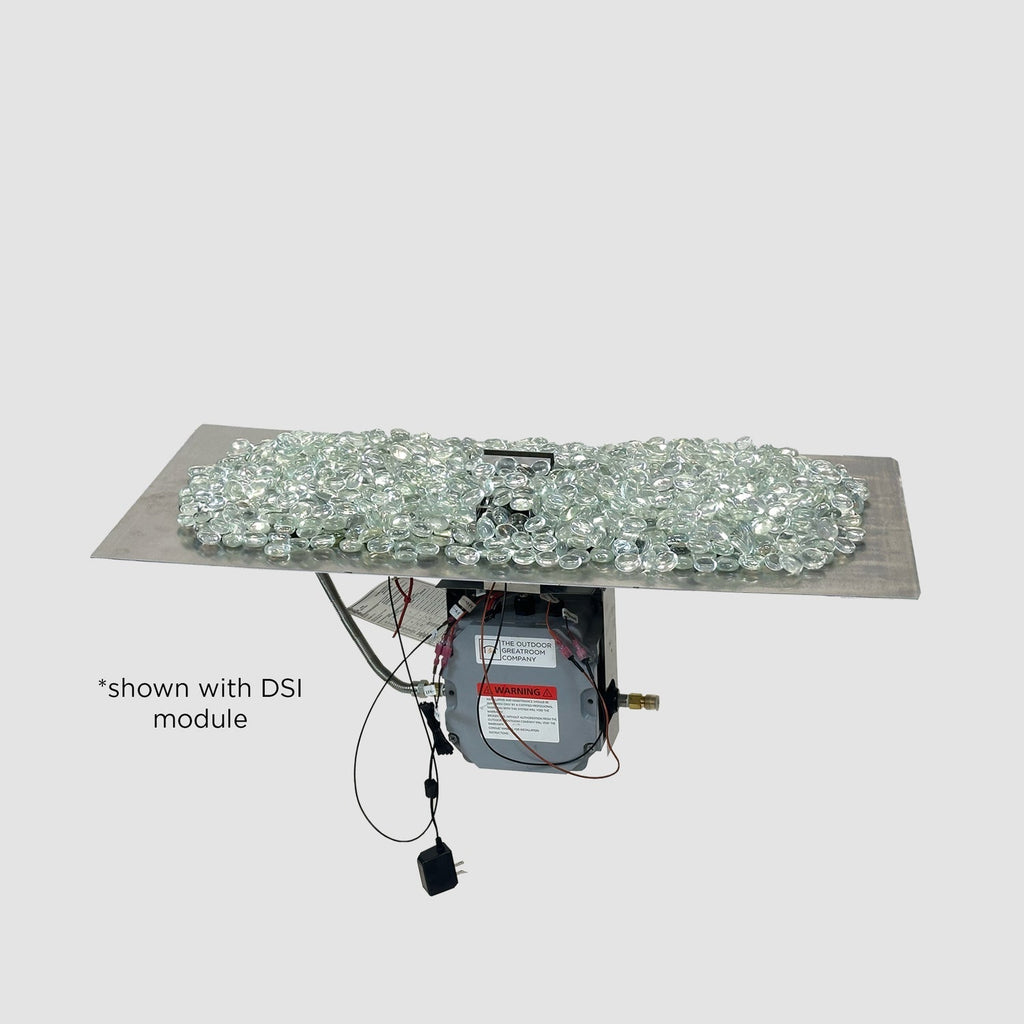

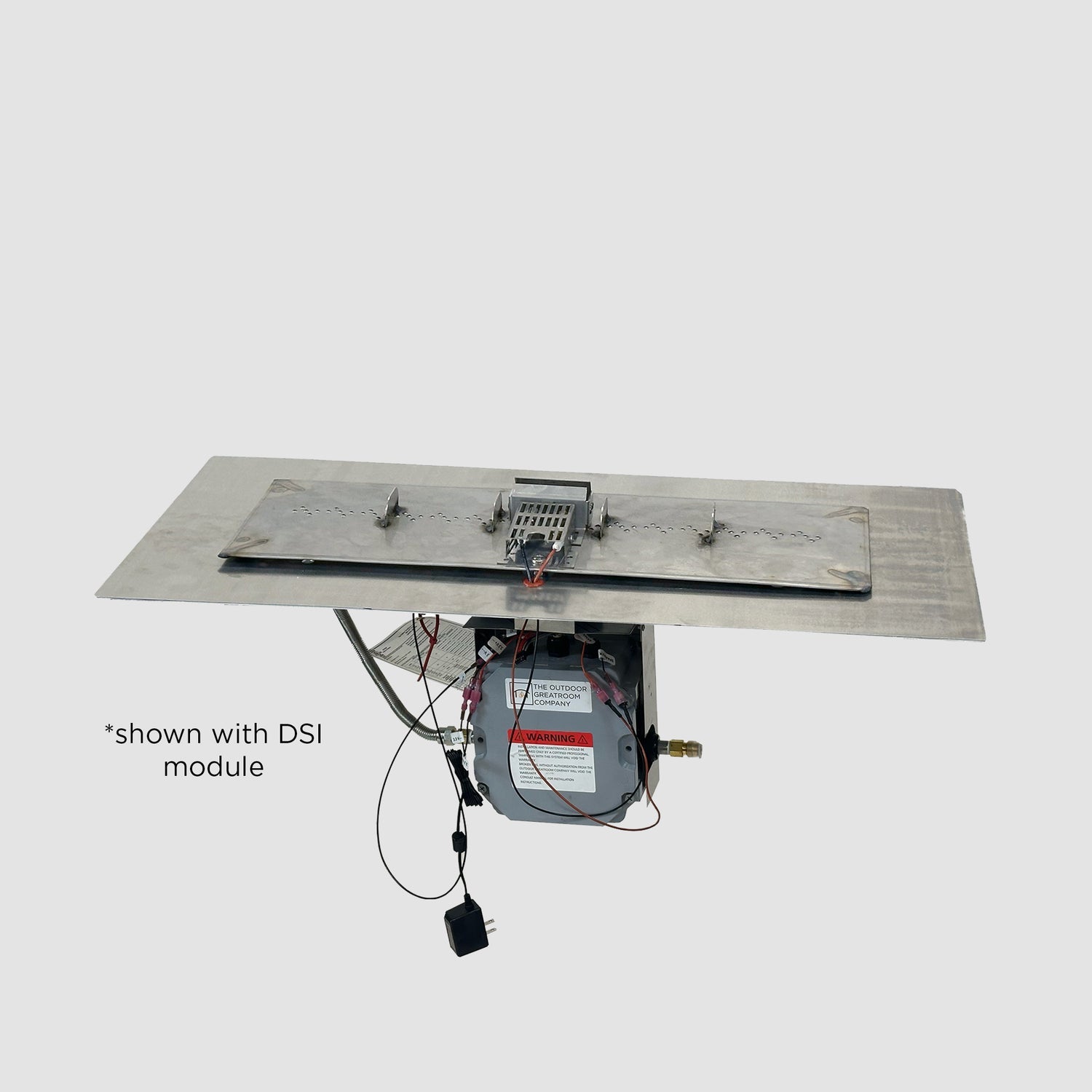

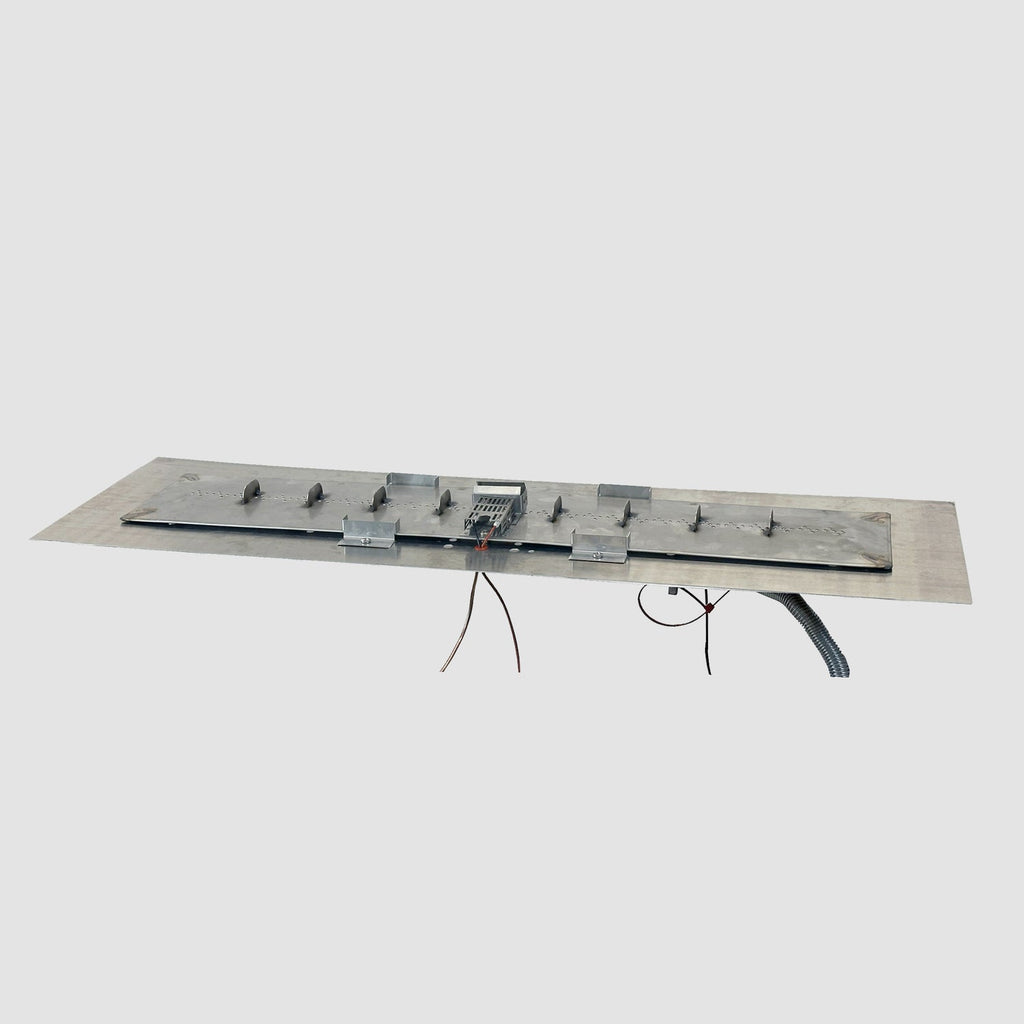

The Outdoor GreatRoom Company 13.5" x 96" Crystal Fire Plus Natural Gas Burner and Plate Kit with Direct Spark Ignition

The Outdoor GreatRoom Company 13.5" x 96" Crystal Fire Plus Natural Gas Burner and Plate Kit with Direct Spark Ignition is designed for large custom fire features that demand reliable performance and sleek modern aesthetics. Its extended linear design makes it ideal for expansive outdoor settings.

Constructed from commercial-grade #304 stainless steel, the burner is built to endure outdoor conditions while delivering up to 130,000 BTUs of powerful flame output. The integrated direct spark ignition system ensures fast, dependable starts, while the safety shutoff mechanism automatically cuts the gas if the flame goes out. The “Positive Connect” system, with most gas fittings handled at the factory, makes installation quicker and more efficient.

This burner kit includes two control panels and valves to support its 96" size and meets ANSI and CSA standards for safety. Whether you’re creating a residential showpiece or a commercial outdoor experience, this burner kit offers a safe, high-performance solution with simple ignition and lasting durability.

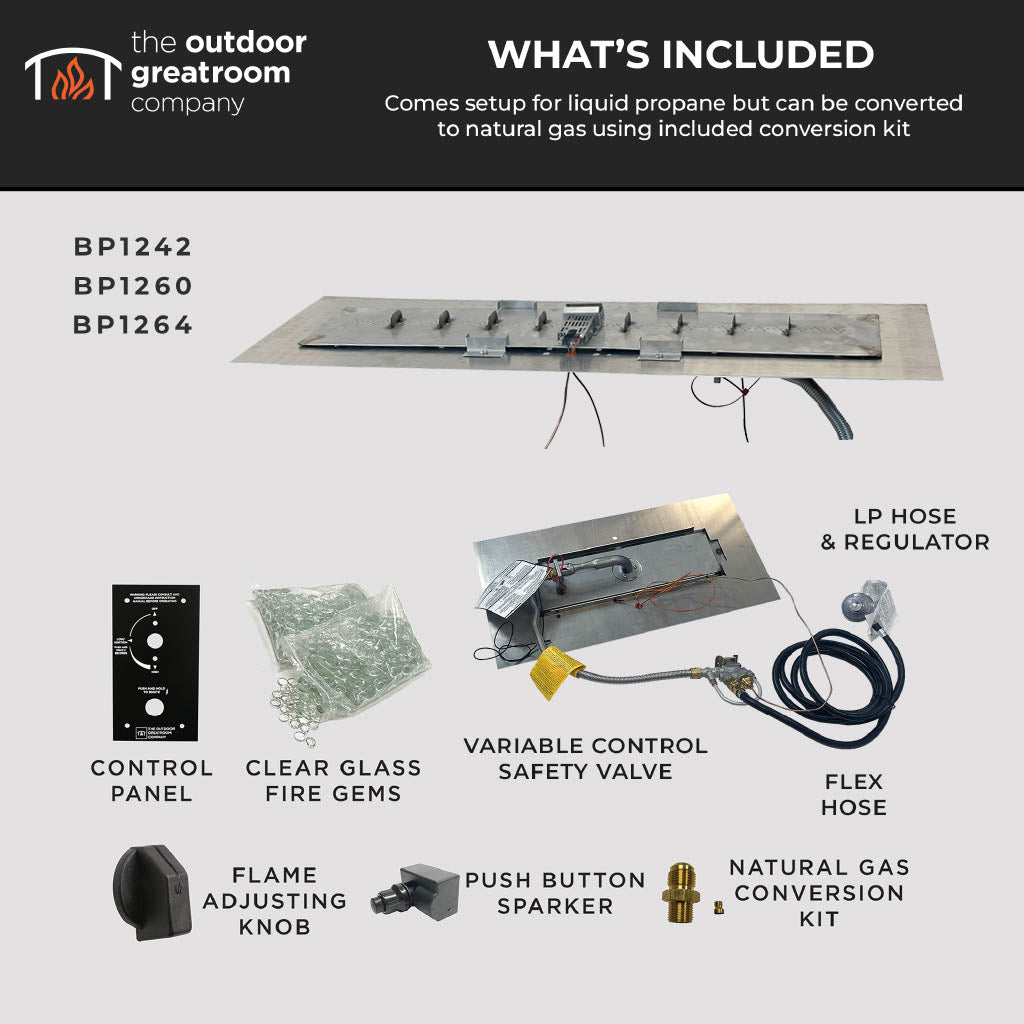

What's Included:

• Linear Gas Burner Insert and Plate Kit
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

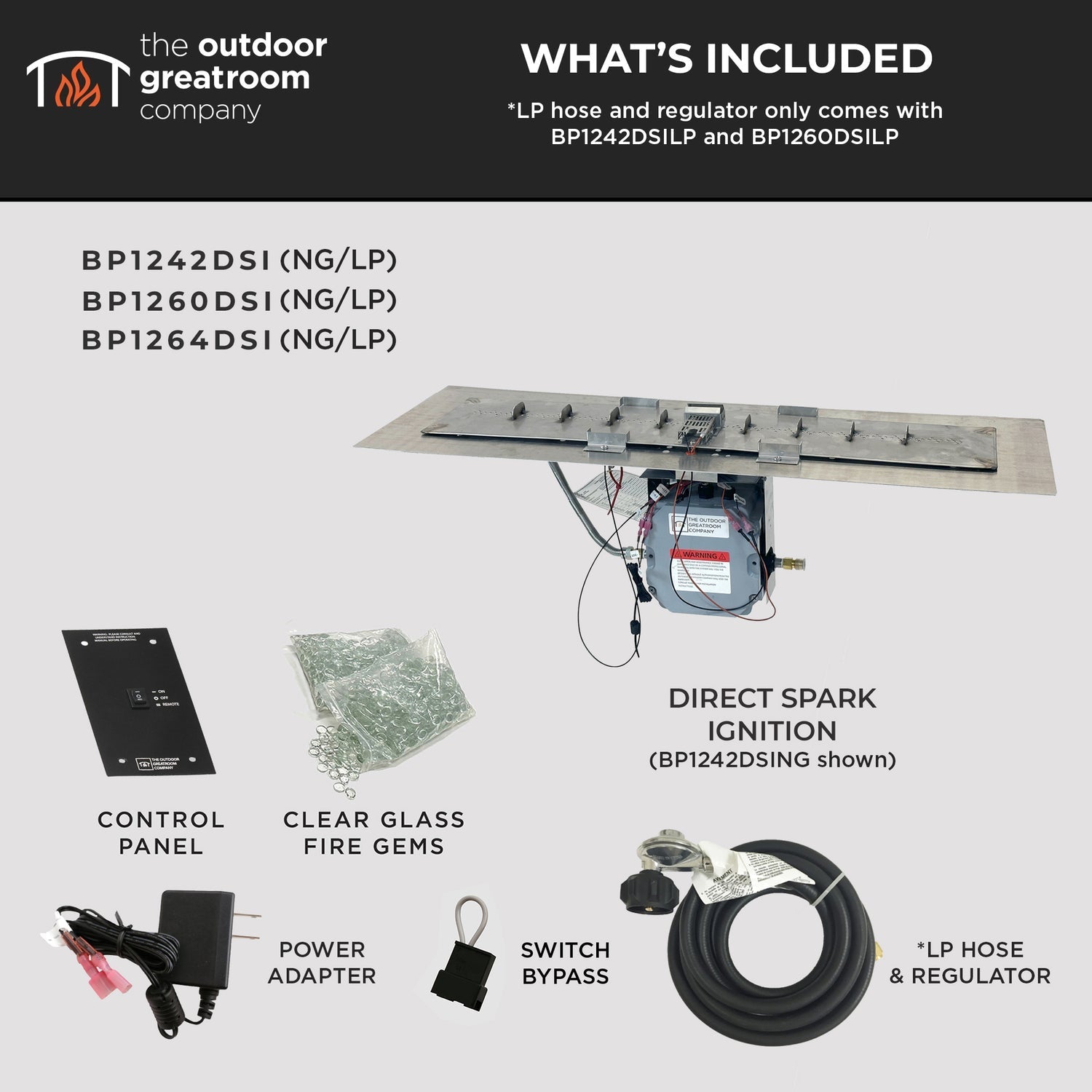

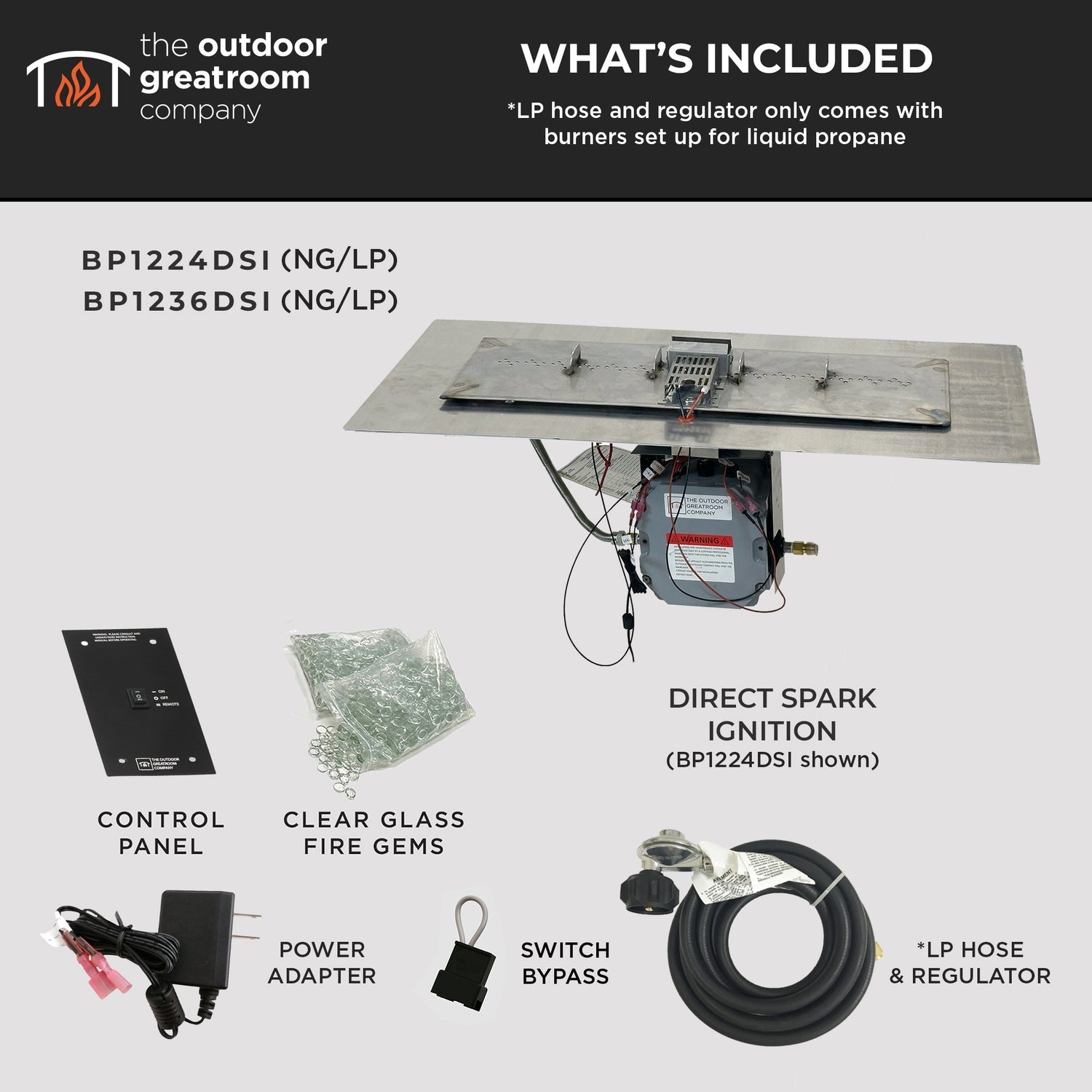

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
