Description

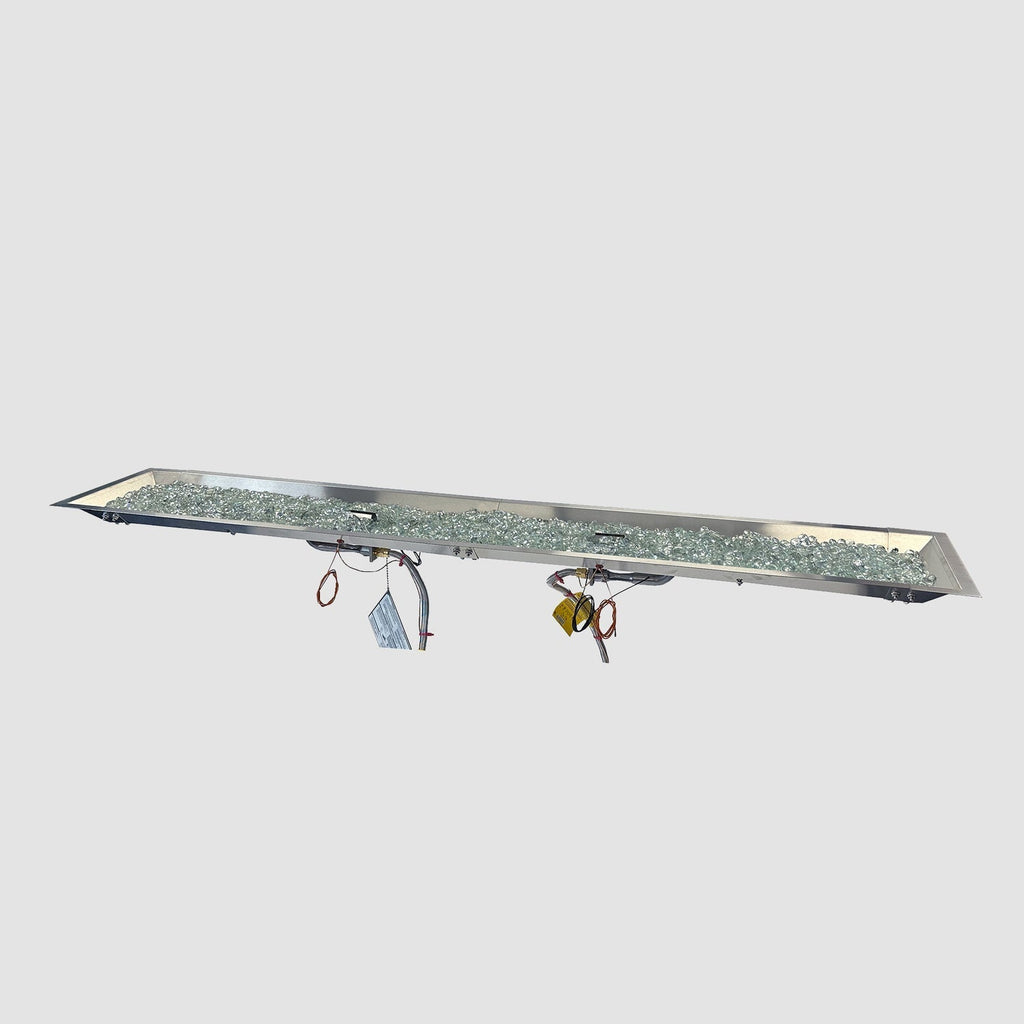

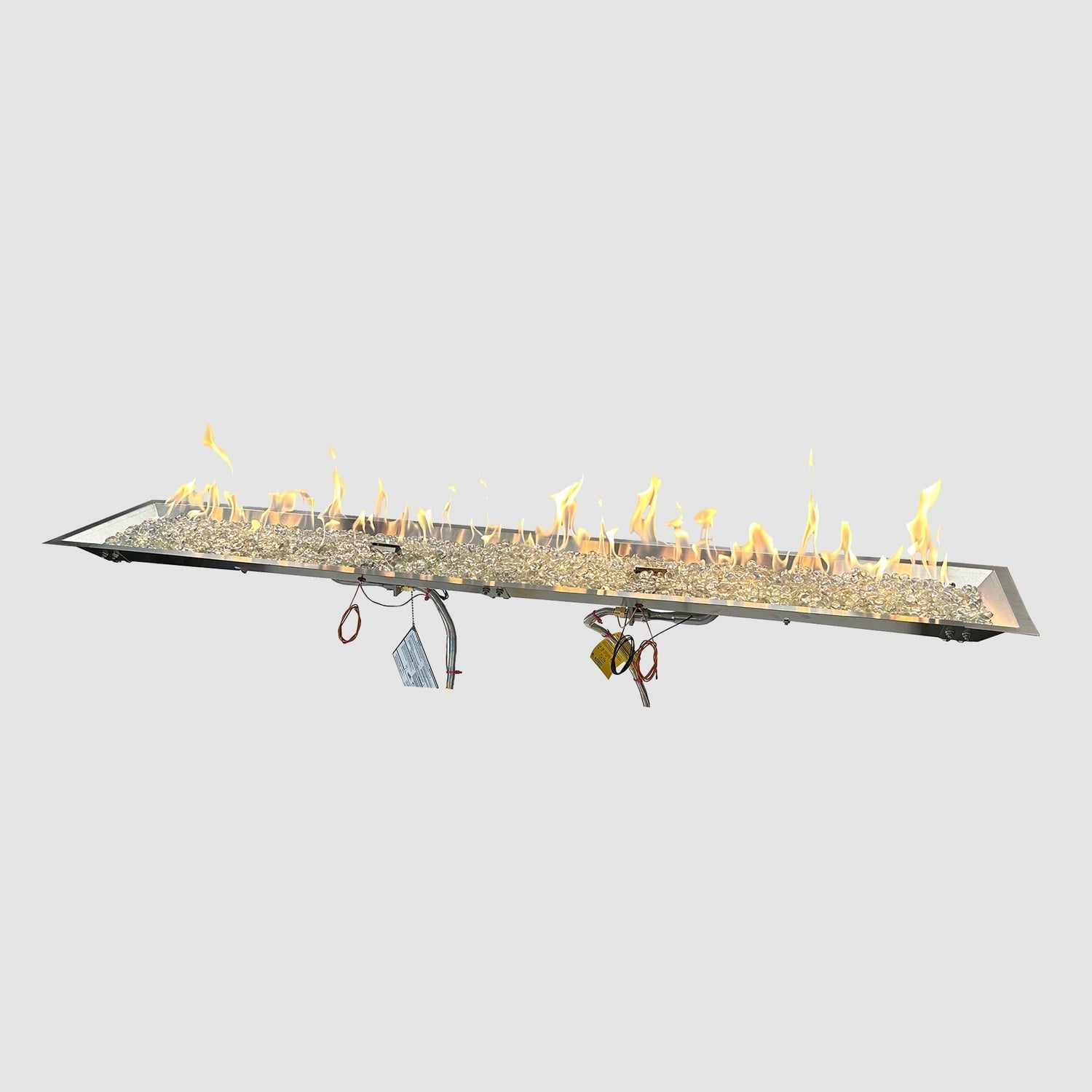

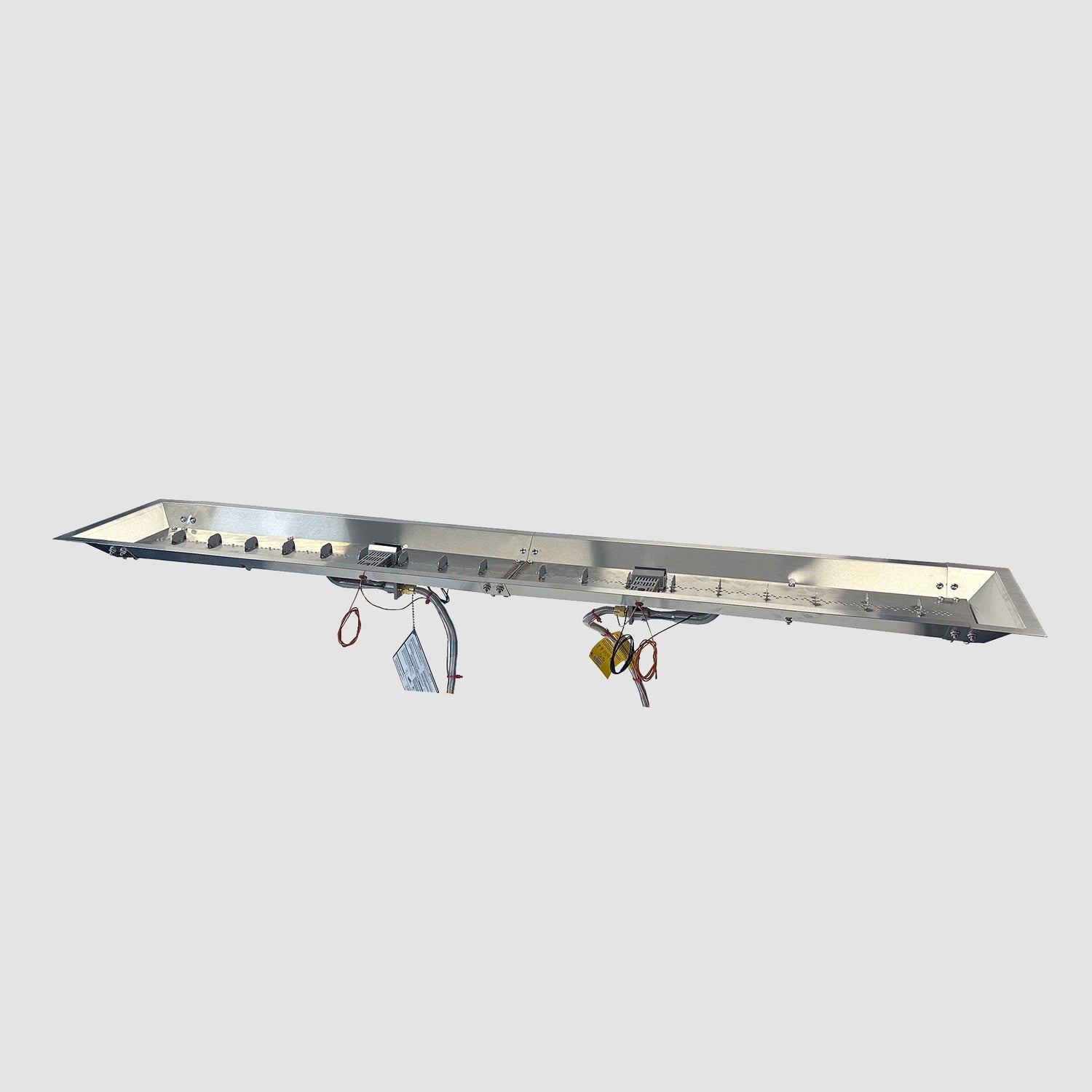

The Outdoor GreatRoom Company Crystal Fire 12" x 108" Commercial-Grade Stainless Steel Linear Gas Burner is designed for both durability and safety. Constructed from premium #304 stainless steel, this burner offers outstanding resistance to corrosion, ensuring long-lasting performance in any outdoor setting.
Equipped with advanced safety ignition and shutdown technology, it automatically cuts off the gas supply if the flame is extinguished, providing peace of mind and enhanced protection. The “Positive Connect” system minimizes gas connections, allowing for faster and easier installation straight from the factory.
UL and ULC listed to meet strict ANSI standards, this burner requires professional installation by a certified gas technician to guarantee safe operation. Whether for commercial or residential fire features, this burner delivers powerful performance with up to 180,000 BTUs and supports a variety of fire media options for customizable ambiance.

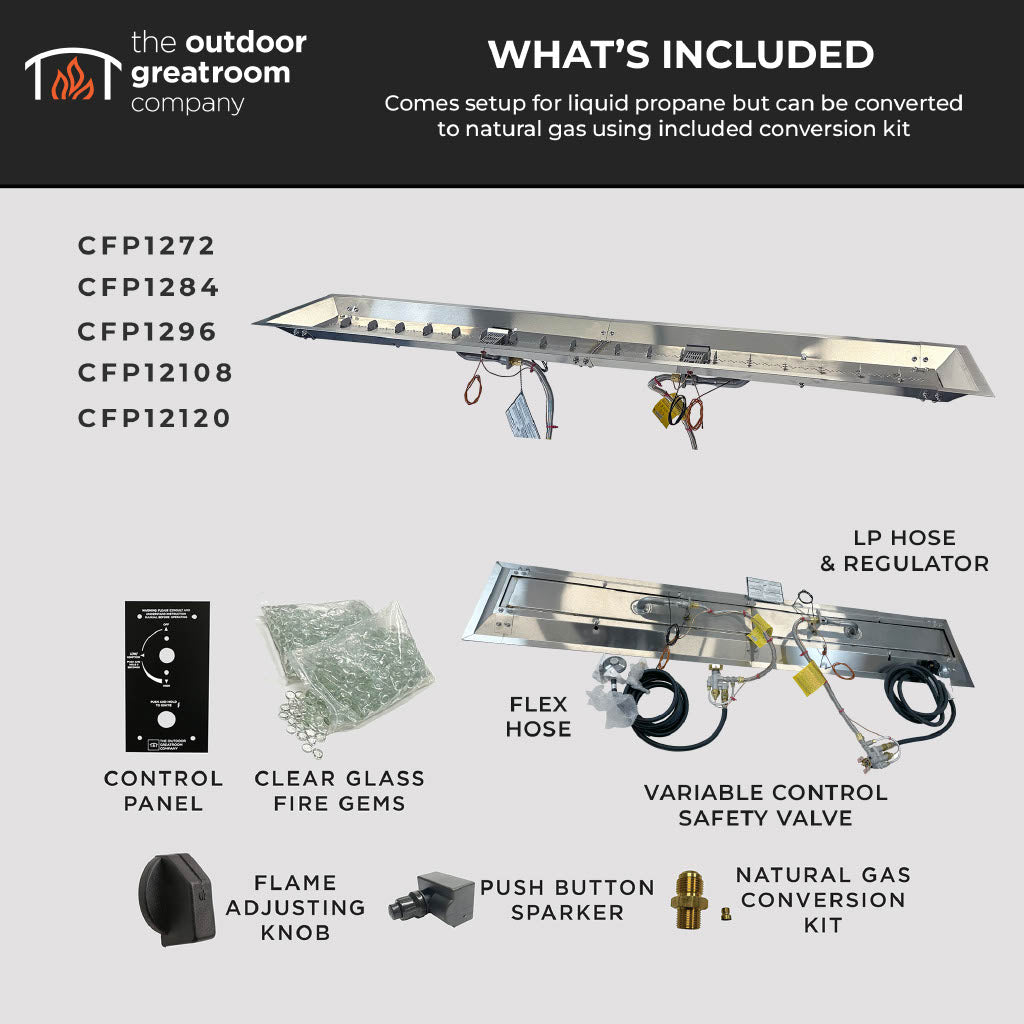

What's Included:
- LP Hose and regulator
- Control Panel
- Clear Glass Fire Gems
- Flex Hose
- Variable Control Safety Valve
- Flame Adjusting Knob
- Push Button Sparker
- Natural Gas Conversion Kit
Features:
- Commercial-grade #304 stainless steel
- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Kits above 12" x 64” include two valves and two control panels
- Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.
Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height
- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

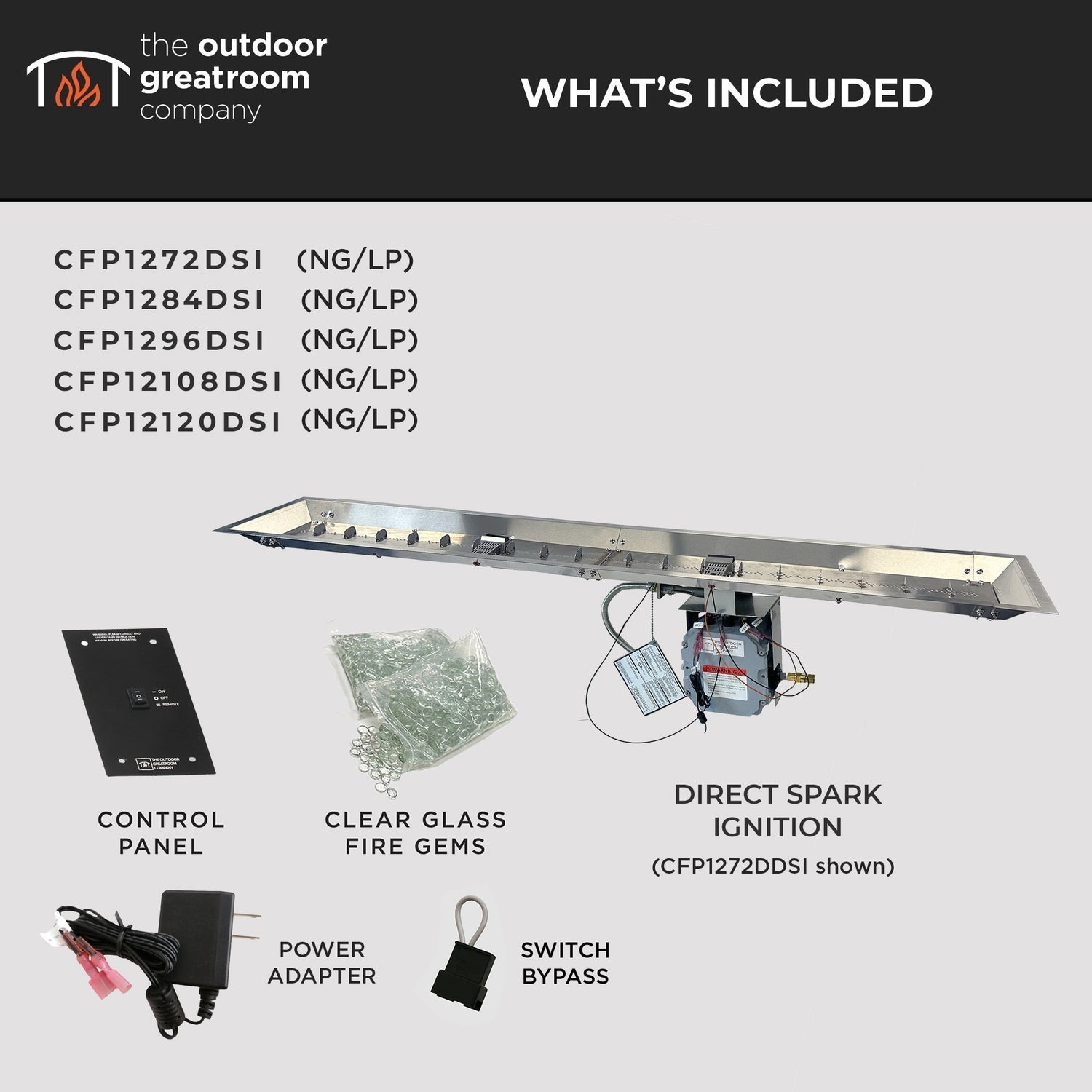

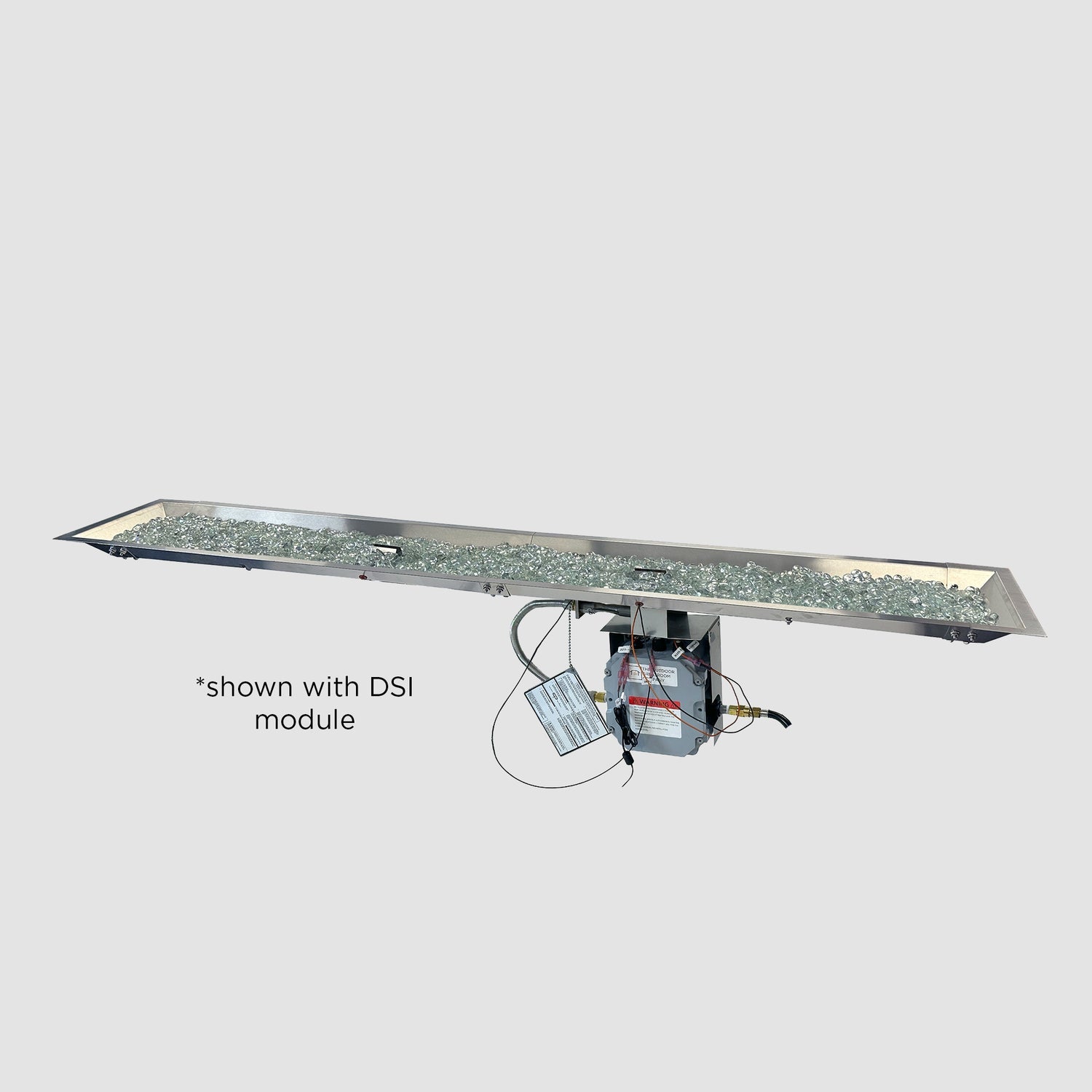

Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible
- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 32.5 lbs. |
| BTUs (LP/NG) | 180K |
| Fire Media | 35 lbs. |
Warranty:
Documents & Files:
- Specifications Sheet
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Stonefire Fire Pit Table Manual
- Stonefire Collection Info Sheet
- Gas Fire Pit Table Brochure
