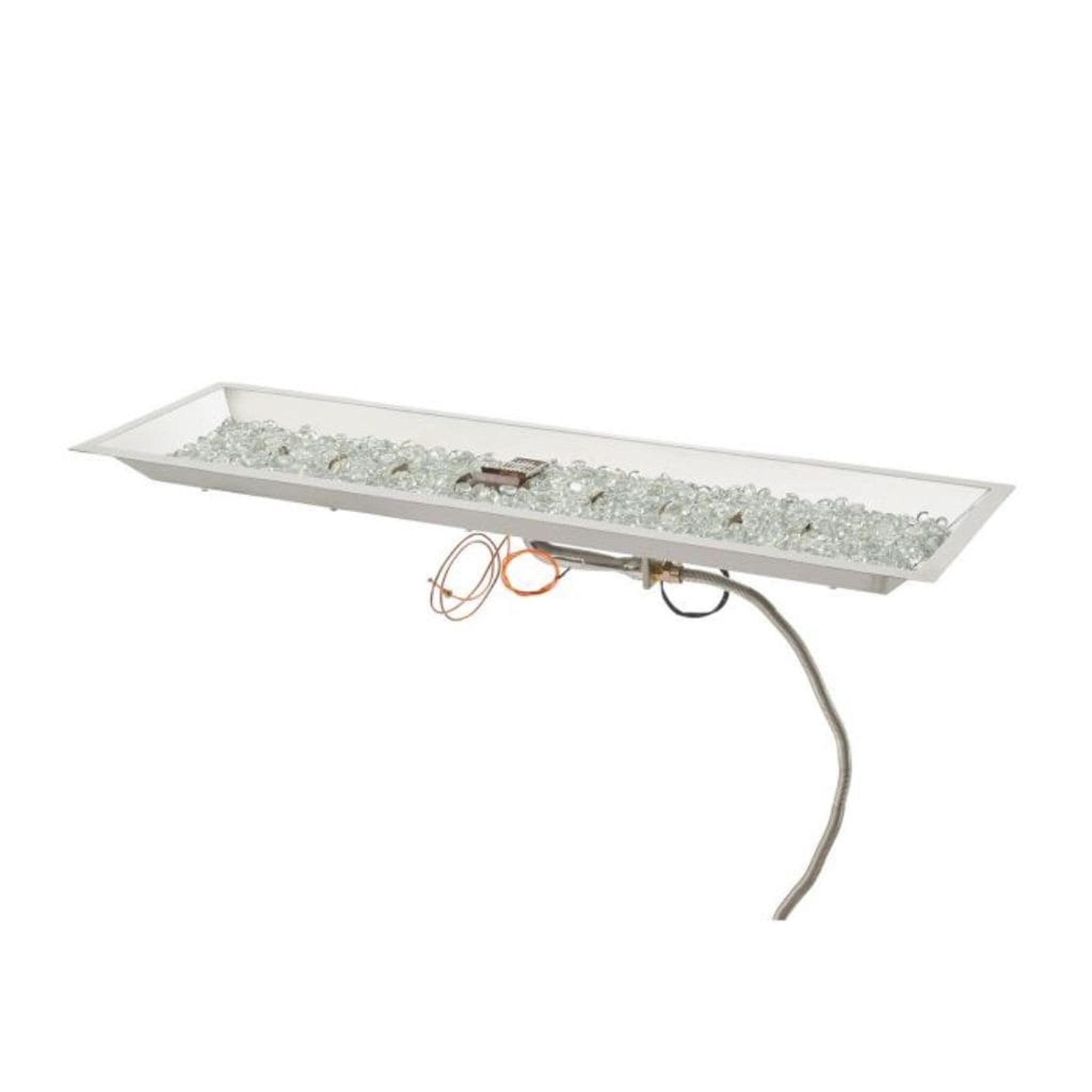

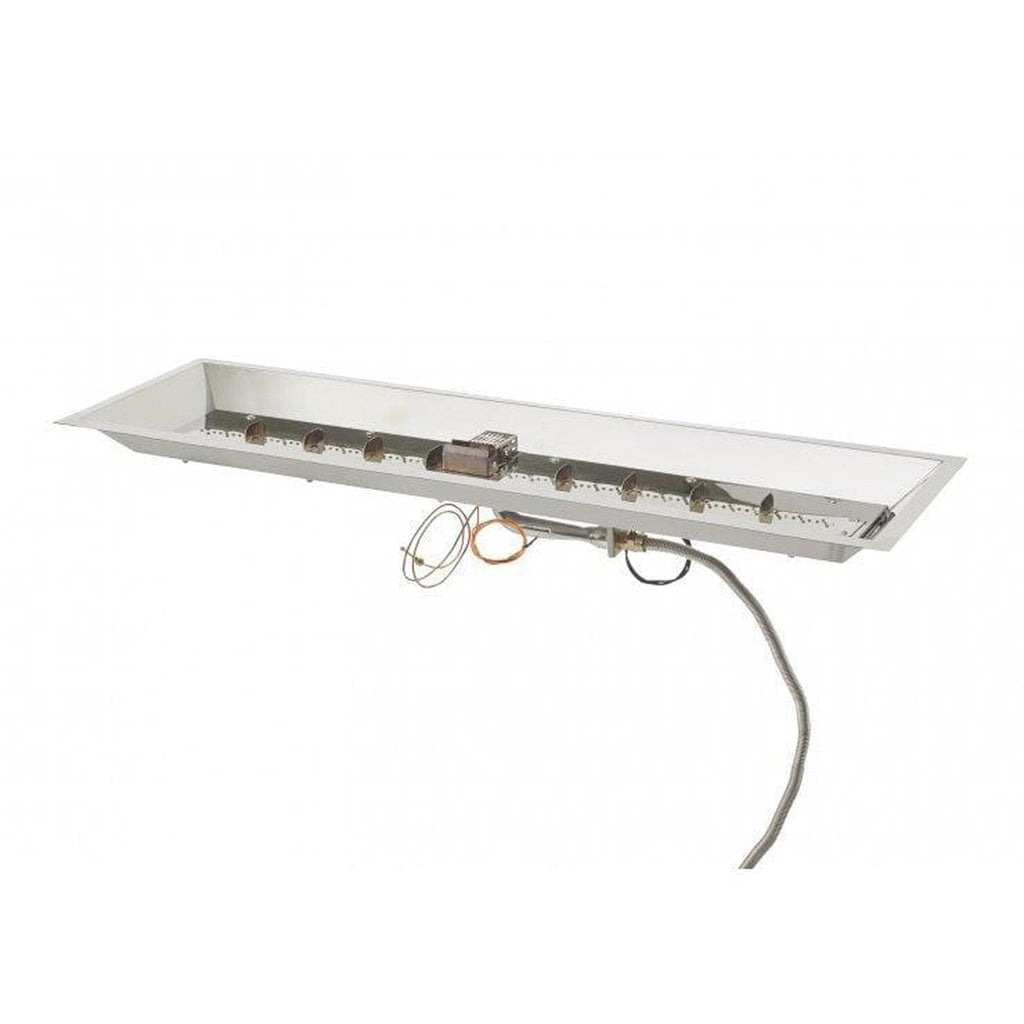

The Outdoor GreatRoom Company Crystal Fire 12" x 42" Linear Stainless Steel Gas Burner Insert combines reliable performance with sleek, contemporary design. Made from commercial-grade #304 stainless steel, this burner offers exceptional durability and resistance to the elements, making it an ideal choice for any custom fire feature or fire pit table.
Designed with safety and convenience in mind, the Crystal Fire burner includes a built-in ignition and flame-sensing shutdown system, which will automatically close the gas line if the flame is extinguished. The patented “Positive Connect” system minimizes gas connections and simplifies installation, with most connections pre-assembled at the factory for faster setup. Rated at 80,000 BTUs for LP or NG, it delivers powerful, even heat output.
UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017 safety standards, this linear burner is suitable for both residential and commercial applications. Fire media and optional accessories like control panels may vary by installation—contact The Outdoor GreatRoom Company for guidance tailored to your setup.

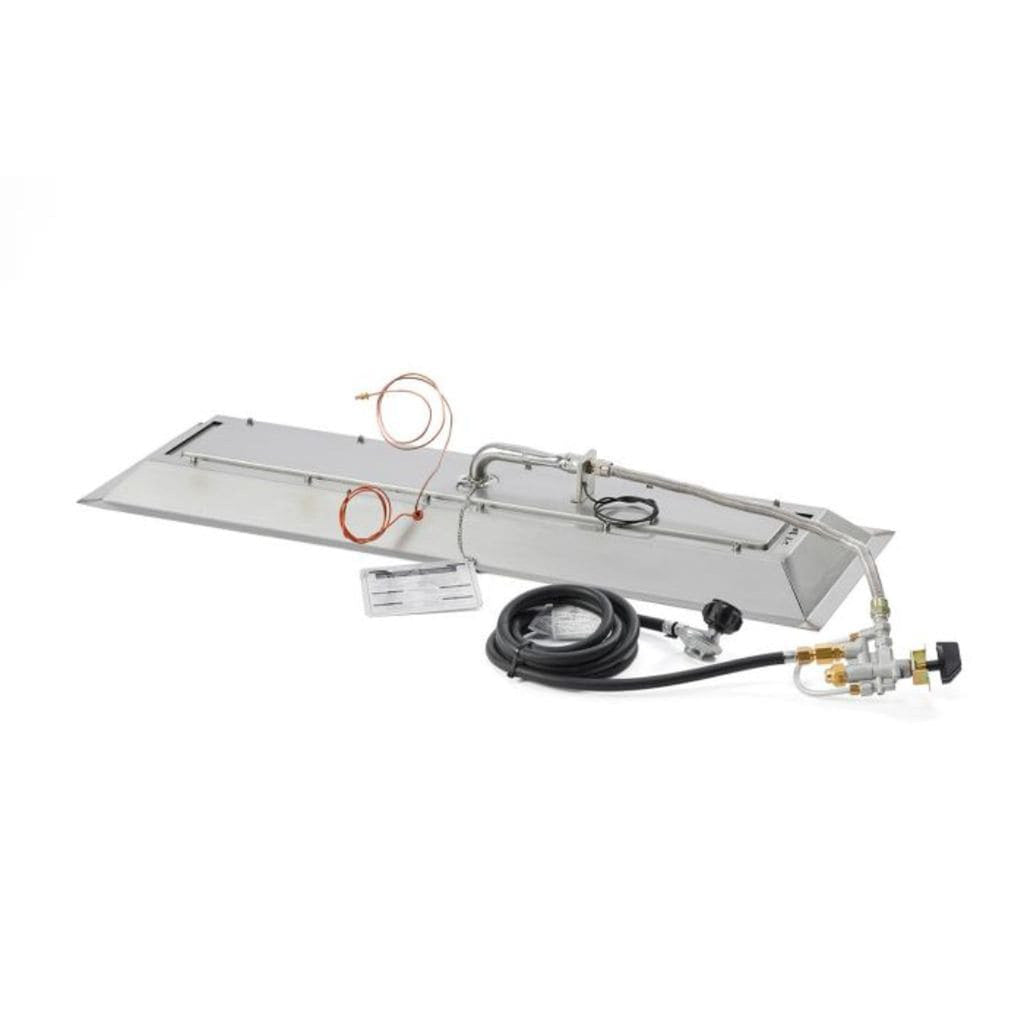

What's Included:
- LP Hose and regulator
- Control Panel
- Clear Glass Fire Gems
- Flex Hose
- Variable Control Safety Valve
- Flame Adjusting Knob
- Push Button Sparker
- Natural Gas Conversion Kit
Features:
- Commercial-grade #304 stainless steel

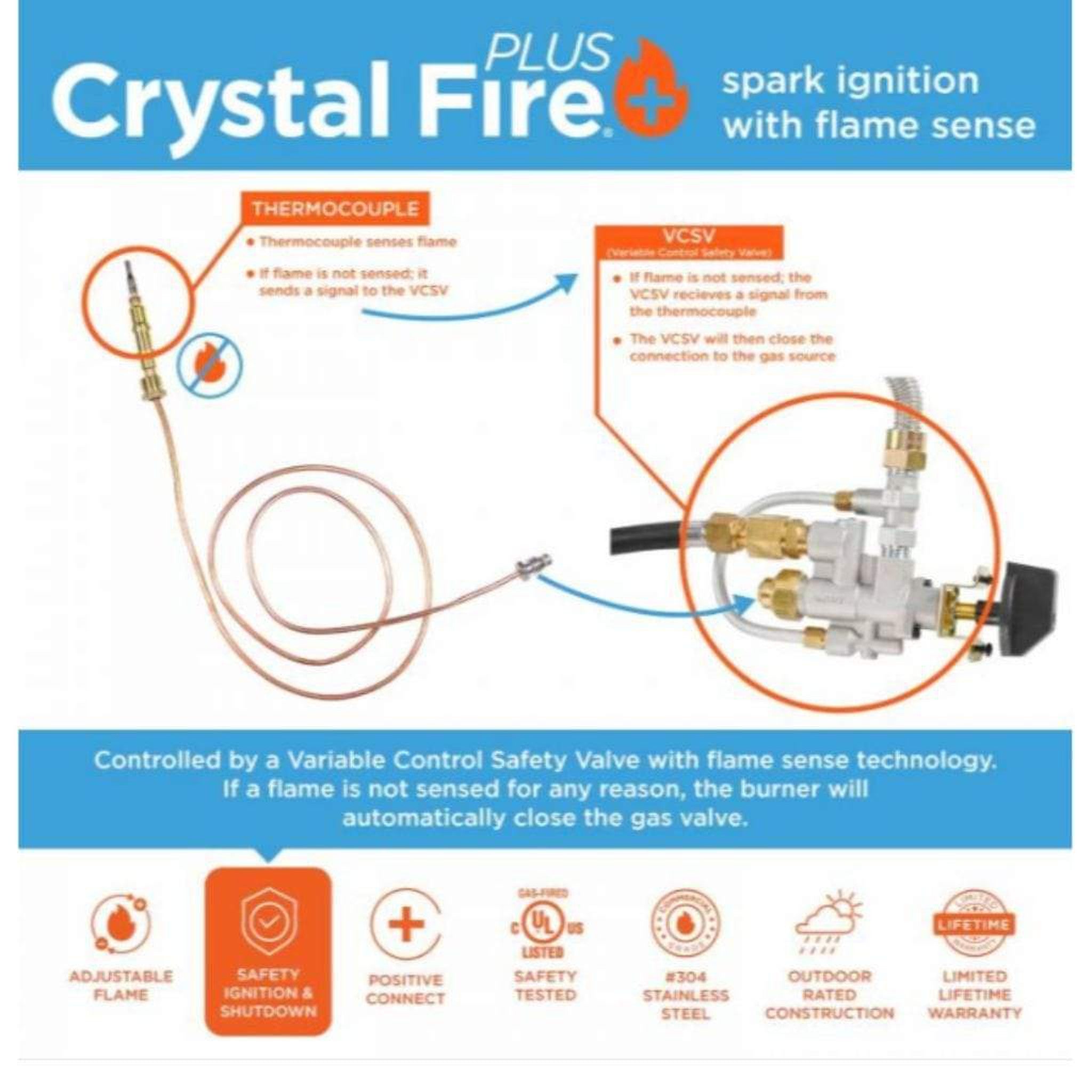

- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Kits above 12" x 64” include two valves and two control panels
- Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.
Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height
- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems
Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible
- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 21.5 lbs. |
| BTUs (LP/NG) | 80K* |
| Fire Media | 15 lbs. |
Warranty:
Documents & Files:
- Specifications Sheet
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Stonefire Fire Pit Table Manual
- Stonefire Collection Info Sheet
- Gas Fire Pit Table Brochure
