Description

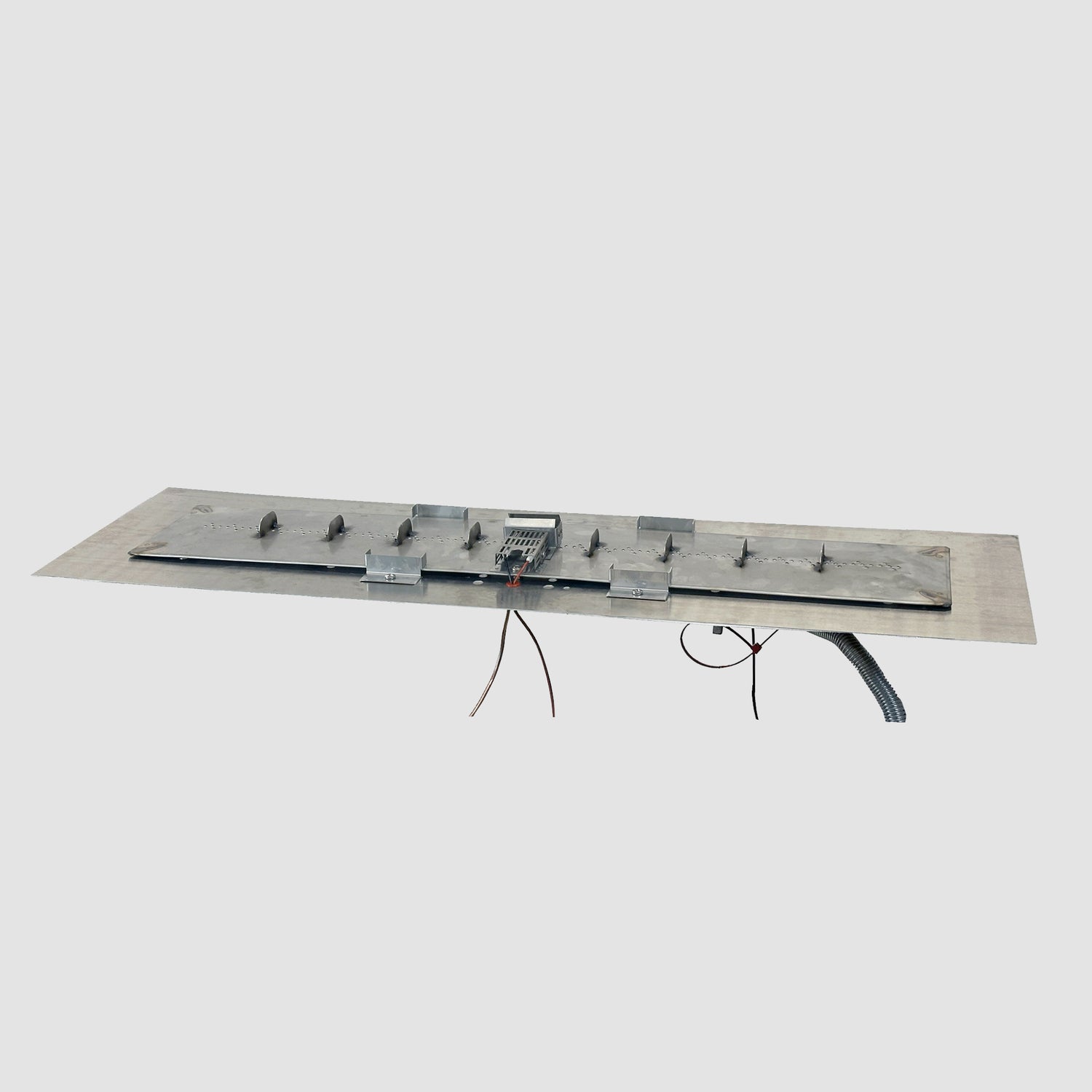

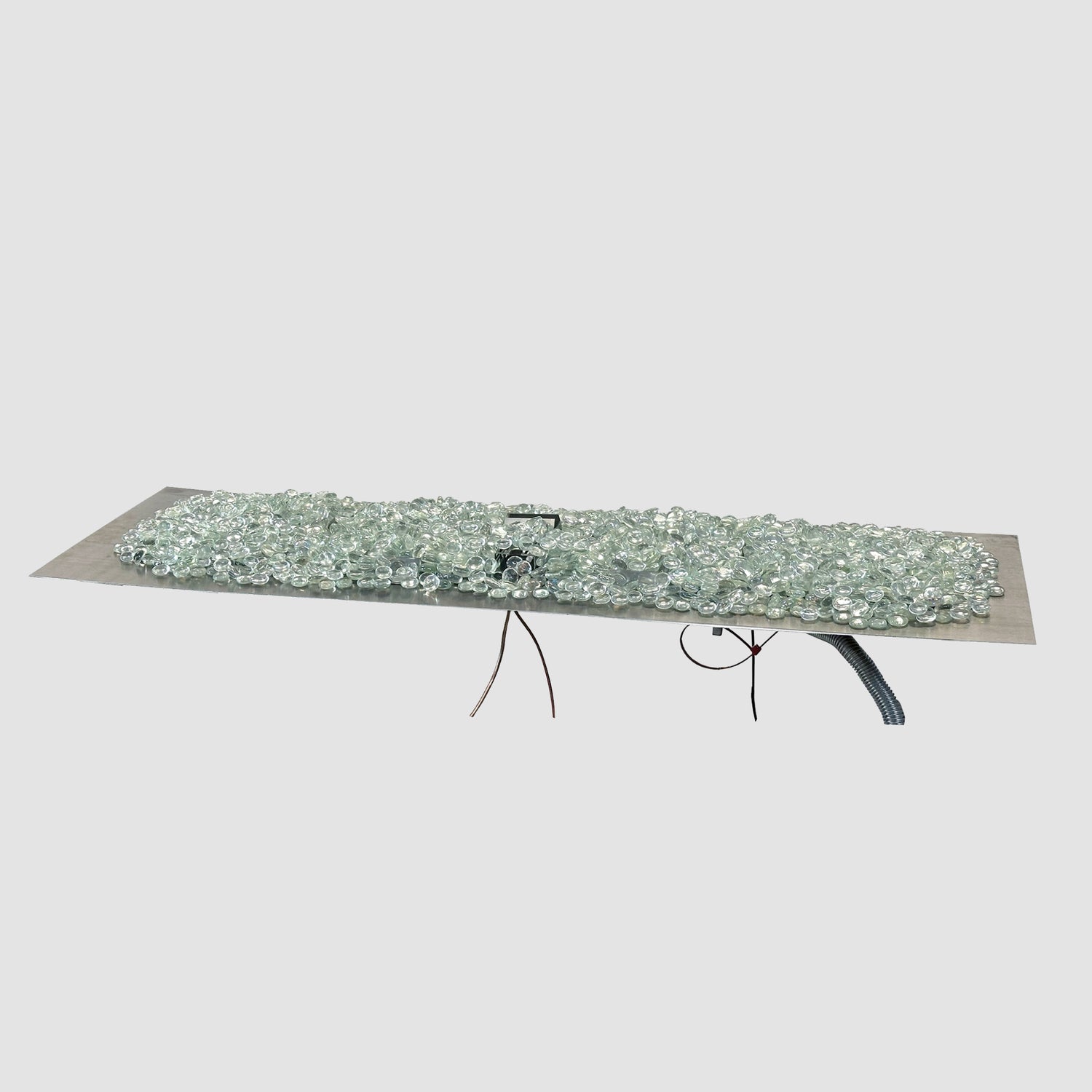

Upgrade your custom fire feature with The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 24" Stainless Steel Natural Gas Burner Insert & Plate Kit. Made from #304 commercial-grade stainless steel, this burner is engineered for long-term performance in outdoor environments. With a 55,000 BTU output, it provides strong, consistent flames perfect for both residential patios and commercial hospitality settings.
This burner kit includes a built-in safety ignition system that automatically shuts off the gas supply if the flame goes out, offering added peace of mind. The Positive Connect design reduces installation time with factory-assembled gas connections, ensuring a secure and efficient setup. Certified to meet UL and ULC standards, this burner insert complies with ANSI Z21.97-2017/CSA 2.41-2017 for outdoor gas appliances.
The included plate kit makes this a ready-to-install solution for fire pit enclosures. It accommodates up to 15 lbs of fire media, allowing you to personalize the aesthetic with your choice of decorative elements. Whether you're building from the ground up or retrofitting an existing space, this high-performance burner offers the dependability and versatility expected from The Outdoor GreatRoom Company.
What's Included:
- Round Gas Burner
- Assembly Kit
Features:
- Commercial-grade #304 stainless steel
- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Kits above 12" x 64” include two valves and two control panels
- Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

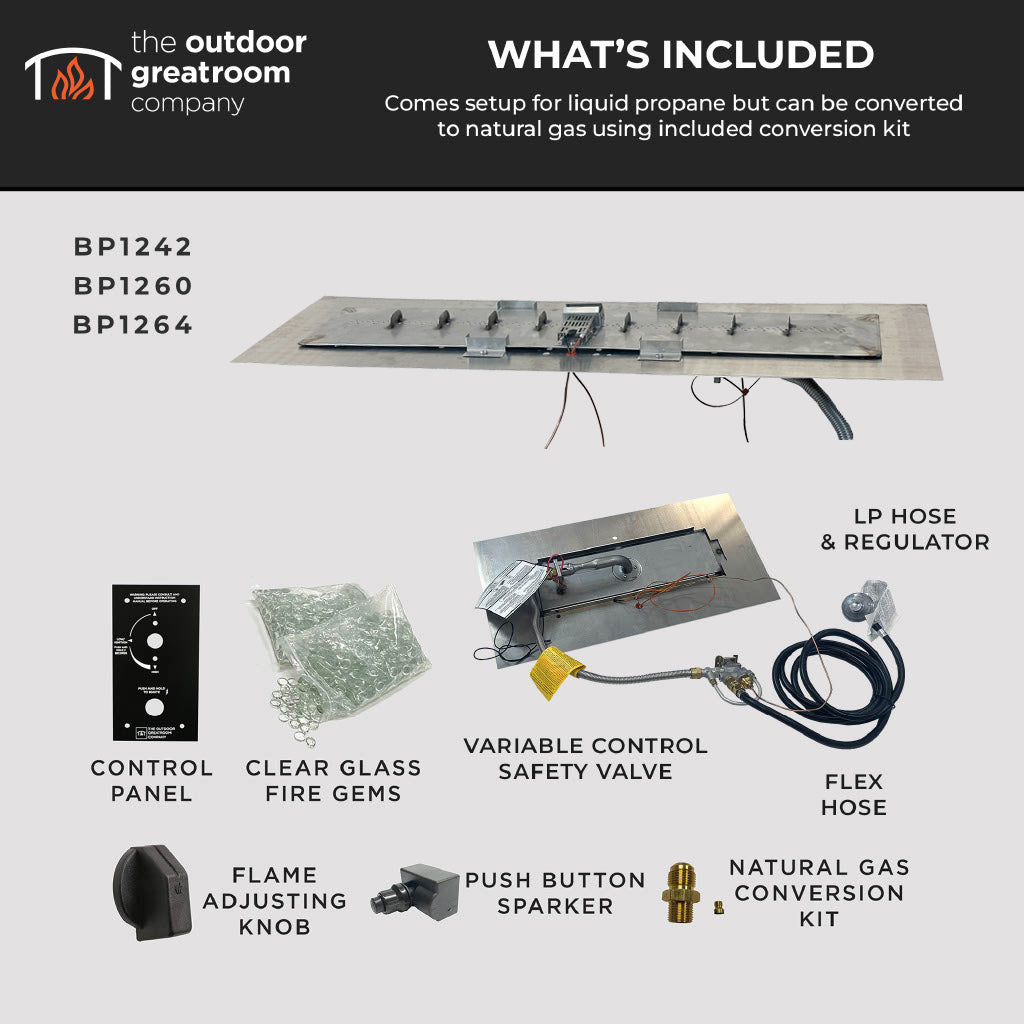

Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height
- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

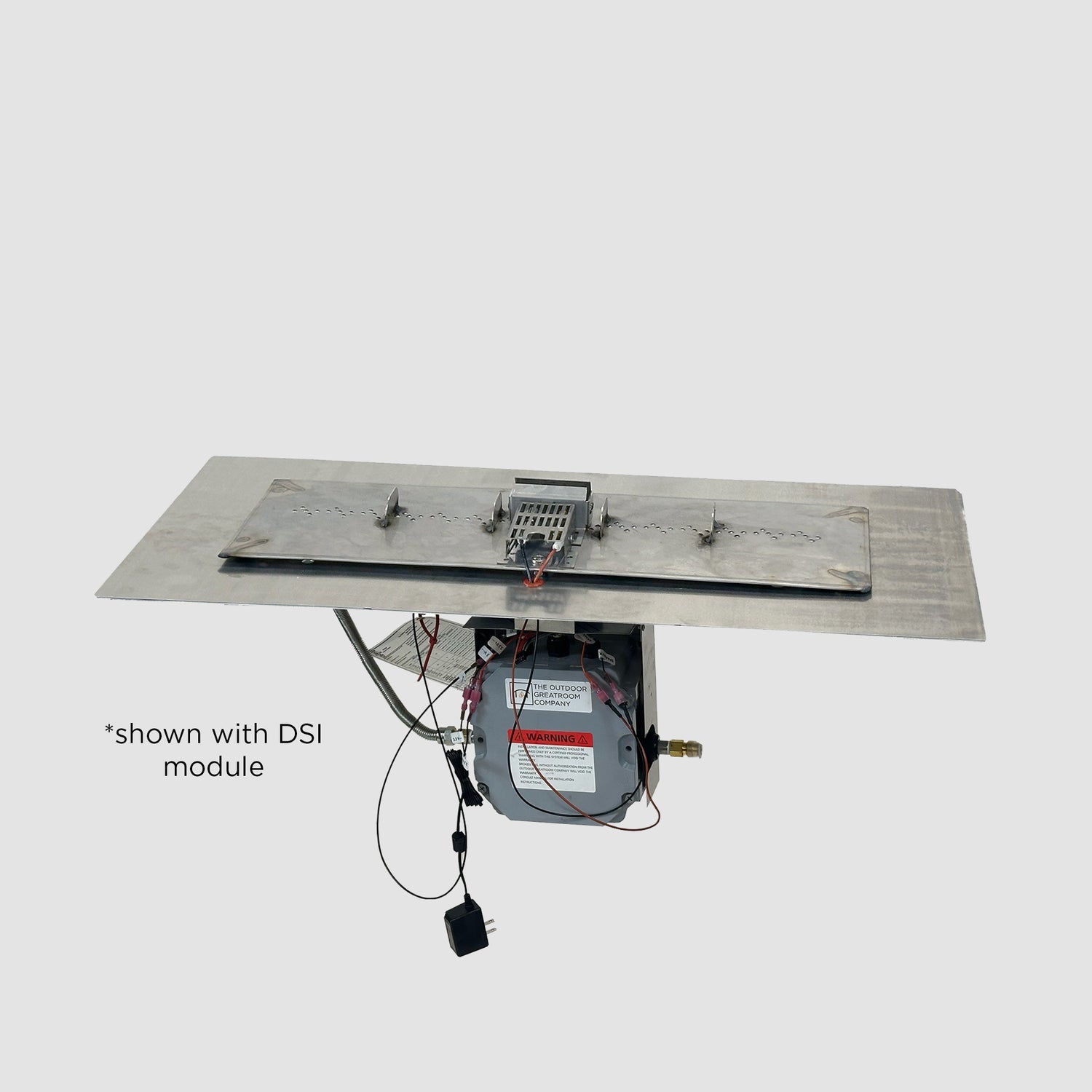

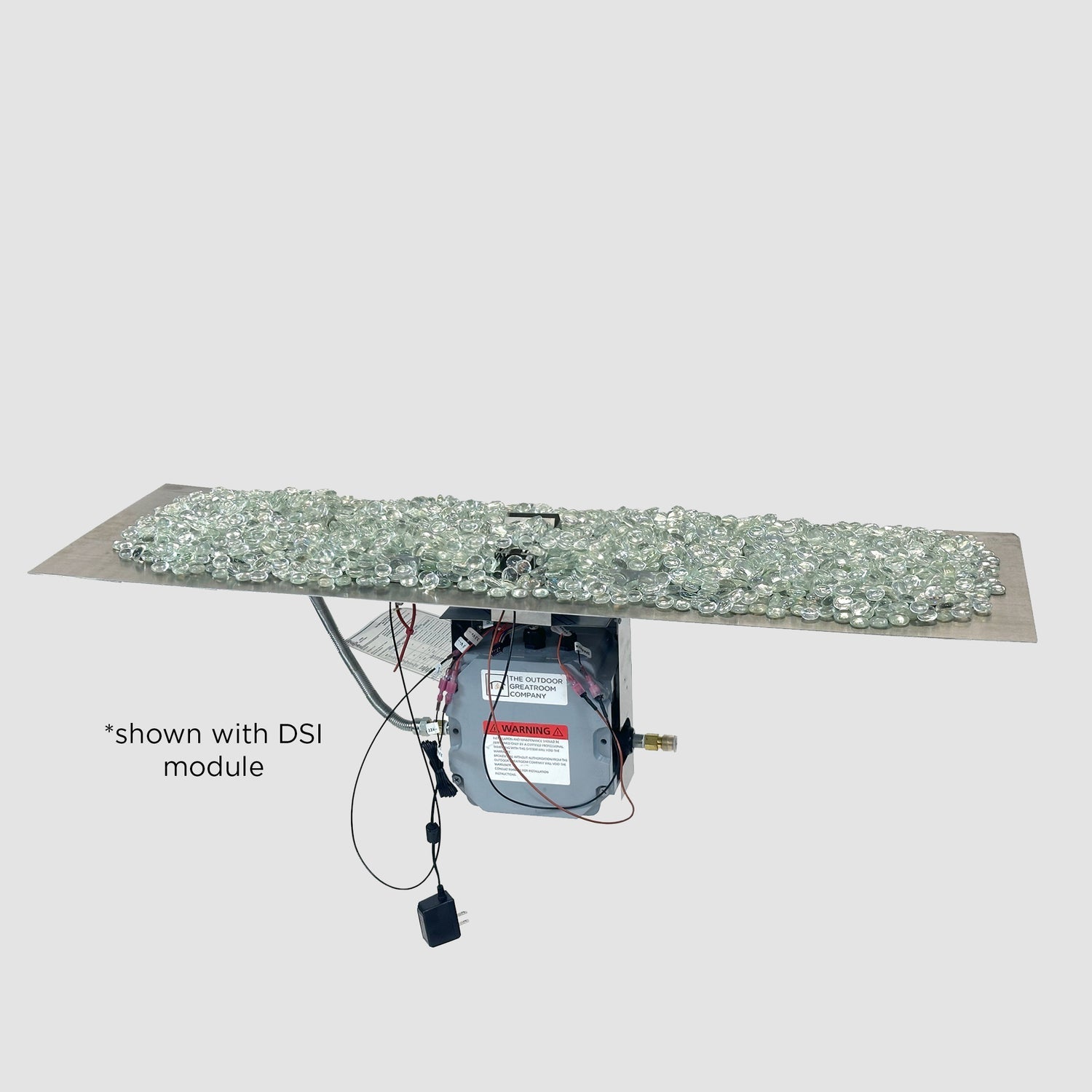

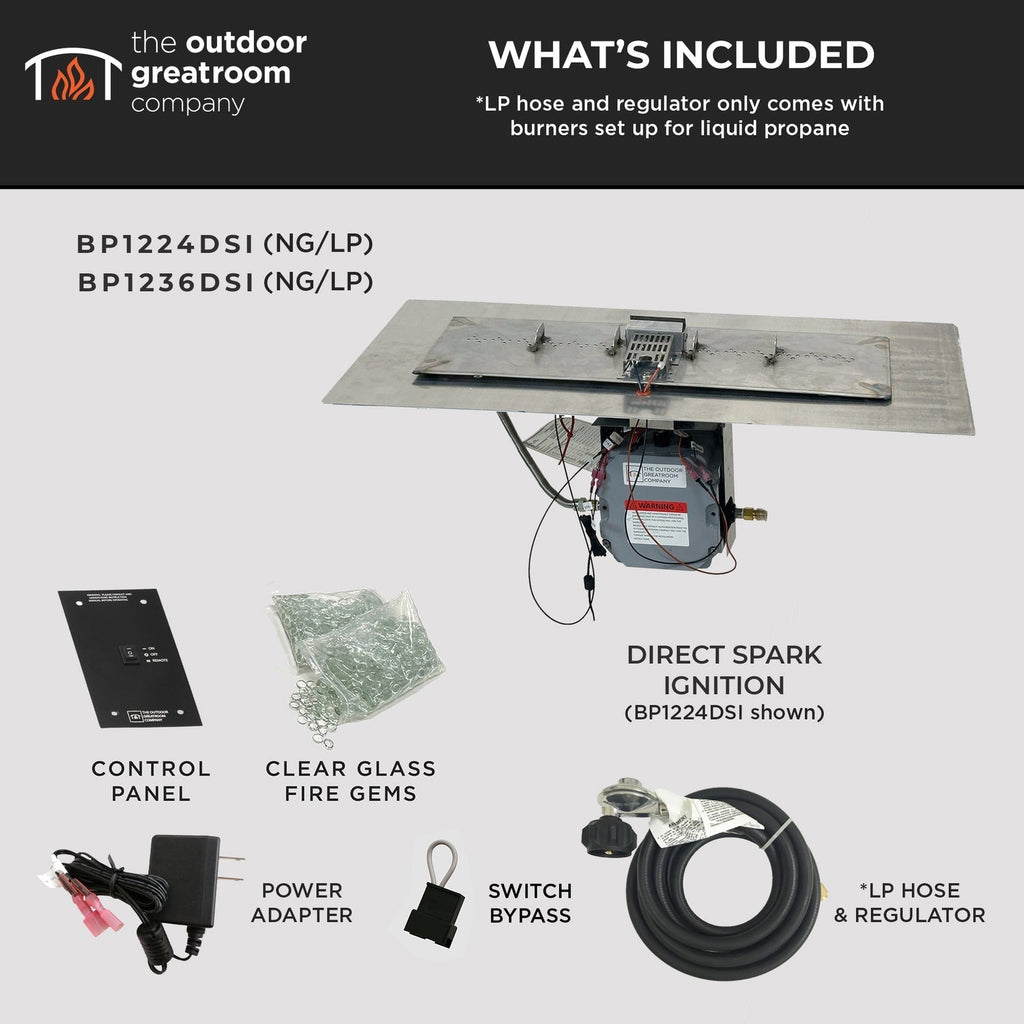

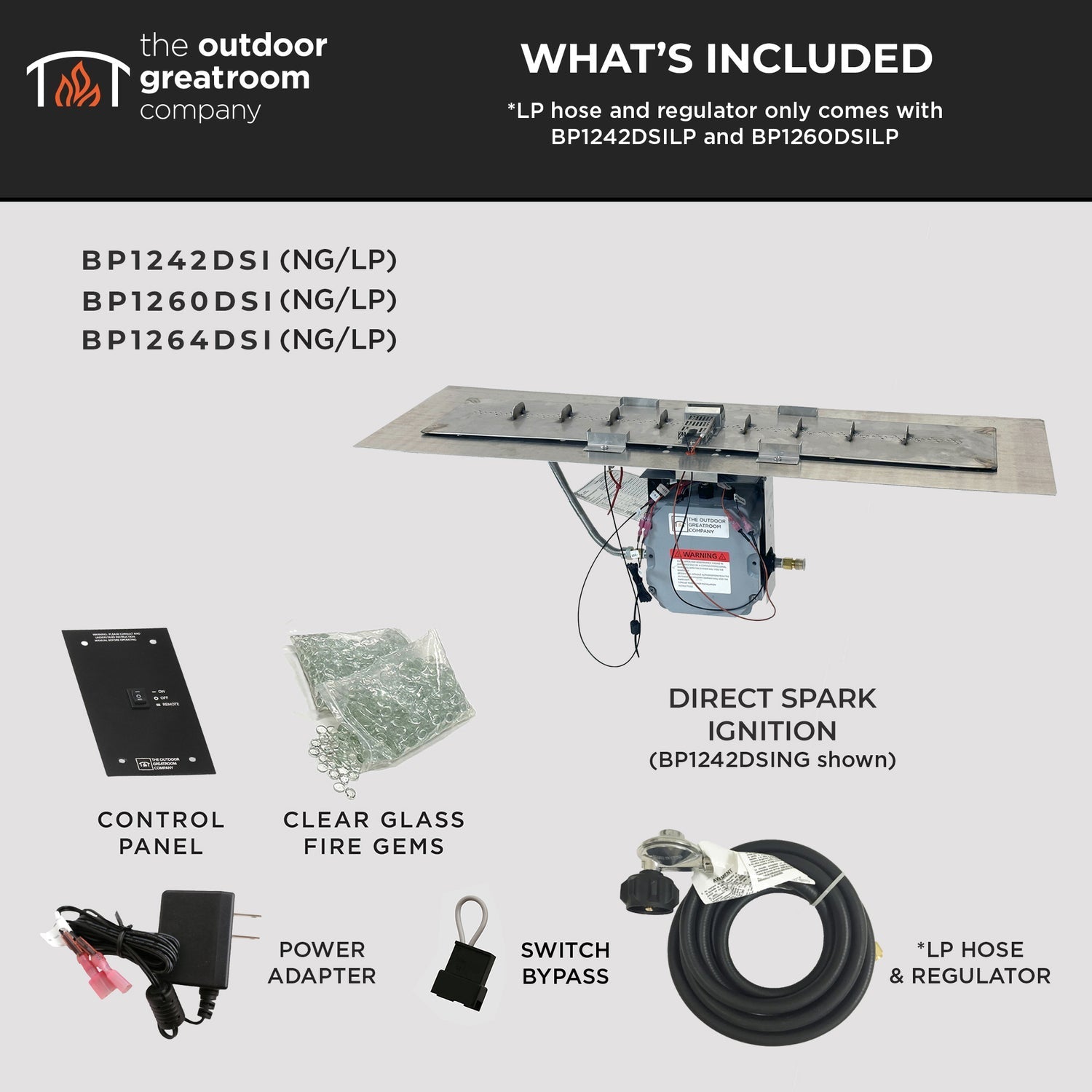

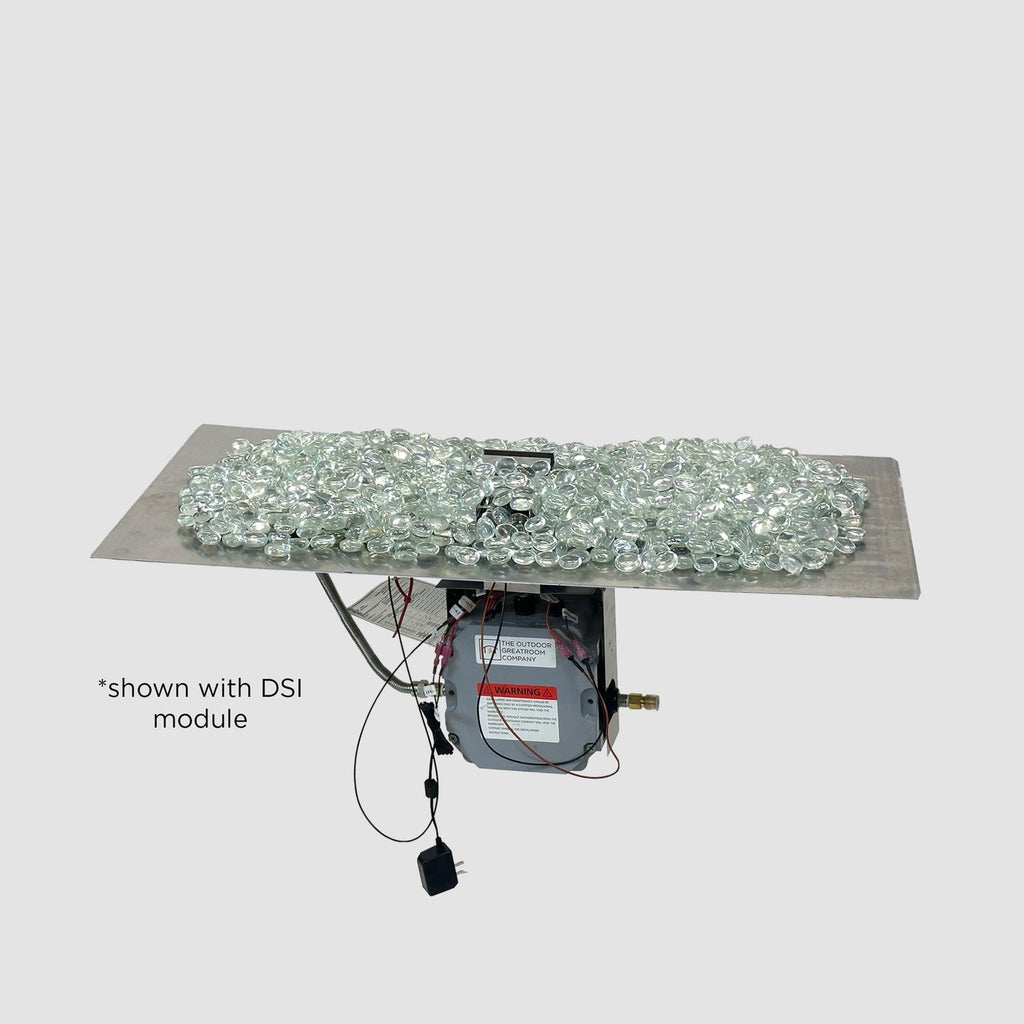

Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible
- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 24 lbs |
| BTUs (LP/NG) | 55K* |
| Fire Media | 15 lbs |
Warranty:
Documents & Files:
- Specifications Sheet
- Commercial Burner Supplement Manual
- Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
