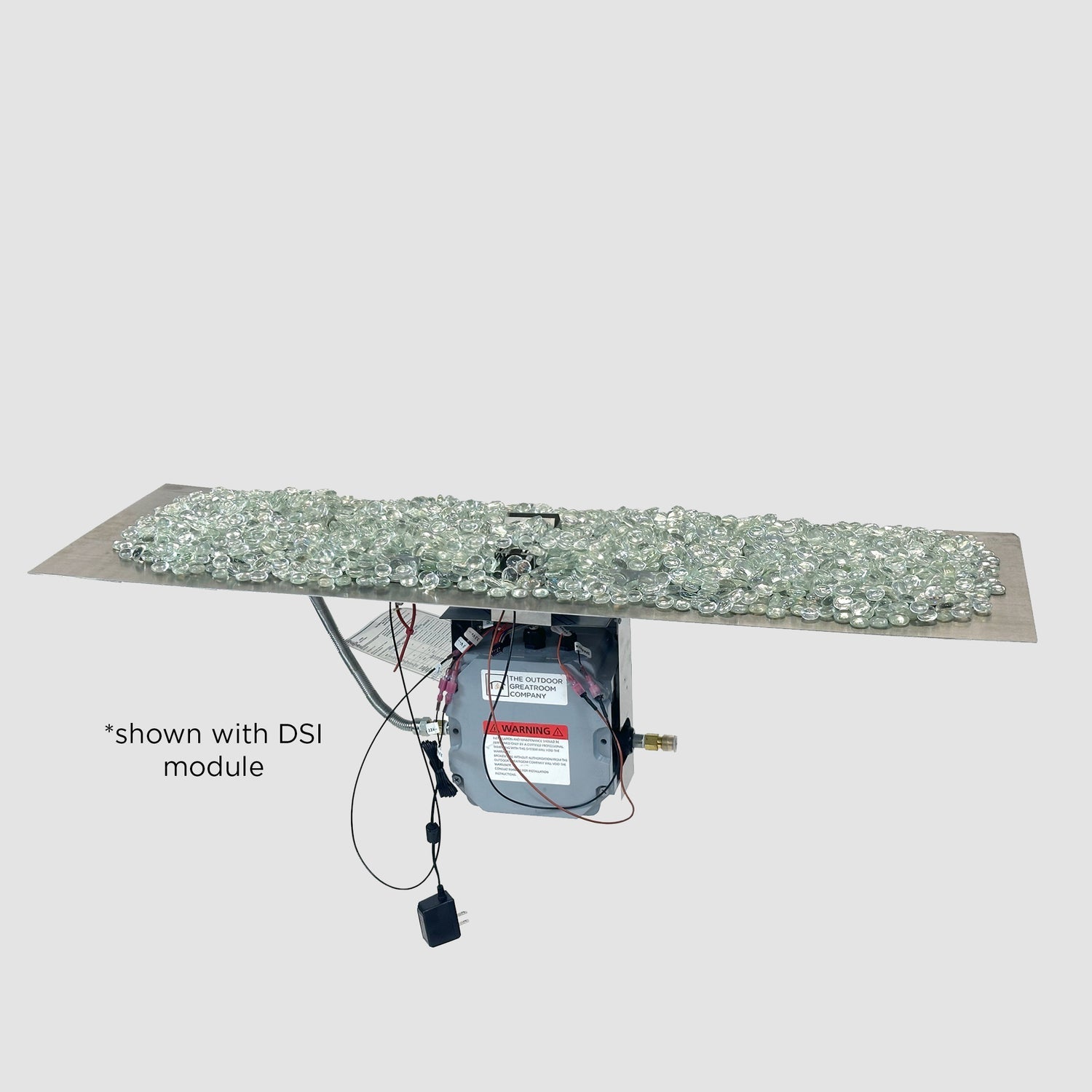

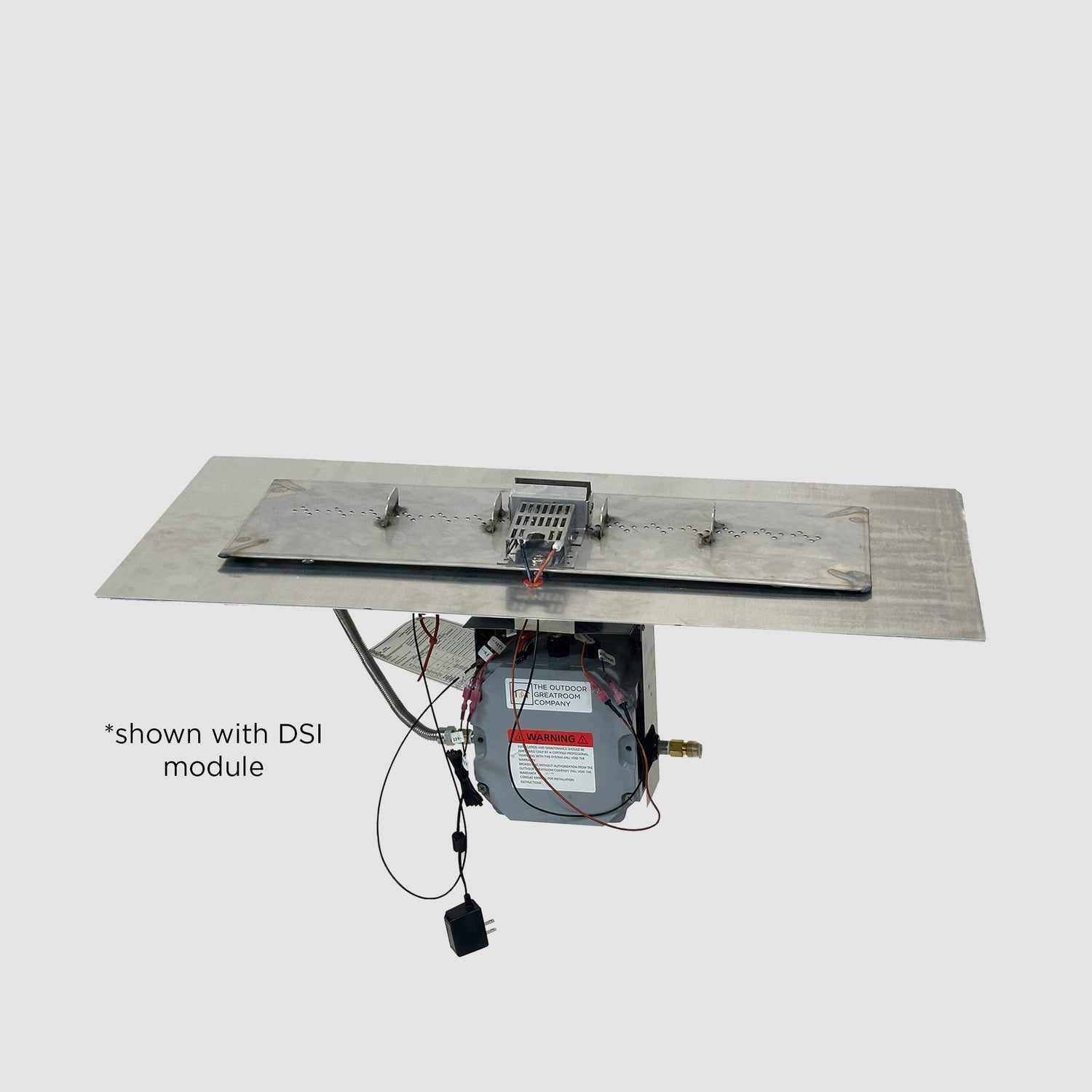

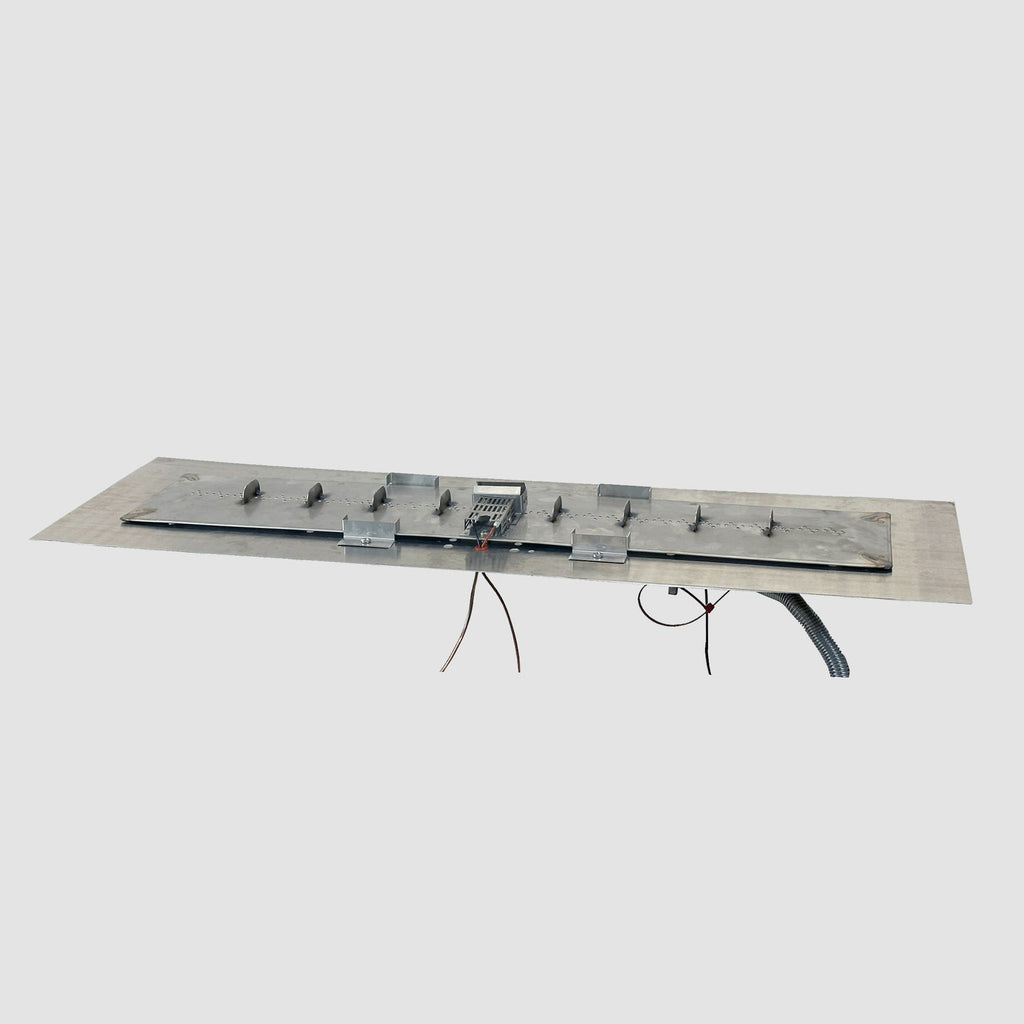

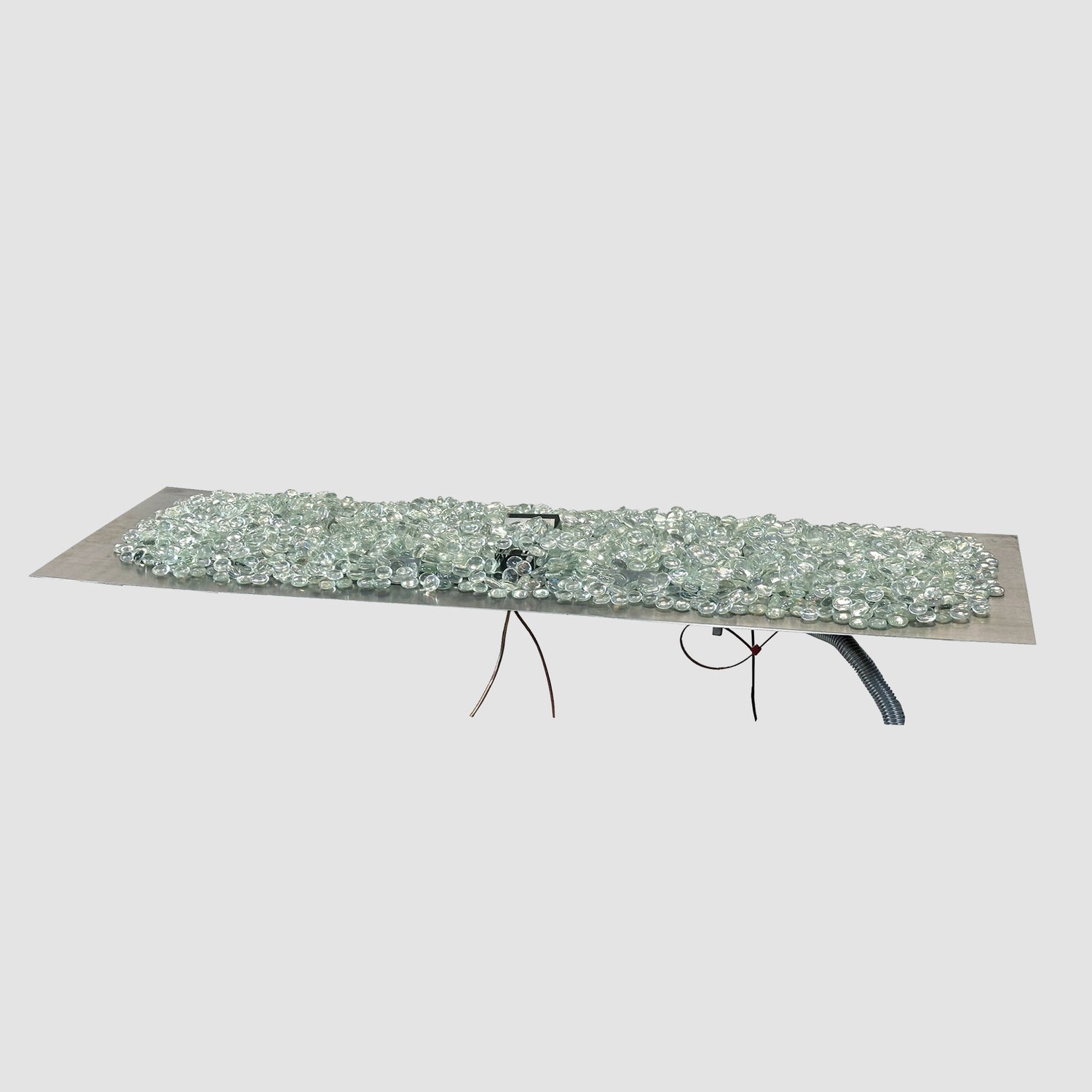

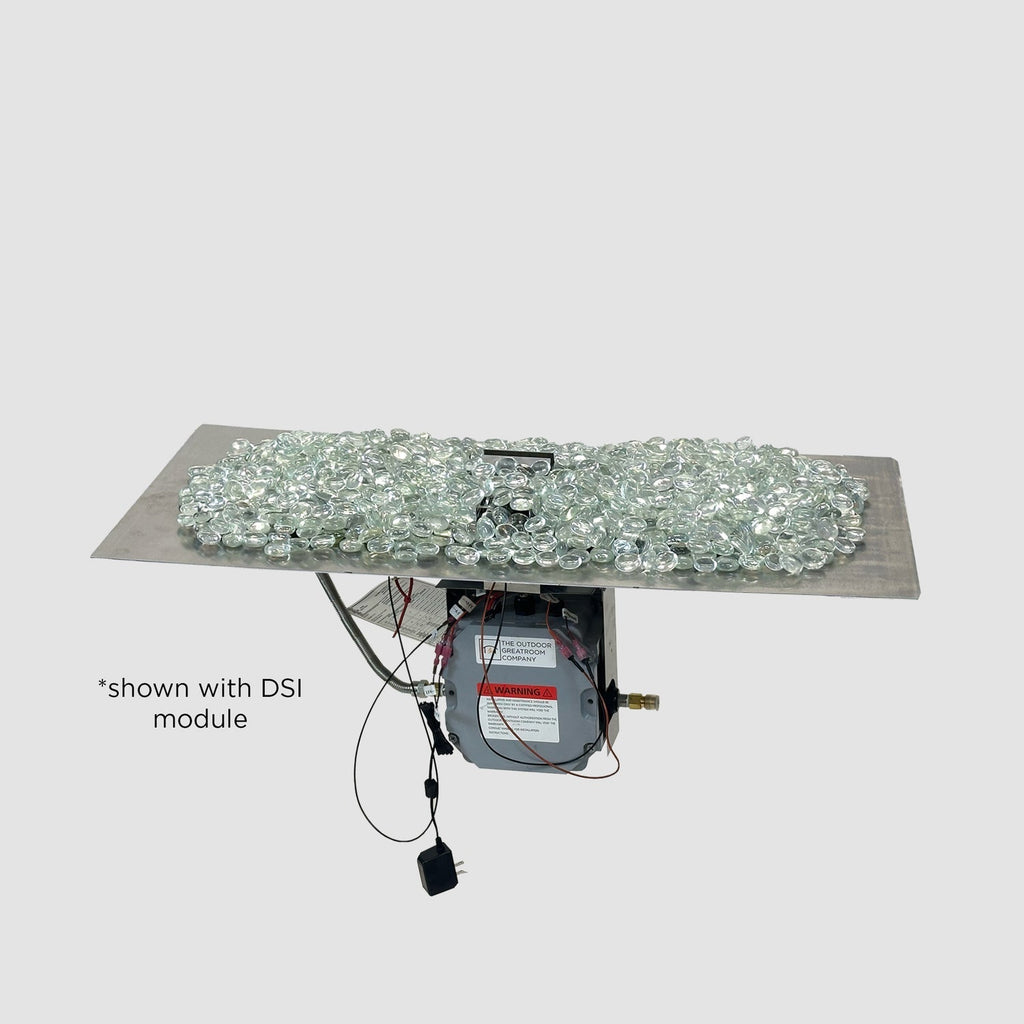

The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 42" Stainless Steel Linear Gas Burner Plate with Direct Spark Ignition (NG)

The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 42" Linear Gas Burner Plate is a premium-grade solution designed for natural gas fire feature installations. Constructed with durable #304 stainless steel, this burner offers long-lasting resistance to corrosion and heat, making it an ideal component for custom outdoor fire pits and tables.

Equipped with a direct spark ignition system, this burner ensures safe and reliable startup with every use. In the event the flame is extinguished unexpectedly, the integrated safety shutoff automatically stops the gas flow to prevent hazards. “Positive Connect” technology reduces installation time and enhances reliability by limiting the number of field-made gas connections.

Producing up to 80,000 BTUs, this UL and ULC listed burner plate provides powerful and consistent flames. Whether for residential patios or commercial settings, this Crystal Fire Plus burner is a dependable and efficient choice for your custom fire design.

What's Included:

• Round Gas Burner
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

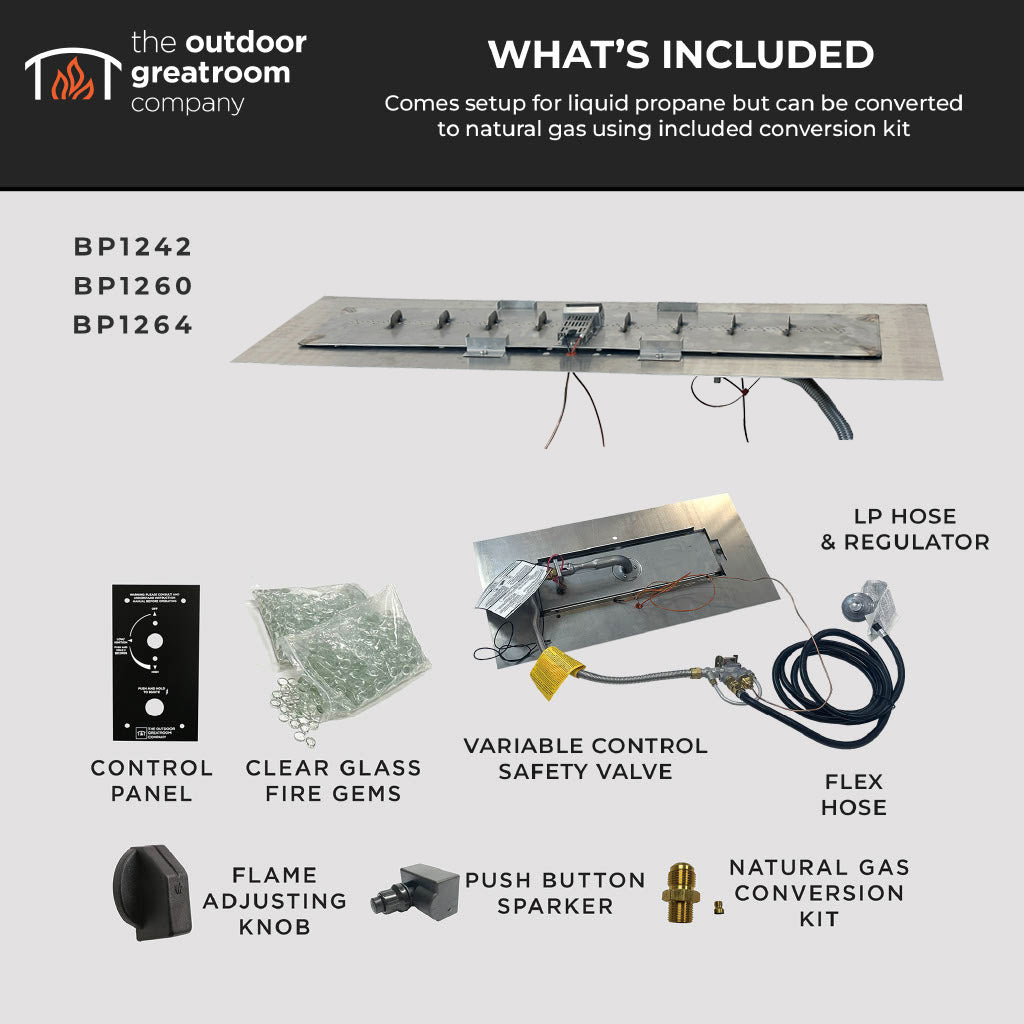

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
