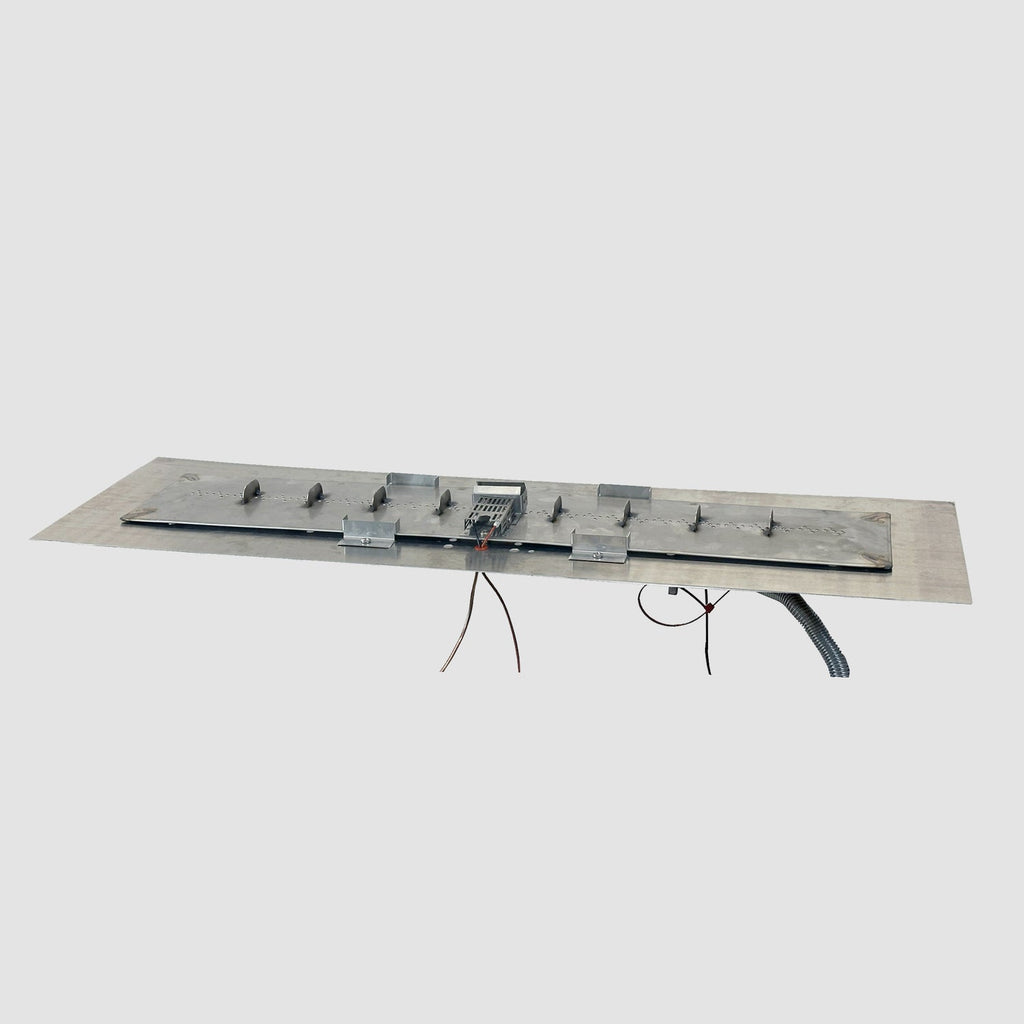

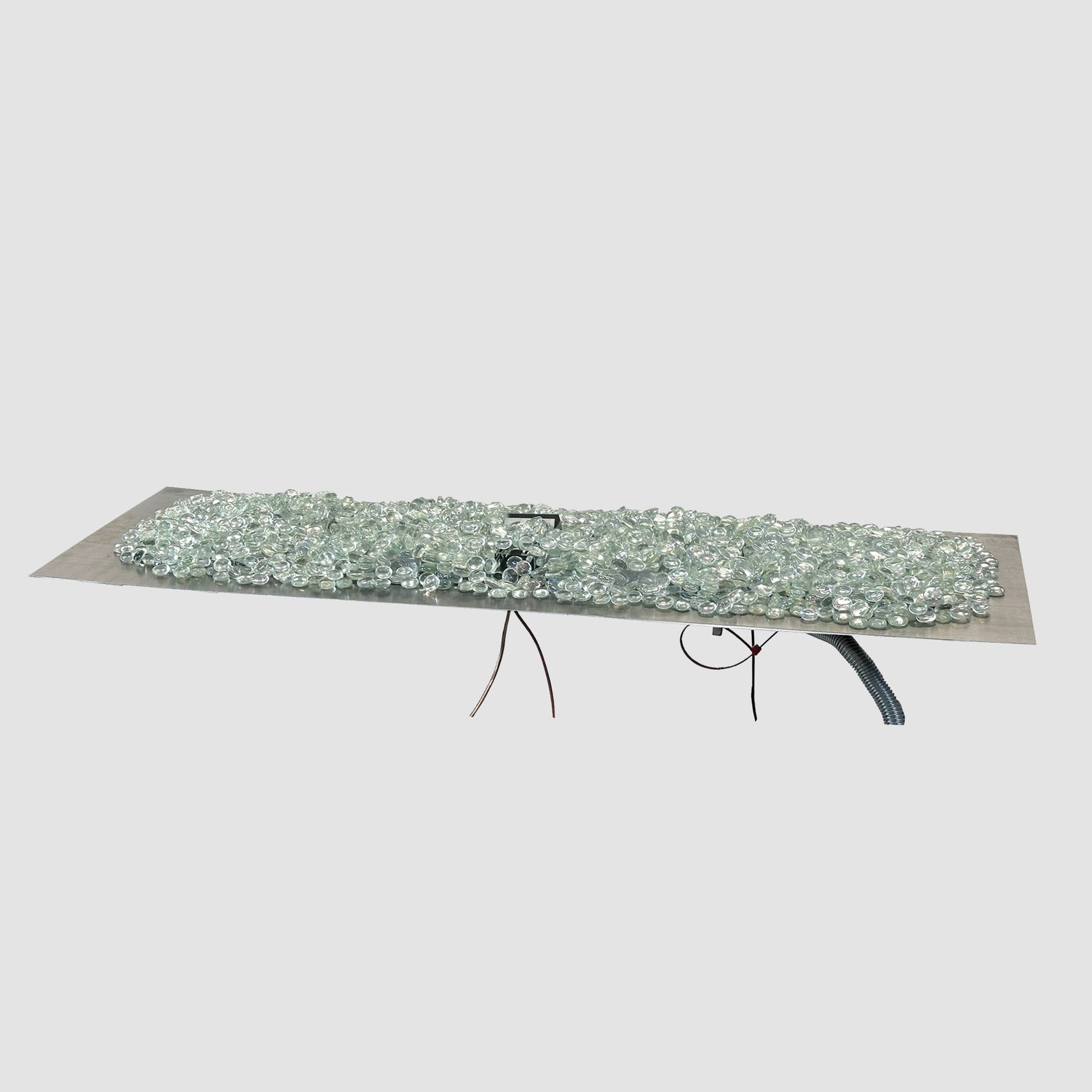

The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 42" Stainless Steel Linear Gas Burner Plate with Manual Ignition

The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 42" Linear Gas Burner Plate is designed for dependable performance and streamlined installation. Constructed with commercial-grade #304 stainless steel, it ensures long-lasting durability and sleek aesthetic appeal—ideal for modern outdoor living spaces and custom fire pit designs.

Equipped with a manual ignition system and built-in safety shutdown, this burner plate provides essential safety by cutting off the gas supply if the flame is extinguished. Its “Positive Connect” technology minimizes the number of on-site gas connections, allowing for faster, more secure installation as most components are pre-assembled in the factory.

Certified for safety and reliability, this UL and ULC listed burner plate meets ANSI Z21.97-2017/CSA 2.41-2017 standards. With an impressive 80,000 BTU output, it’s well-suited for both residential and commercial outdoor fire features, offering an efficient and consistent flame with minimal maintenance required.

What's Included:

• Round Gas Burner
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit

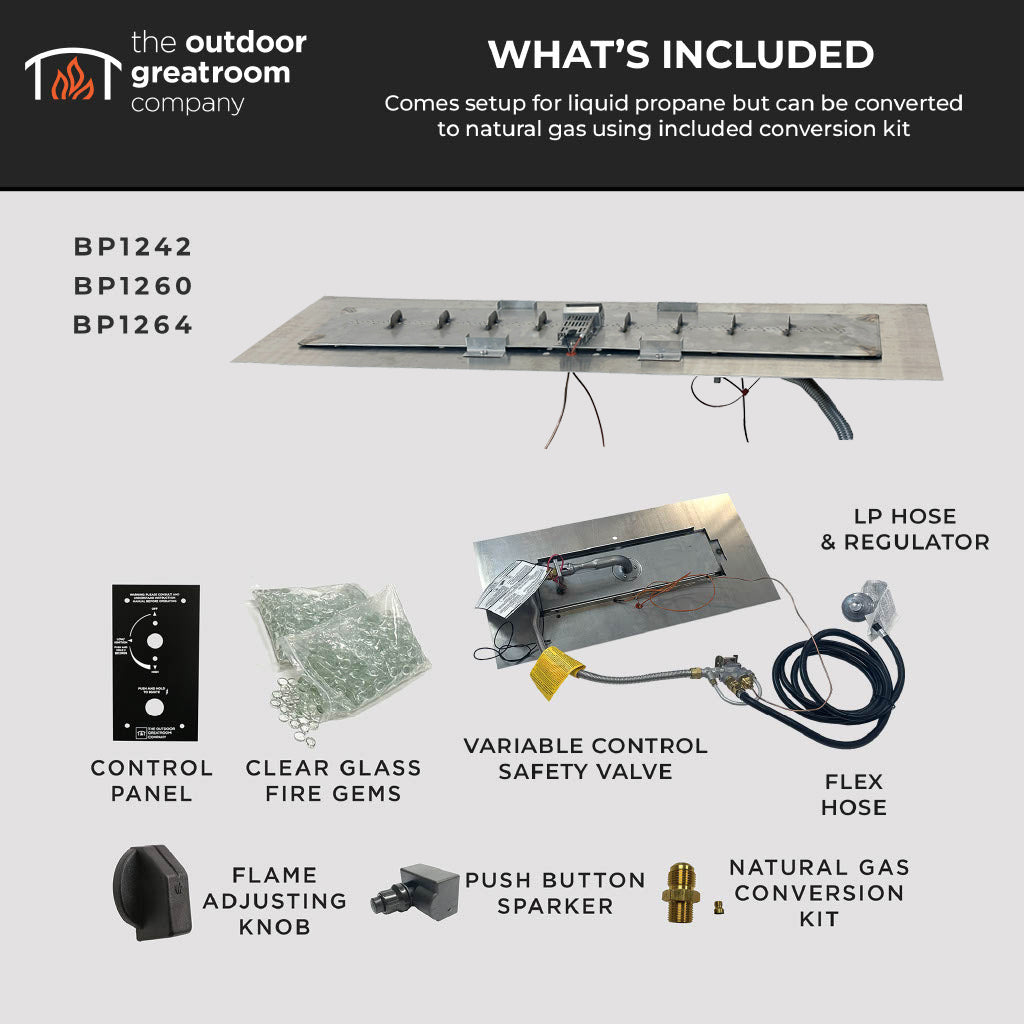

• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

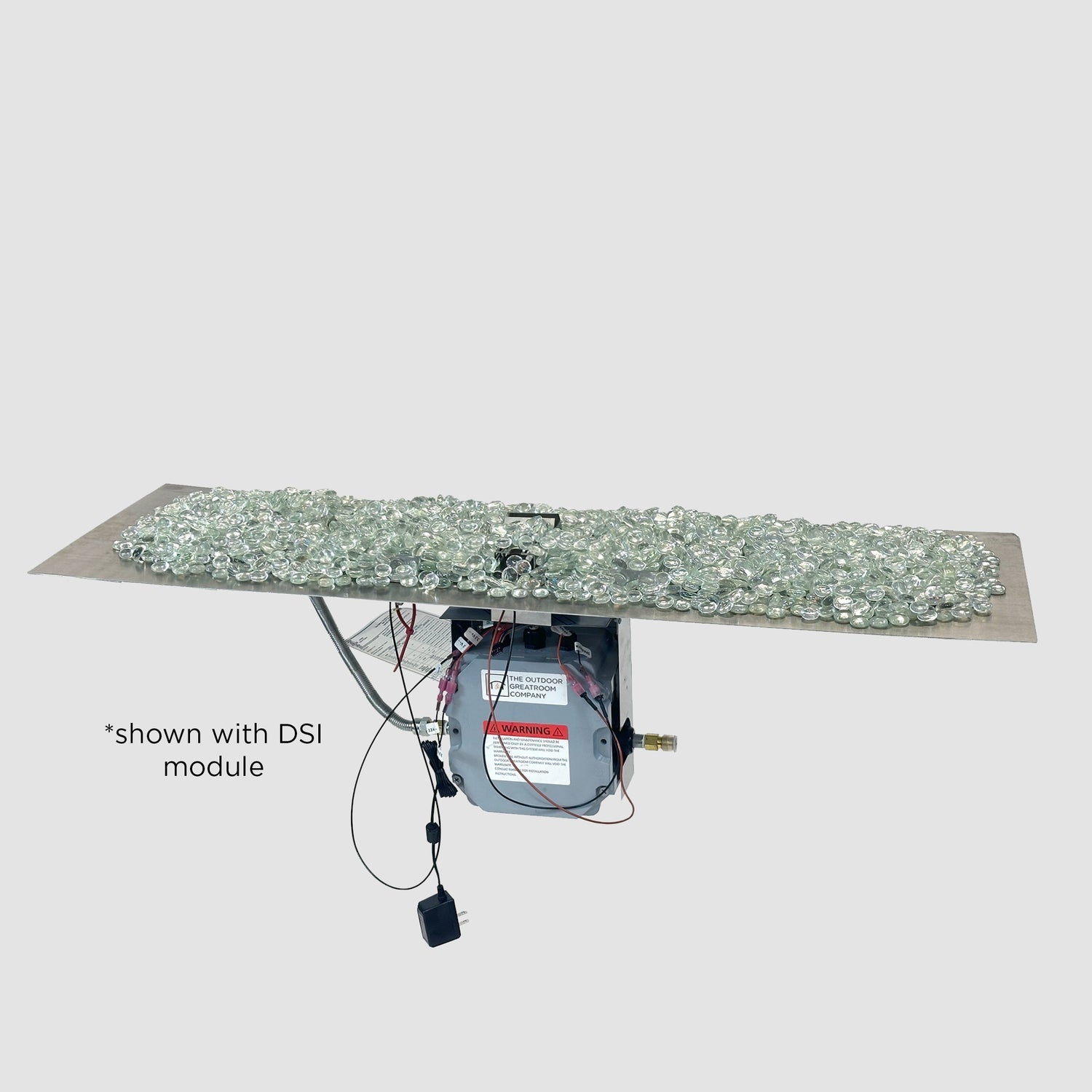

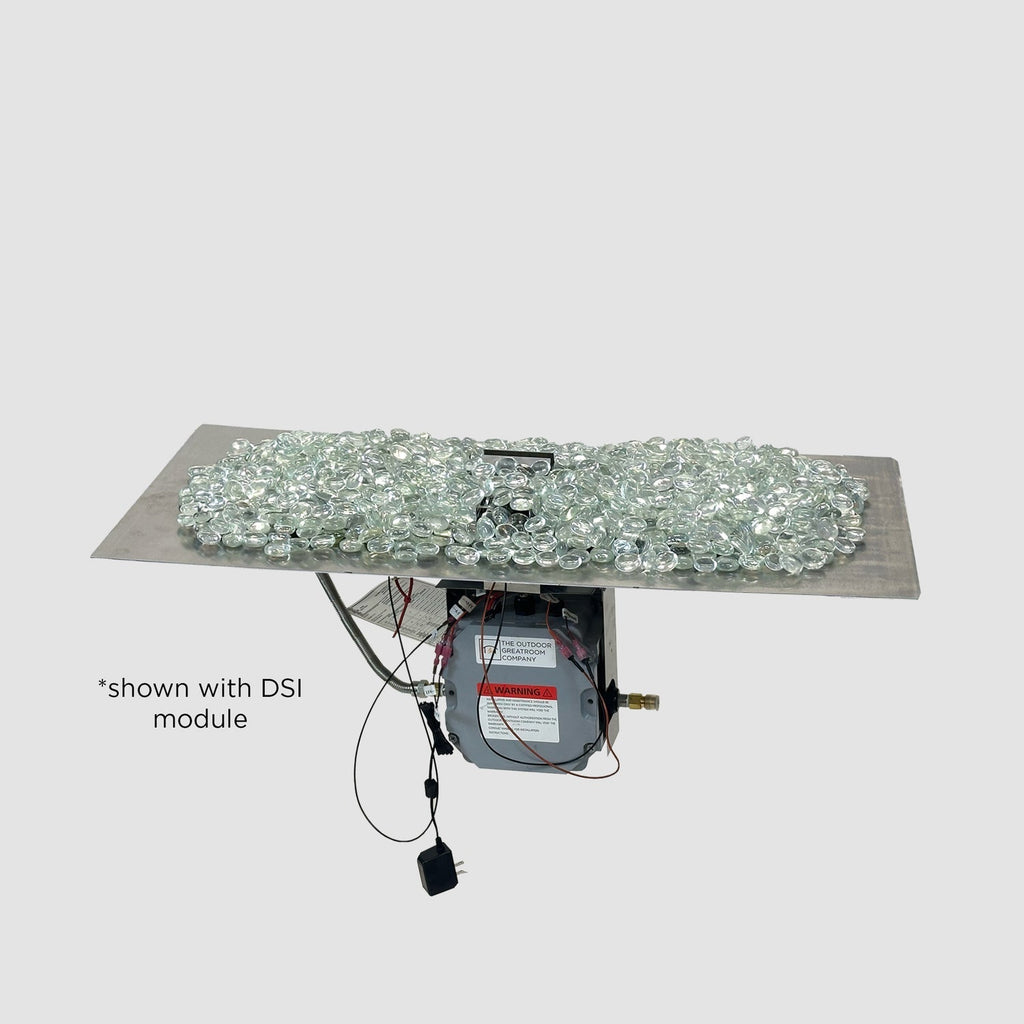

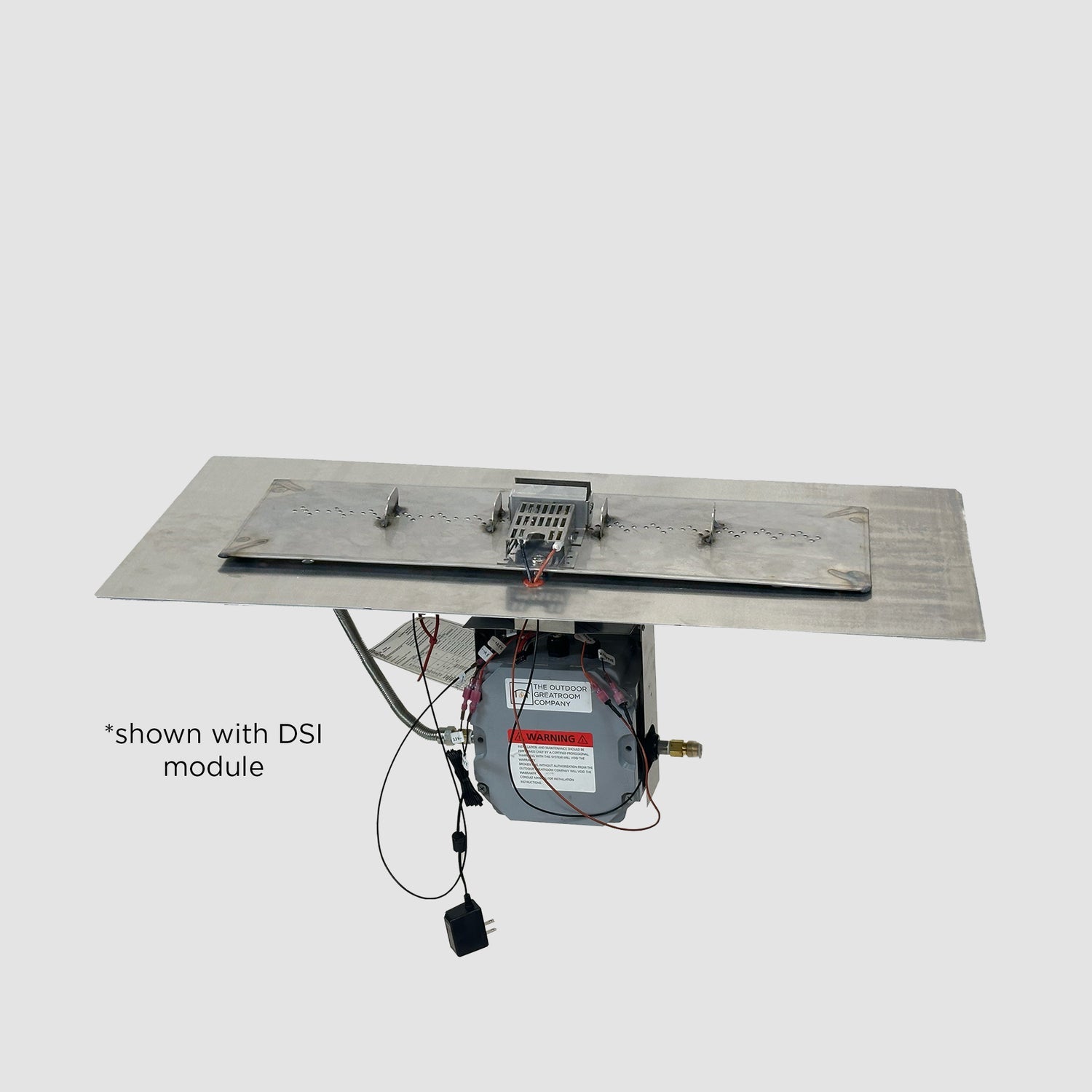

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible

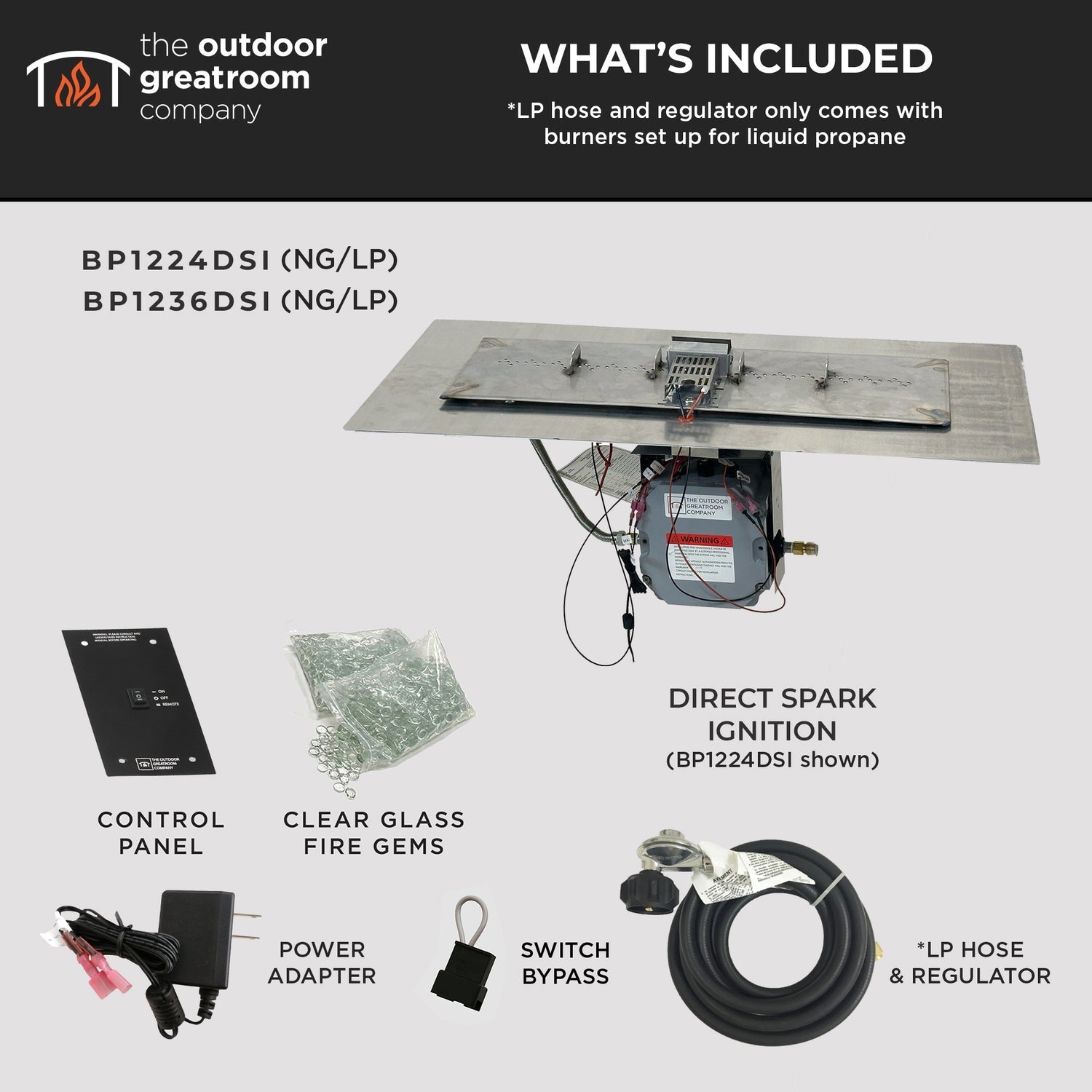

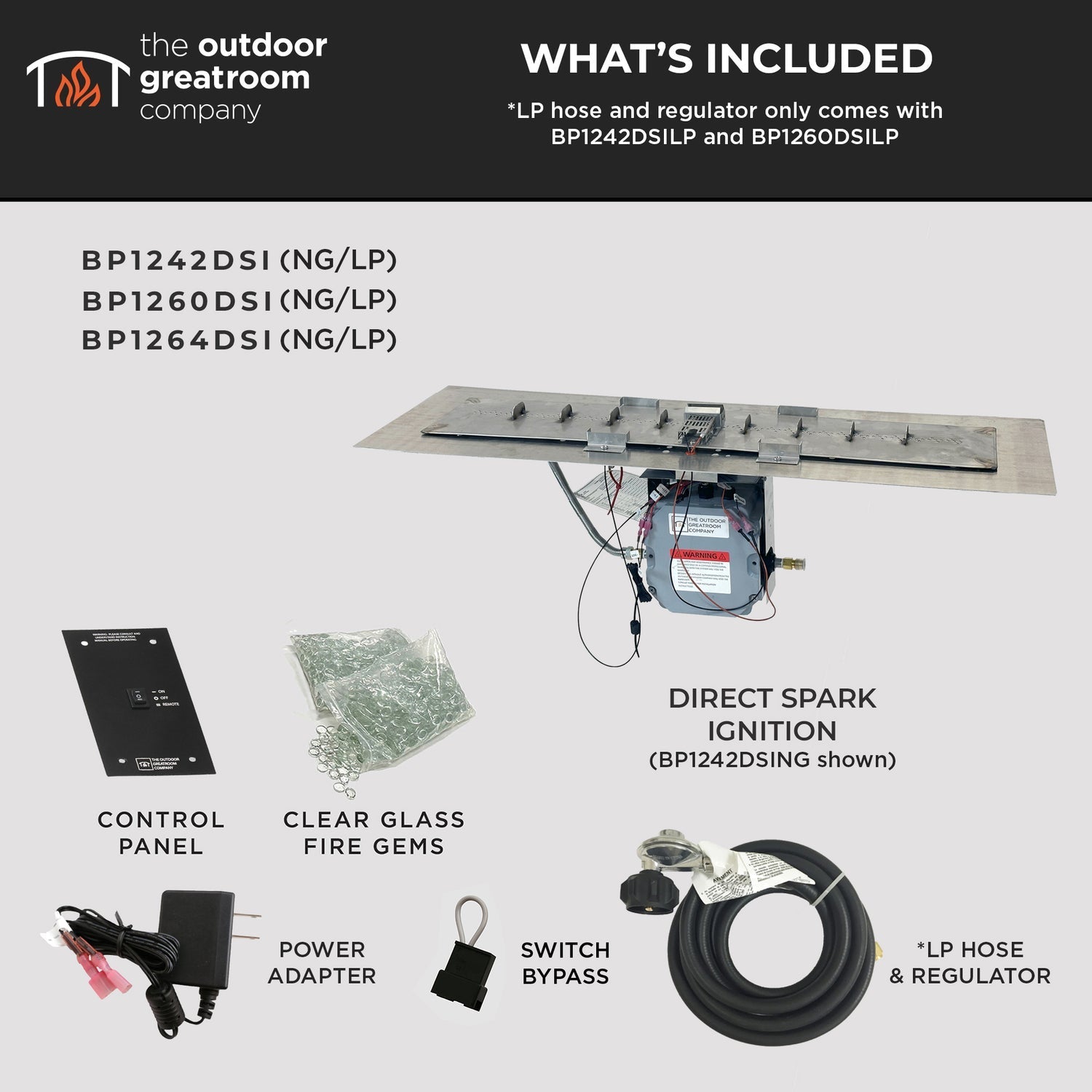

• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
