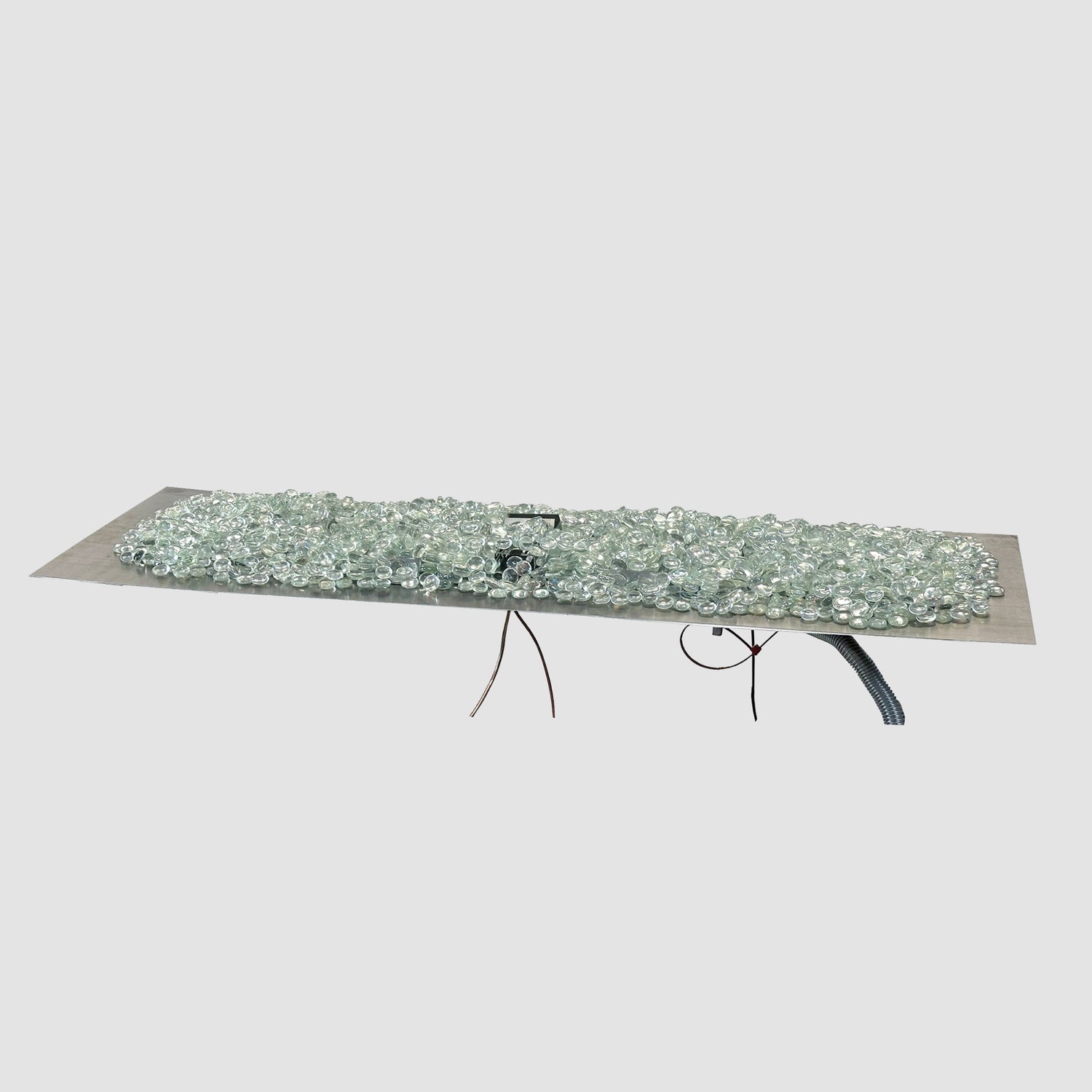

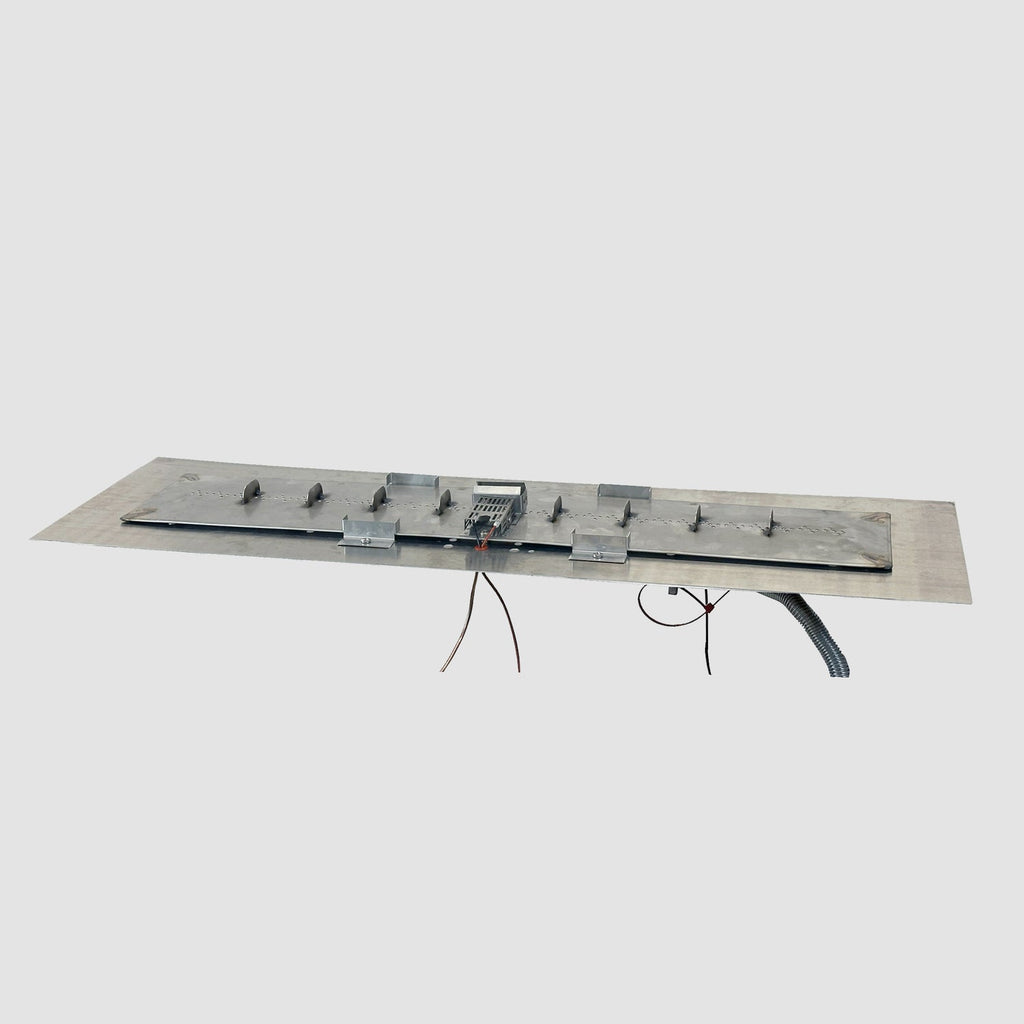

The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 60" Stainless Steel Linear Direct Spark LPG Gas Burner Plate

The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 60" Linear Direct Spark LPG Gas Burner Plate offers reliable performance with its commercial-grade #304 stainless steel construction. Designed for easy installation, the “Positive Connect” system minimizes gas connections by completing most in the factory, ensuring quick setup for your outdoor fire project.

Equipped with a direct spark ignition and safety shutdown, this burner plate automatically cuts off gas flow if the flame extinguishes, providing peace of mind and safe operation. With 80,000 BTUs of heat output, it delivers vibrant flames and efficient heating, perfect for enhancing any outdoor space.

UL and ULC certified to strict safety standards, this burner plate requires professional installation by a certified gas technician. Depending on your fire feature needs, the included fire media may vary, so contact OGC for guidance on the right amount for your application.

What's Included:

• Round Gas Burner
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

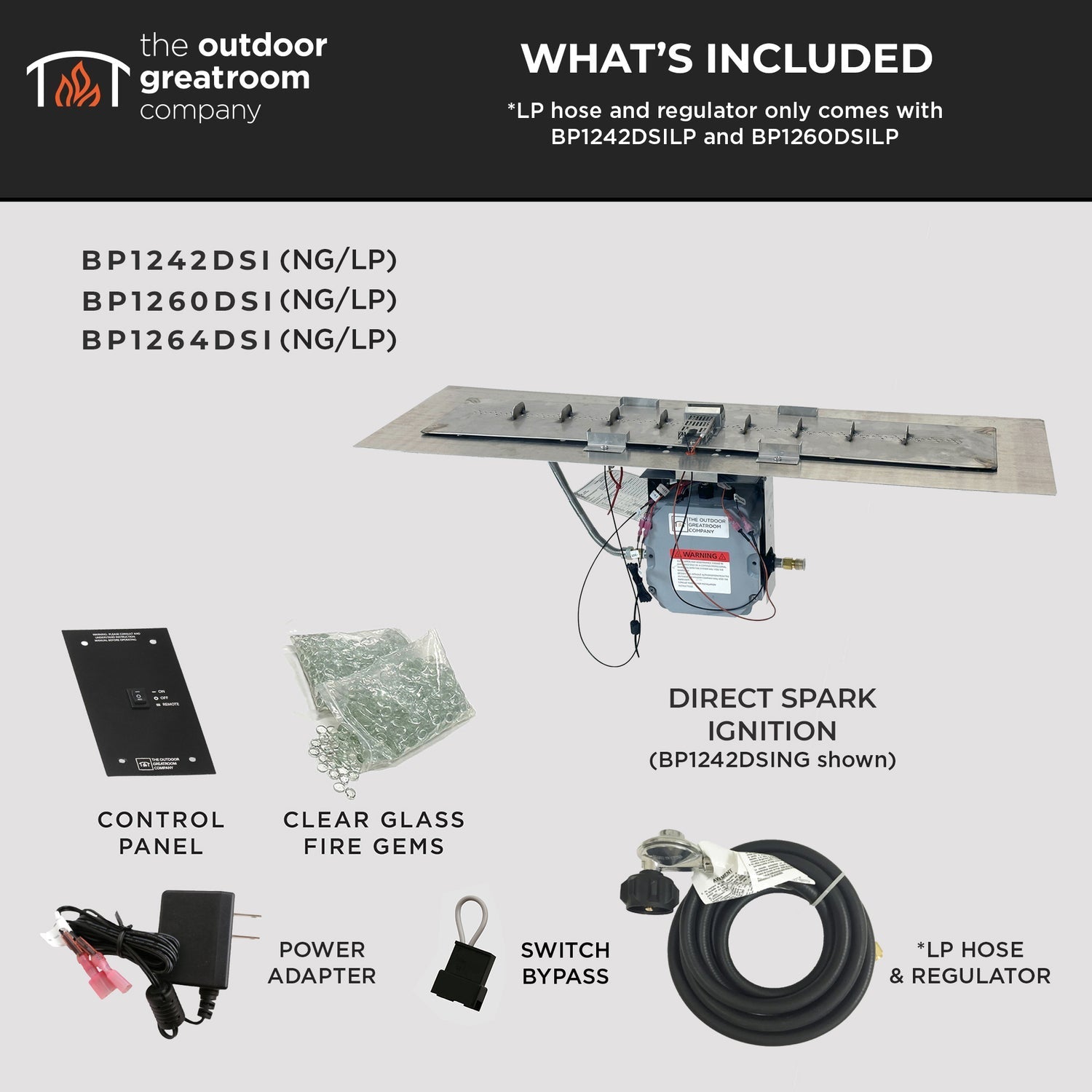

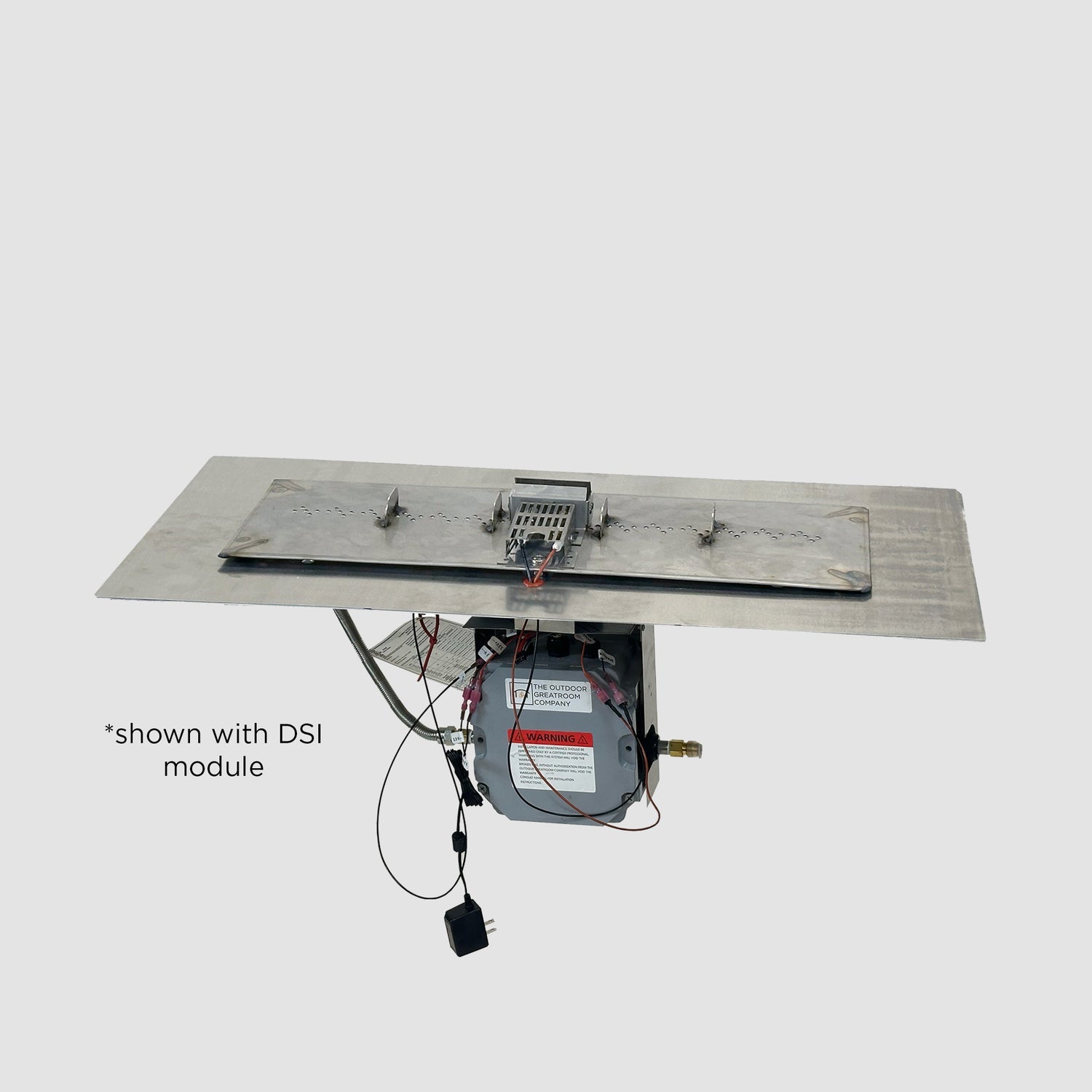

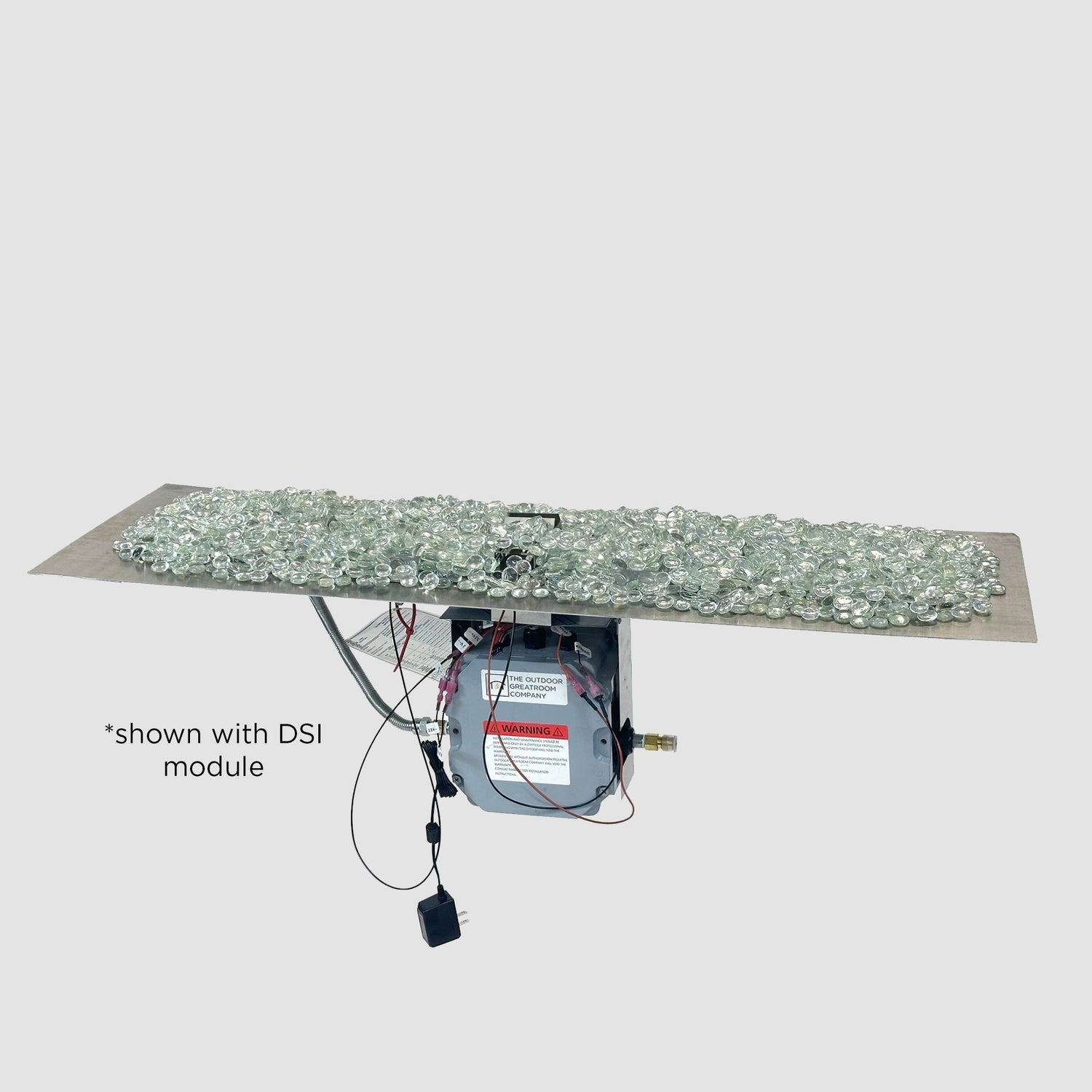

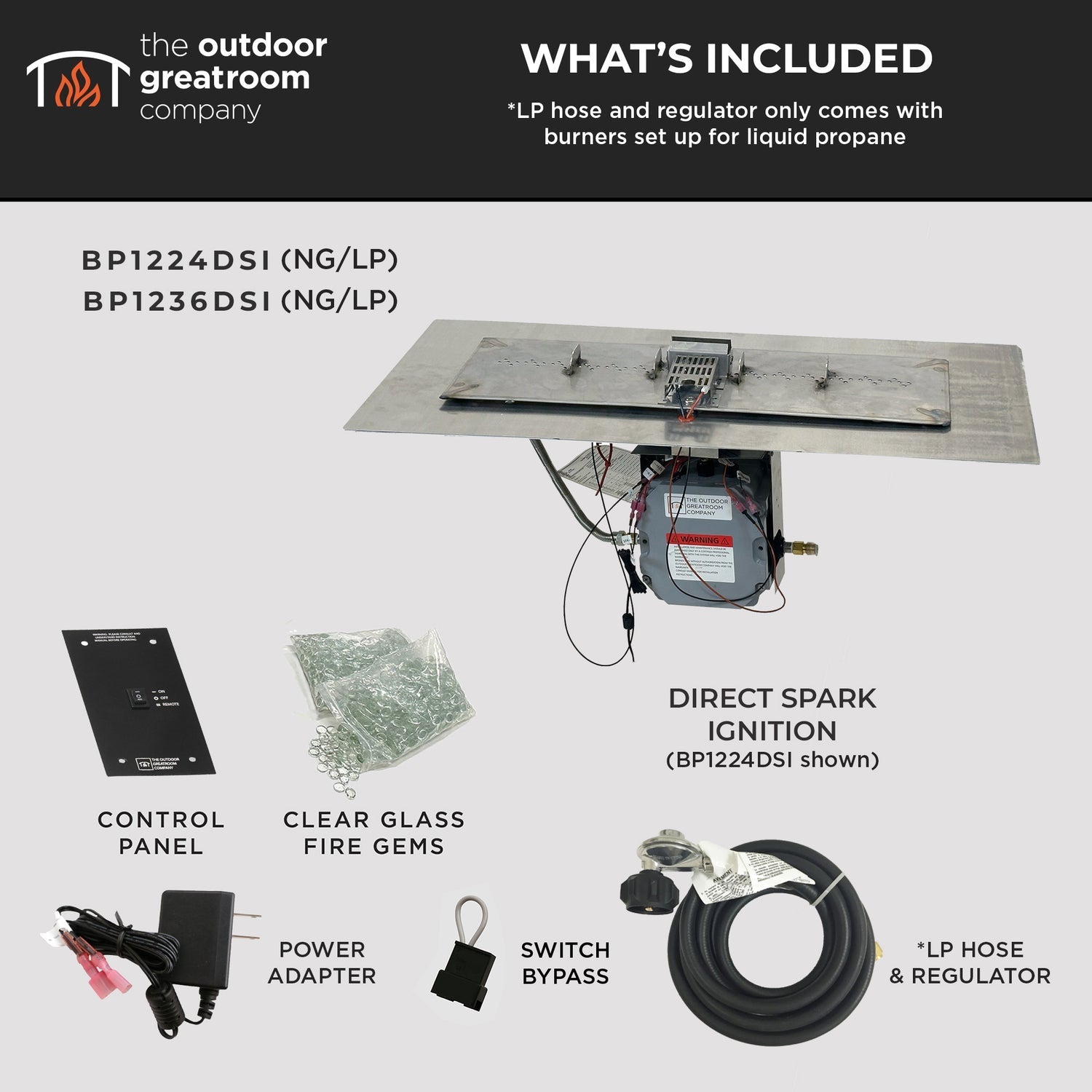

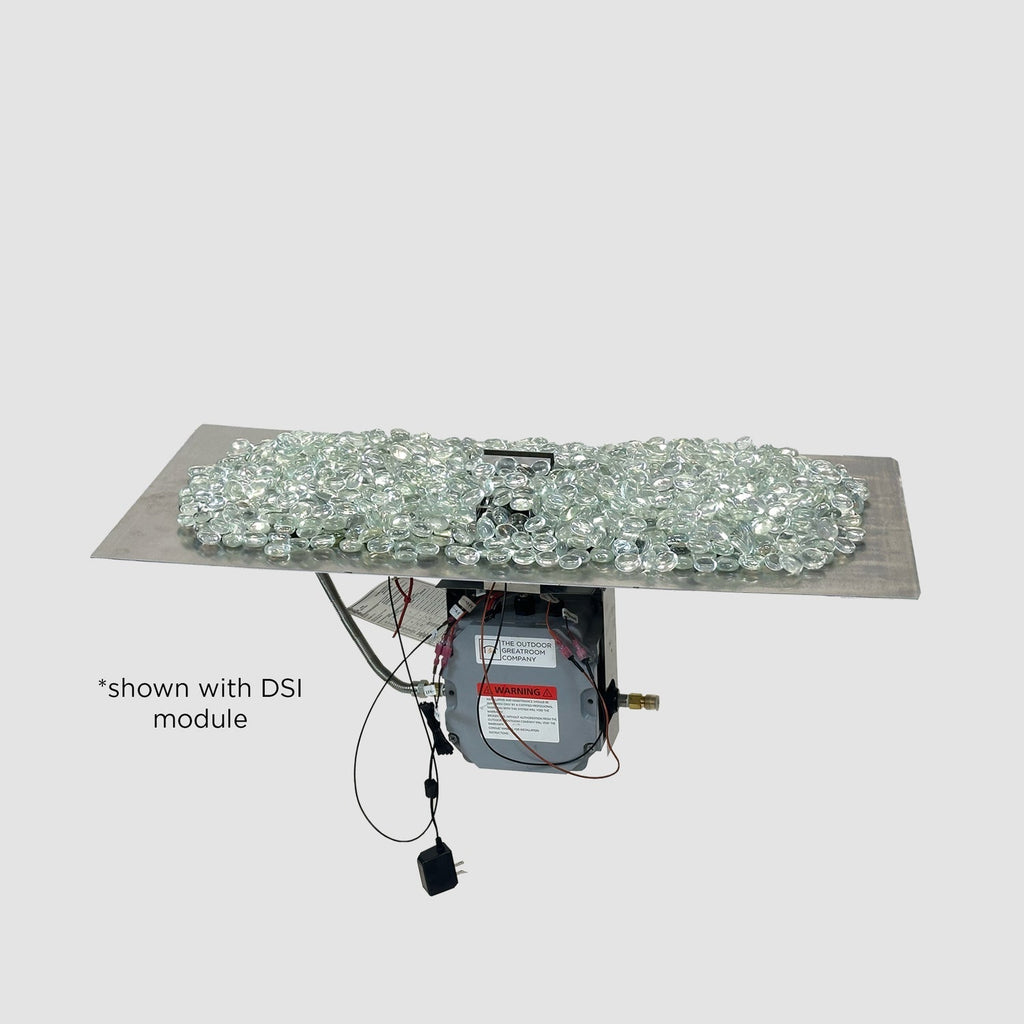

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
