The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 64" Linear Direct Spark LPG Gas Burner Plate – 100,000 BTU, Stainless Steel

Upgrade your outdoor fire feature with The Outdoor GreatRoom Company Crystal Fire Plus 13.5" x 64" Linear Direct Spark LPG Gas Burner Plate. Built from heavy-duty #304 stainless steel, this commercial-grade burner delivers up to 100,000 BTUs of radiant heat and vibrant flame, perfect for elevating your patio ambiance or custom fire pit project.

Engineered for both safety and efficiency, the integrated direct spark ignition system includes an automatic shutoff feature, cutting gas flow if the flame is lost. The burner also incorporates “Positive Connect” technology to streamline installation, with most gas connections completed at the factory. UL and ULC certifications provide added assurance that the burner meets stringent quality and safety standards.

This LPG-ready burner plate comes with two valves and two control panels for enhanced control and reliability in larger fire pit designs. It accommodates up to 25 lbs of fire media, though actual usage may vary depending on the application. For optimal performance and safety, installation should always be handled by a certified gas technician.

What's Included:

• Linear Gas Burner Insert and Plate Kit
• Assembly Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Kits above 12" x 64” include two valves and two control panels
• Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

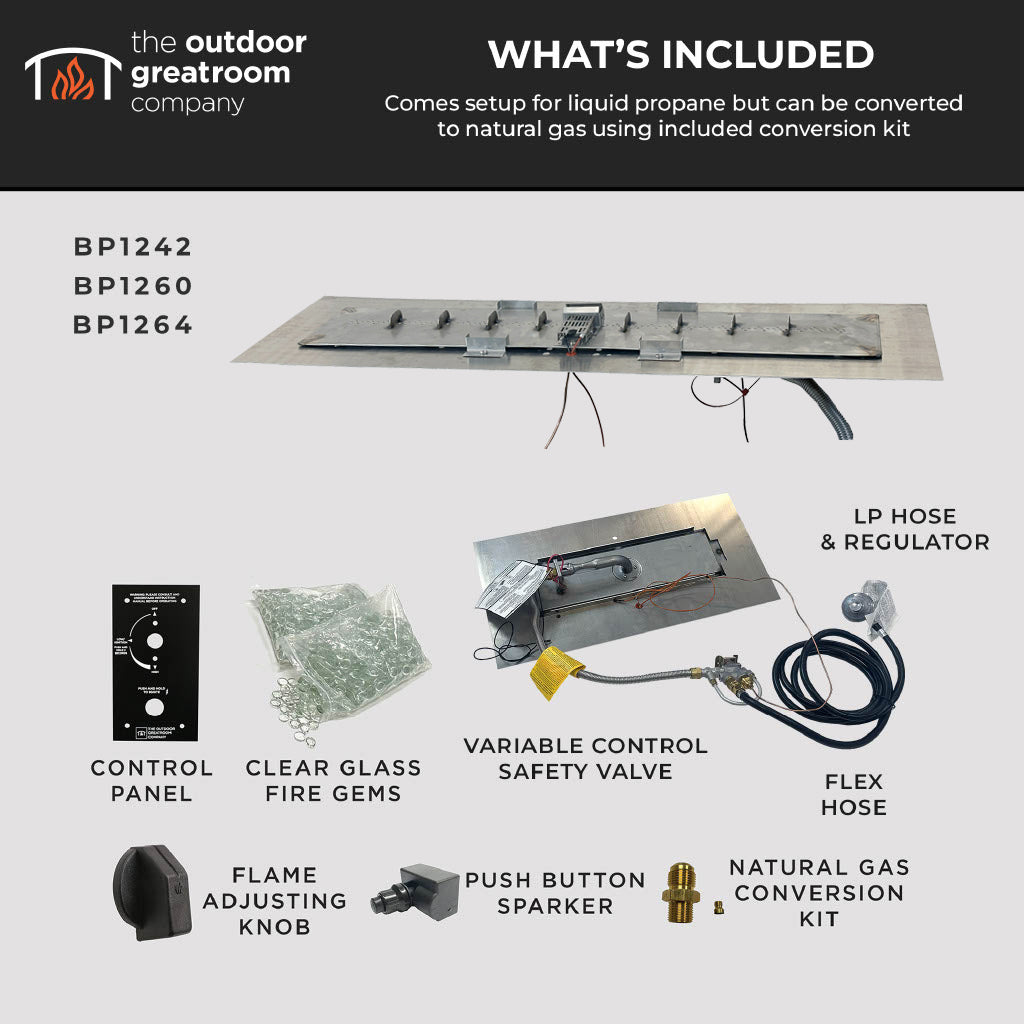

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

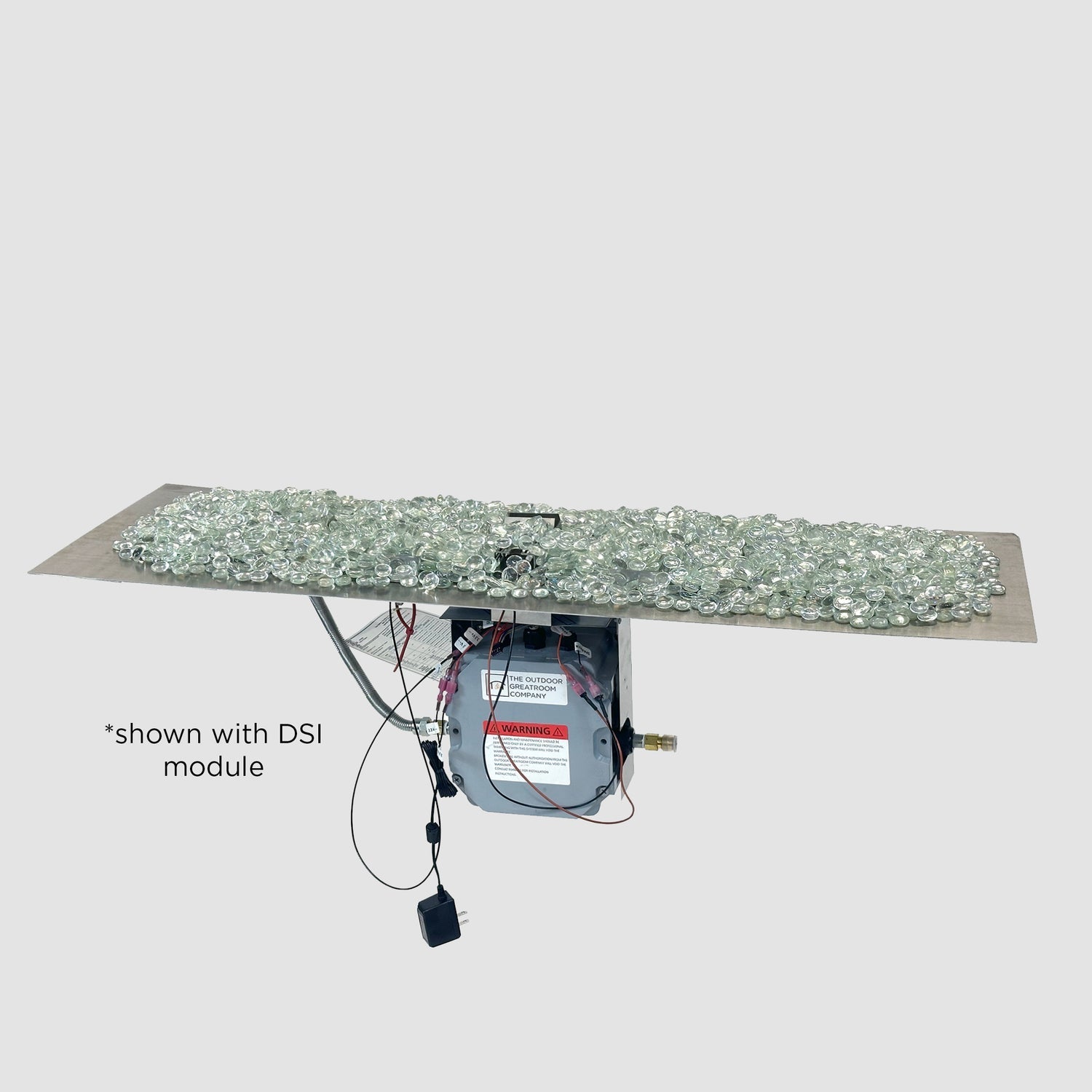

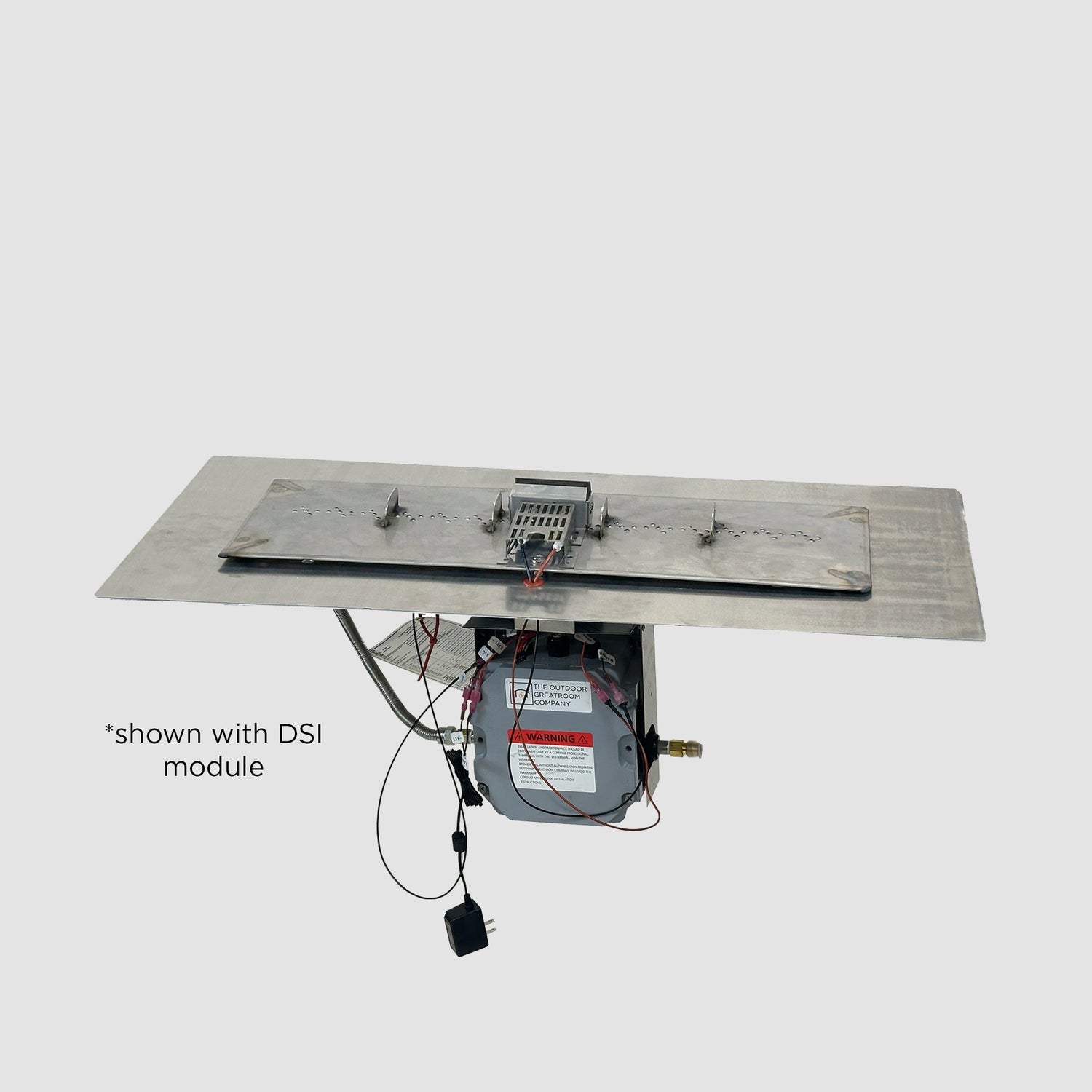

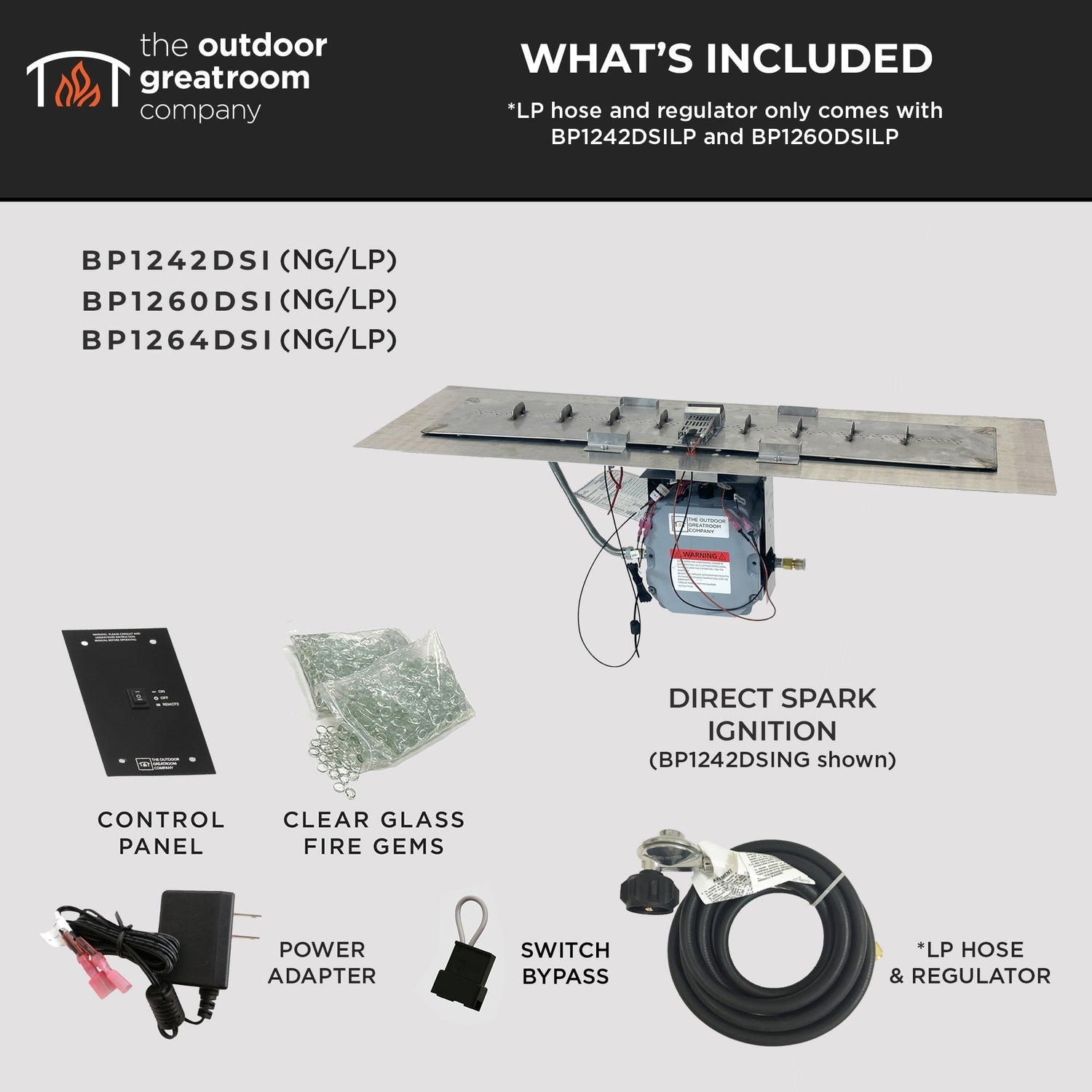

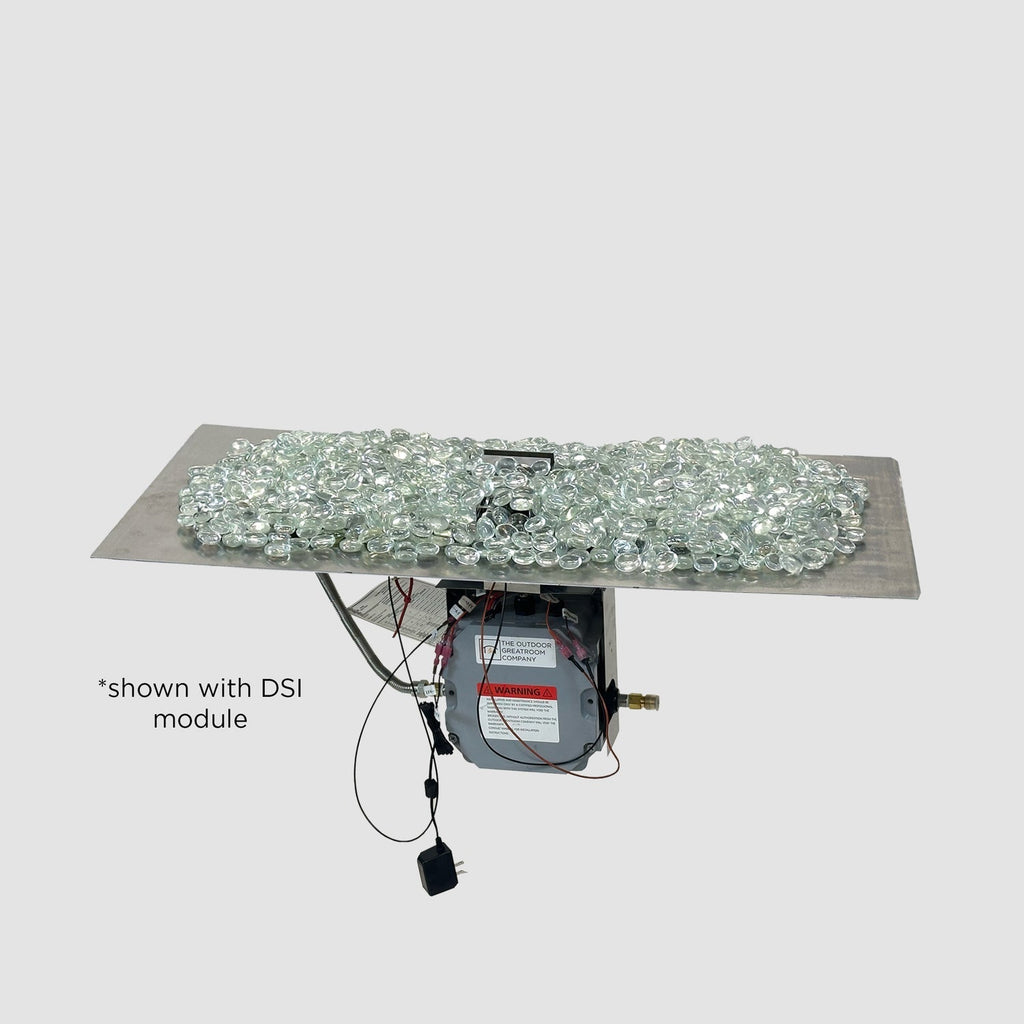

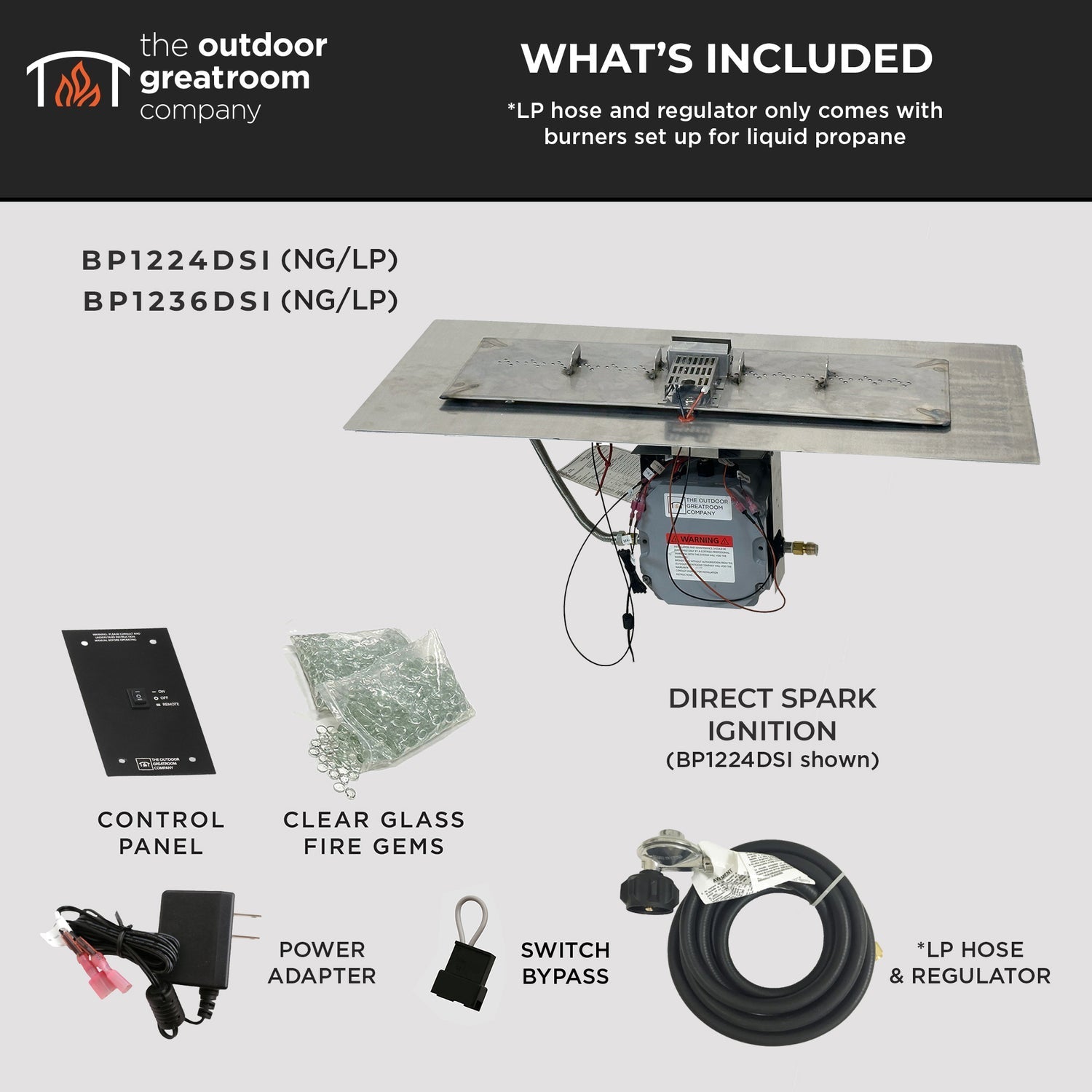

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
