The Outdoor GreatRoom Company Crystal Fire Plus 24" x 24" Square Stainless Steel Manual Gas Burner Kit

The Outdoor GreatRoom Company Crystal Fire Plus 24" x 24" Square Manual Gas Burner Kit delivers premium performance in a compact, square design. Crafted from commercial-grade #304 stainless steel, this burner is built to withstand outdoor conditions while maintaining a sleek, modern look for your custom fire table or pit.

Equipped with a manual ignition system and flame-sensing shutdown, the burner ensures safe and reliable operation. If the flame goes out unexpectedly, the system will automatically shut off the gas flow. Its patented “Positive Connect” system reduces installation time with fewer gas connections, many of which are preassembled at the factory. Rated at 55,000 BTUs for both propane and natural gas, it provides consistent warmth and ambiance.

UL and ULC listed to ANSI Z21.97-2017/CSA 2.41-2017 safety standards, this burner insert is ideal for professionals and homeowners creating a custom fire experience. Fire media recommendations may vary based on your setup, and installation should always be handled by a certified gas technician.

What's Included:

• Square Gas Burner Insert and Plate Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Depending on your application, you may need less fire media than suggested/included amount.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height

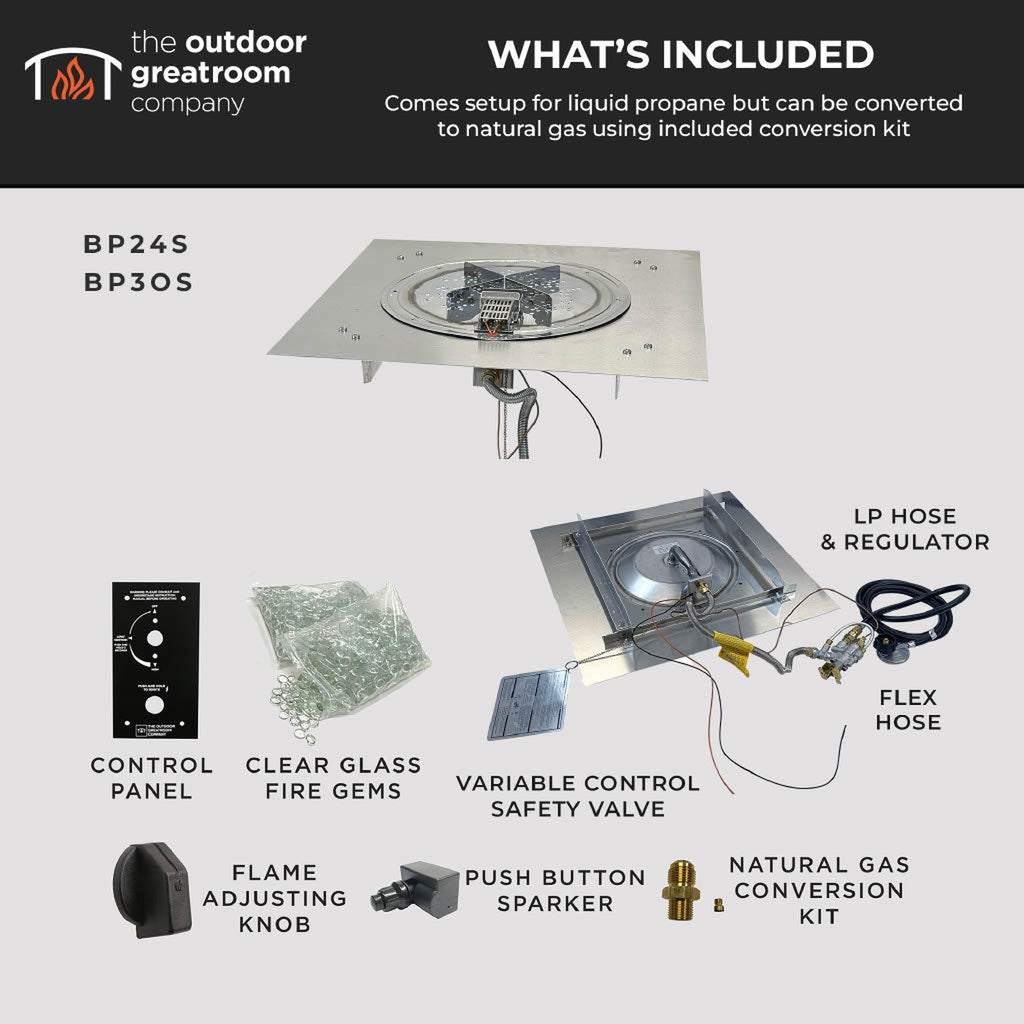

• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

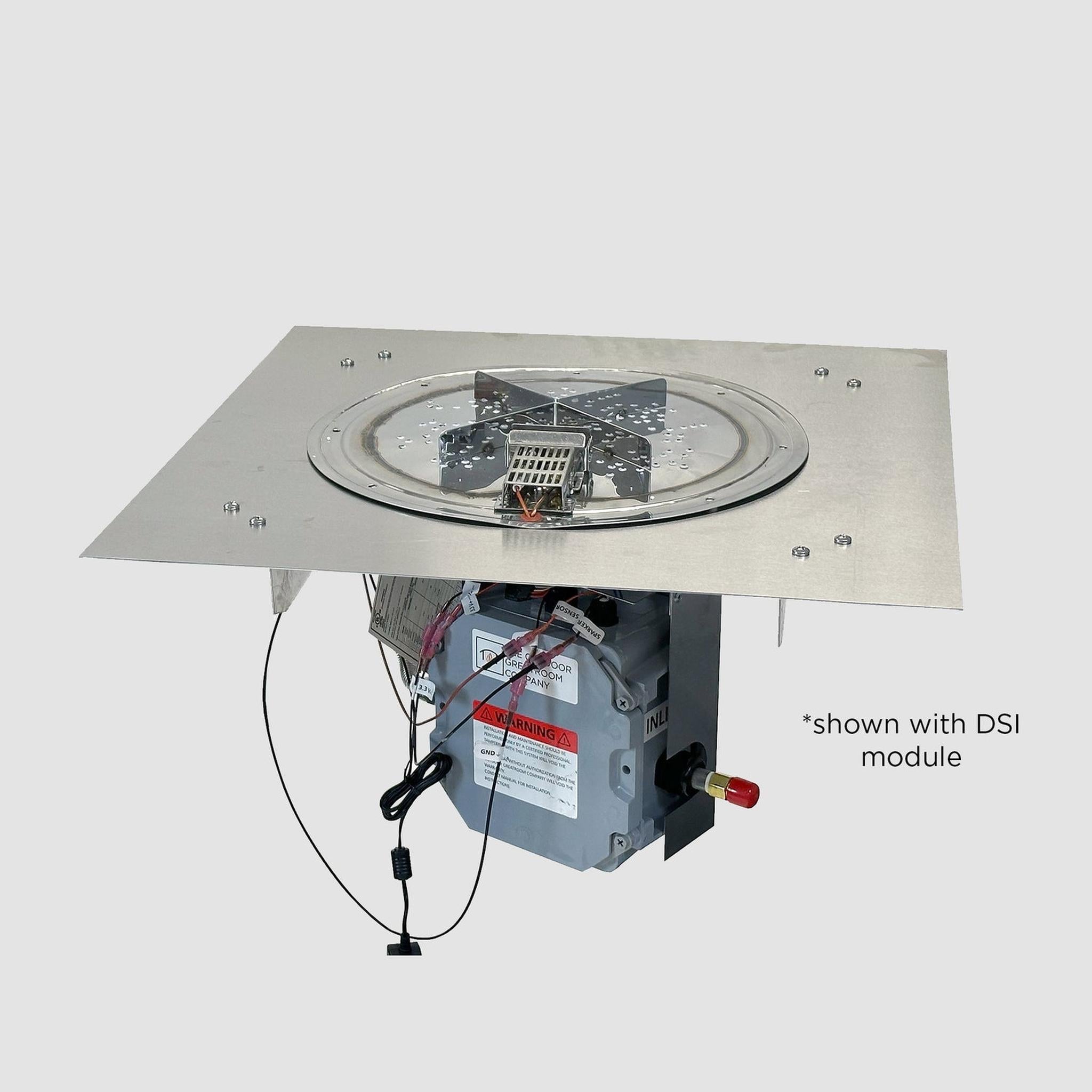

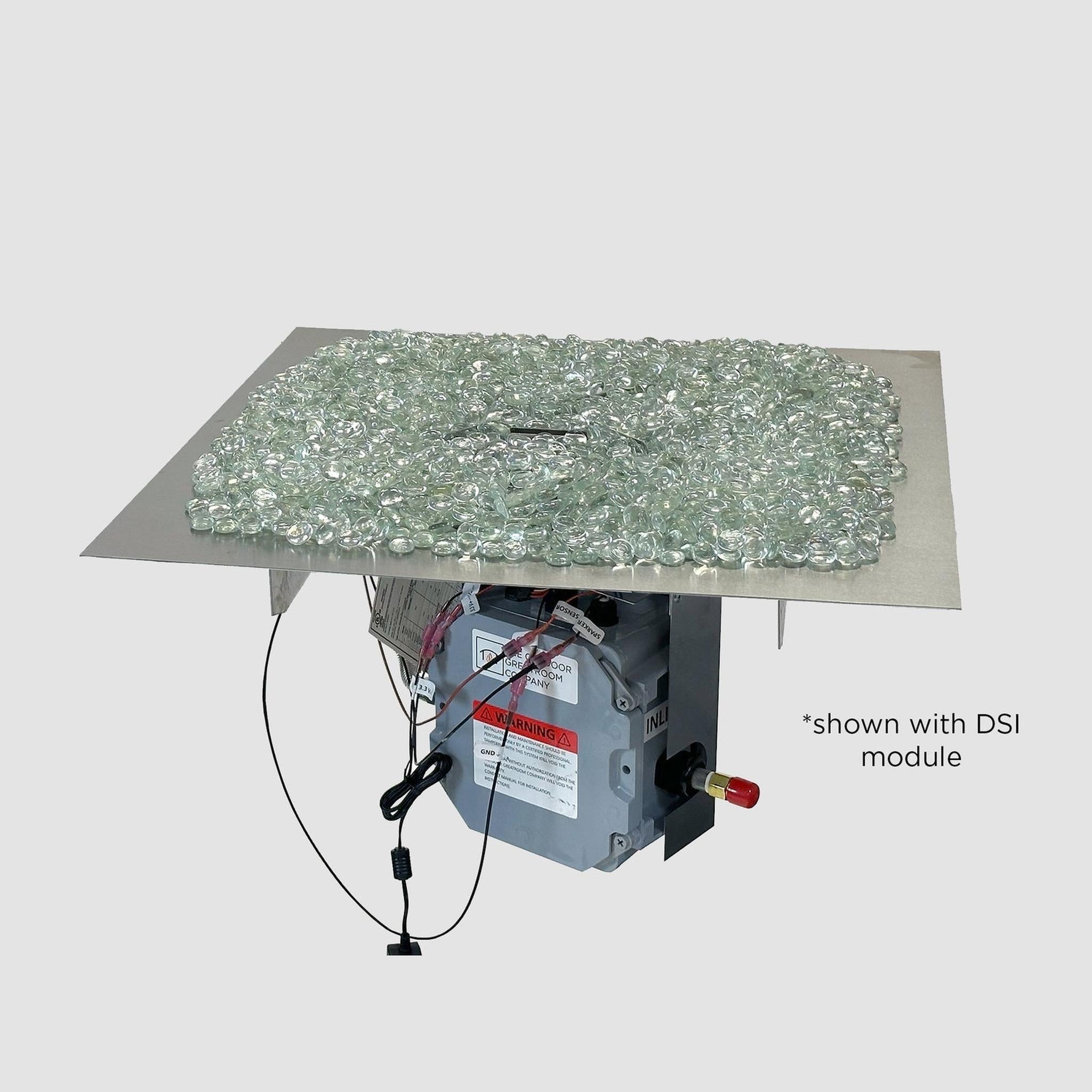

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible

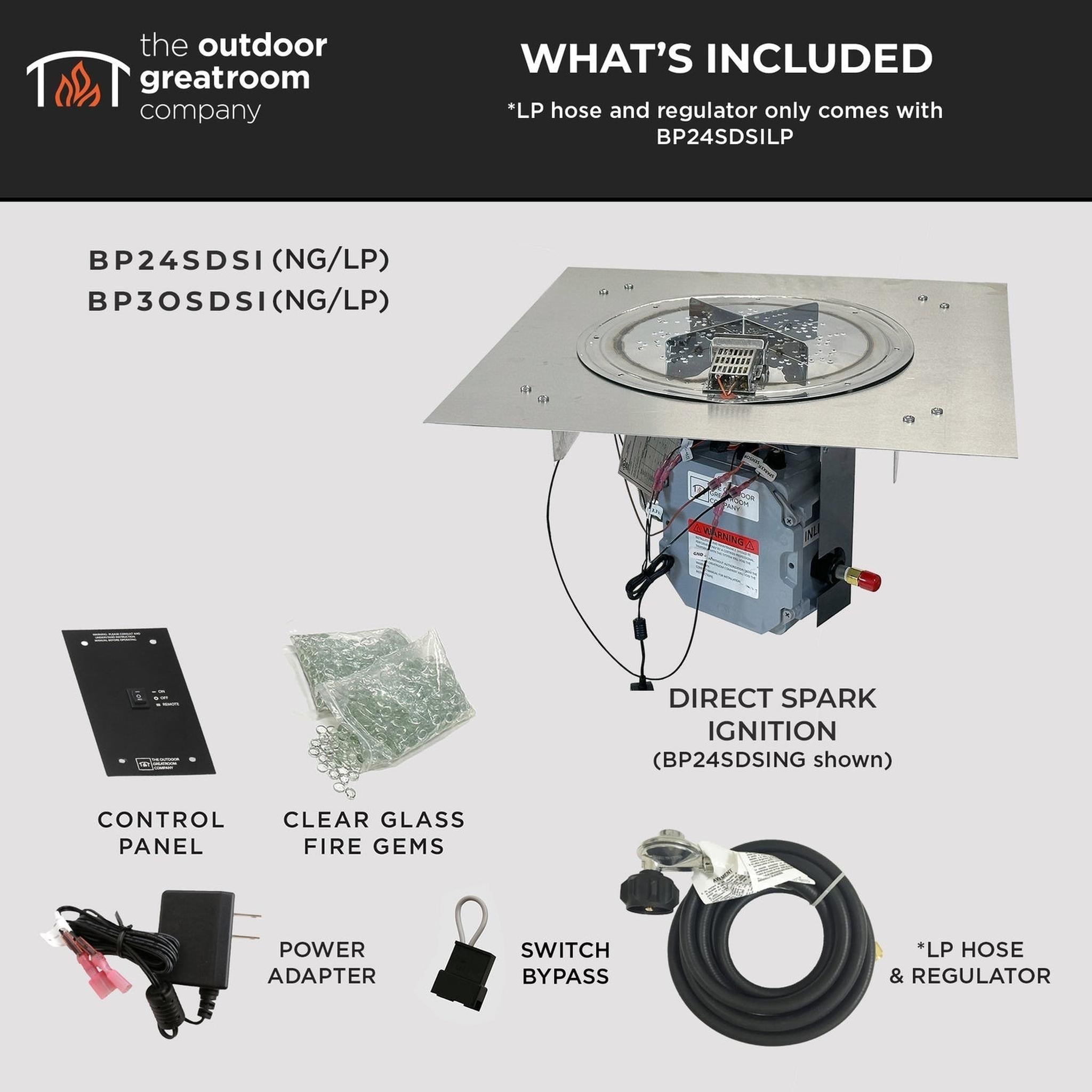

• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
