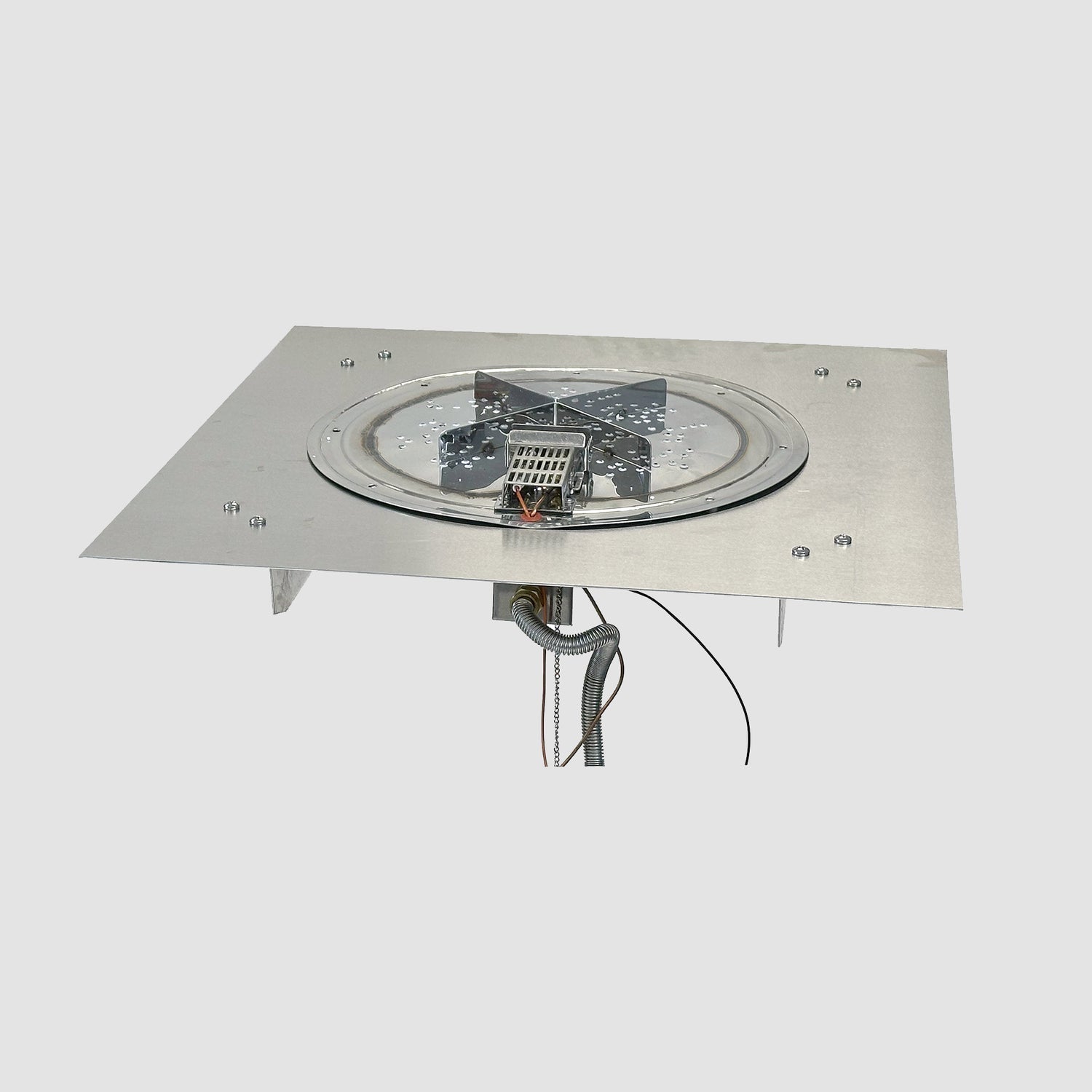

The Outdoor GreatRoom Company Crystal Fire Plus 30" Square Direct Spark LPG Gas Burner Insert with Stainless Plate Kit

The Outdoor GreatRoom Company Crystal Fire Plus 30" Square Direct Spark LPG Gas Burner Insert combines powerful performance with safety and ease of installation. Constructed from commercial-grade #304 stainless steel, it’s engineered to endure the elements in outdoor fire pit setups.

This model features a direct spark ignition system with automatic safety shutdown to ensure gas flow is cut off if the flame goes out, enhancing safety during use. Its factory-installed “Positive Connect” technology reduces installation time by minimizing gas line connections, allowing for a more efficient setup by certified technicians.

With a heat output of 55,000 BTUs and 45 lbs of included fire media, this burner kit delivers vibrant flames and long-lasting performance. UL and ULC certification adds confidence, making it a solid choice for creating a custom outdoor gas fire feature.

What's Included:

• Square Gas Burner Insert and Plate Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Depending on your application, you may need less fire media than suggested/included amount.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit

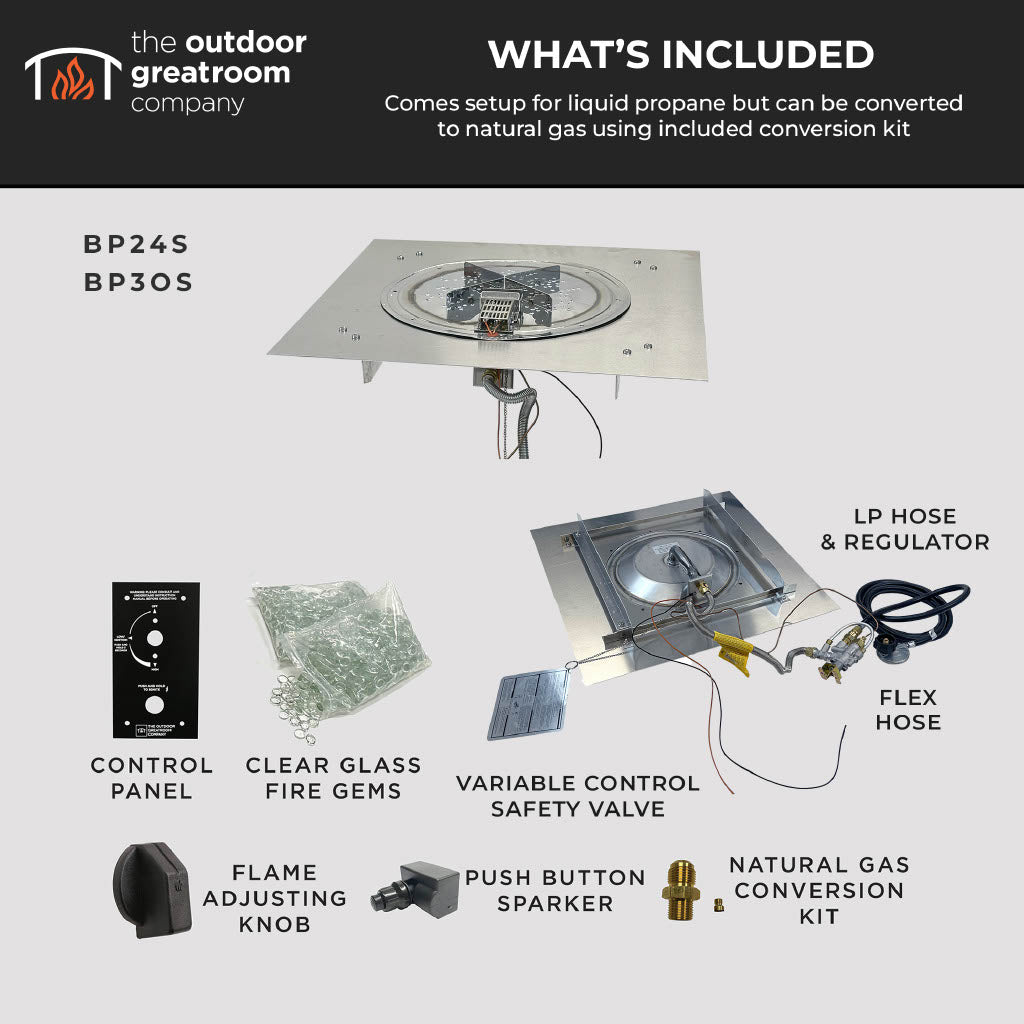

• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

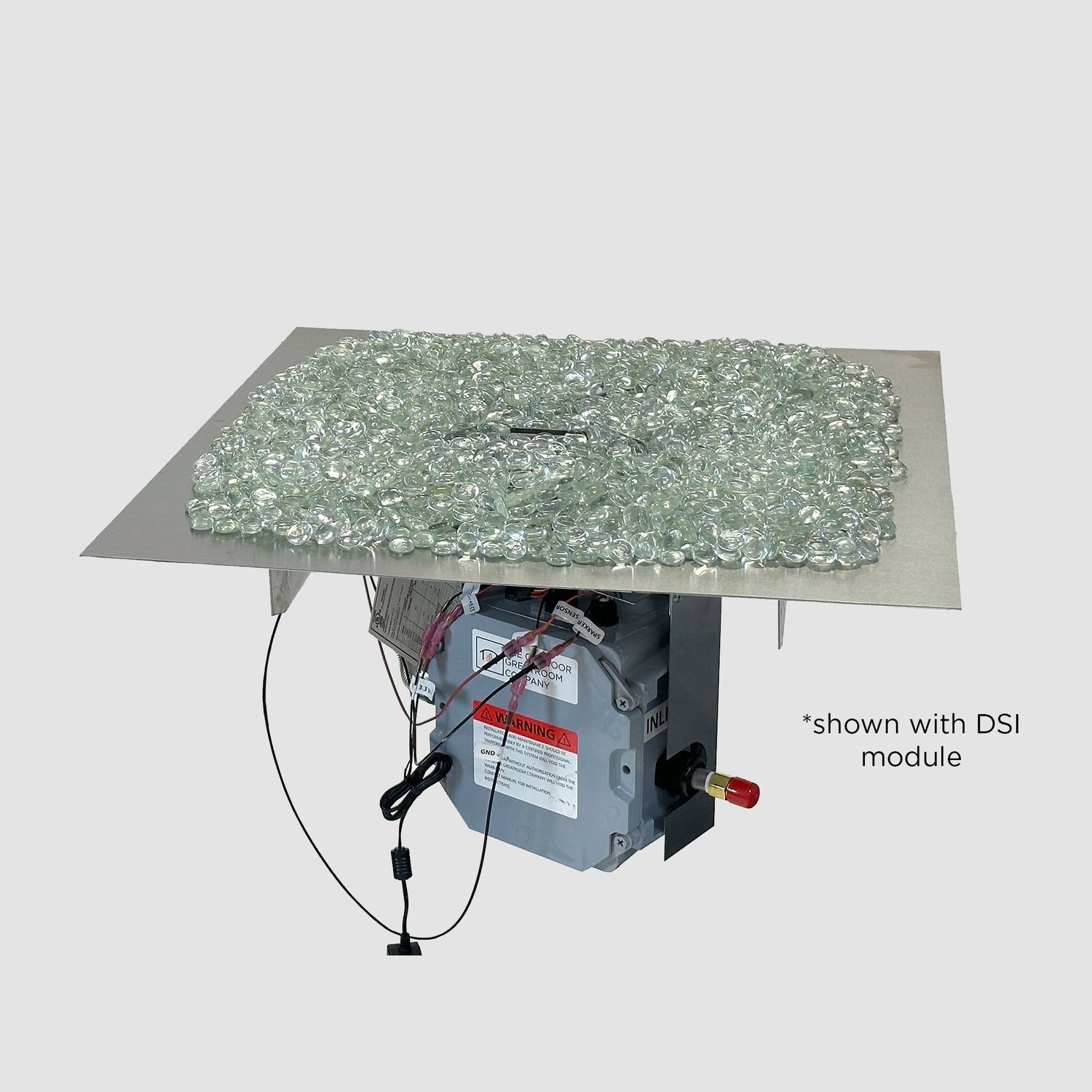

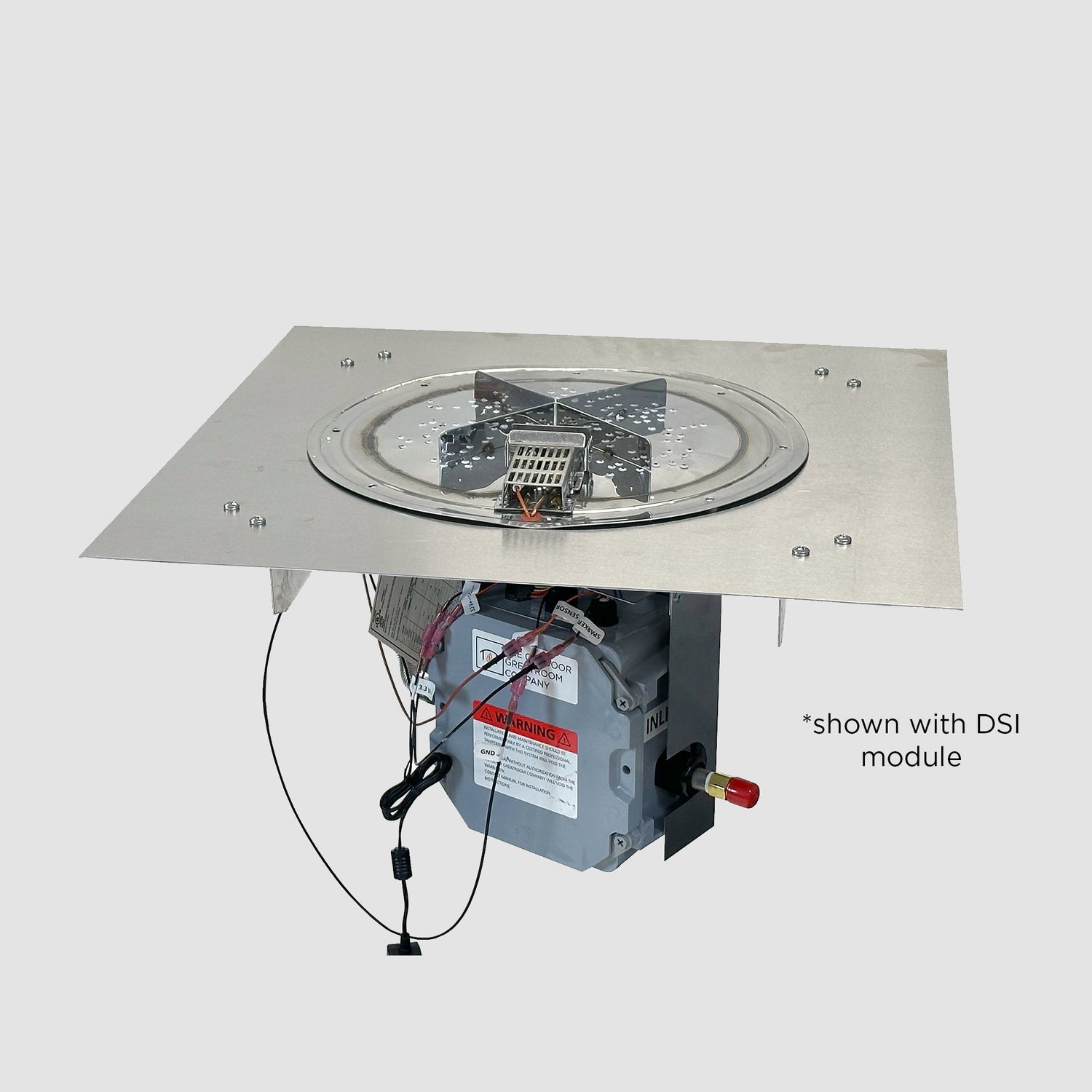

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible

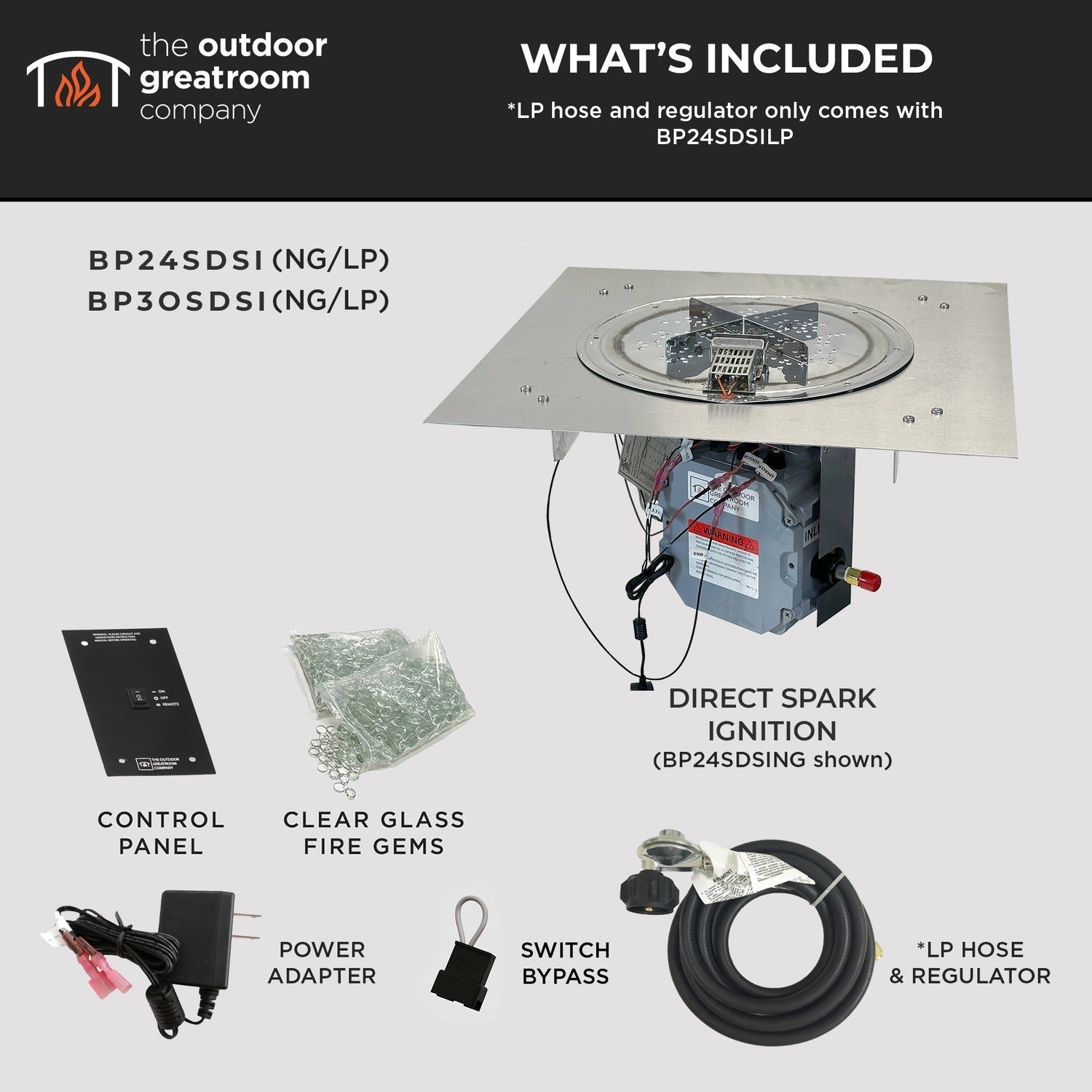

• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
