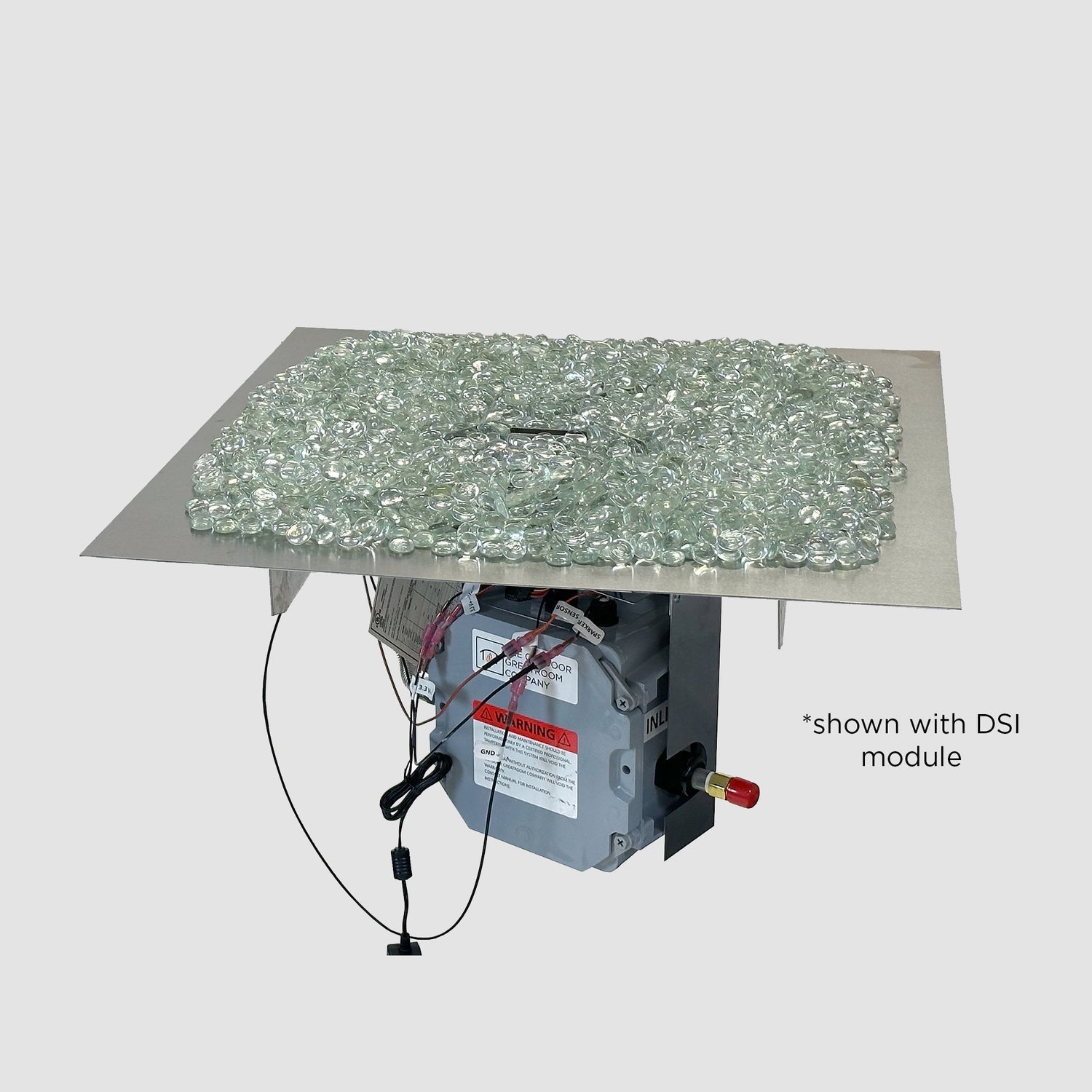

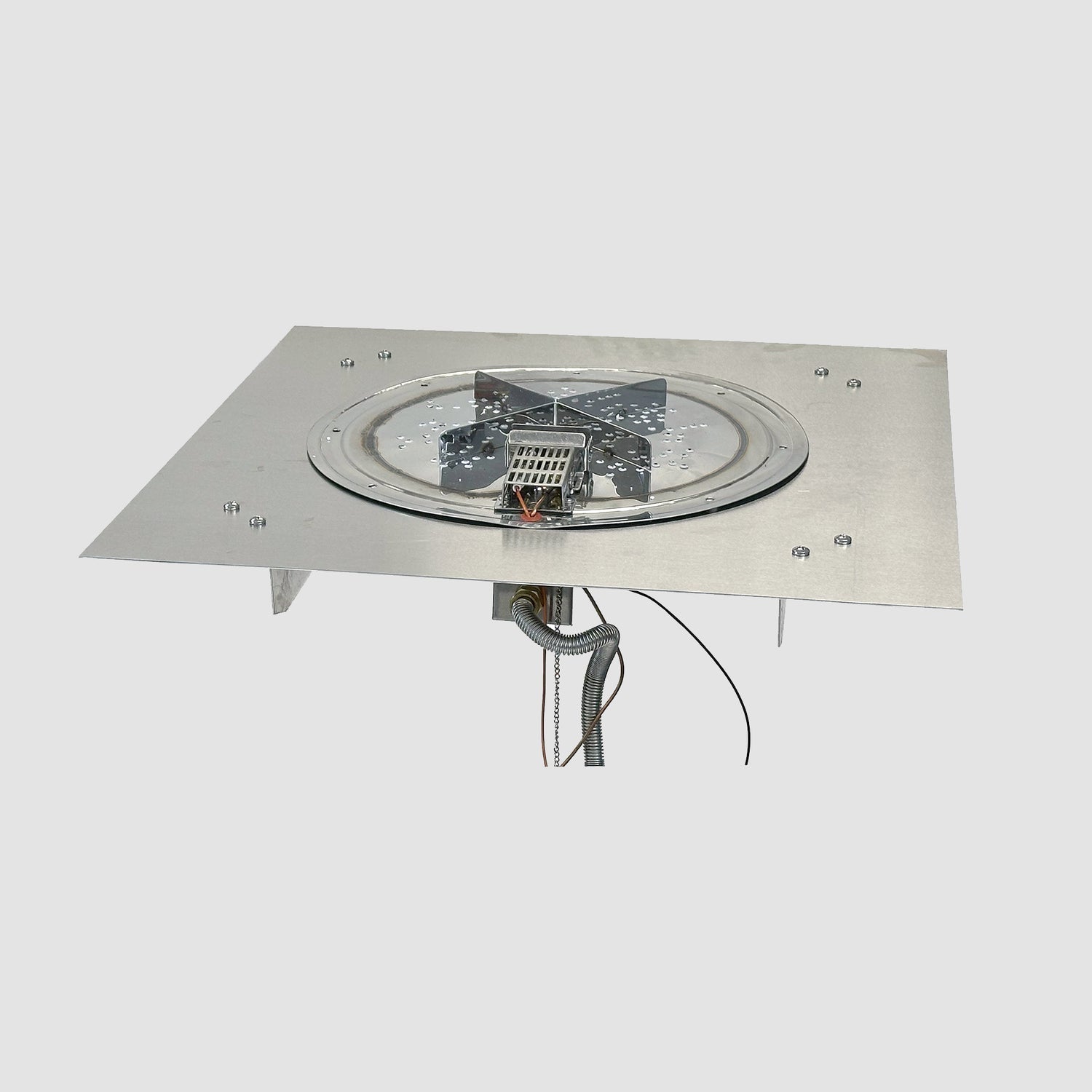

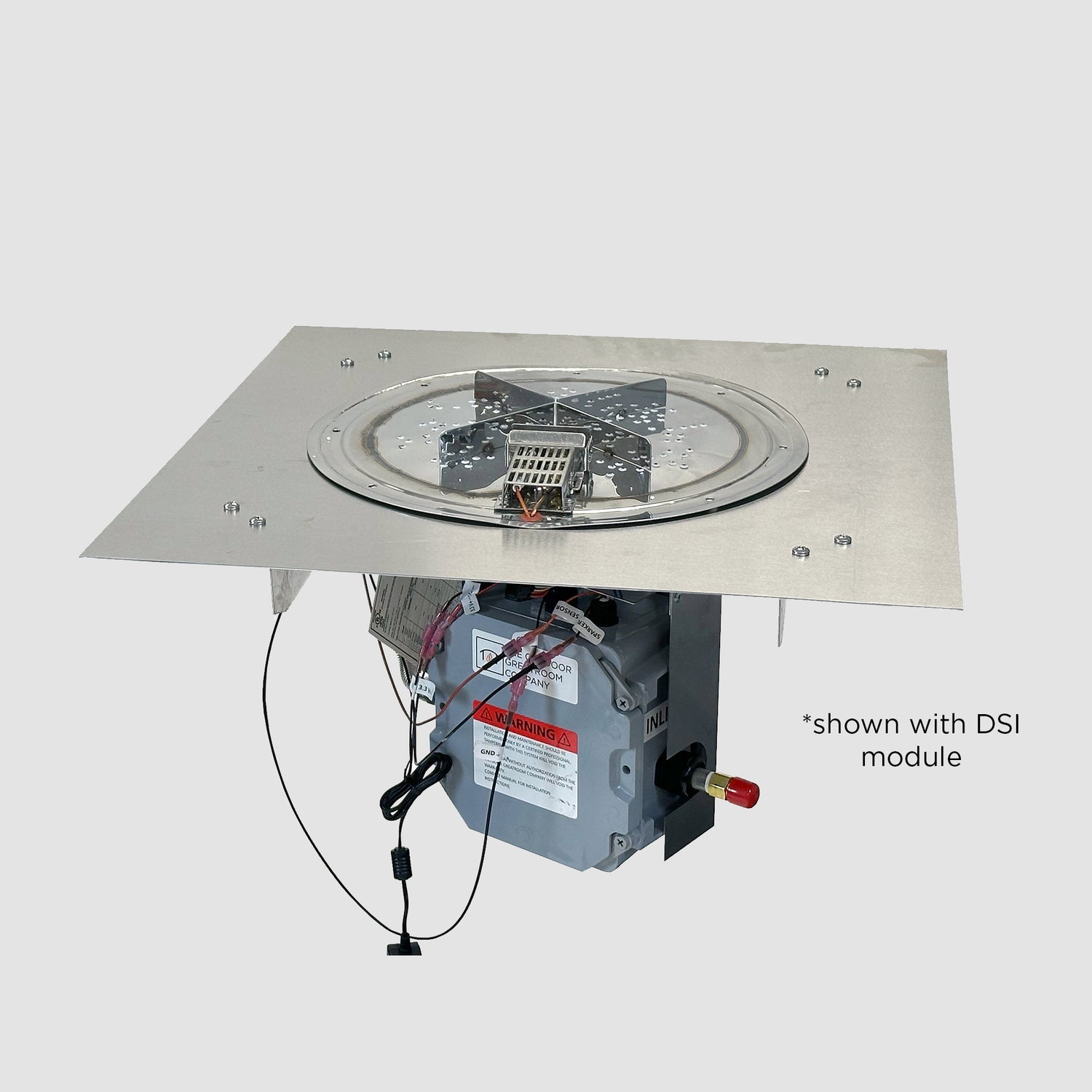

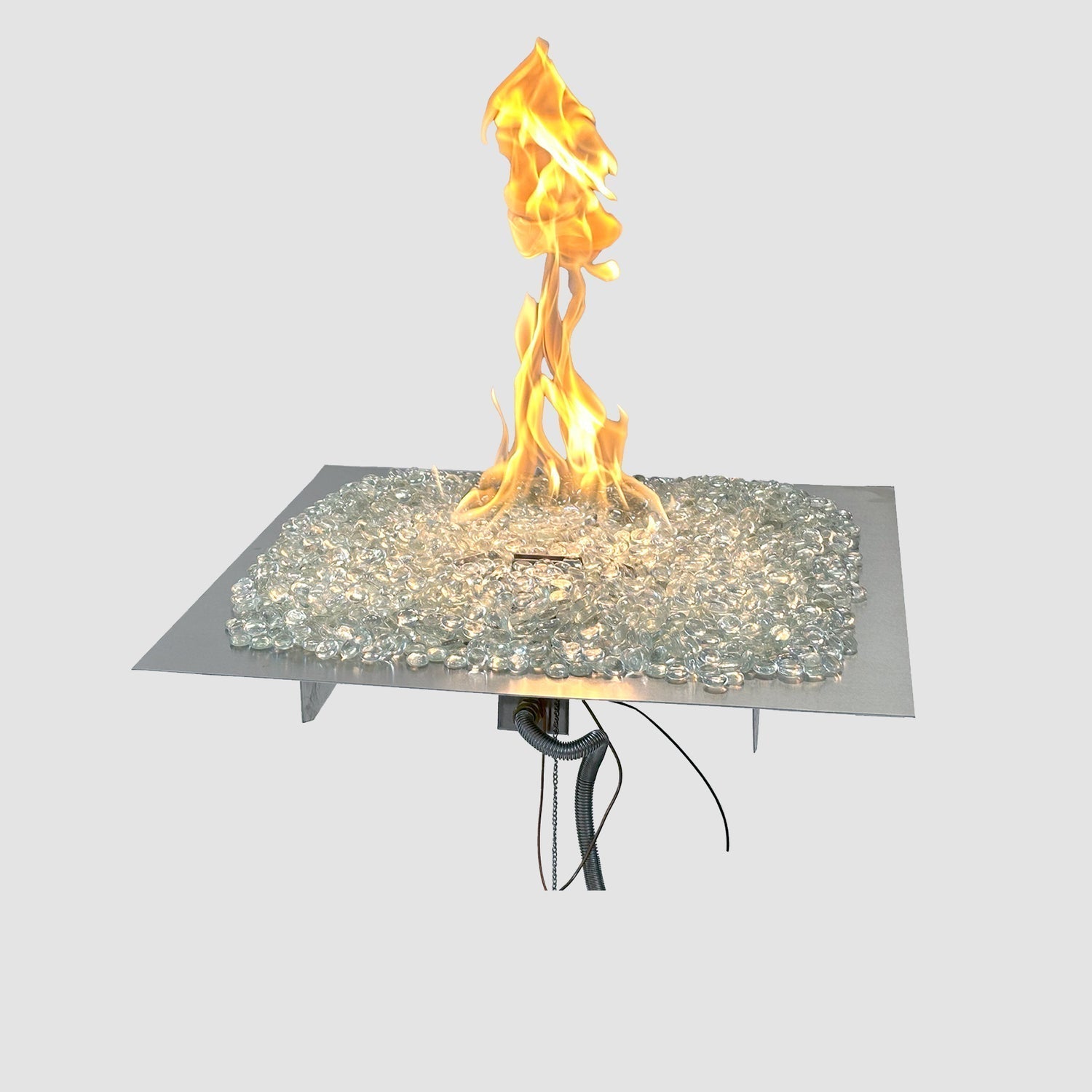

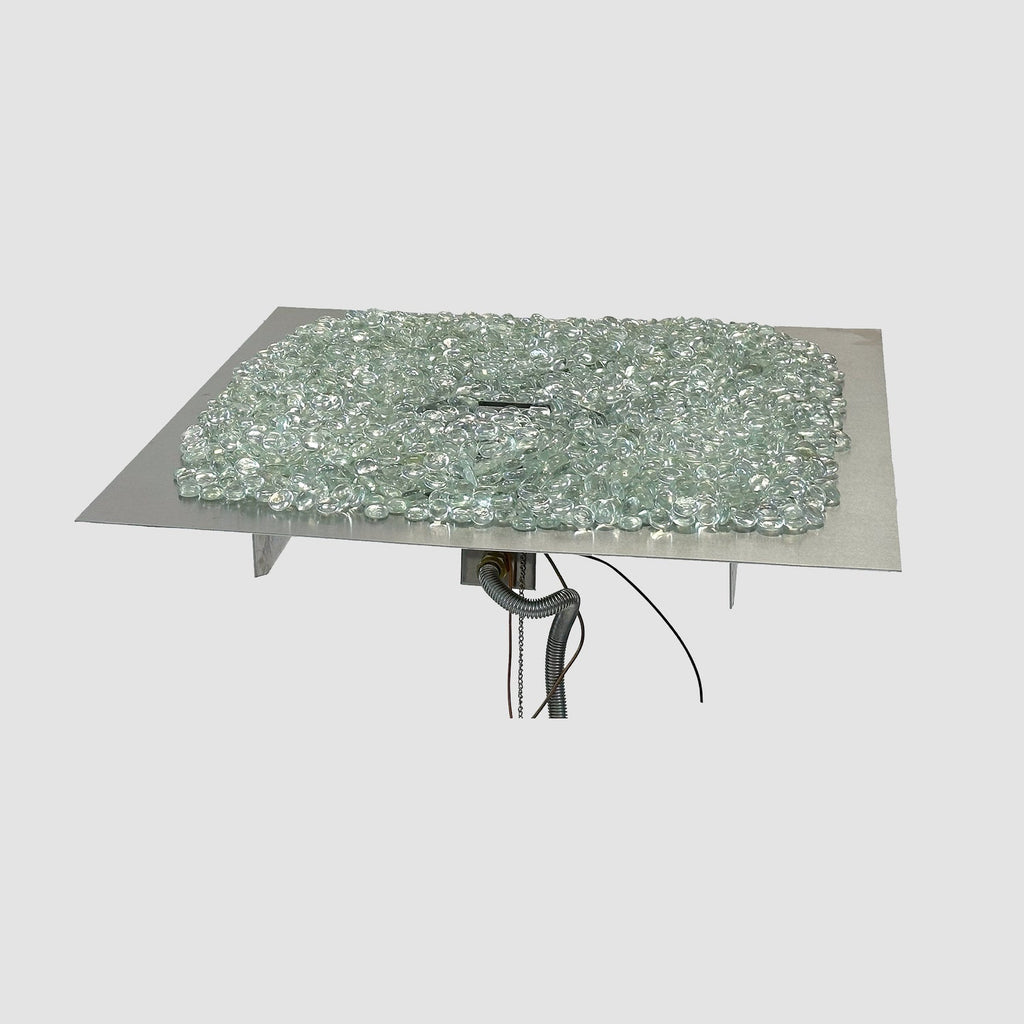

The Outdoor GreatRoom Company Crystal Fire Plus 36" Square Direct Spark LPG Gas Burner Insert with Stainless Plate Kit

The Outdoor GreatRoom Company Crystal Fire Plus 36" Square Direct Spark LPG Gas Burner Insert offers premium performance for large-scale fire feature designs. Built with durable #304 stainless steel, this insert withstands the elements while delivering a bold, powerful flame.

Equipped with a direct spark ignition system, this burner provides quick, reliable lighting with integrated safety shutdown if the flame is lost. The “Positive Connect” design minimizes setup time, as most gas connections are preassembled for efficient installation by a certified technician.

Producing up to 150,000 BTUs and paired with 65 lbs of fire media, this insert creates a vibrant, consistent flame ideal for commercial or residential use. UL and ULC certifications ensure it meets the highest safety and quality standards for outdoor installations.

What's Included:

• Square Gas Burner Insert and Plate Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Depending on your application, you may need less fire media than suggested/included amount.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

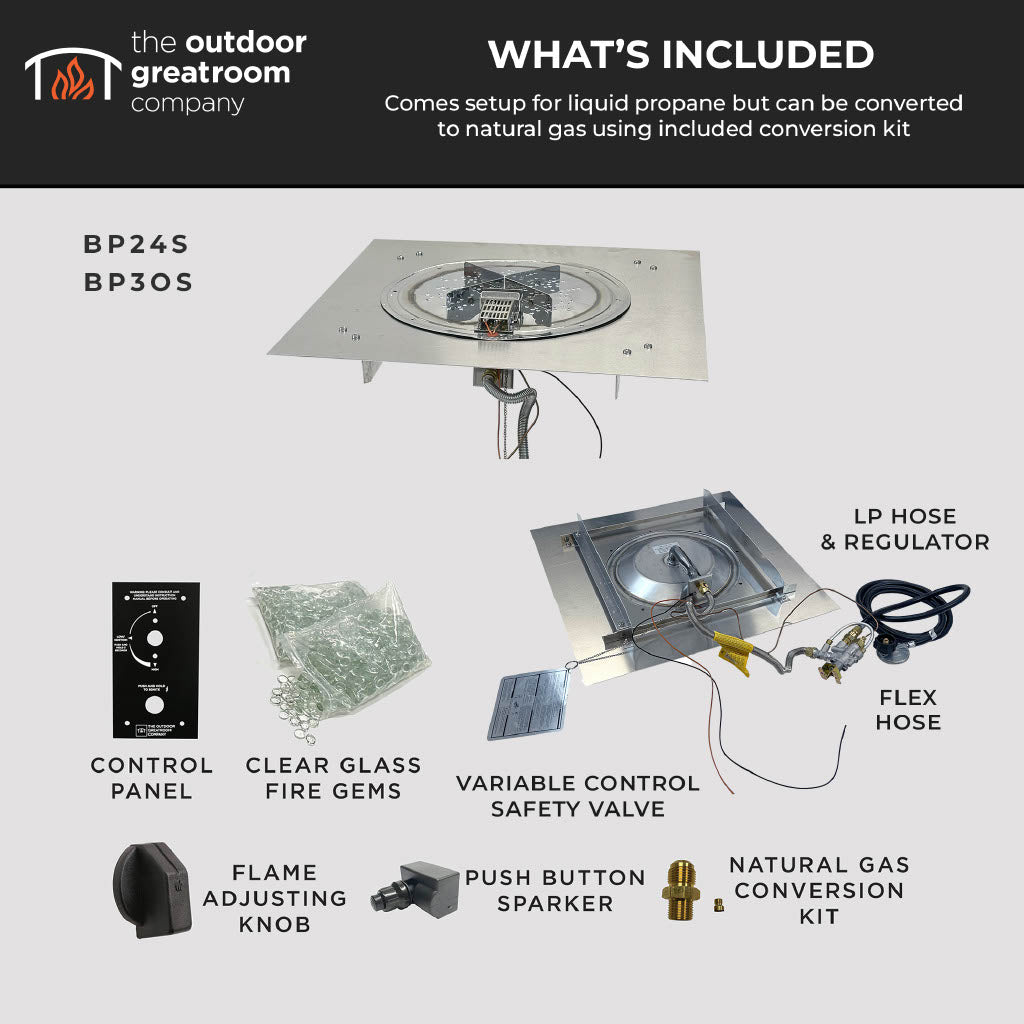

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit
• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

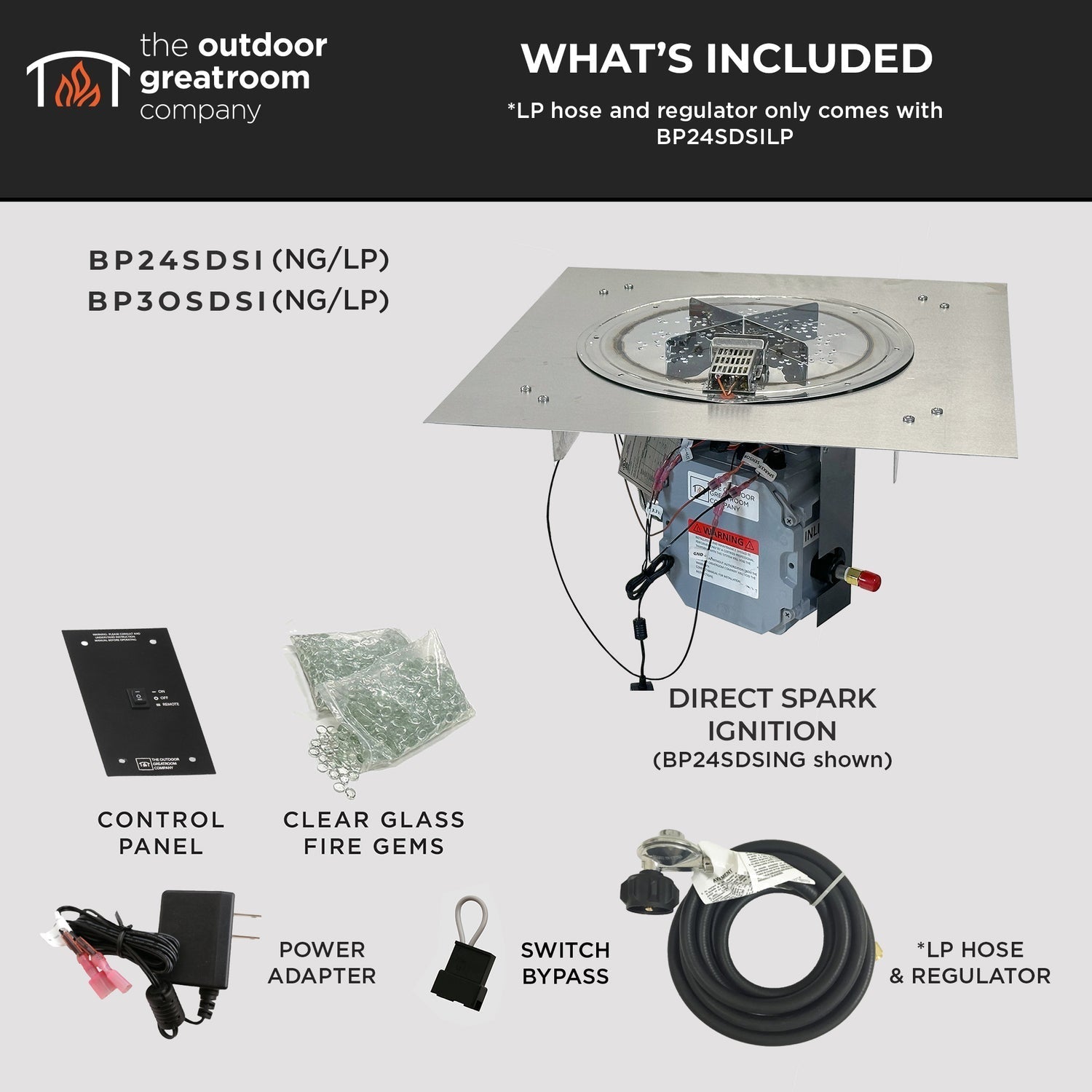

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible
• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
