The Outdoor GreatRoom Company Crystal Fire Plus 36" Square Manual Gas Burner Insert with Stainless Plate Kit

The Outdoor GreatRoom Company Crystal Fire Plus 36" Square Manual Gas Burner Insert delivers powerful performance in a custom fire feature setup. Constructed from commercial-grade #304 stainless steel, this burner insert is built to endure outdoor elements while maintaining a sleek, professional appearance.

Its manual ignition system offers straightforward operation, and integrated safety features ensure that the gas shuts off if the flame is ever extinguished. With the “Positive Connect” design, most connections are completed at the factory to reduce installation time and complexity for certified gas technicians.

Producing up to 106,000 BTUs and paired with 65 lbs of fire media, this insert creates a vibrant, even flame for a dramatic centerpiece. UL and ULC certification ensures compliance with top safety standards, making it a trusted choice for outdoor fire design.

What's Included:

• Square Gas Burner Insert and Plate Kit

Features:

• Commercial-grade #304 stainless steel
• Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
• “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
• UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
• Installation should be completed by a certified gas technician
• Depending on your application, you may need less fire media than suggested/included amount.
• WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

Variable Control Safety Valve/Manual Ignition:

• Fully adjustable flame height
• Comes setup for liquid propane but can be converted to natural gas using included conversion kit

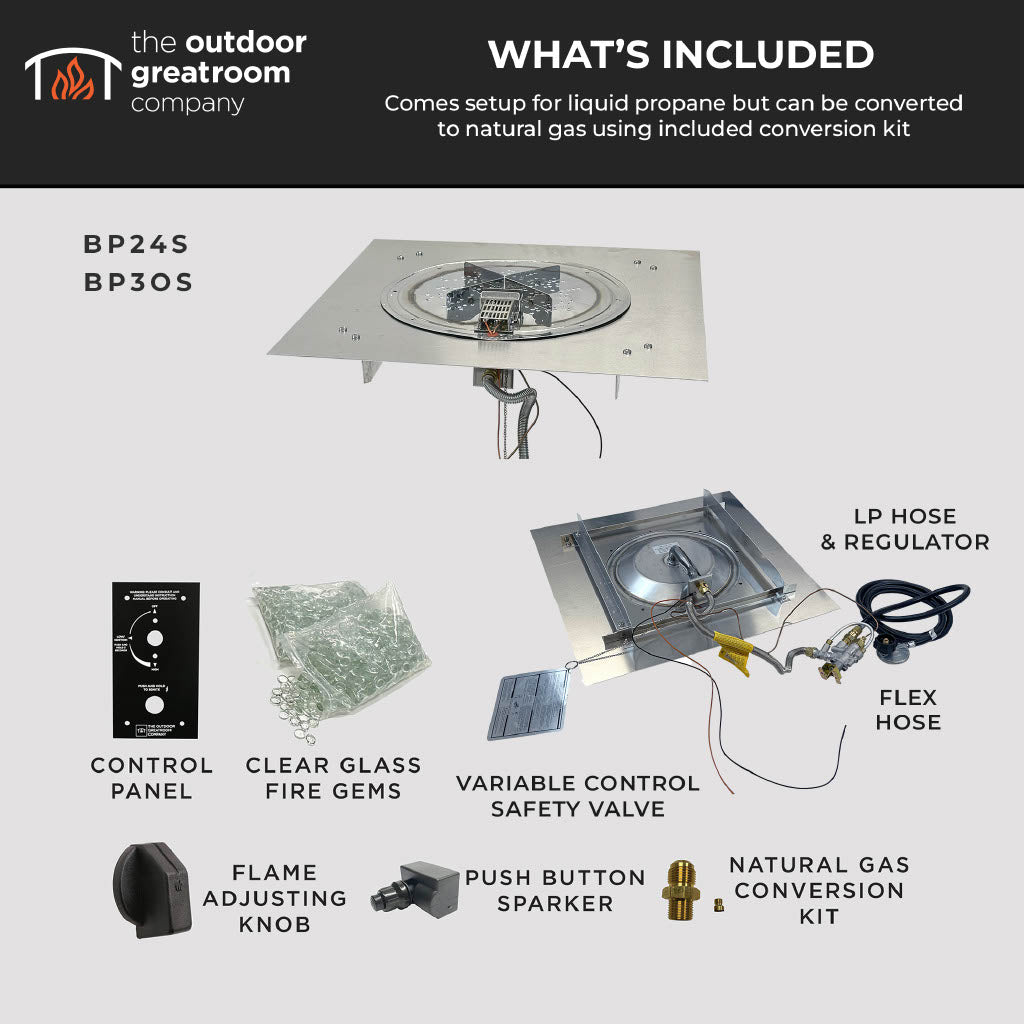

• Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

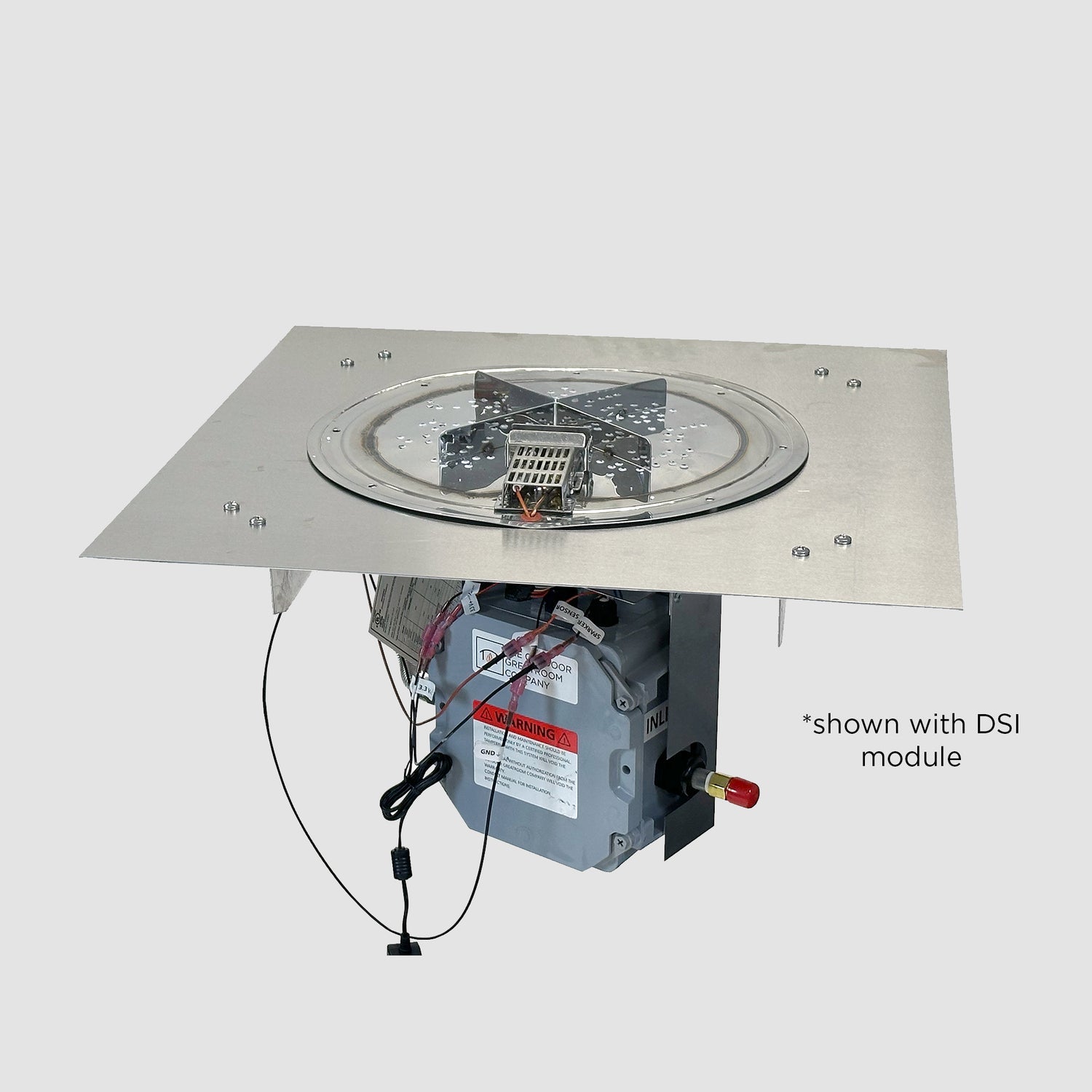

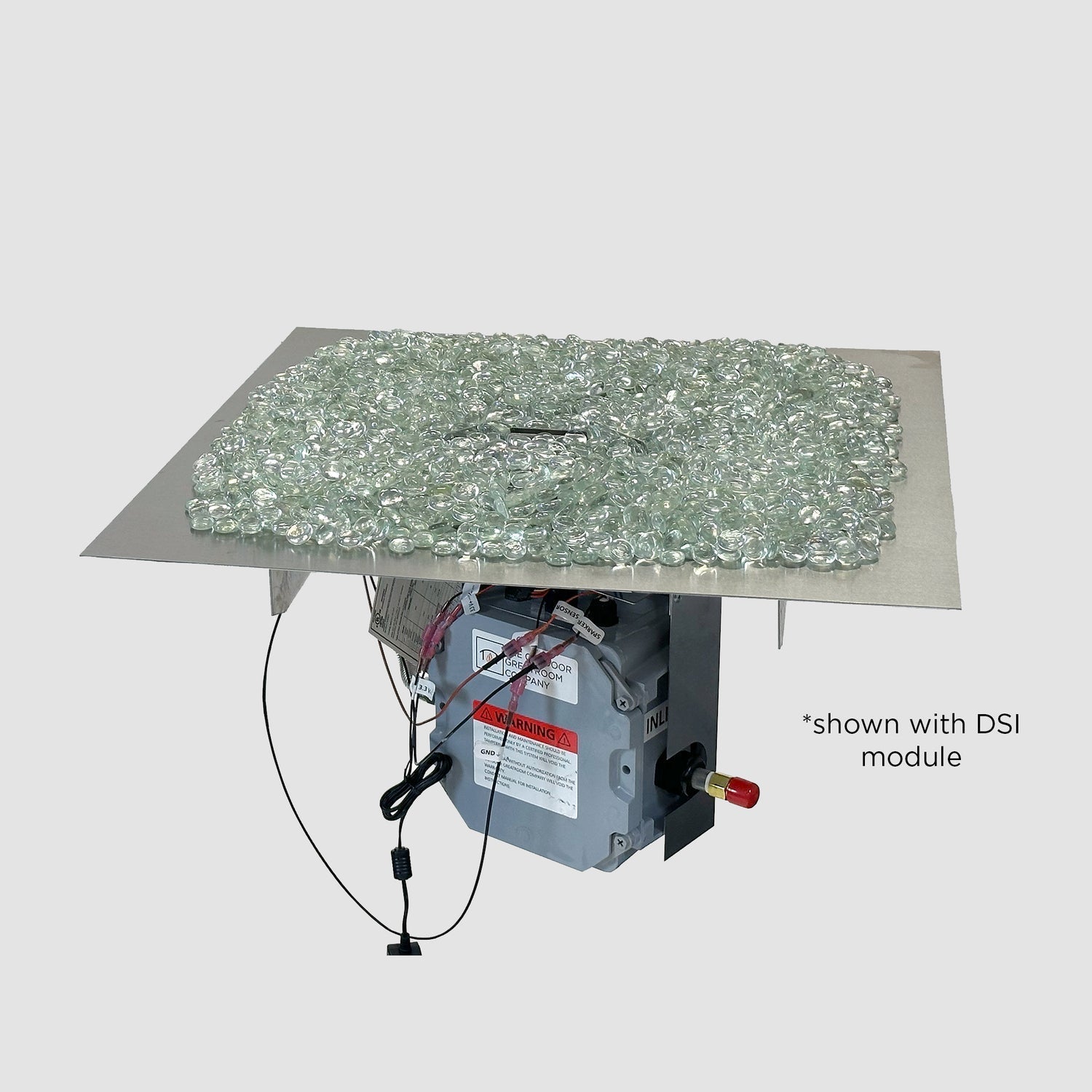

Direct Spark Ignition System/Automatic Ignition:

• Please specify LP or NG, not field-convertible

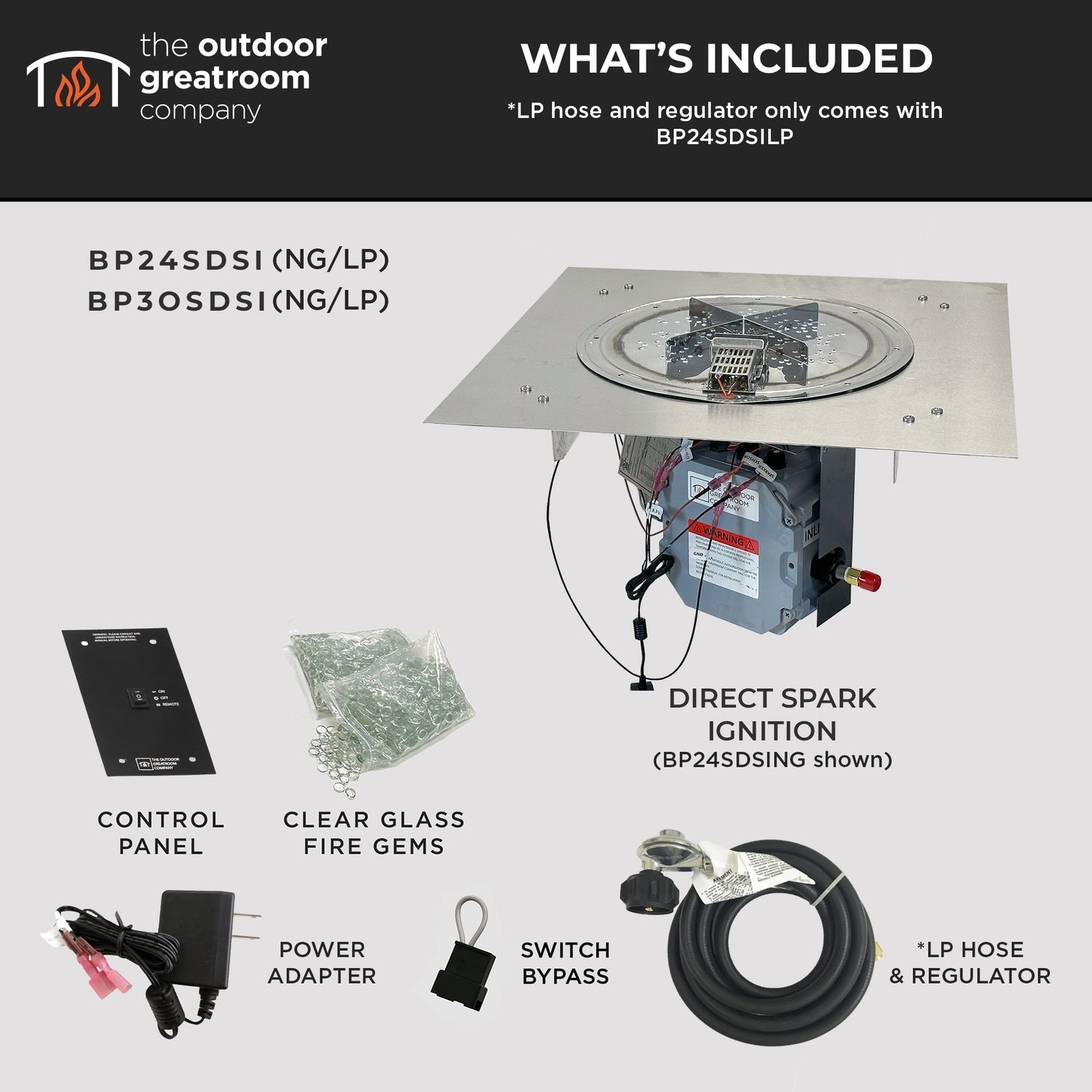

• Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
• Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately

Specifications:

Warranty:

Documents & Files:

• Specifications Sheet
• Commercial Burner Supplement Manual
• Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
• Crystal Fire Plus Burner Manual
• Direct Spark Ignition Manual
• Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
