Description

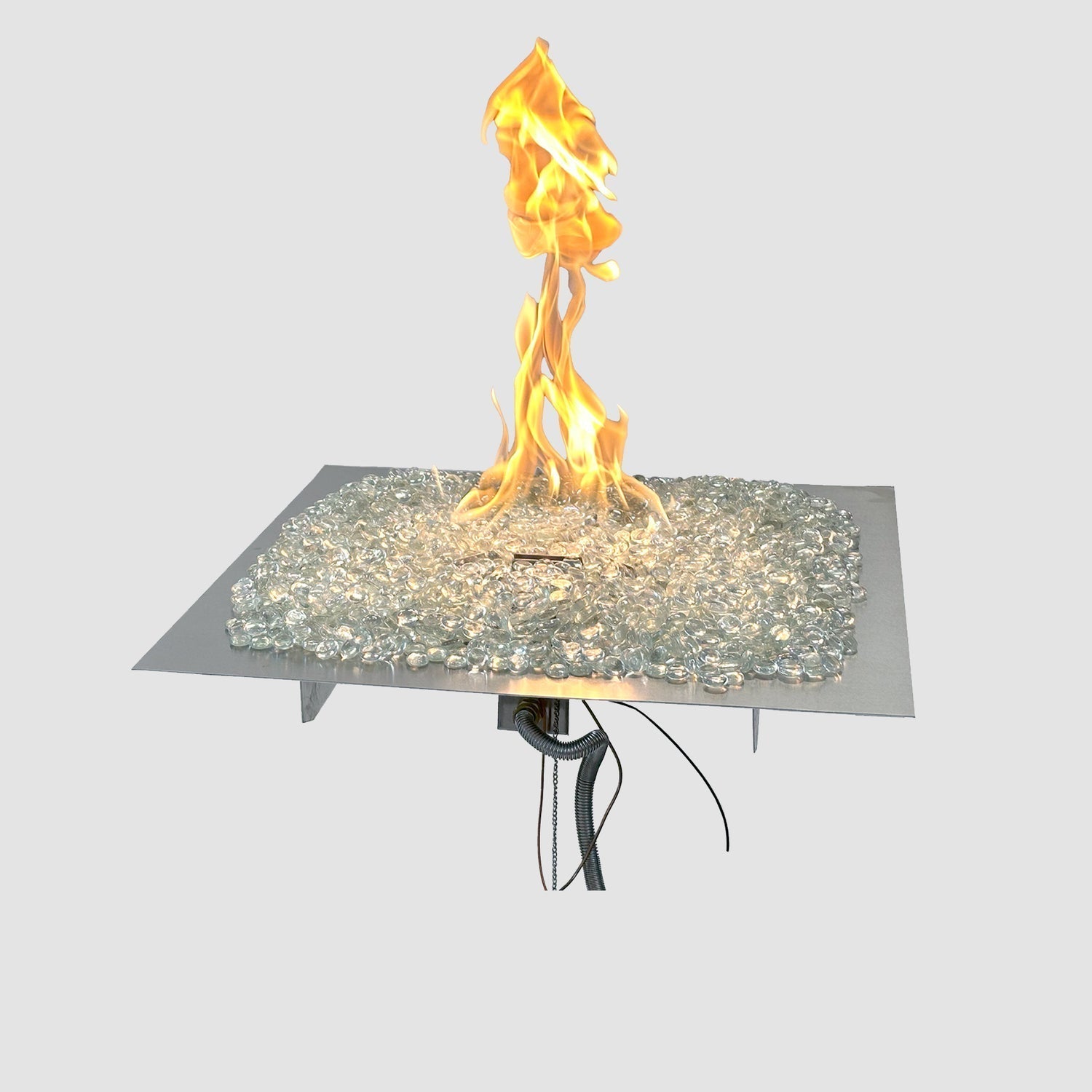

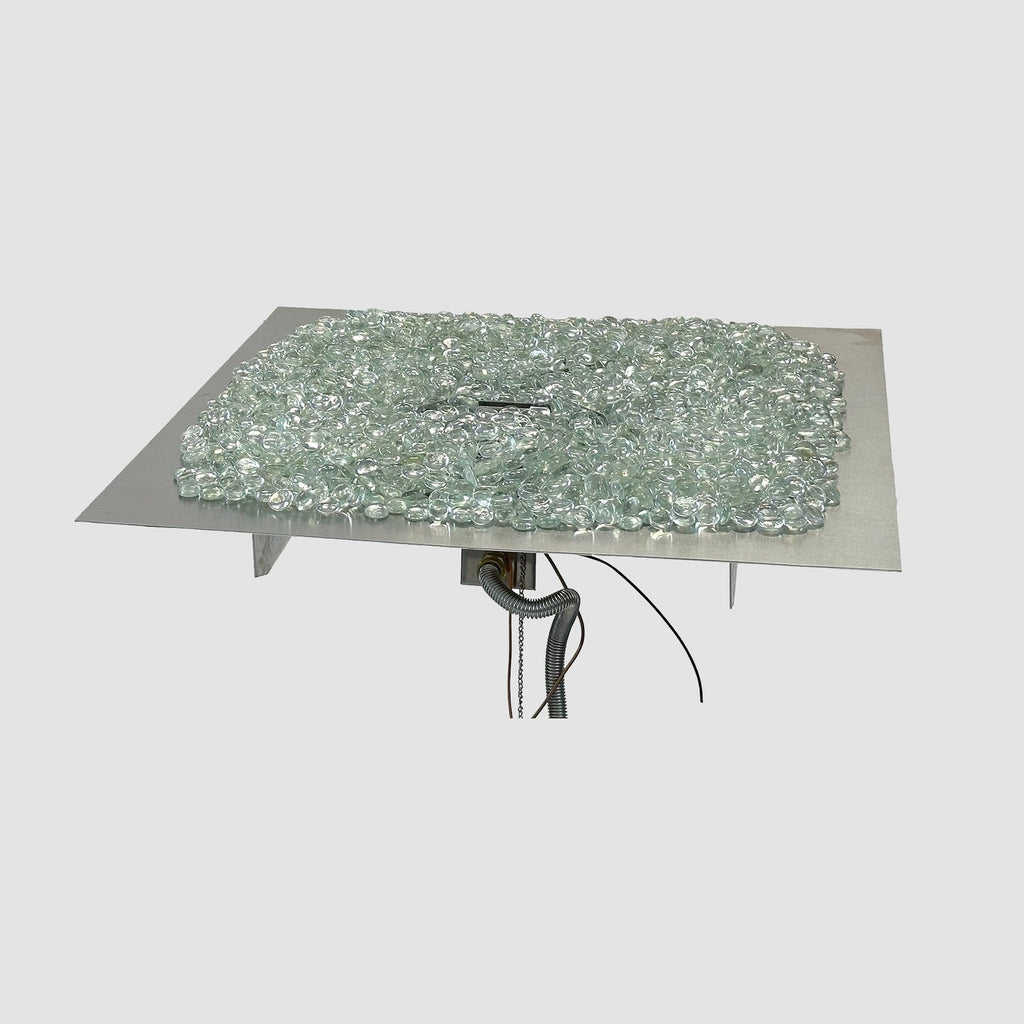

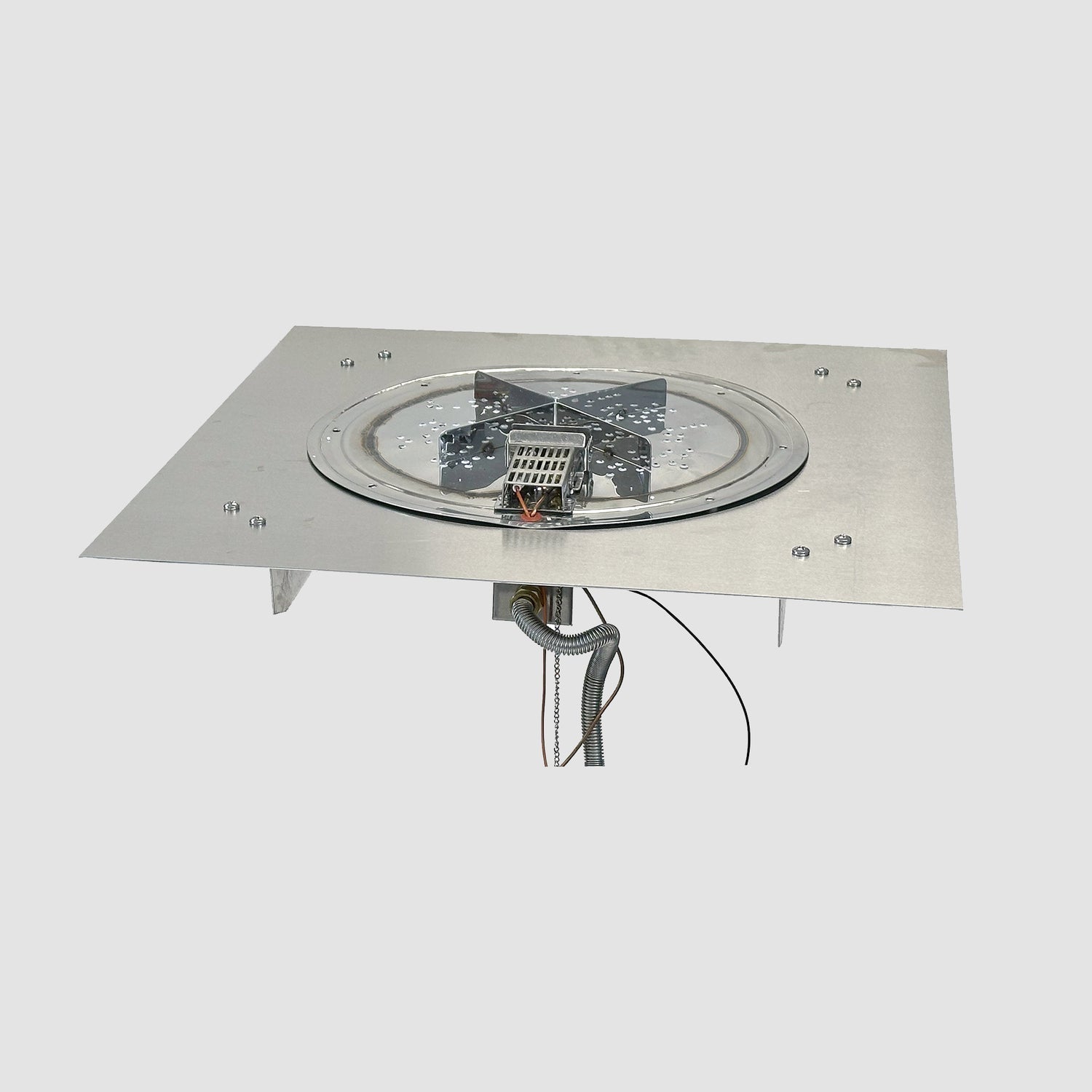

The Outdoor GreatRoom Company Crystal Fire Plus 42" Square Manual Gas Burner Insert brings high-performance functionality to custom fire pit builds. Crafted from commercial-grade #304 stainless steel, this burner ensures durability and corrosion resistance in demanding outdoor environments.
Designed with a manual ignition system and built-in safety shutoff, it automatically stops the gas flow if the flame is ever extinguished. The factory-assembled “Positive Connect” system simplifies setup, minimizing installation time for certified technicians.
With a powerful 106,000 BTU output and a capacity for up to 90 lbs of fire media, this burner delivers a dramatic flame presentation. UL and ULC certifications guarantee safe and reliable operation, making it ideal for both residential and commercial outdoor installations.
What's Included:
- Square Gas Burner Insert and Plate Kit
Features:
- Commercial-grade #304 stainless steel
- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Depending on your application, you may need less fire media than suggested/included amount.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.
Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height

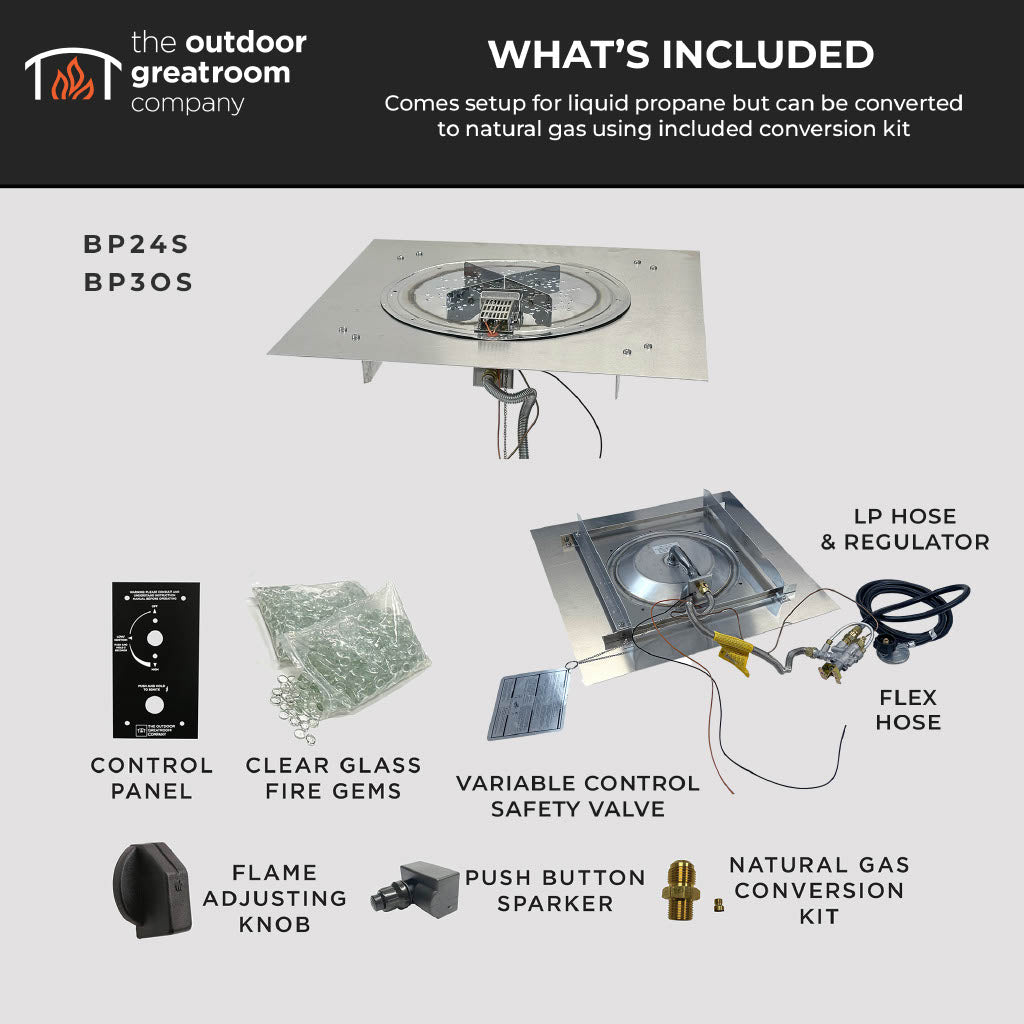

- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

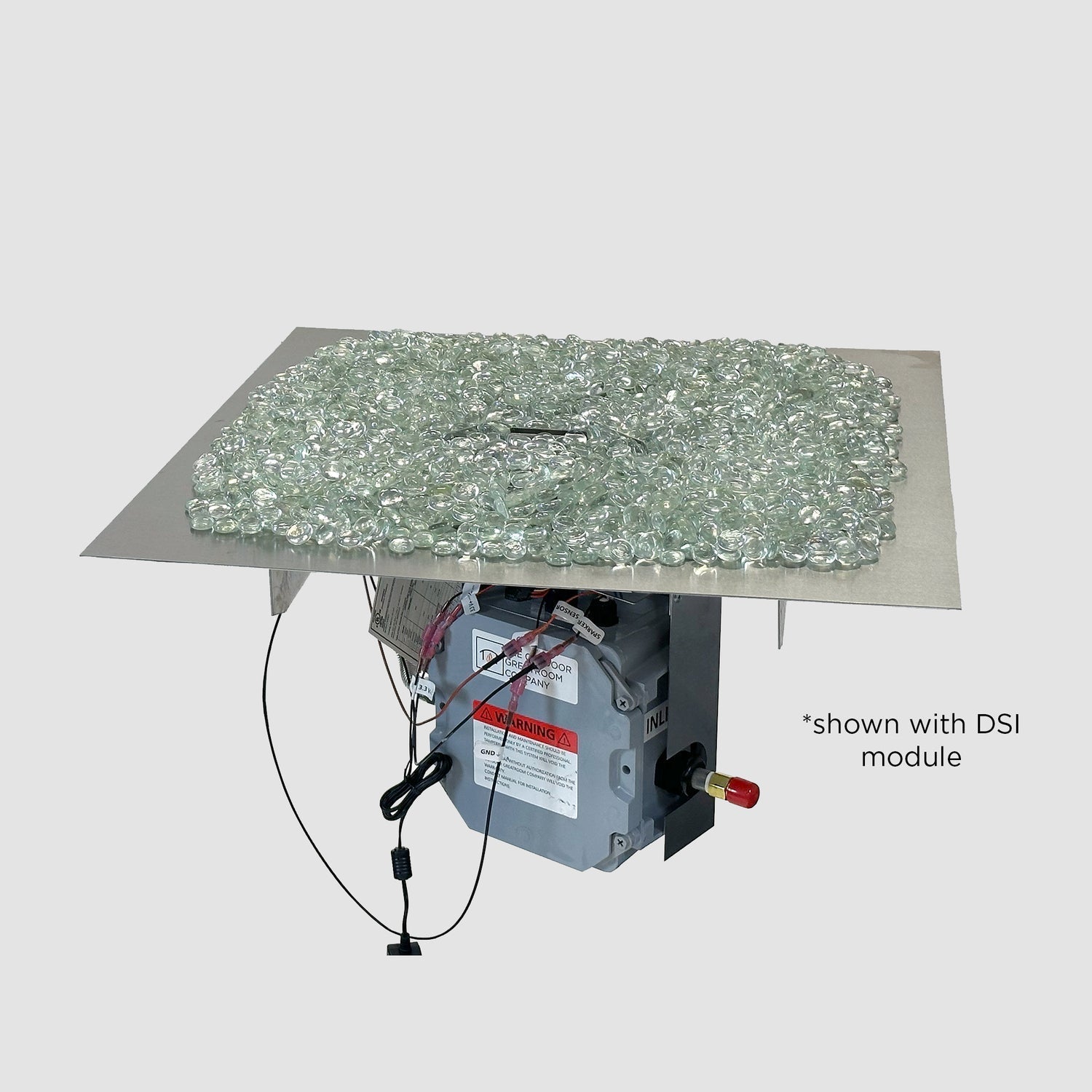

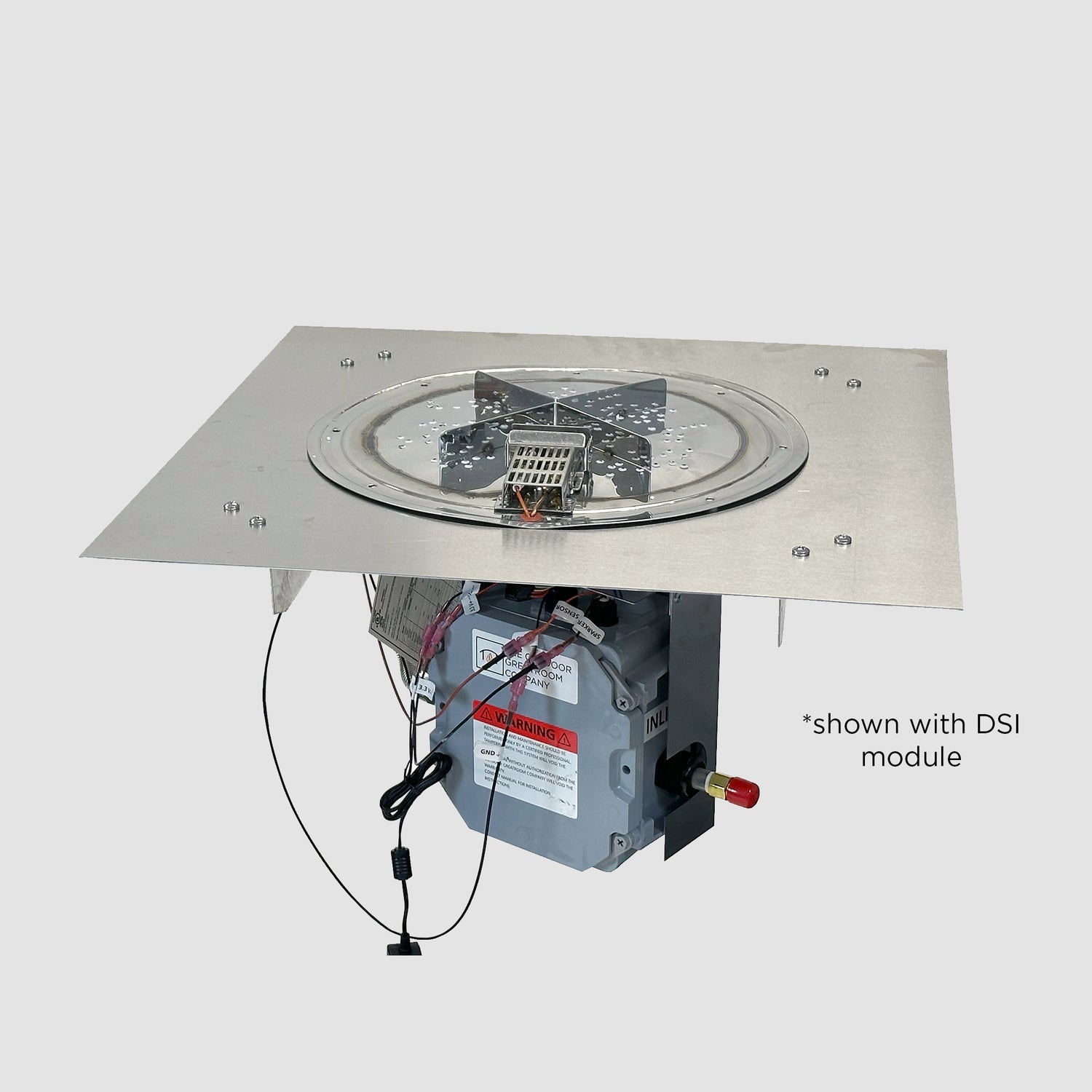

Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible

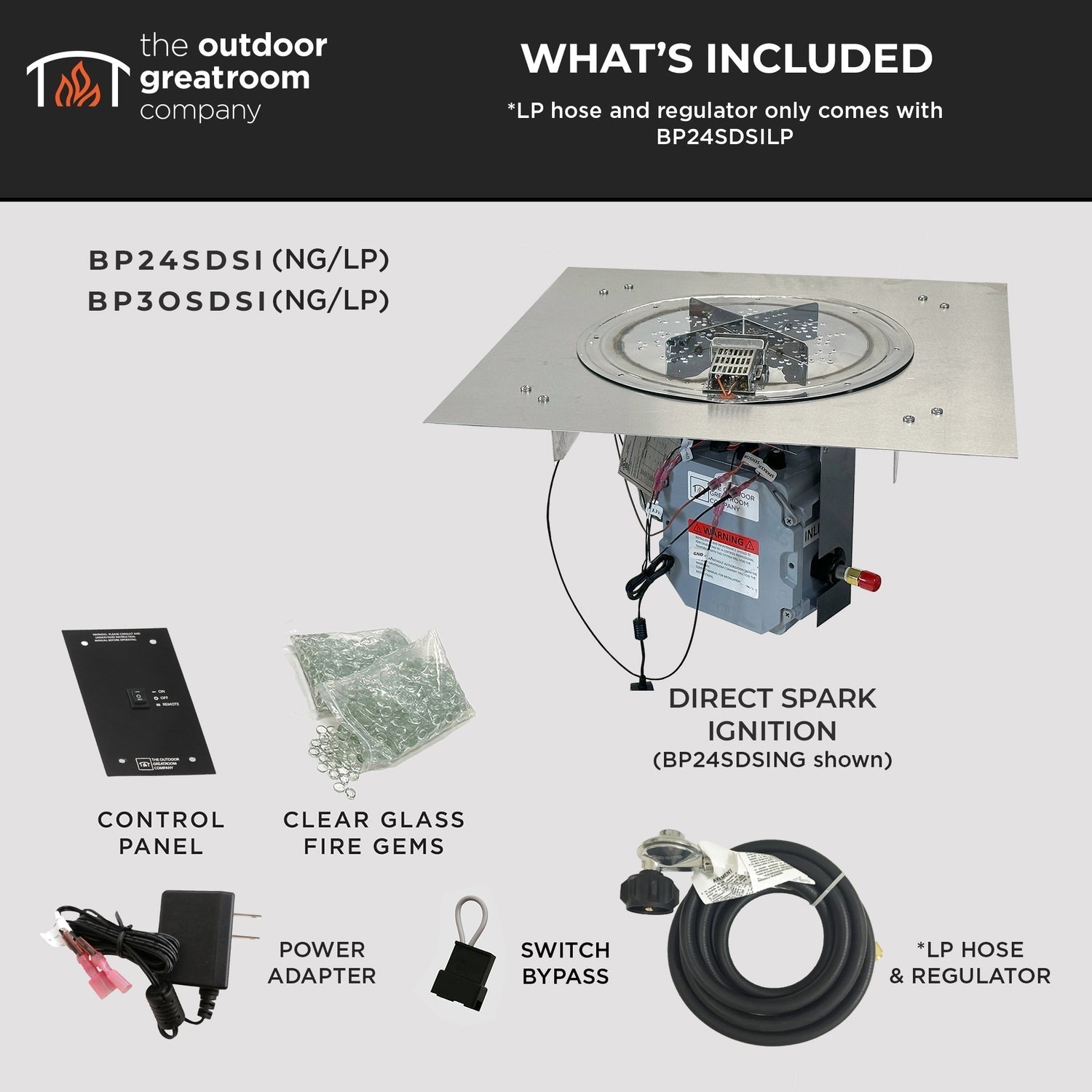

- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 53.7 lbs |
| BTUs (LP/NG) | 105/106K |
| Fire Media | 90 lbs |
Warranty:
Documents & Files:
- Specifications Sheet
- Commercial Burner Supplement Manual
- Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
