Description
Bring unmatched performance and modern design to your outdoor fire feature with The Outdoor GreatRoom Company’s Crystal Fire Plus 13.5" x 64" Linear Manual Gas Burner Plate. Crafted from commercial-grade #304 stainless steel, this durable burner offers 100,000 BTUs of reliable heat and a sleek, linear flame presentation that enhances any custom fire pit or table.
Designed with safety and ease-of-use in mind, this burner includes a built-in ignition safety shutdown that cuts gas supply if the flame is ever extinguished. “Positive Connect” technology simplifies installation by minimizing field gas connections—most are completed at the factory for quicker setup. This model is also UL and ULC listed, ensuring peace of mind through rigorous testing and certification.
The burner plate is compatible with both natural gas and propane setups and includes two valves and control panels for larger kits. It comes ready to support up to 25 lbs of fire media and is ideal for residential or commercial settings where custom fire feature design and robust heating performance are a priority. For best results, installation should be handled by a certified gas technician.
What's Included:
- Round Gas Burner
- Assembly Kit
Features:
- Commercial-grade #304 stainless steel
- Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
- “Positive Connect” offers minimal gas connections and quick installation time as most connections made in factory
- UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
- Installation should be completed by a certified gas technician
- Kits above 12" x 64” include two valves and two control panels
- Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
- WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm.

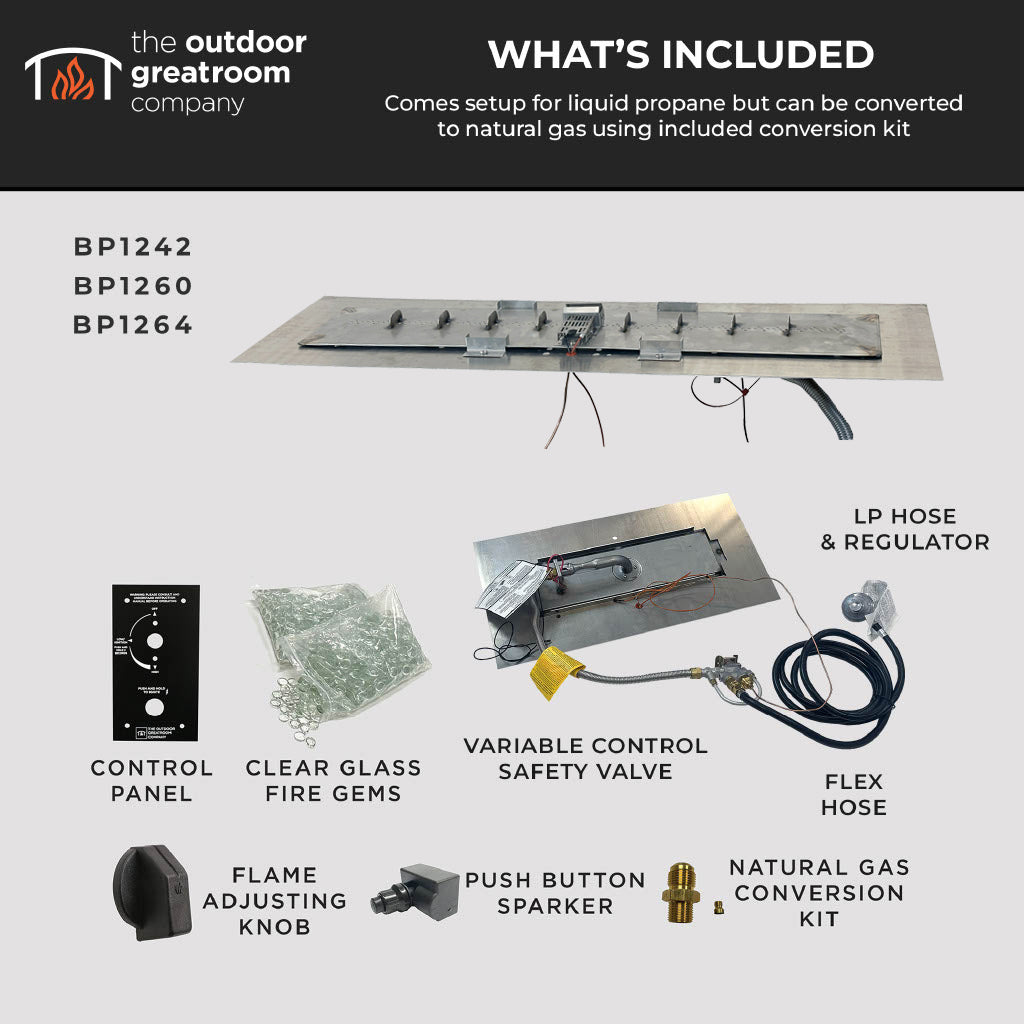

Variable Control Safety Valve/Manual Ignition:
- Fully adjustable flame height
- Comes setup for liquid propane but can be converted to natural gas using included conversion kit
- Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

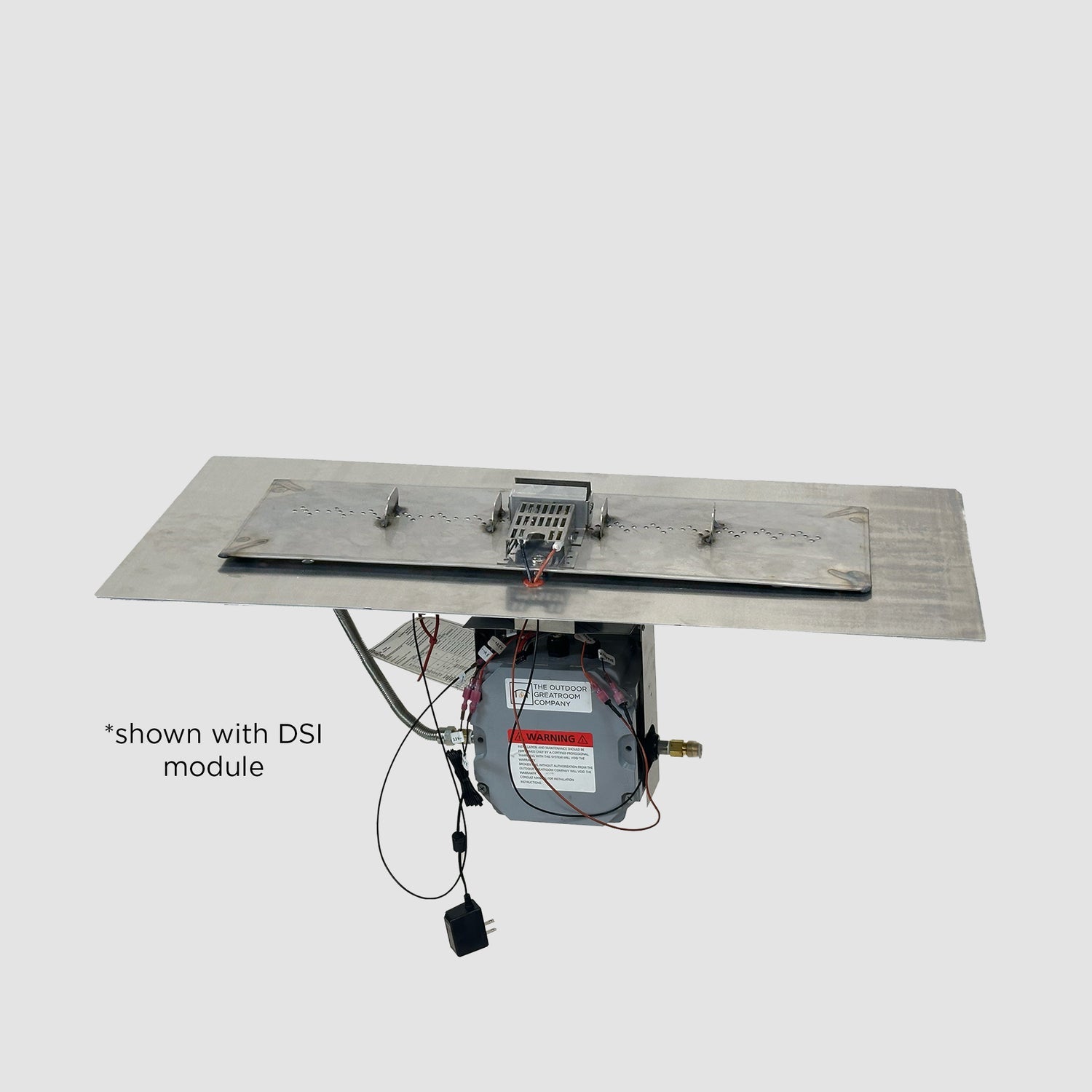

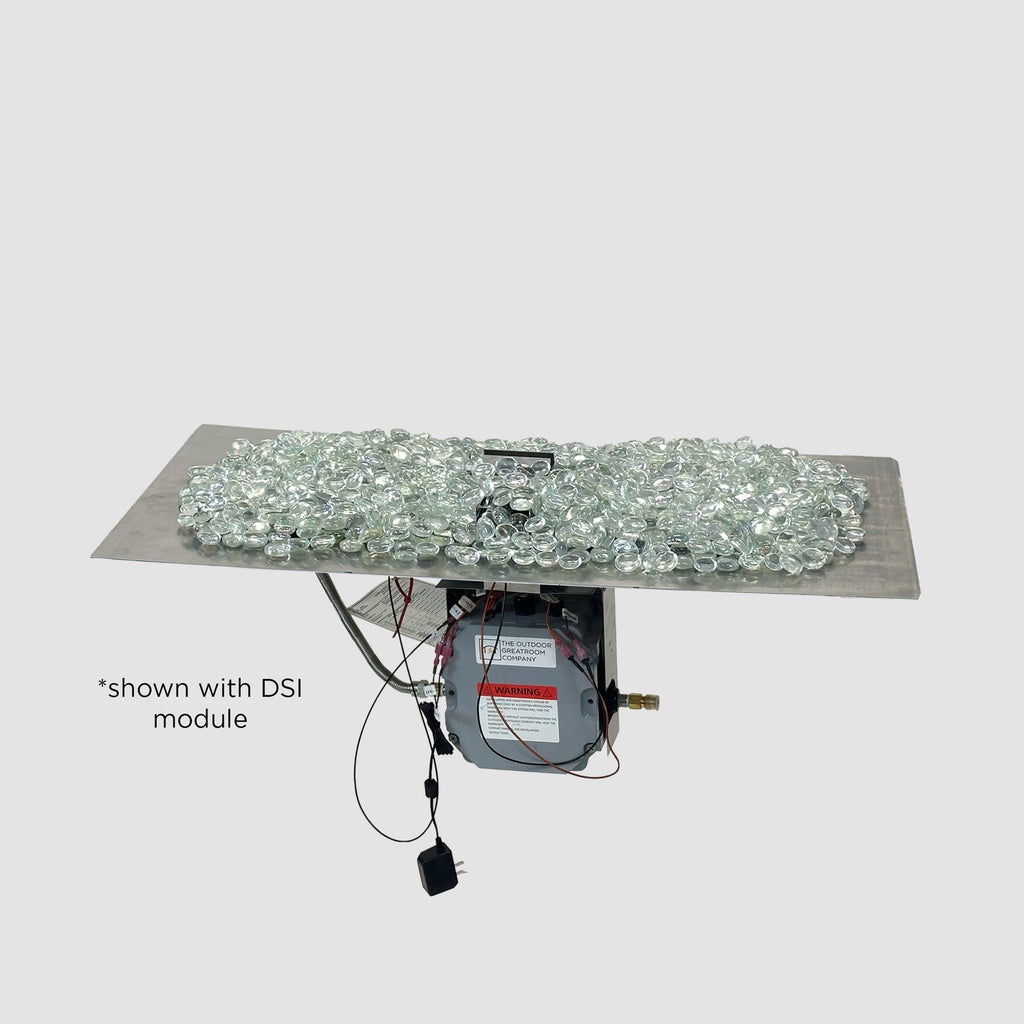

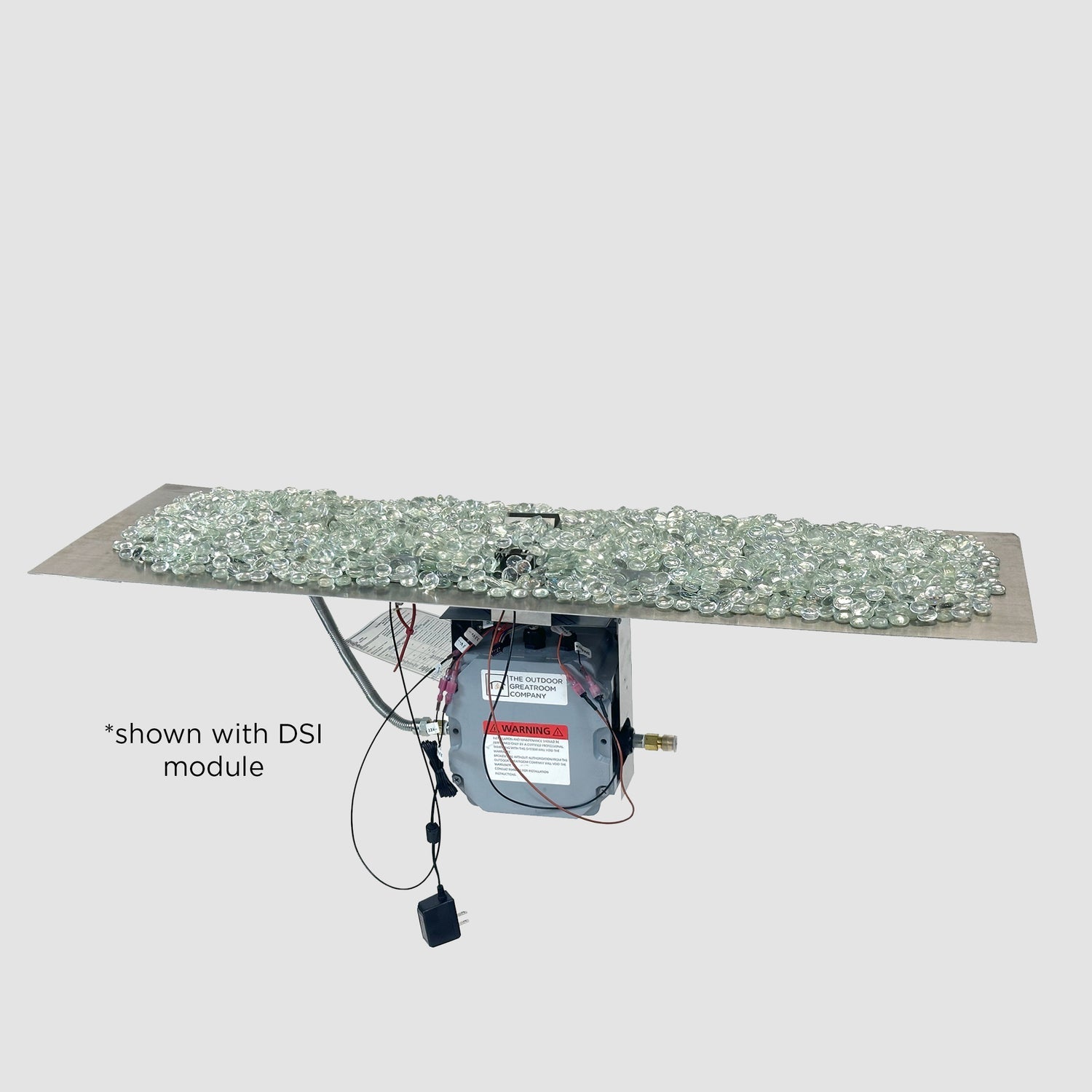

Direct Spark Ignition System/Automatic Ignition:
- Please specify LP or NG, not field-convertible
- Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
- Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
Specifications:
| Burner Weight | 20.9 lbs |
| BTUs (LP/NG) | 100K |
| Fire Media | 25 lbs |
Warranty:
Documents & Files:
- Specifications Sheet
- Commercial Burner Supplement Manual
- Crystal Fire Plus Burner Kits Info Sheet (for direct spark ignition)
- Crystal Fire Plus Burner Manual
- Direct Spark Ignition Manual
- Crystal Fire Plus Burner Kits Info Sheet (for manual ignition)
