Description

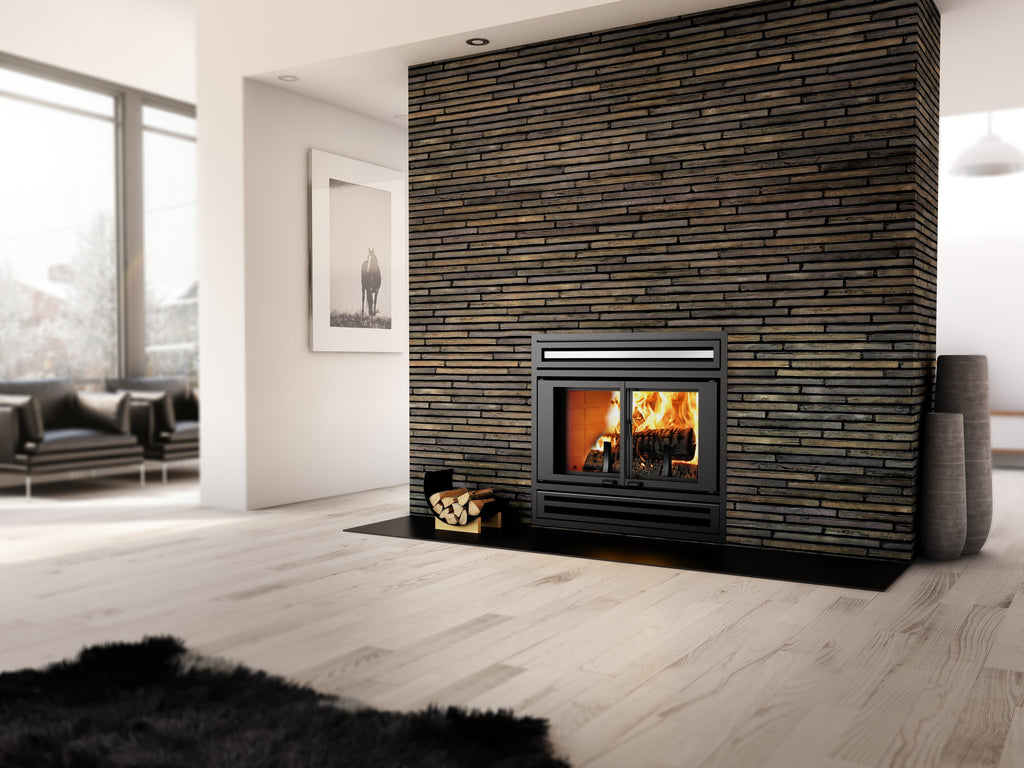

Enhance your home with the Valcourt Manoir FP1LM Indoor Wood Burning Fireplace, a stunning combination of luxury design and efficient heating performance. This premium wood-burning fireplace features durable steel-framed double doors with ceramic glass that slide effortlessly to each side, offering a clear and captivating view of the flames. Designed for homeowners who value both style and substance, the Manoir FP1LM offers two customizable faceplate styles to complement any interior décor. Built with heavy-duty materials, this Valcourt fireplace guarantees long-lasting performance and dependable warmth for years of cozy comfort.
The Valcourt Manoir FP1LM Fireplace is ideal for medium-sized spaces, providing a recommended heating area of up to 1,500 sq. ft. Its spacious 4.25 cu. ft. firebox accommodates logs up to 20 inches long, ensuring long burn durations and consistent heat output. For added convenience, you can upgrade with an optional 176 CFM blower and dual hot air distribution kits to circulate heat more effectively throughout your home. The refractory brick-lined firebox and cast iron andirons enhance combustion efficiency and durability, while the fireplace’s sleek design makes it a perfect focal point for any modern or traditional living area.
Environmentally friendly and EPA Phase II qualified, the Valcourt Manoir FP1LM Indoor Fireplace burns up to 70% cleaner than non-certified decorative wood-burning models. This ensures you enjoy the authentic ambiance of a real wood fire while maintaining excellent air quality. Certified to UL 127 and ULC-S610 safety standards, the Manoir FP1LM offers peace of mind with every use.
What's Included:
- 41" Wood Burning Fireplace
- Black Traditional Faceplate Louver
- Retractable Ceramic Glass Doors
- Cast Iron Andirons
- Blower
- Fresh Air Intake Adapter
- Moulded Refractory Bricks
Not Included (Sold Separately):
- 4''Ø Fresh Air Intake Register With Airtight Damper
- 6"Ø x 25' Insulated Flex Pipe For Forced Air Kit
- Air Kit
- Gravity Kit
- Glass Hearth Pad
Features:
- The steel framed double doors with ceramic glass slide into each side of the fireplace, smoothly and easily; allowing for an exceptional view of the crackling flames.
- Thanks to the availability of two different styles of faceplates, this model will enable you to be creative with your décor.
- Moreover, you can benefit from the Manoir’s maximum heating output by using its optional blower and its two hot air distribution kits.
- All Valcourt fireplaces feature a heavy duty construction for guaranteed peace of mind. A real solid luxury that will provide years of relaxation for you and your family.
- Decorative Fireplaces for Ambiance While Being Environmentally Friendly – While giving you the ambiance and comfort of a wood fire, these fireplaces give you elegance without compromising air quality. These fireplaces qualify for Phase II of the EPA voluntary program of decorative wood-burning fireplaces which is approximately 70% cleaner than unqualified models.
Speciifcations:
| Model Number | FP1LM |
| UPC | 773388088716 |
| Fuel Type | Dry cordwood (16" recommended) |
| Recommended Heating Area | <1,500 sq. ft. |
| Overall Firebox Volume | 4.25 cu. ft. |
| Average particulate emissions rate | 2.9 g/kg |
| Burn Rate | >5 kg/h (>11 lb/h) |
| High-Efficiency Certified Appliance | Low Mass |
| Maximum Log Length | 20" |
| Log Positioning | Loading over width |
| Chimney Diameter | 8" |
| Type Of Chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum Chimney Height (Feet) | 15' |
| Approved For A Mobile Home Installation | No |
| Shipping Weight | 520 lb (236 kg) |
| Door Type | Double, glass with steel frame |
| Glass Type | Ceramic glass |
| Glass Surface – Dimensions (Width x Height) | 29" x 17 1/4" |
| Glass air-wash system | NA |
| Premium quality blower included (CFM) | 176 |
| Overall Dimension (Height) | 43 5/8" |
| Overall Dimension (Width) | 41 1/8" |
| Overall Dimension (Depth) | 27 3/8" |
| Door Opening – Dimension (Height) | 17 7/8" |
| Door Opening - Dimension (Width) | 30" |
| Firebox – Dimension (Height) | 18 5/8" |
| Firebox – Dimension (Width) | 23 3/8" |
| Firebox – Dimension (Depth) | 11 3/8" |
| Moulded Refractory Bricks | Yes |
| Cast Iron Andirons | Yes |
| USA Standard (Emissions) | ASTM 2515, ASTM 2558 |
| USA Standard (Safety) | UL 127 |
| Canadian Standard (Safety) | ULC-S610 |
Minimum clearances to combustibles:
(Data expressed in inches. 1 inch = 25.4 mm)
| Canada | United States | |
| Clearance – top (measured from the platform on which the appliance is installed)** | 72" | 72" |
| Clearance – combustible side mantle to unit | 8" | 8" |
| Clearance – combustible top mantle to unit | 5 1/2" | 5 1/2" |
| Clearance – combustible side wall to unit | 24" | 24" |
| Clearance - from the shelf to the base of the fireplace | 48" | 48" |
*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
Documents:
- Manoir Wood Fireplace Installation Manual
- Manoir Wood Fireplace Dimensions
- Manoir Wood Fireplace Quick Installation Reference Guide
- Fresh Air Intake Register Manual
- Forced Air Distribution Kit Instructions
- Glass Hearth Pad Manual
- Digital Moisture Reader Manual
- Wood Storage with Finishing Trim Manual
Warranty:
- Limited Lifetime Warranty
About The Manufacturer:
It was in 1992 that Valcourt discovered its true vocation and manufactured its first wood fireplace: the Manoir. Just as popular with consumers as with industry experts, this model has been replicated by multiple manufacturers without ever being matched. A few years later, Valcourt innovated again with its legendary guillotine fireplace, called Antoinette. Very first guillotine fireplace on the market, this model is the pioneer of this type and was a major success. Over the years, the fireplace industry has undergone many changes in environmental standards that have imposed increasingly severe restrictions. Living up to its previous successes, Valcourt has brilliantly met these new challenges and launched in 2015 the largest fireplace on the market that meets the EPA requirements.
